 Dimensions 5202

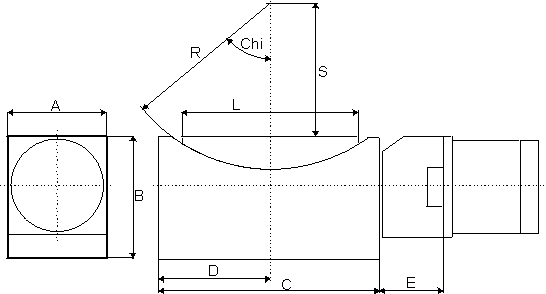

Dimension Drawing
5202.1 5202.2 5202.3 5202.4 5202.5 5202.8
R [mm]: 242 196 242 84 146 400...1000
 S [mm]: 220 170 220 60* 126* 350...
A [mm]: 170 60 60 60 60 249
B [mm]: 80 84 80 66* 64 90
C [mm]: 170 170 170 156 156 249
D [mm]: 85 85 85 70 70 124.5
E [mm]: 22 22 22 16 16 64
Chi [deg]: +/- 17 +/- 20 +/- 17 +/- 30 +/- 20 +/- 5
L [mm]: 170 170 170 115 110 249
Max. Load [N]: 1000 1000 1000 1000 1000 2000
Weight [kg]: 13 4 4 4 4 22
*) 5202.4 and 5202.5 are combinable for common rotation center
