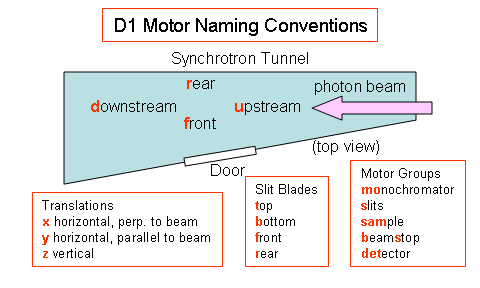

Motor | controller | steps | sign | slew | base | backl | accel | name | comment |
MOT000 | GALIL:5/0 | 3149.6 | 1 | 5000 | 2000 | 1000 | 100 | detx | detector x |
MOT001 | GALIL:5/1 | -2834.6 | 1 | 5000 | 2000 | -1000 | 100 | detz | detector z |
MOT002 | GALIL:5/2 | 3149.6 | 1 | 5000 | 2000 | 1000 | 100 | bsx | beamstop x |
MOT003 | GALIL:5/3 | -2834.6 | 1 | 5000 | 2000 | -1000 | 100 | bsz | beamstop z |
MOT004 | GALIL:5/4 | -3149.6 | 1 | 5000 | 2000 | -1000 | 100 | fpx | flight path x |
MOT005 | GALIL:5/5 | -2834.6 | 1 | 5000 | 2000 | -1000 | 100 | fpz | flightpath z |
MOT006 | GALIL:5/6 | -1574.8 | 1 | 5000 | 2000 | -500 | 100 | bsx2 | giwaxs bs x |
MOT007 | GALIL:5/7 | 2834.6 | 1 | 5000 | 2000 | 1000 | 100 | bsz2 | giwaxs bs z |
MOT008 | GALIL:4/0 | -3149.6 | 1 | 5000 | 2000 | -1000 | 250 | samx | sample x |
MOT009 | GALIL:4/1 | 2834.6 | 1 | 5000 | 2000 | 1000 | 250 | samz | sample z |
MOT010 | GALIL:4/2 | -40000 | 1 | 20000 | 4000 | -4000 | 250 | samth | sample theta |
MOT011 | GALIL:4/3 | 2000 | 1 | 5000 | 2000 | 200 | 250 | samtilt | sample tilt |
MOT012 | GALIL:4/4 | 2000 | 1 | 5000 | 2000 | 200 | 250 | samaz | sample azimuth |
MOT013 | NONE:4/5 | -3149.6 | 1 | 5000 | 2000 | -1000 | 250 | fmix | |
MOT014 | NONE:4/6 | -2834.6 | 1 | 5000 | 2000 | -1000 | 250 | fmiz | |
MOT015 | NONE:4/7 | 40000 | 1 | 4000 | 2000 | 20000 | 250 | fmith | |
MOT016 | NONE:0/0 | -2834.6 | 1 | 4000 | 2000 | -1000 | 250 | fbend | |
MOT017 | NONE:0/3 | -44444.4 | 1 | 10000 | 2000 | -4000 | 250 | ana | energy analyzer |
MOT018 | NONE:0/3 | 10000 | 1 | 5000 | 500 | 1000 | 250 | E | mono energy (not yet implemented) |
MOT019 | GALIL:0/3 | -21818.18 | 1 | 5000 | 500 | 1000 | 100 | mothu | mono theta upstream |
MOT020 | GALIL:0/1 | 21818.18 | 1 | 5000 | 500 | 1000 | 100 | momith | mono mirror theta |
MOT021 | GALIL:0/4 | 21818.18 | 1 | 5000 | 500 | 1000 | 100 | mothd | mono theta downstream |
MOT022 | GALIL:0/7 | 28571.428 | 1 | 5000 | 500 | 1000 | 100 | mochid | mono chi downstream |
MOT023 | GALIL:0/6 | -393.7 | 1 | 1000 | 500 | -300 | 100 | mox | mono x |
MOT024 | GALIL:0/0 | -393.7 | 1 | 1000 | 500 | -300 | 100 | montrave | montrav |
MOT025 | GALIL:0/2 | 2834.6 | 1 | 2500 | 500 | 1000 | 100 | monoff | mono offset |
MOT026 | GALIL:0/5 | 2834.6 | 1 | 2500 | 500 | 1000 | 100 | momiz | mono mirror z |
MOT027 | GALIL:1/4 | -1889.76 | 1 | 2000 | 300 | -250 | 250 | mozu | mono z upstream |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT028 | GALIL:1/5 | 1889.76 | 1 | 2000 | 300 | 250 | 250 | mozrd | mono z rear downstream |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT029 | GALIL:1/6 | -1889.76 | 1 | 2000 | 300 | -250 | 250 | mozfd | mono z front downstream |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT030 | NONE:0/0 | -2520 | 1 | 5000 | 1000 | -250 | 200 | moz | mono z (combined motion, not yet implemented) |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT031 | NONE:0/0 | -2520 | 1 | 5000 | 1000 | -250 | 200 | mopitch | mono pitch (combined motion, n.y.i.) |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT032 | NONE:0/0 | -2520 | 1 | 5000 | 1000 | -250 | 200 | moroll | mono roll (combined motion, n. y. i.) |
MOTPAR:deceleration | 200 | | | | | | | | |
| | | | | | | | viewuz | diamond beam viewer upstream |
| | | | | | | | viewdz | diamond beam viewer downstream |
MOT033 | GALIL:2/0 | -2520 | 1 | 5000 | 1000 | -250 | 200 | uxu | upstream table x upstream |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT034 | GALIL:2/1 | 2520 | 1 | 5000 | 1000 | 250 | 200 | uyt | upstream table y table |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT035 | GALIL:2/2 | -7874 | 1 | 5000 | 1000 | -800 | 200 | uzu | upstream table z upstream |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT036 | GALIL:2/3 | -2520 | 1 | 5000 | 1000 | -250 | 200 | uxd | upstream table x downstream |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT037 | GALIL:2/4 | -7874 | 1 | 5000 | 1000 | -800 | 200 | uzdr | upstream table z downstream rear |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT038 | GALIL:2/5 | -7874 | 1 | 5000 | 1000 | -800 | 200 | uzdf | upstream table z downstream front |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT039 | GALIL:3/0 | 2520 | 1 | 5000 | 1000 | 250 | 200 | dxu | |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT040 | GALIL:3/1 | 2520 | 1 | 5000 | 1000 | 250 | 200 | dyt | |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT041 | GALIL:3/2 | 7874 | 1 | 5000 | 1000 | 800 | 200 | dzu | |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT042 | GALIL:3/3 | -2520 | 1 | 5000 | 1000 | -250 | 200 | dxd | |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT043 | GALIL:3/4 | 7874 | 1 | 5000 | 1000 | 800 | 200 | dzdr | |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT044 | GALIL:3/5 | -7874 | 1 | 5000 | 1000 | -800 | 200 | dzdf | |
MOTPAR:deceleration | 200 | | | | | | | | |
MOT045 | NONE:9/0 | -3149.6 | 1 | 5000 | 2000 | -1000 | 200 | samxf | |
MOT046 | NONE:9/1 | -2834.6 | 1 | 5000 | 2000 | -1000 | 200 | samzf | |
MOT047 | NONE:9/2 | -3149.6 | 1 | 5000 | 2000 | -1000 | 200 | samxr | |
MOT048 | NONE:9/3 | -2834.6 | 1 | 5000 | 2000 | -1000 | 200 | samzr | |
MOT049 | NONE:5/5 | -2000 | 1 | 2000 | 200 | -100 | 250 | xsam | |
MOT050 | NONE:5/6 | -2000 | 1 | 2000 | 200 | -100 | 250 | zsam | |
MOT051 | NONE:5/7 | -40000 | 1 | 20000 | 2000 | -4000 | 250 | thsam | |
MOT052 | NONE:5/8 | 1000 | 1 | 2000 | 200 | 500 | 250 | phisam | |
MOT053 | NONE:3/4 | 5000 | 1 | 20000 | 2000 | 500 | 250 | scanz | |
MOT054 | NONE:3/6 | -3149.6 | 1 | 5000 | 1000 | -1000 | 125 | Polyx | |
MOT055 | NONE:3/5 | -3149.6 | 1 | 5000 | 1000 | -1000 | 125 | Polyy | |
MOT056 | NONE:3/7 | -2834.6 | 1 | 5000 | 1000 | -1000 | 125 | Polyz | |
MOT057 | NONE:2/6 | 3149.6 | 1 | 5000 | 2000 | 1000 | 200 | capx | |
MOTPAR:deceleration | 125 | | | | | | | | |
MOT058 | NONE:2/6 | -2834.6 | 1 | 5000 | 2000 | -1000 | 200 | capz | |
MOTPAR:deceleration | 125 | | | | | | | | |
MOT059 | NONE:2/7 | 3149.6 | 1 | 5000 | 2000 | 1000 | 200 | blkx | |
MOT060 | NONE:2/8 | 2834.6 | 1 | 5000 | 2000 | 1000 | 200 | blkz | |
MOT061 | MAC_MOT:6/0 | 2000 | 1 | 500 | 100 | 200 | 100 | uzd | upstream table z downstream (combined motion) |
MOT062 | MAC_MOT:4/0 | 2000 | 1 | 500 | 100 | 200 | 100 | dzd | |
MOT063 | MAC_MOT:7/0 | 2000 | 1 | 500 | 100 | 200 | 100 | uxt | |
MOT064 | MAC_MOT:5/0 | 2000 | 1 | 500 | 100 | 200 | 100 | dxt | |
MOT065 | MAC_MOT:7/1 | 2000 | 1 | 500 | 100 | 200 | 100 | uzt | |
MOT066 | MAC_MOT:5/1 | 2000 | 1 | 500 | 100 | 200 | 100 | dzt | |
MOT067 | MAC_MOT:7/2 | 2000 | 1 | 500 | 100 | 200 | 100 | upitch | |
MOT068 | MAC_MOT:5/2 | 2000 | 1 | 500 | 100 | 200 | 100 | dpitch | |
MOT069 | MAC_MOT:6/1 | 2000 | 1 | 500 | 100 | 200 | 100 | uroll | |
MOT070 | MAC_MOT:4/1 | 2000 | 1 | 500 | 100 | 200 | 100 | droll | |
MOT071 | MAC_MOT:7/3 | 2000 | 1 | 500 | 100 | 200 | 100 | uyaw | |
MOT072 | MAC_MOT:5/3 | 2000 | 1 | 500 | 100 | 200 | 100 | dyaw | |
MOT073 | NONE:0/4 | 314.96 | 1 | 200 | 50 | 50 | 100 | slitx | |
MOT074 | NONE:0/5 | -283.46 | 1 | 200 | 50 | -50 | 200 | slity | |
MOT075 | NONE:0/6 | -1000 | 1 | 800 | 200 | 200 | 100 | slittop | |
MOT076 | NONE:0/7 | 1000 | 1 | 800 | 200 | -200 | 100 | slitbot | |
MOT077 | NONE:0/0 | -314.96 | 1 | 300 | 100 | -50 | 100 | padx | |
MOT078 | NONE:0/1 | -283.46 | 1 | 300 | 100 | -50 | 100 | pady | |
MOT079 | NONE:0/2 | 315 | 1 | 300 | 100 | 100 | 250 | injx | |
MOTPAR:deceleration | 250 | | | | | | | | |
MOT080 | NONE:0/3 | -787.4 | 1 | 200 | 50 | 100 | 100 | injz | |
MOT081 | NONE:3/1 | 3149.6 | 1 | 5000 | 2000 | 1000 | 125 | dety | |
MOT082 | NONE:3/8 | 3149.6 | 1 | 20000 | 2000 | 0 | 200 | scany | |
MOTPAR:encoder_step_size | 20000 | | | | | | | | |
MOTPAR:step_mode | 0 | | | | | | | | |
MOTPAR:rotary | 0 | | | | | | | | |
MOTPAR:slop | 2000 | | | | | | | | |
MOTPAR:read_mode | 0 | | | | | | | | |
MOT083 | NONE:3/3 | 5000 | 1 | 20000 | 2000 | 0 | 50 | scanx | |
MOT084 | NONE:8/4 | 3276.7 | 1 | 2000 | 200 | 0 | 10 | dac_test | |
MOT085 | MDRIVE_E:0/1 | -3225.2 | 1 | 2000 | 200 | 200 | 250 | sgt | guard slit top blade |
MOTPAR:dc_following_error | 100 | | | | | | | | |
MOTPAR:slop | 100 | | | | | | | | |
MOTPAR:torque | 0 | | | | | | | | |
MOTPAR:misc_par_1 | 100 | | | | | | | | |
MOTPAR:misc_par_2 | 5 | | | | | | | | |
MOTPAR:misc_par_3 | 100 | | | | | | | | |
MOTPAR:misc_par_4 | 100 | | | | | | | | |
MOT086 | MDRIVE_E:0/2 | 3225.2 | 1 | 2000 | 200 | -200 | 250 | sgb | guard slit bottom |
MOTPAR:dc_following_error | 100 | | | | | | | | |
MOTPAR:slop | 100 | | | | | | | | |
MOTPAR:read_mode | 0 | | | | | | | | |
MOTPAR:misc_par_1 | 100 | | | | | | | | |
MOTPAR:misc_par_2 | 5 | | | | | | | | |
MOTPAR:misc_par_3 | 100 | | | | | | | | |
MOTPAR:misc_par_4 | 100 | | | | | | | | |
MOT087 | MDRIVE_E:0/3 | -3225.2 | 1 | 2000 | 200 | 200 | 250 | sgr | guard slit rear |
MOTPAR:dc_following_error | 100 | | | | | | | | |
MOTPAR:slop | 100 | | | | | | | | |
MOTPAR:misc_par_1 | 100 | | | | | | | | |
MOTPAR:misc_par_2 | 5 | | | | | | | | |
MOTPAR:misc_par_3 | 100 | | | | | | | | |
MOTPAR:misc_par_4 | 100 | | | | | | | | |
MOT088 | MDRIVE_E:0/4 | 3225.2 | 1 | 2000 | 200 | -200 | 250 | sgf | guard slit front |
MOTPAR:dc_following_error | 100 | | | | | | | | |
MOTPAR:slop | 100 | | | | | | | | |
MOTPAR:misc_par_1 | 100 | | | | | | | | |
MOTPAR:misc_par_2 | 5 | | | | | | | | |
MOTPAR:misc_par_3 | 100 | | | | | | | | |
MOTPAR:misc_par_4 | 100 | | | | | | | | |
MOT089 | NONE:2/2 | -2834.6 | 1 | 5000 | 2000 | -1000 | 125 | sgz | |
MOTPAR:misc_par_1 | sgf | | | | | | | | |
MOTPAR:misc_par_2 | sgr | | | | | | | | |
MOT090 | MAC_MOT:0/1 | 2048 | 1 | 2000 | 200 | 0 | 125 | sghg | |
MOTPAR:misc_par_1 | sgf | | | | | | | | |
MOTPAR:misc_par_2 | sgr | | | | | | | | |
MOTPAR:misc_par_3 | 0 | | | | | | | | |
MOT091 | NONE:2/1 | -3149.6 | 1 | 5000 | 2000 | -1000 | 125 | sgx | |
MOTPAR:misc_par_1 | 0 | | | | | | | | |
MOTPAR:misc_par_2 | 0 | | | | | | | | |
MOT092 | MAC_MOT:0/3 | 2048 | 1 | 2000 | 200 | 0 | 125 | sgvg | |
MOTPAR:misc_par_1 | 0 | | | | | | | | |
MOTPAR:misc_par_2 | 0 | | | | | | | | |
MOTPAR:misc_par_3 | 0 | | | | | | | | |
MOT093 | MDRIVE_E:0/5 | -3225.1 | 1 | 2000 | 200 | 200 | 250 | shr | collimation slit rear blade |
MOTPAR:dc_following_error | 100 | | | | | | | | |
MOTPAR:slop | 100 | | | | | | | | |
MOTPAR:misc_par_1 | 100 | | | | | | | | |
MOTPAR:misc_par_2 | 5 | | | | | | | | |
MOTPAR:misc_par_3 | 100 | | | | | | | | |
MOTPAR:misc_par_4 | 100 | | | | | | | | |
MOT094 | MDRIVE_E:0/6 | 3225.2 | 1 | 2000 | 200 | -200 | 250 | shf | collimation slit front blade |
MOTPAR:dc_following_error | 100 | | | | | | | | |
MOTPAR:slop | 100 | | | | | | | | |
MOTPAR:misc_par_1 | 100 | | | | | | | | |
MOTPAR:misc_par_2 | 5 | | | | | | | | |
MOTPAR:misc_par_3 | 100 | | | | | | | | |
MOTPAR:misc_par_4 | 100 | | | | | | | | |
MOT095 | MDRIVE_E:0/7 | -3225.2 | 1 | 2000 | 200 | 200 | 250 | sht | collimation slit top blade |
MOTPAR:dc_following_error | 100 | | | | | | | | |
MOTPAR:slop | 100 | | | | | | | | |
MOTPAR:misc_par_1 | 100 | | | | | | | | |
MOTPAR:misc_par_2 | 5 | | | | | | | | |
MOTPAR:misc_par_3 | 100 | | | | | | | | |
MOTPAR:misc_par_4 | 100 | | | | | | | | |
MOT096 | MDRIVE_E:0/8 | 3225.2 | 1 | 2000 | 200 | -200 | 250 | shb | collimation slit bottom blade |
MOTPAR:dc_following_error | 100 | | | | | | | | |
MOTPAR:slop | 100 | | | | | | | | |
MOTPAR:misc_par_1 | 100 | | | | | | | | |
MOTPAR:misc_par_2 | 5 | | | | | | | | |
MOTPAR:misc_par_3 | 100 | | | | | | | | |
MOTPAR:misc_par_4 | 100 | | | | | | | | |
MOT097 | NONE:2/7 | -2834.6 | 1 | 5000 | 2000 | -1000 | 125 | shx | |
MOTPAR:misc_par_1 | 0 | | | | | | | | |
MOTPAR:misc_par_2 | 0 | | | | | | | | |
MOT098 | MAC_MOT:1/1 | 2048 | 1 | 2000 | 200 | 0 | 125 | shhg | |
MOTPAR:misc_par_1 | 0 | | | | | | | | |
MOTPAR:misc_par_2 | 0 | | | | | | | | |
MOTPAR:misc_par_3 | 0 | | | | | | | | |
MOT099 | NONE:2/8 | -3149.6 | 1 | 5000 | 2000 | -1000 | 125 | shz | |
MOTPAR:misc_par_1 | 0 | | | | | | | | |
MOTPAR:misc_par_2 | 0 | | | | | | | | |
MOT100 | MAC_MOT:1/3 | 2048 | 1 | 2000 | 200 | 0 | 125 | shvg | |
MOTPAR:misc_par_1 | 0 | | | | | | | | |
MOTPAR:misc_par_2 | 0 | | | | | | | | |
MOTPAR:misc_par_3 | 0 | | | | | | | | |
MOT101 | GALIL:1/0 | 18000 | 1 | 6000 | 1000 | 2000 | 250 | beamr | white beam slit rear |
MOT102 | GALIL:1/1 | 18000 | 1 | 6000 | 1000 | 2000 | 250 | beamf | white beam slit front |
MOT103 | GALIL:1/2 | 18000 | 1 | 6000 | 1000 | 2000 | 250 | beamb | white beam slit bottom |
MOT104 | GALIL:1/3 | 18000 | 1 | 6000 | 1000 | 2000 | 250 | beamt | white beam slit top |
MOT105 | NONE:0/0 | 2000 | 1 | 2000 | 200 | 50 | 125 | beamx | white beam slit x offset |
MOT106 | NONE:0/0 | 2000 | 1 | 2000 | 200 | 50 | 125 | beamhg | white beam slit horizontal gap |
MOT107 | NONE:0/0 | 2000 | 1 | 2000 | 200 | 50 | 125 | beamz | white beam slit z offset |
MOT108 | NONE:0/0 | 2000 | 1 | 2000 | 200 | 50 | 125 | beamvg | white beam slit vertical gap |
MOT109 | MAC_MOT:2/0 | 2000 | 1 | 2000 | 200 | 50 | 125 | Scanperp | |
MOT110 | MAC_MOT:2/1 | 2000 | 1 | 2000 | 200 | 50 | 125 | Scanpar | |
MOT111 | NSC200:0/1/1 | 10000 | 1 | 2000 | 200 | 500 | 125 | nsltx | Newport micro positioner for microsaxs |
MOT112 | NSC200:0/1/2 | -10000 | 1 | 2000 | 200 | -500 | 125 | nbsx | Newport micro positioner for microsaxs |
MOT113 | NSC200:0/1/3 | 10000 | 1 | 2000 | 200 | 500 | 125 | ncapx | Newport micro positioner for microsaxs |
MOT114 | NSC200:0/1/4 | -10000 | 1 | 2000 | 200 | -500 | 125 | nsax | Newport micro positioner for microsaxs |
MOT115 | NSC200:0/1/5 | 10000 | 1 | 2000 | 200 | 500 | 125 | nsamx | Newport micro positioner for microsaxs |
MOT116 | NSC200:0/1/6 | -10000 | 1 | 2000 | 200 | -500 | 125 | nphx | Newport micro positioner for microsaxs |
MOT117 | NSC200:0/1/7 | 10000 | 1 | 2000 | 200 | 500 | 125 | ncamx | Newport micro positioner for microsaxs |
MOT118 | NSC200:0/2/1 | 10000 | 1 | 2000 | 200 | 500 | 125 | nsltz | Newport micro positioner for microsaxs |
MOT119 | NSC200:0/2/2 | 10000 | 1 | 2000 | 200 | 500 | 125 | nbsz | Newport micro positioner for microsaxs |
MOT120 | NSC200:0/2/3 | 10000 | 1 | 2000 | 200 | 500 | 125 | ncapz | Newport micro positioner for microsaxs |
MOT121 | NSC200:0/2/4 | 10000 | 1 | 2000 | 200 | 500 | 125 | nsaz | Newport micro positioner for microsaxs |
MOT122 | NSC200:0/2/5 | 10000 | 1 | 2000 | 200 | 500 | 125 | nsamz | Newport micro positioner for microsaxs |
MOT123 | NSC200:0/2/6 | 10000 | 1 | 2000 | 200 | 500 | 125 | nphz | Newport micro positioner for microsaxs |
MOT124 | NSC200:0/2/7 | 10000 | 1 | 2000 | 200 | 500 | 125 | ncamz | Newport micro positioner for microsaxs |
MOT125 | NSC200:0/3/2 | 10000 | 1 | 2000 | 200 | 500 | 125 | ncaprz | Newport micro positioner for microsaxs |
MOT126 | NSC200:0/3/3 | 10000 | 1 | 2000 | 200 | 500 | 125 | ncaprx | Newport micro positioner for microsaxs |
MOT127 | NSC200:0/3/5 | -10000 | 1 | 2000 | 200 | -500 | 125 | nsamy | Newport micro positioner for microsaxs |
MOT128 | NSC200:0/3/6 | -10000 | 1 | 2000 | 200 | -500 | 125 | nphy | Newport micro positioner for microsaxs |
MOT129 | NSC200:0/3/7 | -10000 | 1 | 2000 | 200 | -500 | 125 | ncamy | Newport micro positioner for microsaxs |
MOT130 | NONE:2/8 | 3149.6 | 1 | 5000 | 1000 | 1000 | 125 | focus | farfield camera |
