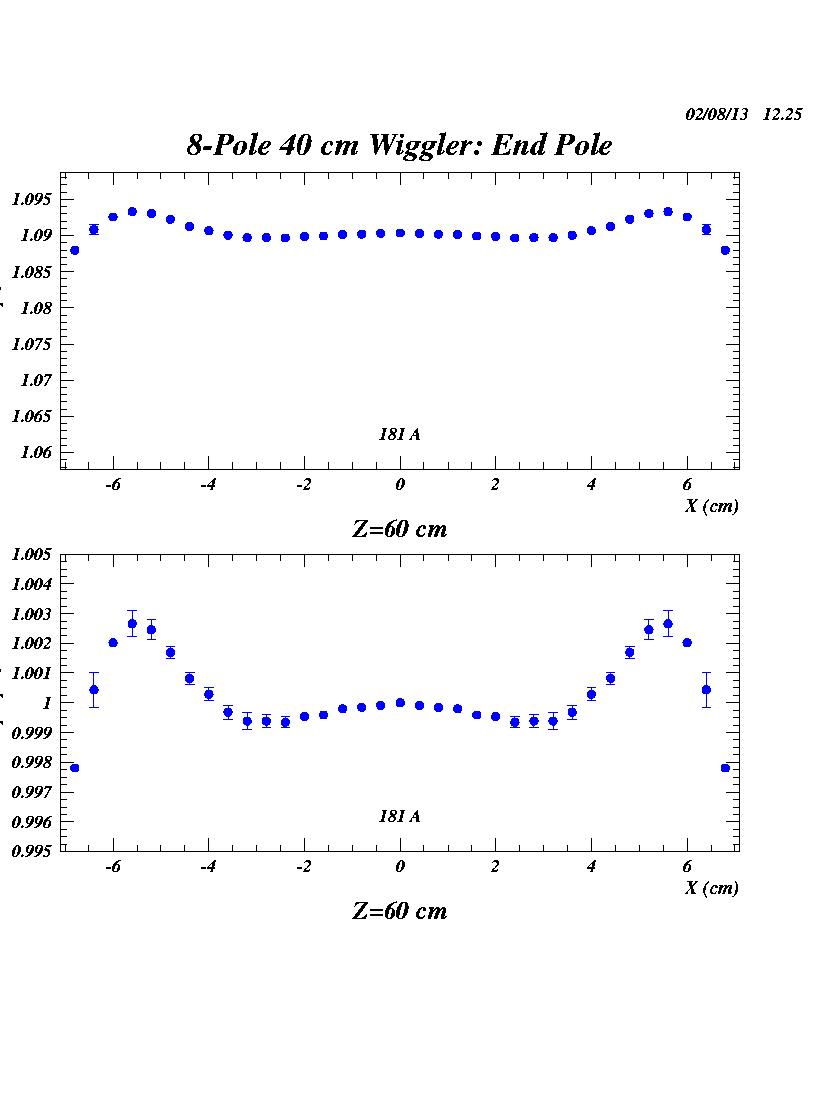

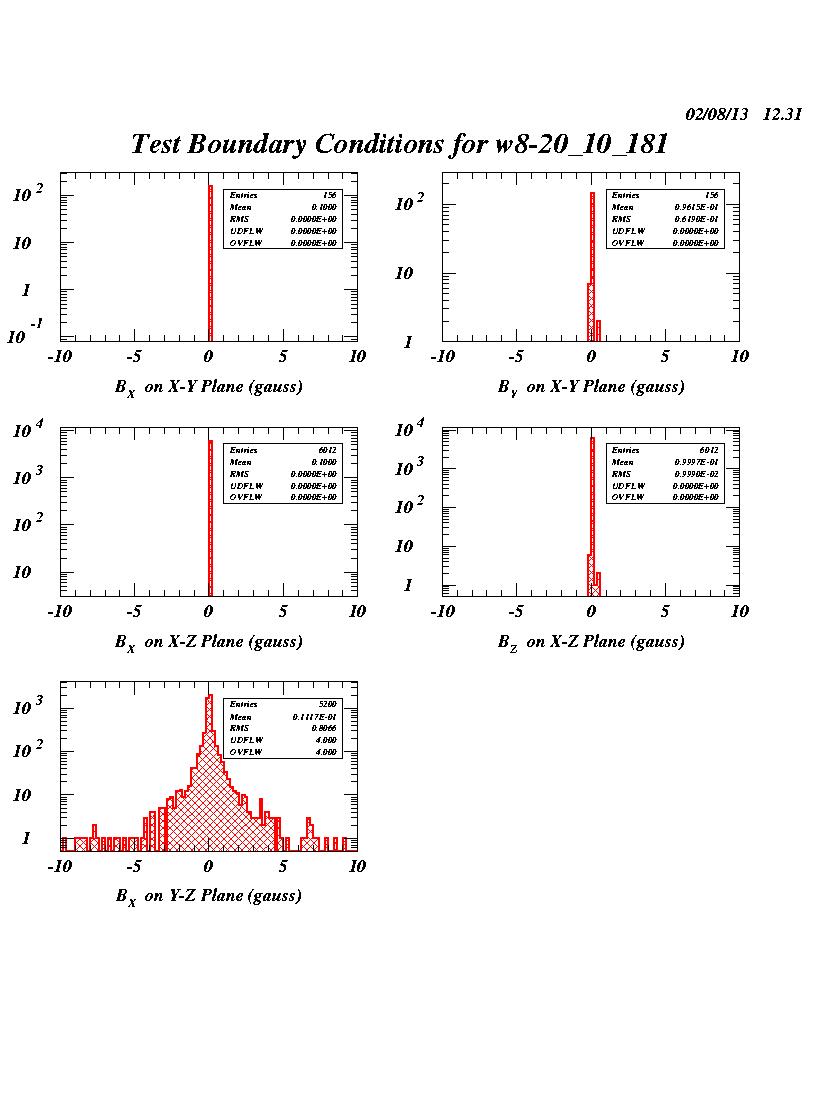

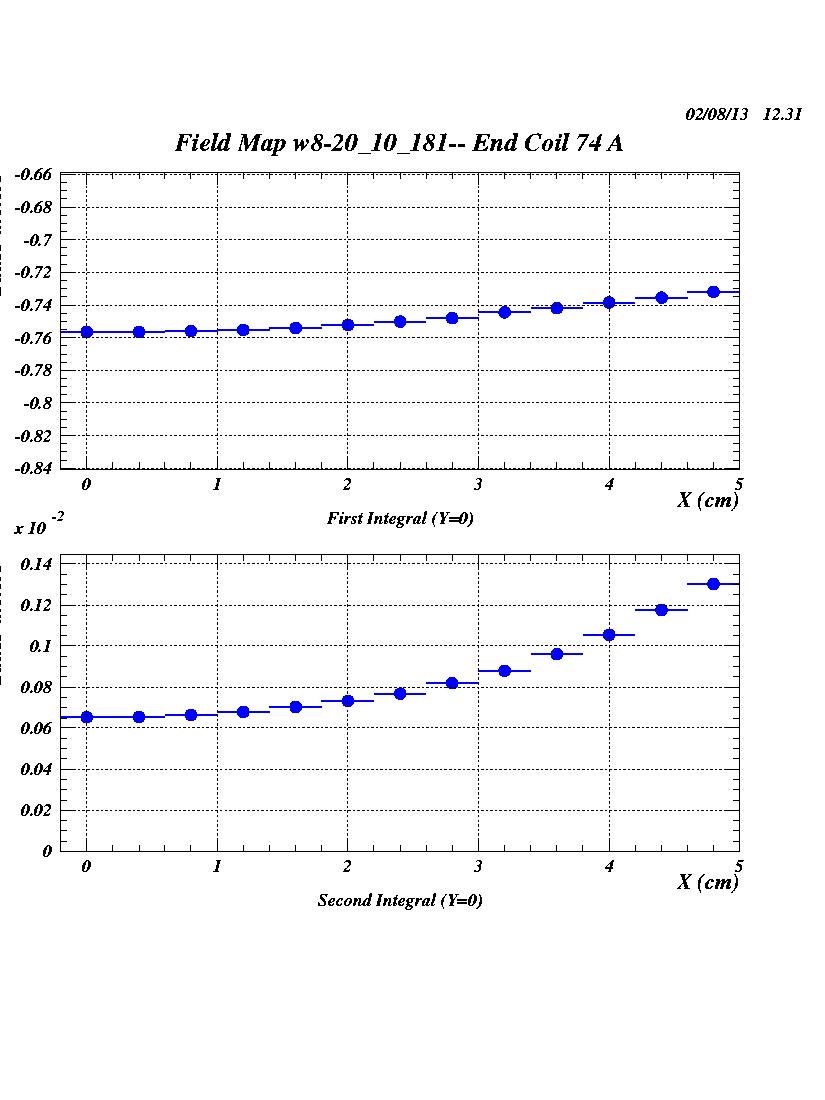

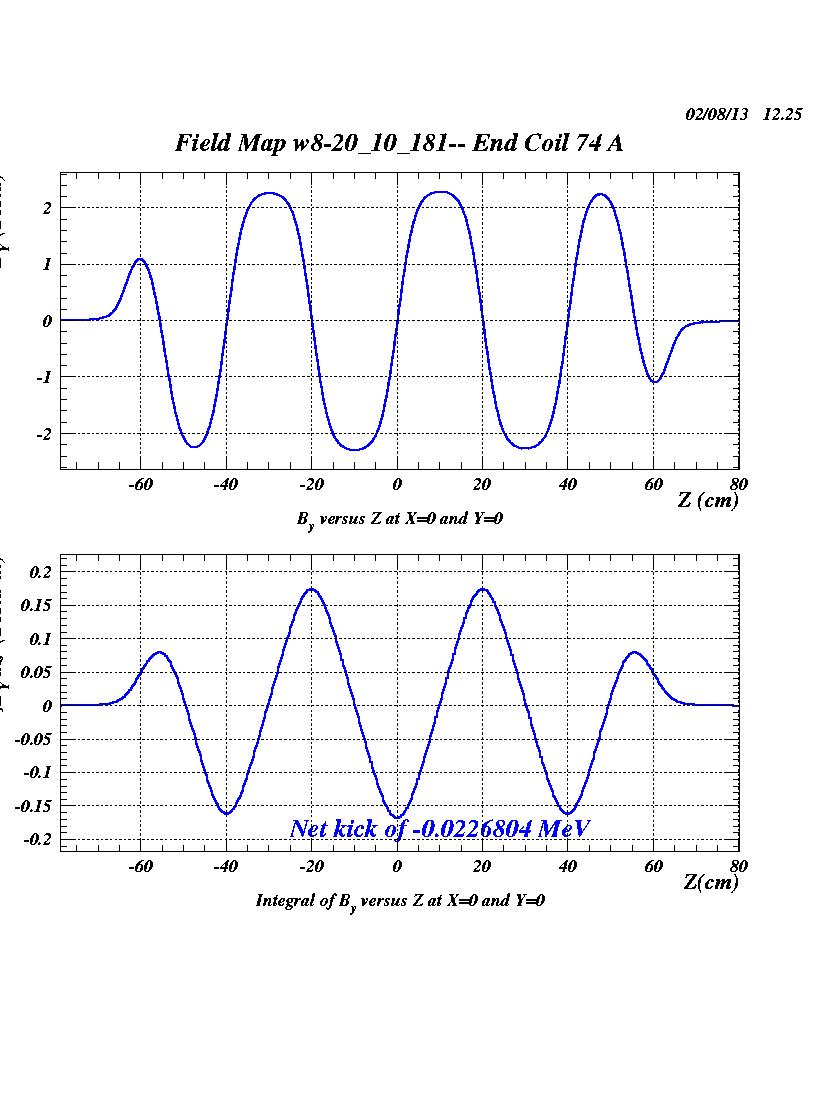

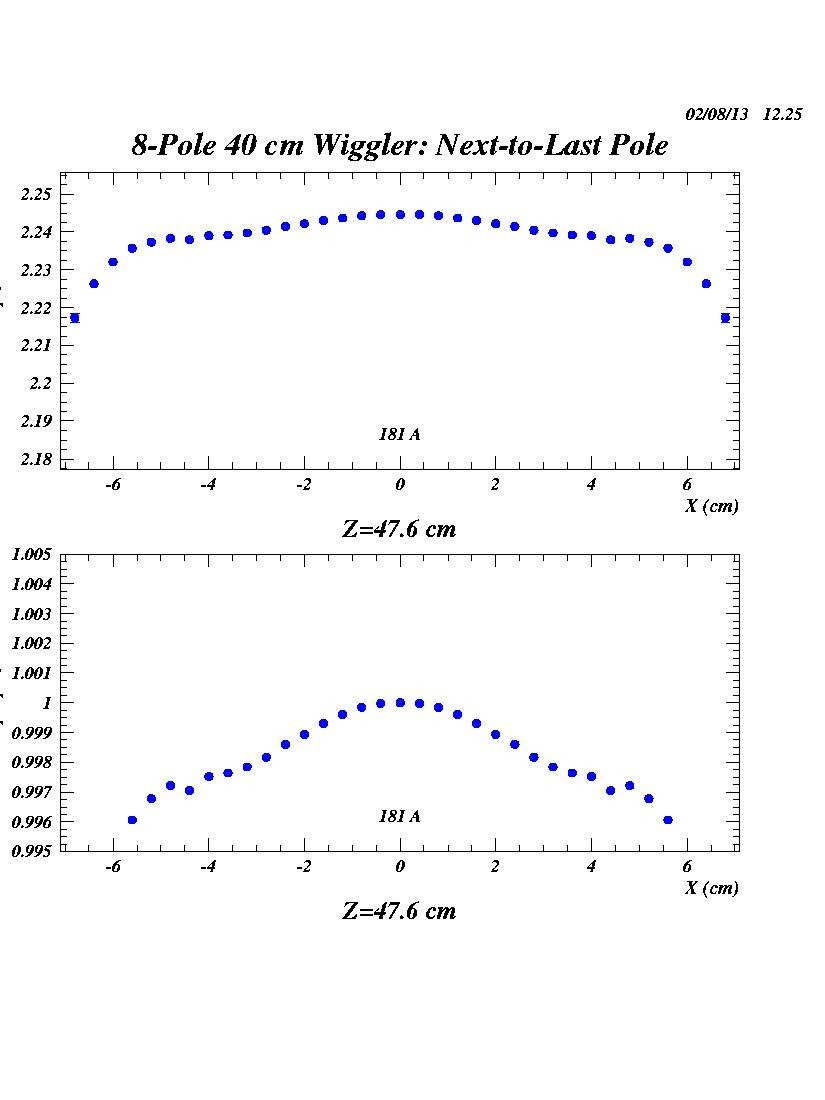

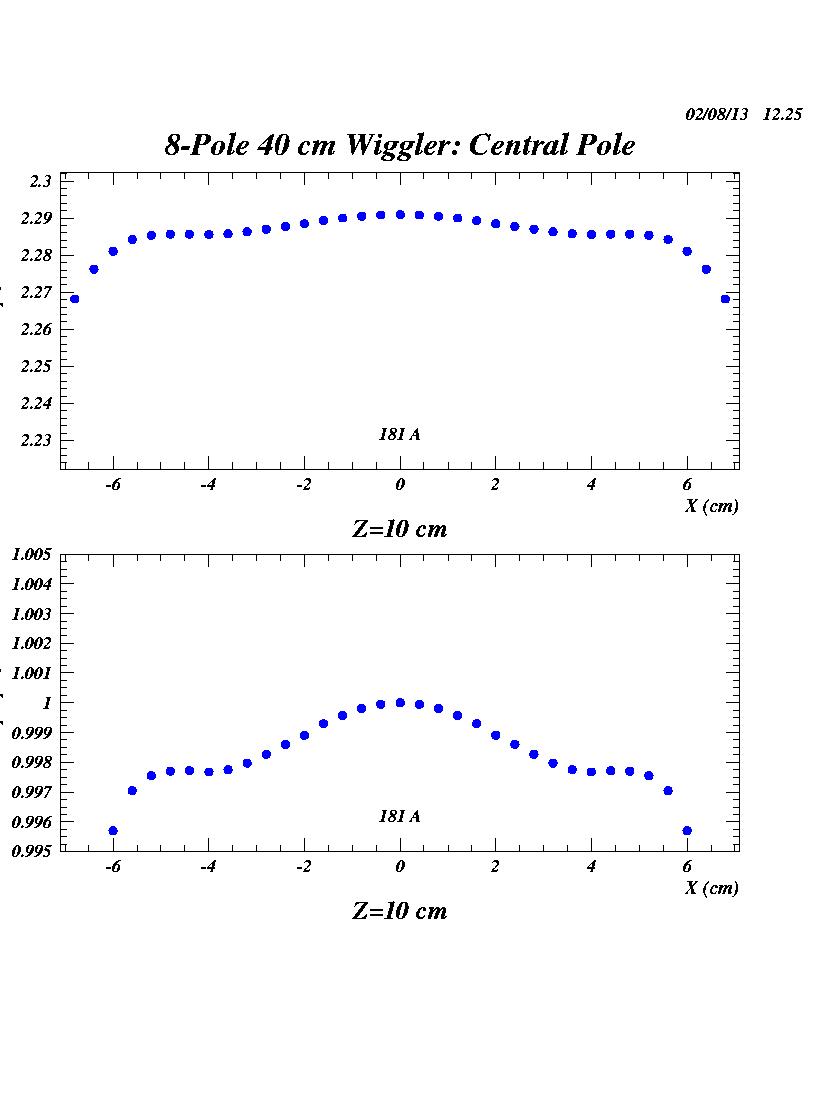

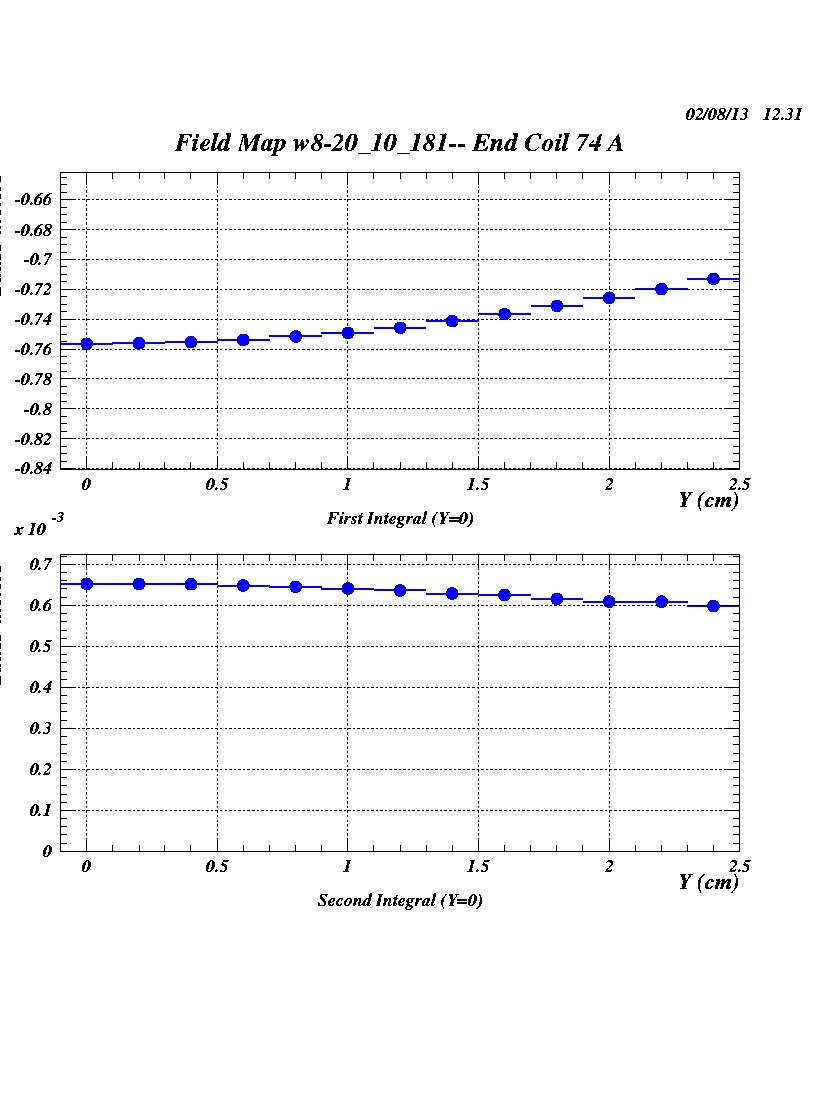

8-Pole Wiggler Field Calculations

for 2.3 T Peak Field (Main: 181 A End: 74 A)

27 August 2002

By clicking on the above thumbnail page images (jpeg), you can view each slide.
The postscript file (193K) is also available.

Creation date: 08/27/02.
