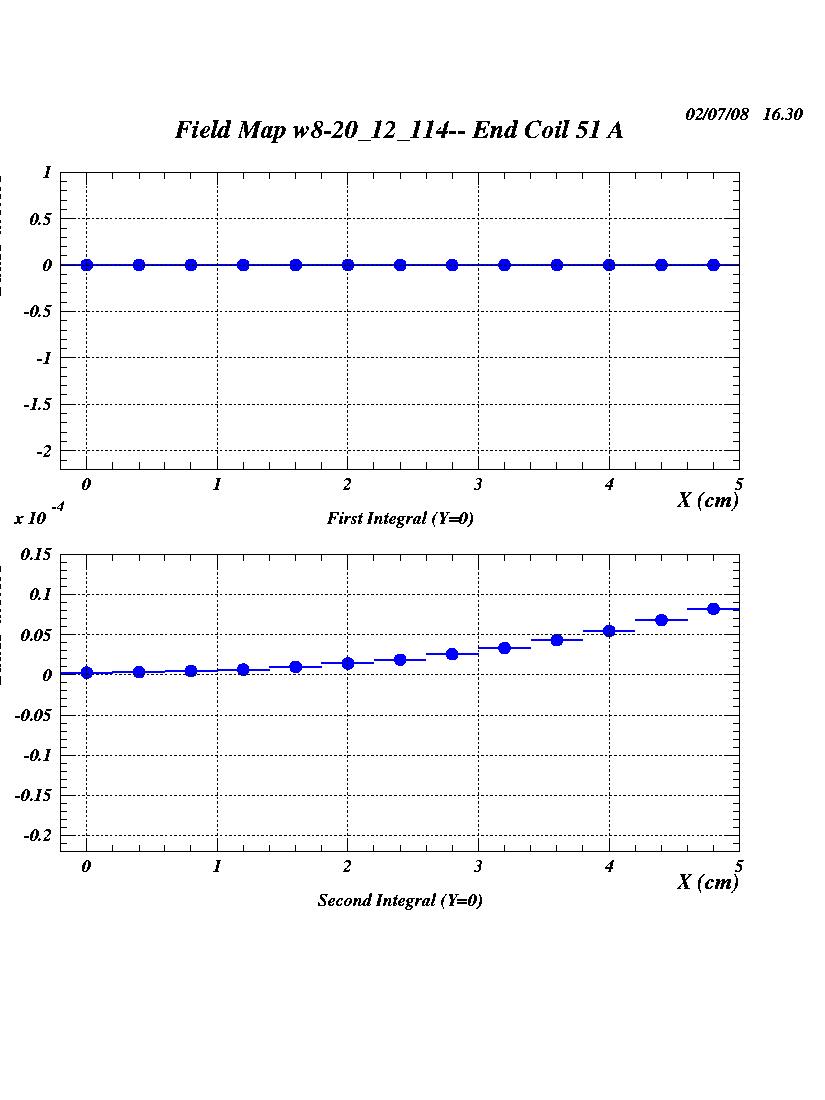

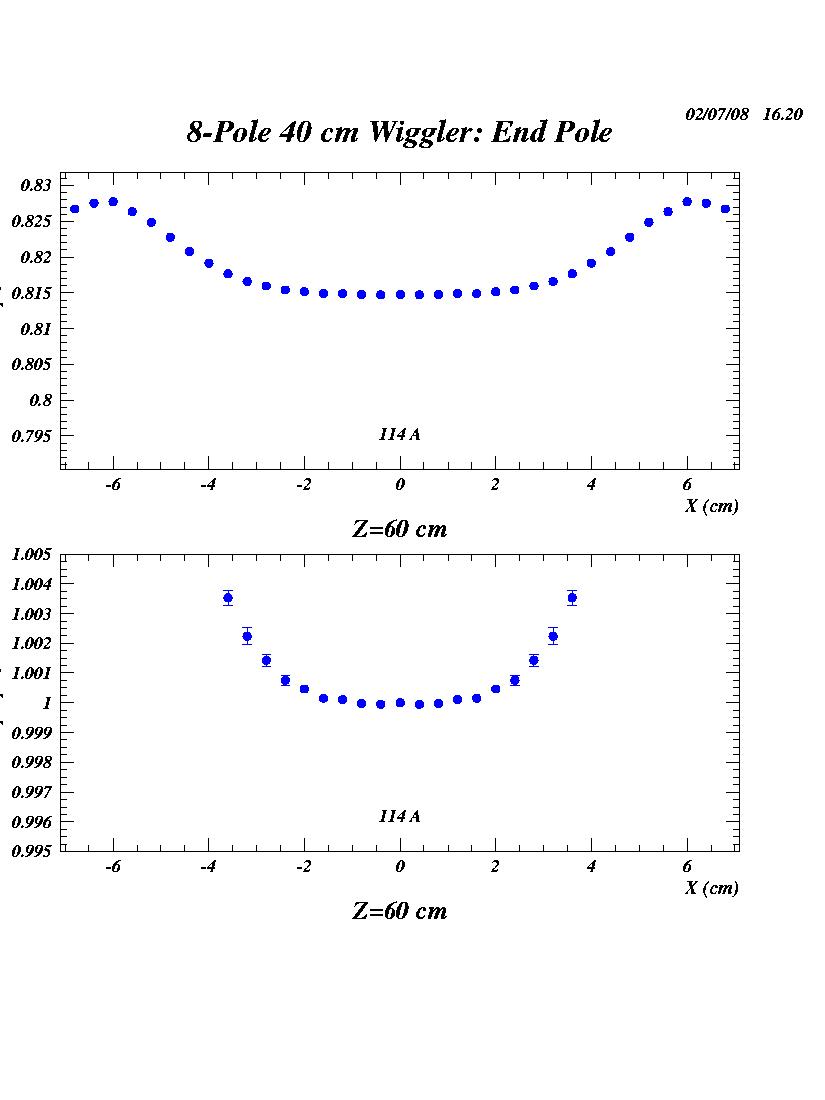

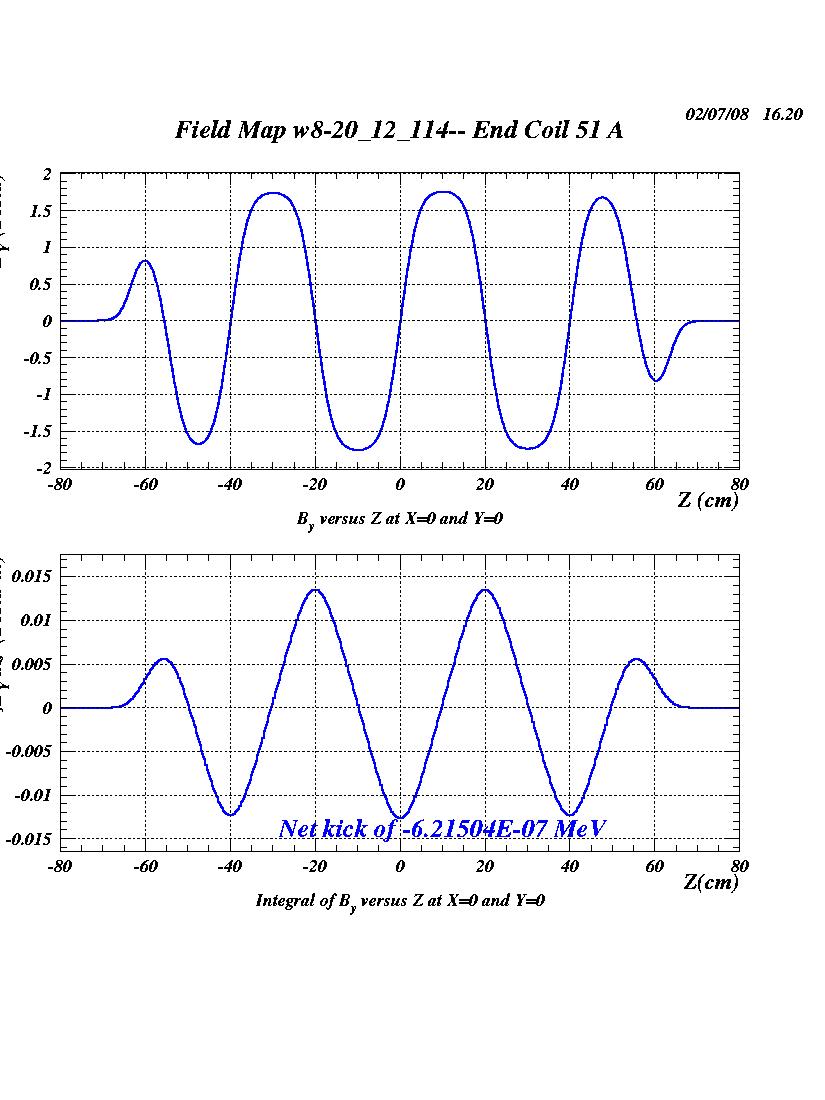

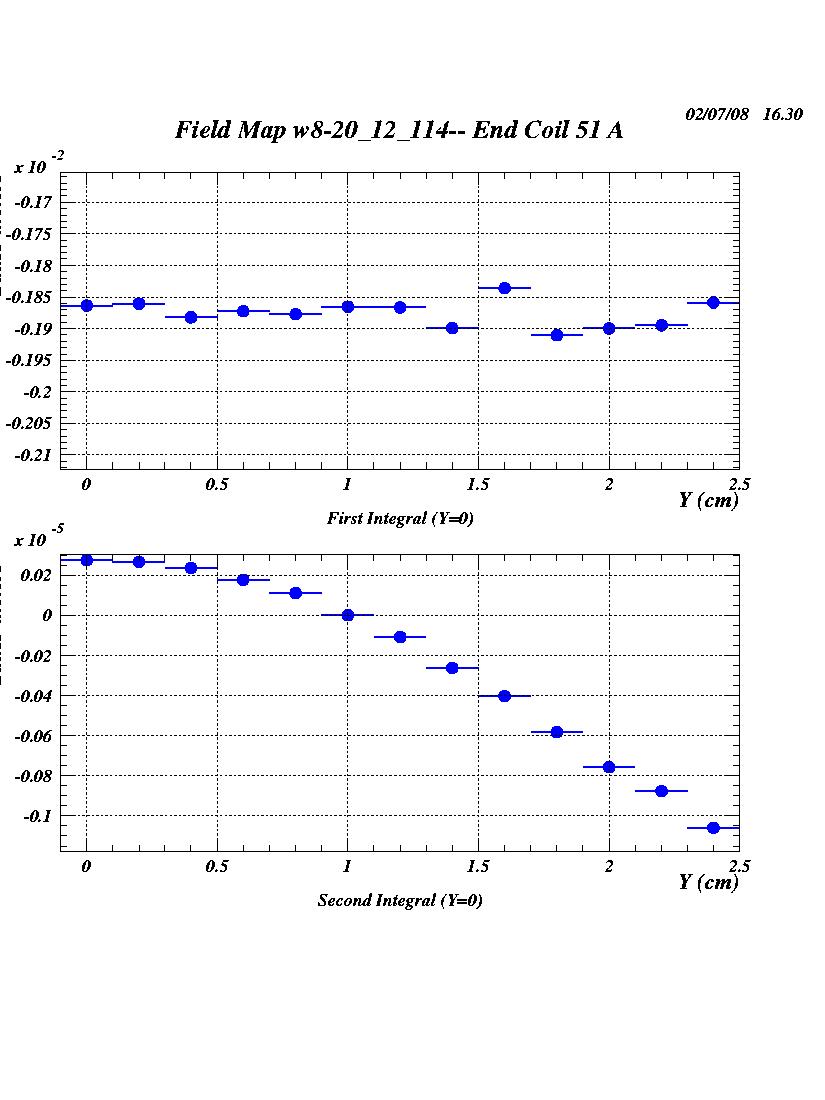

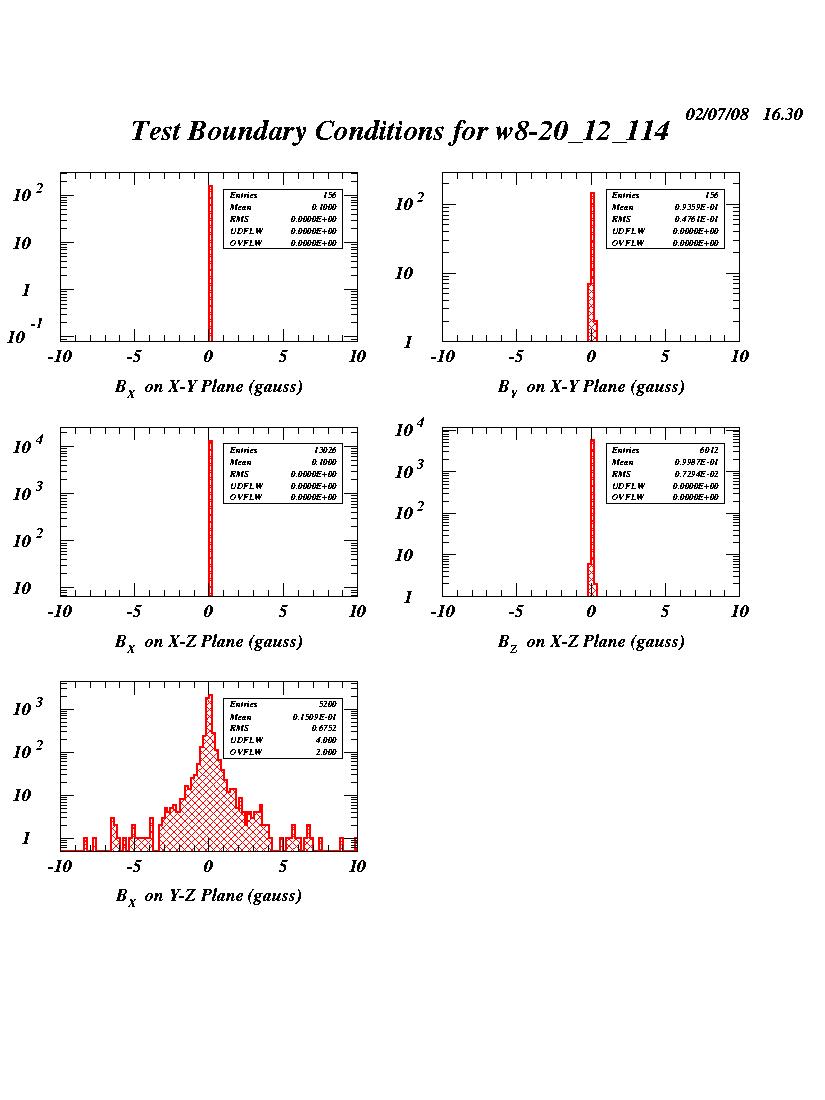

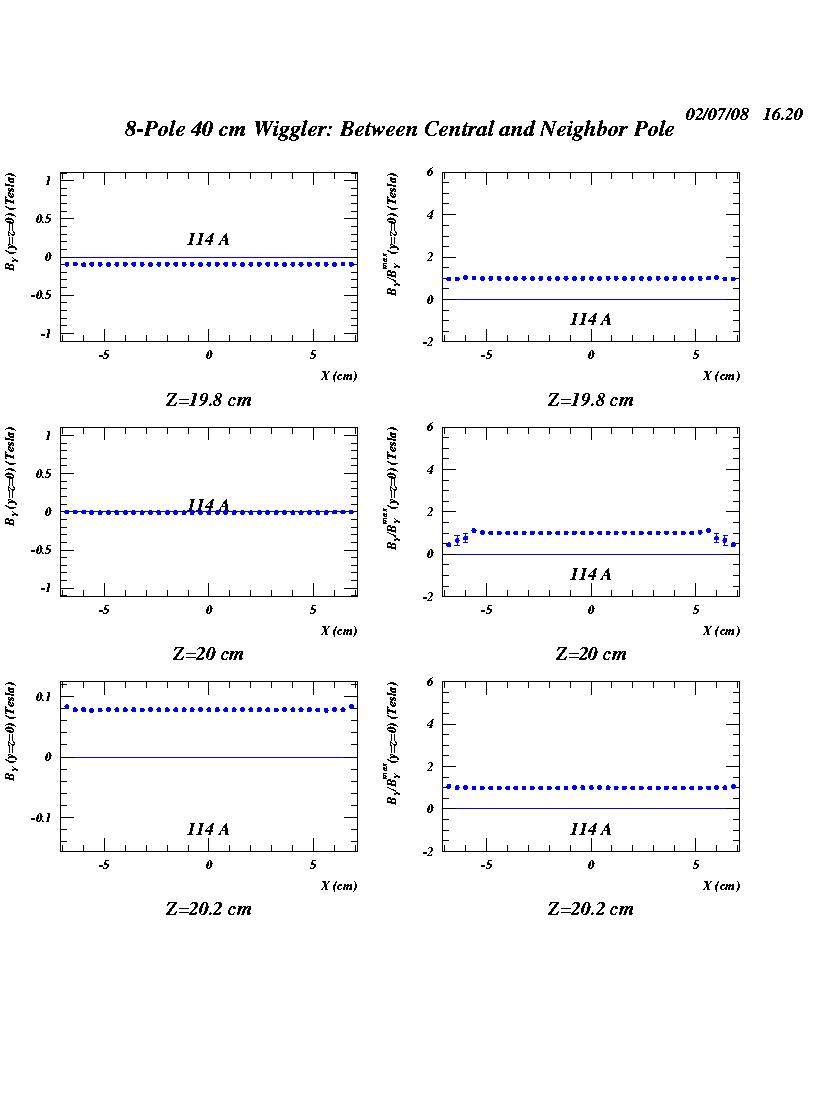

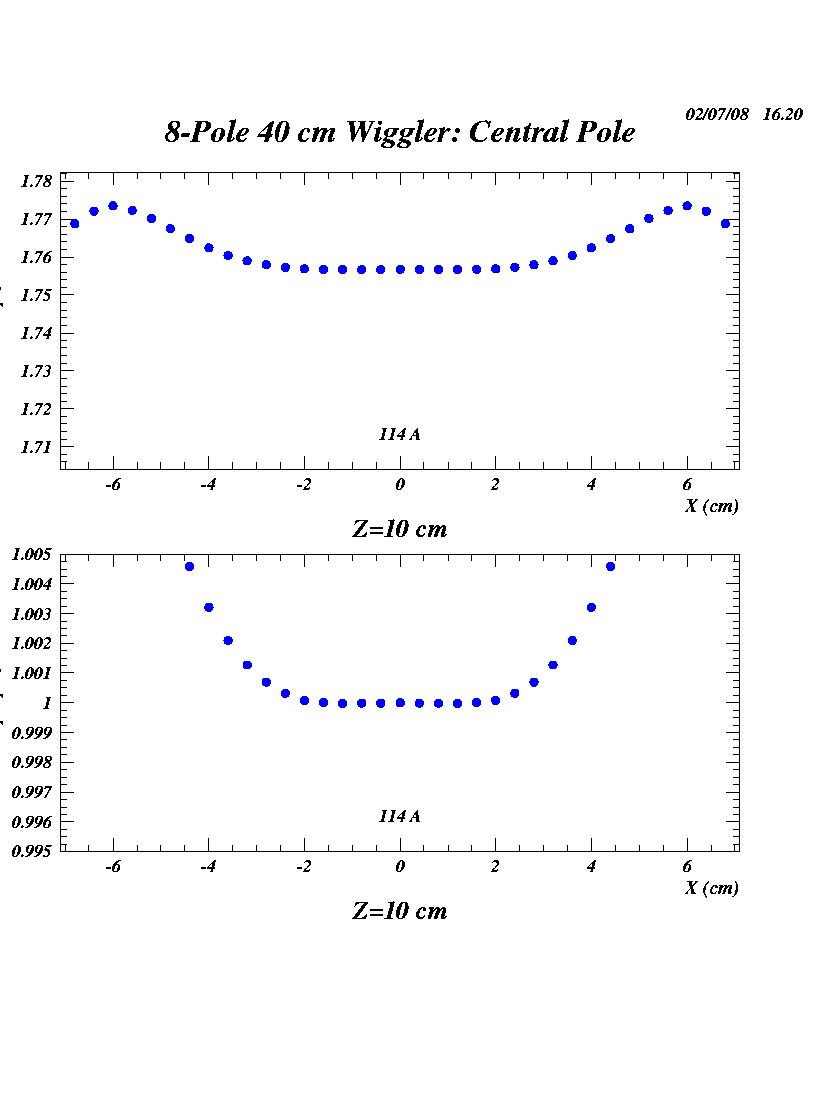

8-Pole Wiggler Field Calculations

for 1.7 T Peak Field (Main: 114 A End: 51 A)

27 August 2002

By clicking on the above thumbnail page images (jpeg), you can view each slide.
The postscript file (176K) is also available.

Creation date: 08/27/02.
