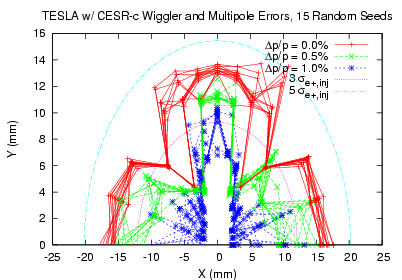

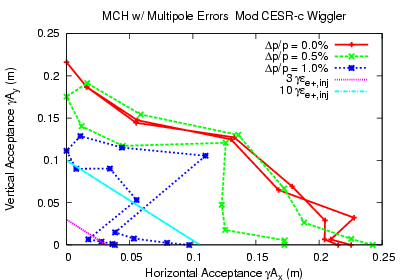

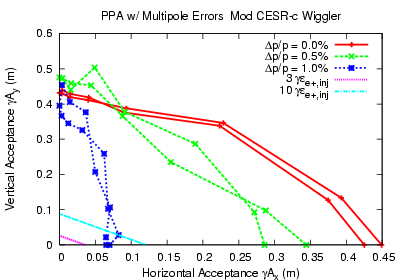

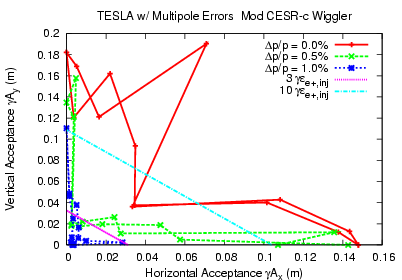

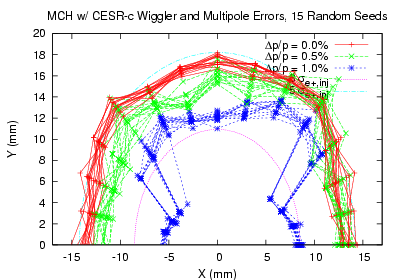

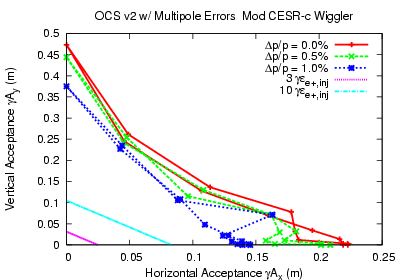

Using the full non-linear wiggler model from the modified CESR-c wiggler. Multipole errors put on every dipole, quadrupole, and sextupole in the ring. Systematic and random multipole errors specified by analysis performed by Yunhai Cai using measured multipole errors in PEP-II and SPEAR3 magnets.
|
|
|
|---|---|
|
| |
|
|
|
|
|---|---|
| |
|
