Bmad's map-type wiggler model is in use (see Bmad manual, page 29). This is a fully non-linear wiggler model defined by a 3-D wiggler map. The wiggler used is a modified version of the CESR-c wiggler. It has been modified in peak field and # of periods to match 1.67 T with either 5 or 9 center poles, plus end poles. This wiggler model is documented at my wiggler design webpage.

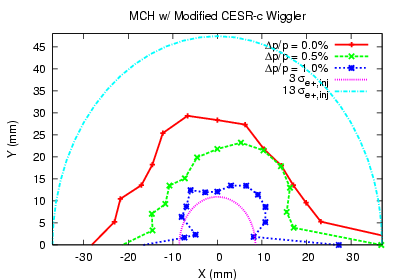

The large CESR-c wiggler aperture and pole width results in the dynamic aperture with a full non-linear CESR-c wiggler being very similar to an ideal non-linear wiggler.
|
|
|
|---|---|
|
| |
|
|
