Using the linear wiggler model. Multipole errors put on every dipole, quadrupole, and sextupole in the ring. Systematic and random multipole errors specified by analysis performed by Yunhai Cai using measured multipole errors in PEP-II and SPEAR3 magnets.
|
|
|
|---|---|
|
|
|
|
|
|
|
|
|
|
|---|---|
|
|
|
|
|

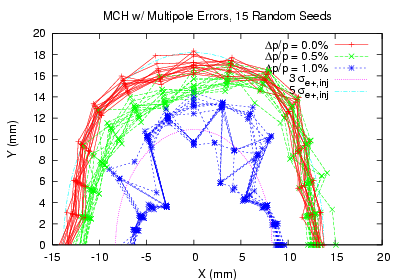

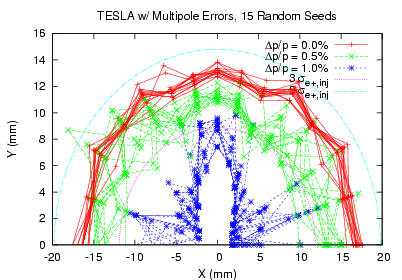

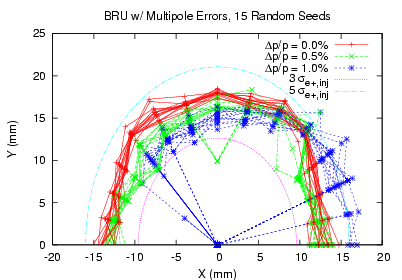

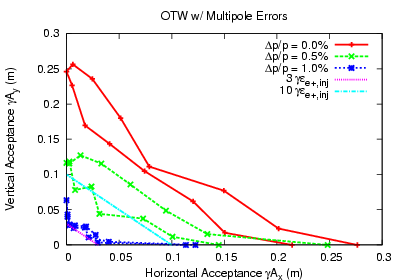

Dynamic Aperture performed with Radiation Damping Off & Excitation Off:
Dynamic Aperture performed with Radiation Damping On & Excitation Off:
Dynamic Aperture performed with Radiation Damping On & Excitation On:
