Using the lattices straight out of the box. Wiggler model is a series of alternating dipoles and includes none of the dynamic aperture limiting nonlinear dynamics from a realistic wiggler model. Injection point is taken to be element # 0 in each lattice, see Twiss parameters in Parameters Megatable. Injected normalized emittance of positrons = 0.01 m*rad. Dynamic aperture measured as amplitude out to which particles survive for 1 damping time.
|
|
|
|---|---|
|
|
|
|
|
|
|
|

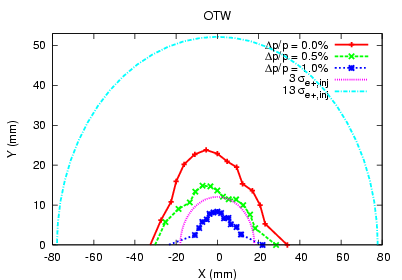

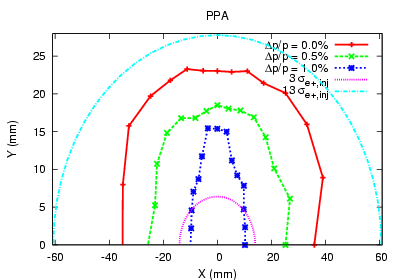

Dynamic Aperture performed with Radiation Damping Off & Excitation Off:
Dynamic Aperture performed with Radiation Damping On & Excitation Off:
Dynamic Aperture performed with Radiation Damping On & Excitation On:
