Weak strong - current dependence

  • Initialization 270704 and gif , 1e5 turns, radiation, 1/1%, single bunch, hibetainj_20040628_v01.lat, symplectic quads and bends, Qx=0.529, Qy=0.59, Qz=-0.089, 12wig, beta*=11.8mm, 100 particles, no lrbbi, pretz on
  • Initialization 170704 and gif , 1e5 turns, radiation, 1/1%, single bunch, hibetainj_20040628_v01.lat, symplectic quads and bends, Qx=0.527, Qy=0.584, Qz=-0.089, 12wig, beta*=11.8mm, 100 particles, no lrbbi, pretz on

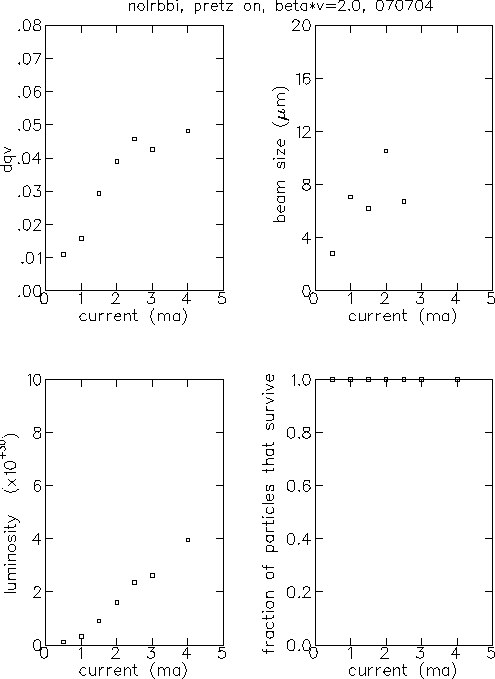

  • Initialization 070704 and gif , 1e5 turns, radiation, 1/1%, single bunch, hibetavert_20040702.lat, symplectic quads and bends, Qx=0.515, Qy=0.578, Qz=-0.057, 12wig, beta*=20mm, 100 particles, no lrbbi, pretz on

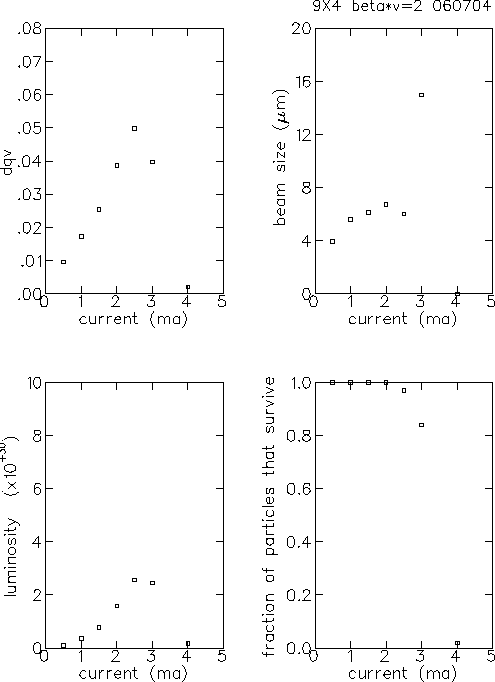

  • Initialization 060704 and gif , 1e5 turns, radiation, 1/1%, single bunch, hibetavert_20040702.lat, symplectic quads and bends, Qx=0.515, Qy=0.578, Qz=-0.057, 12wig, beta*=20mm, 100 particles, 9X4

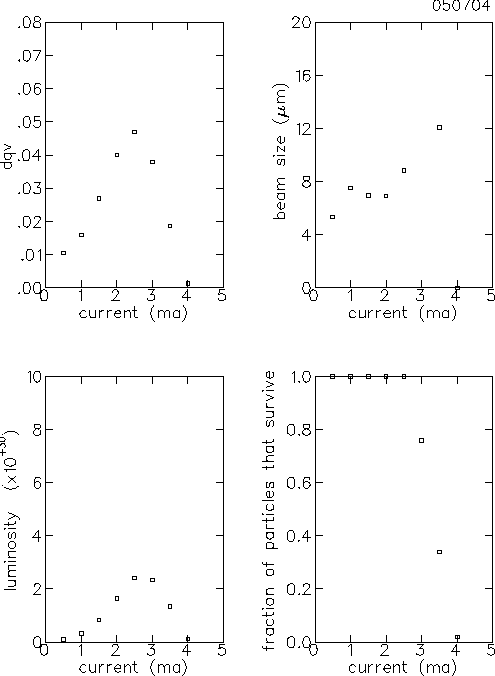

  • Initialization 050704 and gif , 1e5 turns, radiation, 1/1%, single bunch, hibetavert_20040702.lat, symplectic quads and bends, Qx=0.515, Qy=0.578, Qz=-0.089, 12wig, beta*=20mm, 100 particles, 9X4
  • Initialization 020704 and gif , 1e5 turns, radiation, 1/1%, single bunch, hibetainj_20040628_v01.lat, symplectic quads and bends, Qx=0.527, Qy=0.584, Qz=-0.089, 12wig, beta*=11.8mm, 100 particles, no particles are lost, lrbbi
  • Initialization 300604 and gif , 1e5 turns, radiation, 0.5/0.5%, single bunch, hibetainj_20040628_v01.lat, symplectic quads and bends, Qx=0.527, Qy=0.584, Qz=-0.089, 12wig, beta*=11.8mm, 100 particles, no particles are lost, lrbbi

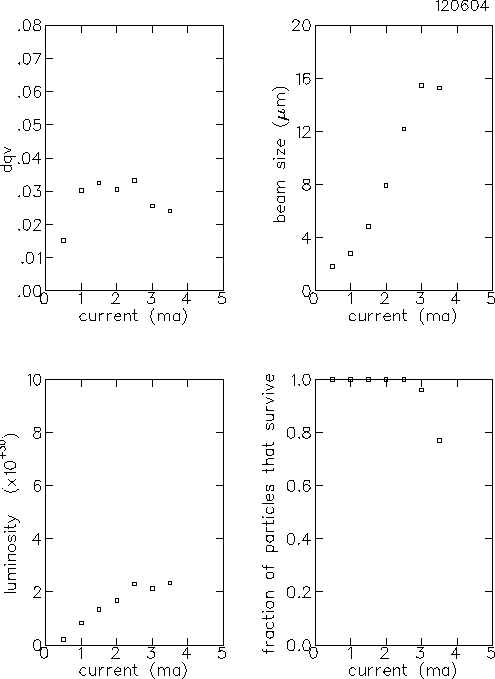

  • Initialization 120604 and gif , 1e5 turns, radiation, 1/1%, single bunch, low_emitt_ew_sym_20040503_o2, symplectic quads and bends, Qx=0.529, Qy=0.584, Qz=-0.089, 12wig, beta*=14.9mm, 100 particles, second order taylor wigglers
  • Initialization 030604 and gif , 1e5 turns, radiation, 0.5/0.5%, single bunch, low_emitt_ew_sym_20040503_v1, symplectic quads and bends, Qx=0.529, Qy=0.584, Qz=-0.089, 12wig, beta*=15.9mm, 100 particles, st tuned sextupoles and skew sextupoles 31
  • Initialization 041004 and gif , 1e5 turns, radiation, 0.5/0.5%, single bunch, low_emitt_ew_sym_20040503, symplectic quads and bends, Qx=0.529, Qy=0.584, Qz=-0.089, 12wig, beta*=15.9mm, 100 particles
  • Initialization 040804 and gif , 1e5 turns, radiation, 1/1%, single bunch, low_emitt_ew_sym_20040503, symplectic quads and bends, Qx=0.529, Qy=0.584, Qz=-0.089, 12wig, beta*=15.9mm, 100 particles
  • Initialization 040504 and gif , 5e4 turns, radiation, 1/1%, single bunch, low_emitt_ew_sym_20040503, symplectic quads and bends, Qx=0.529, Qy=0.584, Qz=-0.089, 12wig, beta*=15.9mm, 100 particles

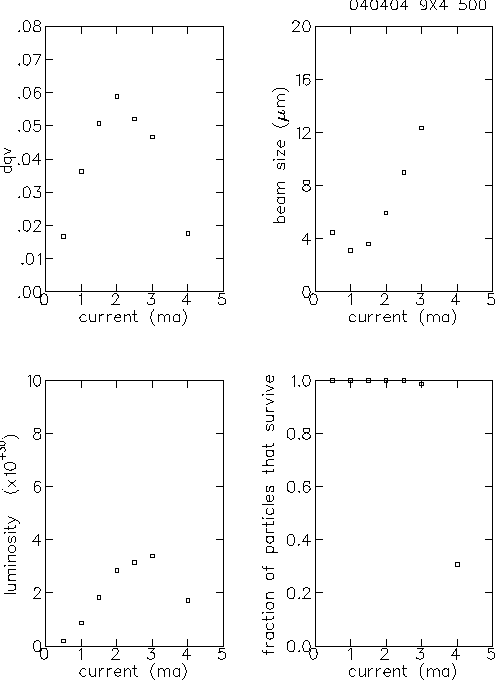

  • Initialization 040404 and gif , 5e4 turns, radiation, 1/1%, single bunch, low_emitt_20040212_v7, symplectic quads and bends, Qx=0.529, Qy=0.584, Qz=-0.089, 12wig, beta*=17mm, 500 particles
  • Initialization 030404 and gif , 5e4 turns, radiation, 1/1%, single bunch, low_emitt_20040212_v7, symplectic quads and bends, Qx=0.529, Qy=0.584, Qz=-0.089, 12wig, beta*=17mm, symmetric quads and separators, 9X4
  • Initialization 020404 and gif , 5e4 turns, radiation, 1/1%, single bunch, low_emitt_20040212_v7, nolrbbi, symplectic quads and bends, Qx=0.529, Qy=0.584, Qz=-0.089, 12wig, beta*=17mm, symmetric quads and separators

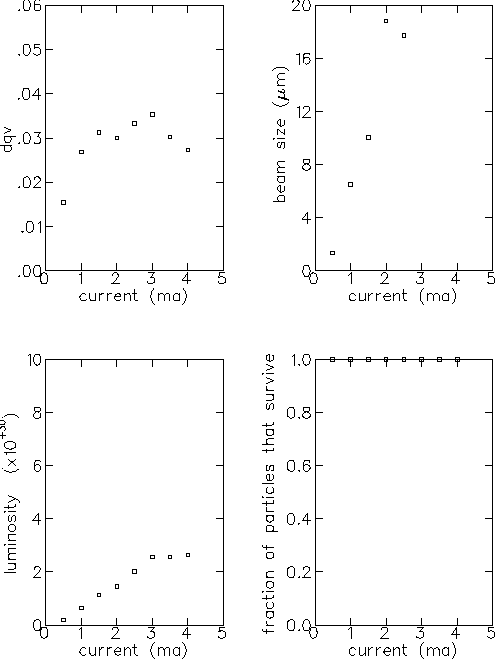

  • Initialization 220204 and gif , 5e4 turns, radiation, 1/1%, single bunch, low_emitt_20040221_standard, nolrbbi, symplectic quads and bends, Qz=-0.05, 12wig, beta*=17mm, bmad_standard wigglers, symmetric quads and separators
  • Initialization 210204-5 and gif , 5e4 turns, radiation, 1/1%, single bunch, low_emitt_20040212_v2, 9X4, symplectic quads and bends, Qz=-0.05, 12wig, beta*=17mm, taylor_order 3, symmetric quads and separators
  • Initialization 180204 and gif , 5e4 turns, radiation, 1/1%, single bunch, low_emitt_20040212_v2_o1, nolrbbi, symplectic quads and bends, Qz=-0.089, 12wig, beta*=17mm, taylor_order 1, symmetric quads and separators
  • Initialization 160204-s and gif , 5e4 turns, radiation, 1/1%, single bunch, low_emitt_20040212_v2, nolrbbi, symplectic quads and bends, Qz=-0.089, 12wig, beta*=17mm, symmetric quads and separators
  • Initialization 160204 and gif , 5e4 turns, radiation, 1/1%, single bunch, low_emitt_20040212_v2, 9X4, symplectic quads and bends, Qz=-0.089, 12wig, beta*=17mm, symmetric quads and separators

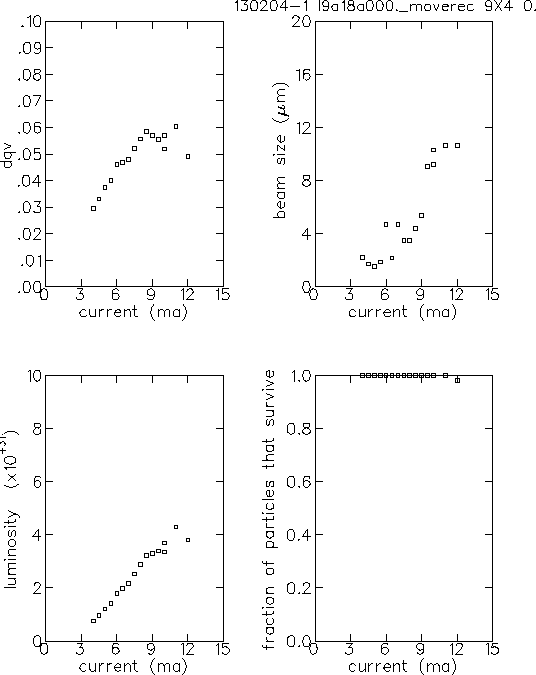

  • Initialization 130204-1 and gif , 5e4 turns, radiation, 0.5/0.5%, single bunch, bmad_l9a18a000._moverec, 9X4, symplectic quads and bends, Qz=-0.05, 5.289GeV, (real apertures), L=3.2e31 at 8.5mA => 1.28E33 at 340mA/beam

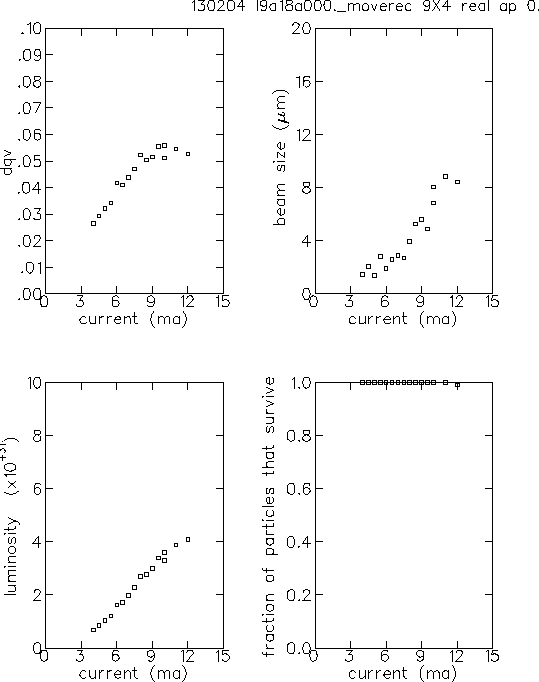

  • Initialization 130204 and gif , 5e4 turns, radiation, 0.7/0.7%, single bunch, bmad_l9a18a000._moverec, 9X4, symplectic quads and bends, Qz=-0.05, 5.289GeV, (real apertures), L=3e31 at 9mA => 1.17E33 at 350mA/beam

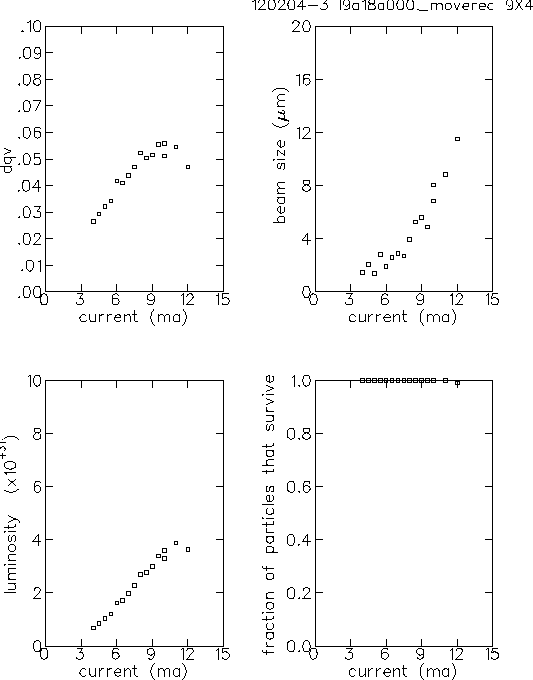

  • Initialization 120204-3 and gif , 5e4 turns, radiation, 0.7/0.7%, single bunch, bmad_l9a18a000._moverec, 9X4, symplectic quads and bends, Qz=-0.05, 5.289GeV, (fixed apertures 0.05 vertical and horizontal), L=3e31 at 9mA => 1.17E33 at 350mA/beam
  • Initialization 120204-2 and gif , 5e4 turns, radiation, 0.7/0.7%, single bunch, bmad_l9a18a000._moverec, nolrbbi, symplectic quads and bends, Qz=-0.05, 5.289GeV

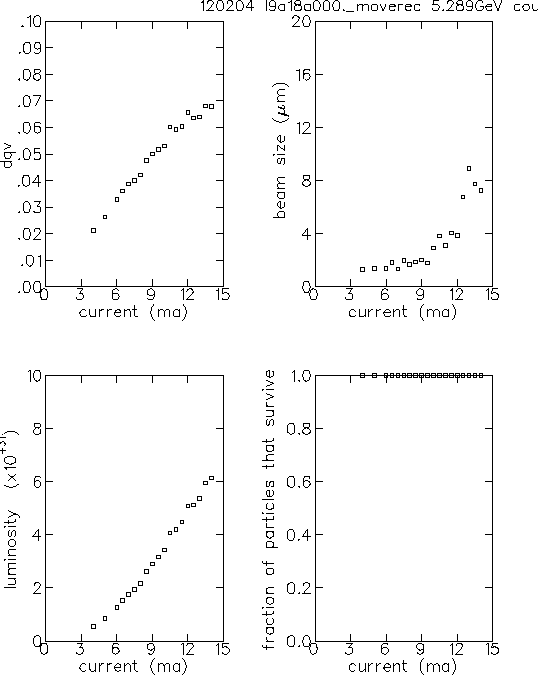

  • Initialization 120204 and gif , 5e4 turns, radiation, 1/1%, single bunch, bmad_l9a18a000._moverec, nolrbbi, symplectic quads and bends, Qz=-0.057, 5.289GeV, (including data from 110204)

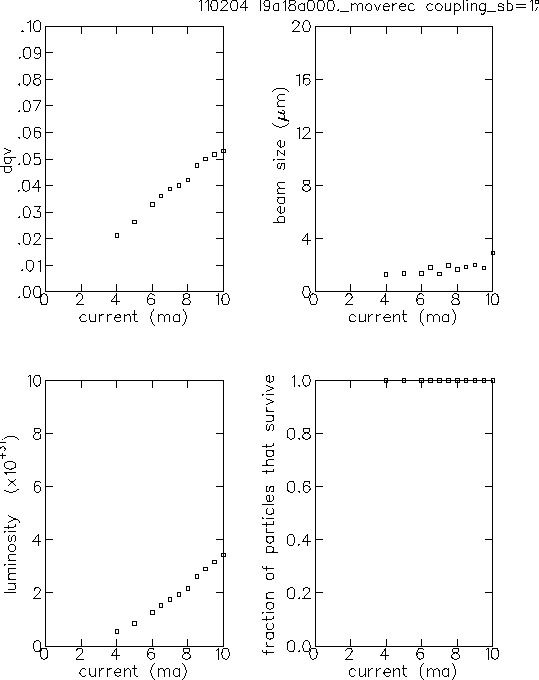

  • Initialization 110204 and gif , 5e4 turns, radiation, 1/1%, single bunch, bmad_l9a18a000._moverec, nolrbbi, symplectic quads and bends, Qz=-0.057, 5.289GeV

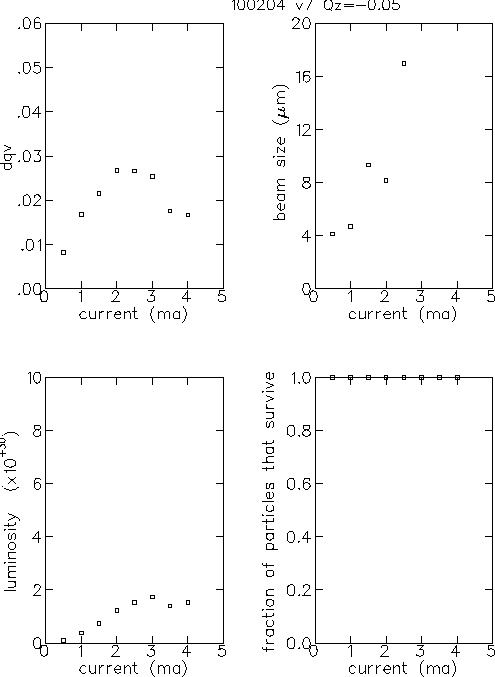

  • Initialization 100204 and gif , symp map o3, 1e5 turns, radiation, 1/1%, single bunch, bmad_6wig_lum_20030915_v7.lat, nolrbbi, symplectic quads and bends, Qz=-0.05
  • Initialization 140204-1 and gif , symp map o3, 5e4 turns, radiation, 1/1%, single bunch, bmad_12wig_20040202.lat, 9X4, symplectic quads and bends, combined with 0.5-2ma data from 140204, L=2.36e30 at 2.5mA

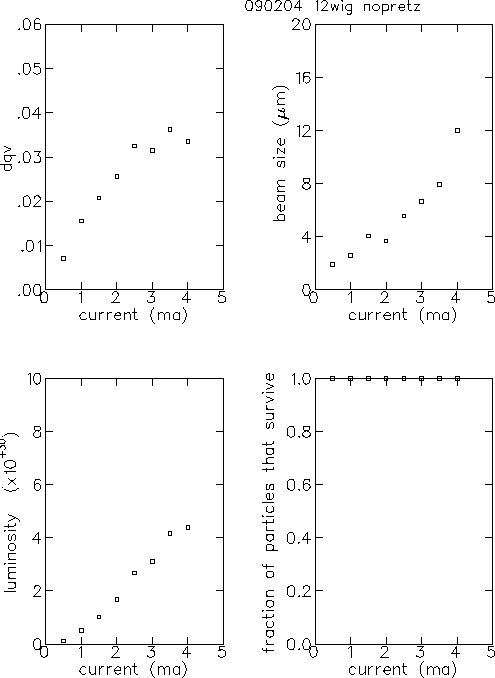

  • Initialization 090204 and gif , symp map o3, 5e4 turns, radiation, 1/1%, single bunch, bmad_12wig_20040202.lat, nopretz, symplectic quads and bends
  • Initialization 080204 and gif , symp map o3, 5e4 turns, radiation, 1/1%, single bunch, bmad_12wig_20040202.lat, nolrbbi, symplectic quads and bends, beta*v=16mm
  • Initialization 050204 and gif , symp map o2, 1e5 turns, radiation, 1/1%, single bunch, lattice v4, nolrbbi, symplectic quads and bends (Conclusion: order 3 nonlinearity of wigglers has neglible effect on luminosity)
  • Head on, pretzel with nolrbbi, and pretzel with 9X4 [010204,010204-1, 010204-2] gif
  • Initialization 010204 and gif , symp map o3, 1e5 turns, radiation, 1/1%, single bunch, lattice v4, nolrbbi, symplectic quads and bends
  • Initialization 010204-1 and gif , symp map o3, 1e5 turns, radiation, 1/1%, 9X4, lattice v4, symplectic quads and bends
  • Initialization 010204-2 and gif , symp map o3, 1e5 turns, radiation, 1/1%, single bunch, lattice v4, nopretz, symplectic quads and bends
  • Initialization 051203 and gif and ps , symp map o3, 1e5 turns, radiation, 1/1%, single bunch, lattice v5
  • Initialization 281103-7 and gif and ps , symp map o3, 1e5 turns, radiation, 1/1%, single bunch, lrbbi=false
  • Initialization 281103-6 and gif and ps , symp map o2, 1e5 turns, radiation, 1/1%, single bunch
  • Initialization 281103-5 and gif and ps , symp map o3, 1e5 turns, radiation, 1/1%, 9X4
  • Initialization 281103-4 and gif and ps , symp map o2, 1e5 turns, radiation, 1/1%, 9X4
  • Initialization 281103-3 and gif and ps , symp map o2, 7.5e4 turns, radiation, 1/1%, single bunch
  • Initialization 281103-2 and gif and ps , symp map o2, 5e4 turns, radiation, 1/1%, single bunch
  • Initialization 281103-1 and gif and ps , symp map o3, 7.5e4 turns, radiation, 1/1%, single bunch
  • Initialization 281103 and gif and ps , symp map o3, 5e4 turns, radiation, 1/1%, single bunch
  • Initialization 261103-3 and gif and ps , symp map o2, 1e5 turns, radiation, 1/1%, single bunch
  • Initialization 261103-2 and gif and ps , symp map o3, 1e5 turns, radiation, 1/1%, single bunch
  • Initialization 261103-1 and gif and ps , symp map o2, 2e4 turns, radiation, 1/1%, single bunch
  • Initialization 261103 and gif and ps , symp map o3, 2e4 turns, radiation, 1/1%
  • Initialization 241103 and gif and ps , taylor o2, 1e5 turns, radiation, 1/1%
  • Initialization 211103-2 and gif and ps , taylor o2, 2E4 turns, radiation, 1/1%
  • Initialization 211103-1 and gif and ps , bmad_standard, 1E5 turns, radiation, 1/1%
  • Initialization 211103 and gif and ps , taylor o3, 1E5 turns, radiation, 1/1%
  • Initialization 201103 and gif and ps , taylor o3, 2E4 turns, radiation, 1/1%
  • Initialization 191103 and gif and ps , taylor o3, 2E4 turns, radiation, 0/1%
  • Initialization 181103-1 and gif and ps , symplectic integration, 2E4 turns, no radiation, 0/1%,
  • Initialization 181103 and gif and ps , taylor o3, 2E4 turns, no radiation, 0/1%
