bmad_3770_20061213.lat

January 23, 2007 Lattice: /nfs/cesr/user/dlr/lat/bmad_3770_20061213.lat

December 13, 2006, 12 wiggler, 1.885GeV, 4pair compensation of bmad_12wig_20050626a.lat using anti-solenoid, IR quads and IR skews, and Q3->Q6

• linear lattice constraints
• non linear lattice constraints energy offset +- 0.003

• lattice file

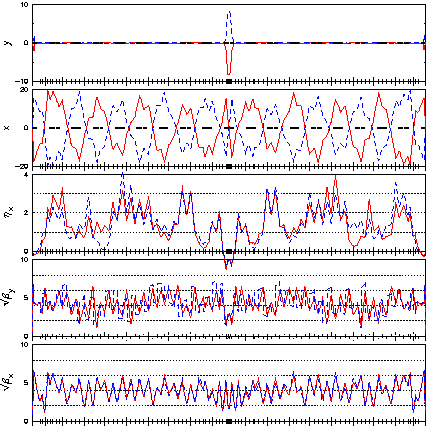

• Optical parameters and orbits
  • table
  • Lattice gif

  • Parasitic crossing parameters
    • Luminosity pretzel - pc parameters , b_param

  • Dynamic aperture
    and initialization energies 0.0 0.003 0.006, Qx=0.518,Qy=0.584, Qz=-0.089

  • Parameters for beam-beam simulation including radiation integrals, damping decrement, etc.
  • Analyzer output

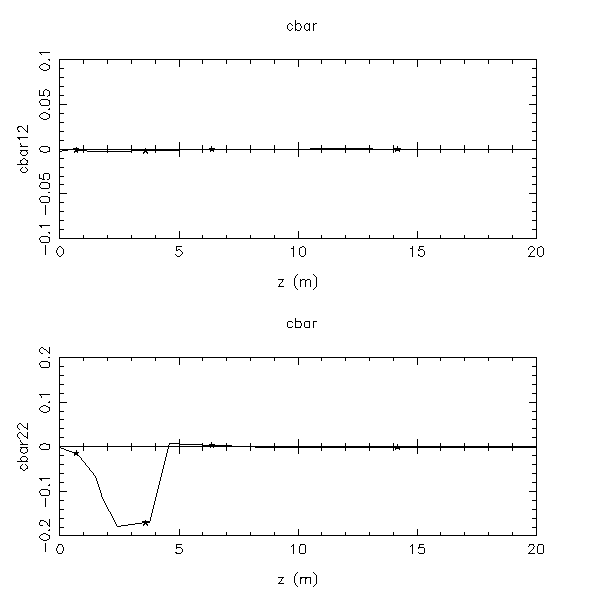

  • c12_c22 in IR

  Single particle scans

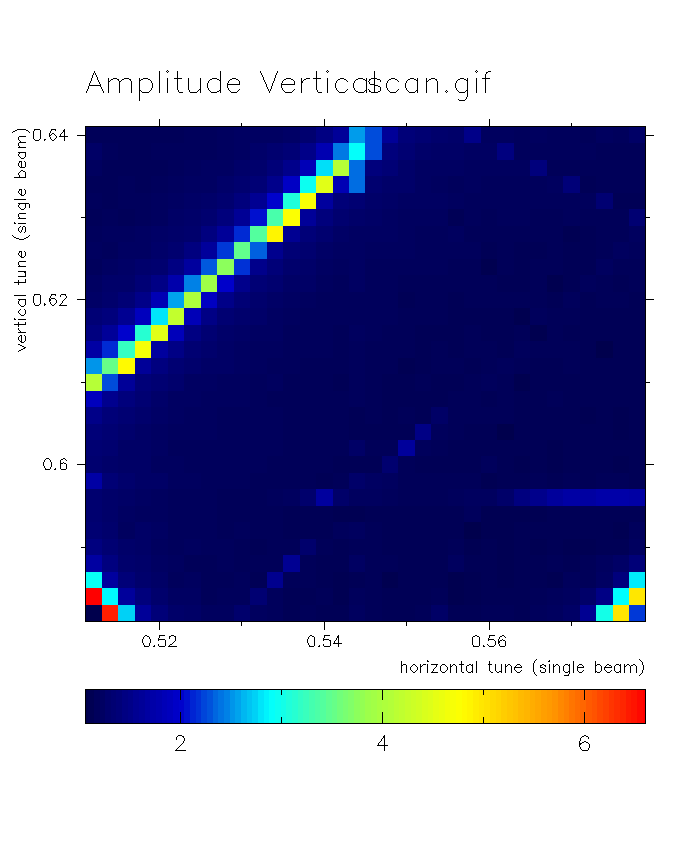

  • 011007-1 and initialization , fs=-0.089, positrons, nolrbbi, no beambeam_ip, lat_symp_map (no apertures)

  Luminosity vs current

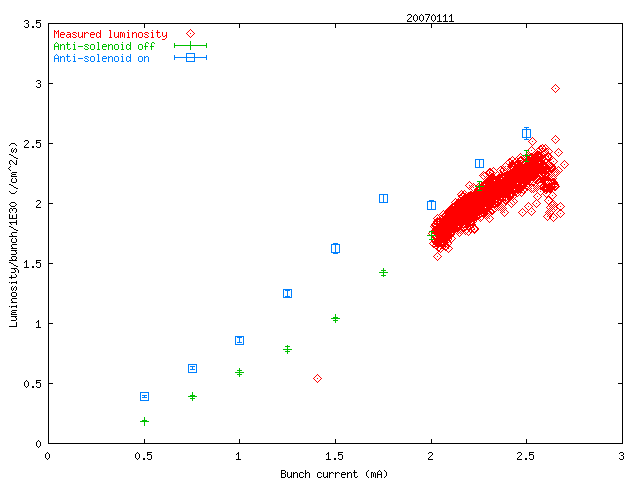

  • Beam beam simulation of luminosity vs bunch current and initialization 9X5 in simulation. Data is January 14, 2007. This lattice anti-solenoid points
  • Beam beam tune scan and initialization
