bmad_scsk0_zero_20070115-1.lat

January 23, 2007 Lattice: /nfs/cesr/user/dlr/lat/bmad_scsk0_zero_20070115-1.lat

12 wiggler, 1.885GeV, 3pair compensation of bmad_12wig_20050626a.lat using anti-solenoid, with sc_sk01 = 0, IR quads and sc_sk02 and sk_02, and Q3->Q6. Reoptimized sextupoles.

• linear lattice constraints
• non linear lattice constraints energy offset +- 0.006

• lattice file
• Optical parameters and orbits
  • table

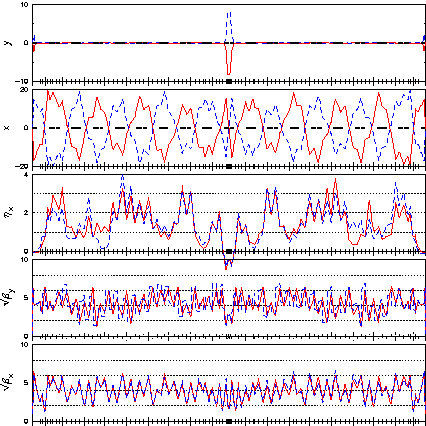

  • Lattice gif

  • Parasitic crossing parameters
    • Luminosity pretzel - pc parameters , b_param

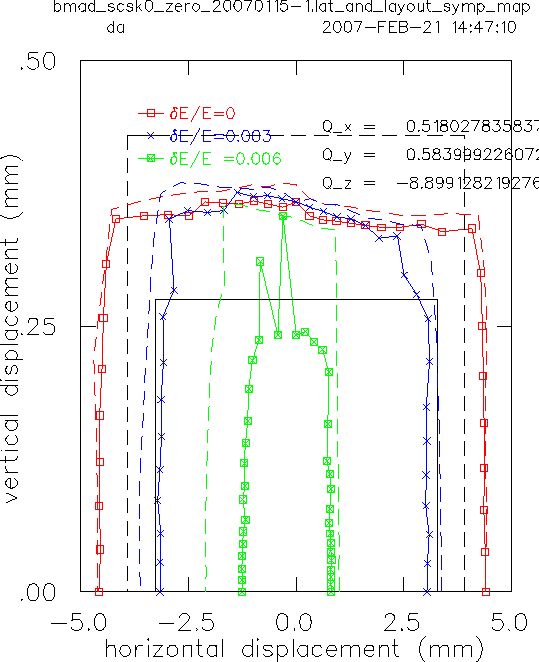

  • Dynamic aperture
    da_20070123 and initialization energies 0.0 0.003 0.006, Qx=0.518,Qy=0.584, Qz=-0.089

  • Parameters for beam-beam simulation including radiation integrals, damping decrement, etc.
  • Analyzer output

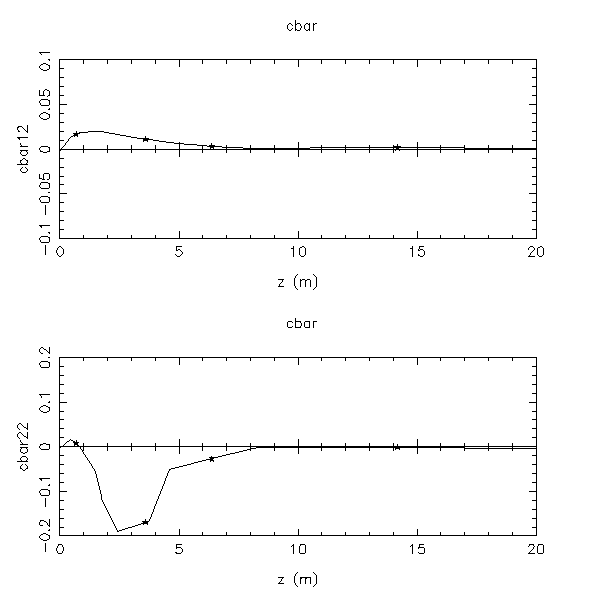

  • c12_c22 in IR

  Single particle scans

  • 011007 and initialization , fs=-0.089, positrons, nolrbbi, no beambeam_ip, lat_symp_map (no apertures)

  Luminosity vs current

  • Beam beam simulation of luminosity vs bunch current and initialization 9X5 in simulation. Data is January 14, 2007 The data from bmad_scsk0_zero_20070118-1.lat is labelled hybrid.
