Dynamic Aperture

Lattice ~dlr/bmad_devel/6wigs/bmad_6wig_lum_20030915_v1.lat (details)

October 8, 2003

Based on tune scan, recompute dynamic aperture at lower horizontal tune and much higher vertical tune.

Design sextupoles. Steerings from model that flattened orbit 94282 that was taken as part of characterization. Sekw quads to fit p3490 Use [cesr.dlr]digested_to_bmad to take digested file written by CESRV and write list of skew quads and steerings.

  • feynmann/cesr/da_jobs/081003
  • Dynamic aperture initialization
  • lat_file
  • Design sextupoles
  • Coupling, steering from tuned conditions
  • Same as for da_071003 but with design sextupoles.
    Horizontal Vertical
    Initial Tune 0.54 0.58
    Tune 0.52 0.6
    Synchrotron tune -0.092

    Number of particles 1
    Number of turns 1000
    Particle electrons
    Train 1
    Car 1
    Number of trains 9
    Number of cars 5
    Bunch current 0.0mA
    Lrbbi false
    Beambeam false
    Slices 5
    Wiggler 3rd order taylor

    Lattice ~dlr/bmad_devel/6wigs/bmad_6wig_lum_20030915_v1.lat (details)

    October 8, 2003

    Based on tune scan, recompute dynamic aperture at lower horizontal tune and much higher vertical tune.

    Sextupoles from csr_set.92504 elcsr characterized 9/29/03. Steerings from model that flattened orbit 94282 that was taken as part of characterization. Use [cesr.dlr]digested_to_bmad to take digested file written by CESRV and write list of sextupoles and steerings.

  • feynmann/cesr/da_jobs/071003
  • Dynamic aperture initialization
  • lat_file (same as 031003-2)
  • Sextupoles, coupling, steering from tuned conditions
  • Same as for da_031003-2 except slightly different tunes.
    Horizontal Vertical
    Initial Tune 0.54 0.58
    Tune 0.52 0.6
    Synchrotron tune -0.092

    Number of particles 1
    Number of turns 1000
    Particle electrons
    Train 1
    Car 1
    Number of trains 9
    Number of cars 5
    Bunch current 0.0mA
    Lrbbi false
    Beambeam false
    Slices 5
    Wiggler 3rd order taylor

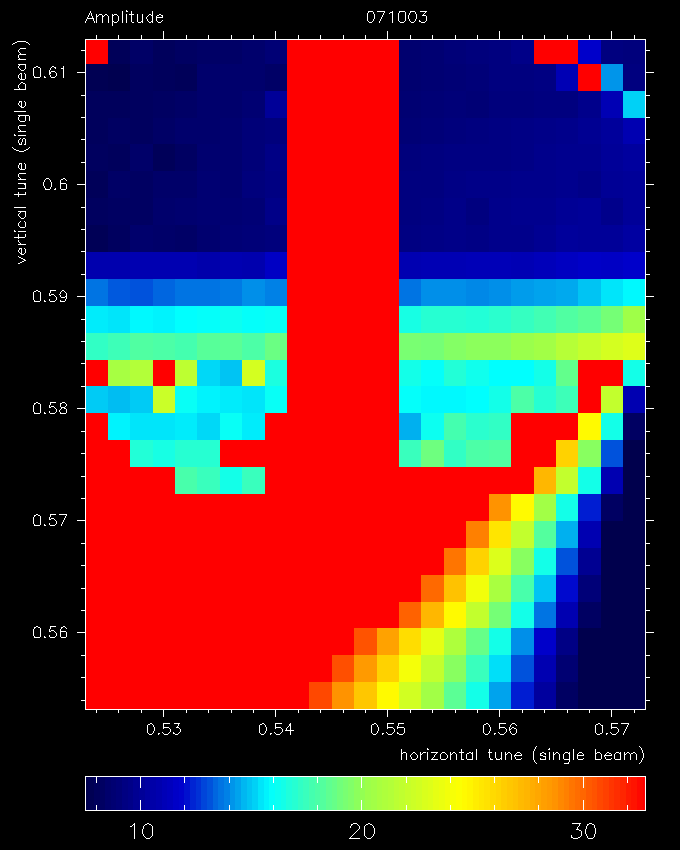

    Lattice ~dlr/bmad_devel/6wigs/bmad_6wig_lum_20030915_v1.lat (details)

    Sextupoles from csr_set.92504 elcsr characterized 9/29/03. Steerings from model that flattened orbit 94282 that was taken as part of characterization. Skew quads fit to p.3490 Use [cesr.dlr]digested_to_bmad to take digested file written by CESRV and write list of sextupoles and steerings.
  • Single beam tune scan initialization
  • lat_file
    Horizontal Vertical
    Tune lower left 0.52 0.58
    Tune upper right 0.58 0.64
    Tune step 0.002 0.002
    Synchrotron tune -0.092

    Number of particles 1
    Number of turns 1000
    Particle electrons
    Train 1
    Car 1
    Number of trains 9
    Number of cars 4
    Bunch current 0.001mA
    Lrbbi false
    Beambeam false
    Slices 5
    Wiggler 3rd order taylor

    Lattice ~dlr/bmad_devel/6wigs/bmad_6wig_lum_20030915_v1.lat (details)

    October 7, 2003

    Based on tune scan, recompute dynamic aperture at lower horizontal tune and higher vertical tune.

    Sextupoles from csr_set.92504 elcsr characterized 9/29/03. Steerings from model that flattened orbit 94282 that was taken as part of characterization. Use [cesr.dlr]digested_to_bmad to take digested file written by CESRV and write list of sextupoles and steerings.

  • Dynamic aperture initialization
  • lat_file (same as 031003-2)
  • Sextupoles, coupling, steering from tuned conditions
  • Same as for da_031003-2 except slightly different tunes.
    Horizontal Vertical
    Initial Tune 0.54 0.58
    Tune 0.52 0.583
    Synchrotron tune -0.092

    Number of particles 1
    Number of turns 1000
    Particle electrons
    Train 1
    Car 1
    Number of trains 9
    Number of cars 5
    Bunch current 0.0mA
    Lrbbi false
    Beambeam false
    Slices 5
    Wiggler 3rd order taylor

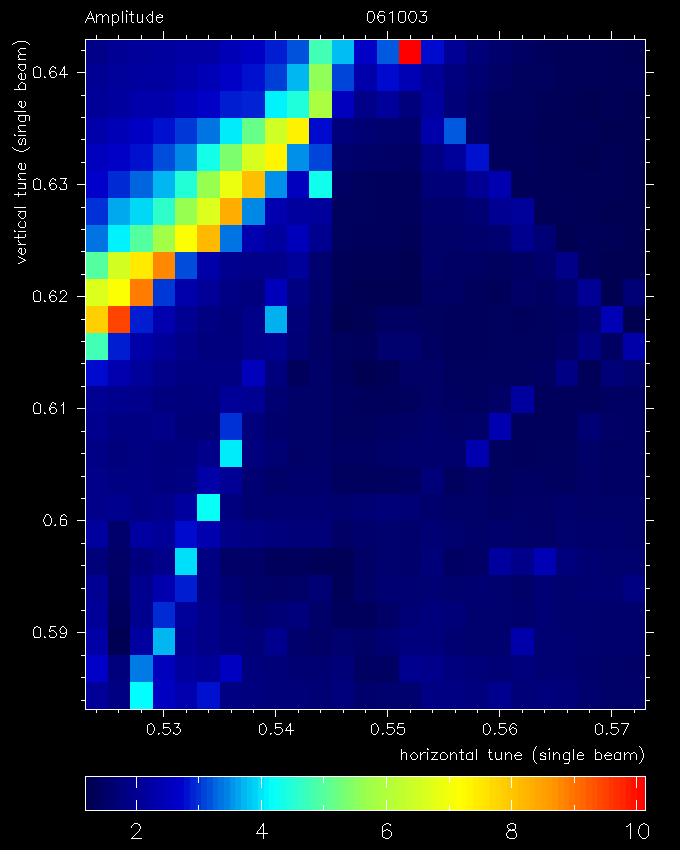

    Lattice ~dlr/bmad_devel/6wigs/bmad_6wig_lum_20030915_v1.lat (details)

    Sextupoles from csr_set.92504 elcsr characterized 9/29/03. Steerings from model that flattened orbit 94282 that was taken as part of characterization. Use [cesr.dlr]digested_to_bmad to take digested file written by CESRV and write list of sextupoles and steerings.
  • Single beam tune scan initialization
  • lat_file
    Horizontal Vertical
    Tune lower left 0.52 0.58
    Tune upper right 0.57 0.64
    Tune step 0.002 0.002
    Synchrotron tune -0.092

    Number of particles 1
    Number of turns 1000
    Particle electrons
    Train 1
    Car 1
    Number of trains 9
    Number of cars 4
    Bunch current 0.001mA
    Lrbbi false
    Beambeam false
    Slices 5
    Wiggler 3rd order taylor

    Lattice ~dlr/bmad_devel/6wigs/bmad_6wig_lum_20030915_v1.lat (details)

    October 3, 2003

    Based on tune scan, recompute dynamic aperture at lower horizontal tune and higher vertical tune.

    Sextupoles from csr_set.92504 elcsr characterized 9/29/03. Steerings from model that flattened orbit 94282 that was taken as part of characterization.Skew quads from model that fit p3490. Lot's of coupling Use [cesr.dlr]digested_to_bmad to take digested file written by CESRV and write list of sextupoles and steerings.

  • Tracking initialization
  • lat_file
    Horizontal Vertical
    Initial Tune 0.54 0.58
    Tune 0.527 0.576
    Synchrotron tune -0.092

    Number of particles 1
    Number of turns 1000
    Particle electrons
    Train 1
    Car 1
    Number of trains 9
    Number of cars 5
    Bunch current 0.0mA
    Lrbbi false
    Beambeam false
    Slices 5
    Wiggler 3rd order taylor

    Lattice ~dlr/bmad_devel/6wigs/bmad_6wig_lum_20030915_v1.lat (details)

    Sextupoles from csr_set.92504 elcsr characterized 9/29/03. Steerings from model that flattened orbit 94282 that was taken as part of characterization. Use [cesr.dlr]digested_to_bmad to take digested file written by CESRV and write list of sextupoles and steerings. Tracking initialization
    Horizontal Vertical
    Initial Tune 0.54 0.58
    Tune 0.527 0.576
    Synchrotron tune -0.092

    Number of particles 1
    Number of turns 1000
    Particle electrons
    Train 1
    Car 1
    Number of trains 9
    Number of cars 5
    Bunch current 0mA
    Lrbbi false
    Beambeam true
    Slices 5
    Wiggler symplectic integration

    Lattice ~dlr/bmad_devel/6wigs/bmad_6wig_lum_20030915_v1.lat (details)

    Sextupoles from csr_set.92504 elcsr characterized 9/29/03. Use [cesr.dlr]digested_to_bmad to take digested file written by CESRV and write list of sextupoles.
  • Tracking initialization
  • lat_file
  • Design optics and sextupoles from 92504
    Horizontal Vertical
    Initial Tune 0.54 0.58
    Tune 0.527 0.576
    Synchrotron tune -0.092

    Number of particles 1
    Number of turns 1000
    Particle positrons
    Train 1
    Car 1
    Number of trains 9
    Number of cars 5
    Bunch current 0mA
    Lrbbi false
    Beambeam true
    Slices 5
    Wiggler symplectic integration

    Lattice ~dlr/bmad_devel/6wigs/bmad_6wig_lum_20030915_v1.lat (details)

    Sextupoles from csr_set.92504 elcsr characterized 9/29/03. Use [cesr.dlr]digested_to_bmad to take digested file written by CESRV and write list of sextupoles.
  • Tracking initialization
  • lat_file
  • Design optics, with sextupoles from csr_set.92504
    Horizontal Vertical
    Initial Tune 0.54 0.58
    Tune 0.527 0.576
    Synchrotron tune -0.092

    Number of particles 1
    Number of turns 1000
    Particle electrons
    Train 1
    Car 1
    Number of trains 9
    Number of cars 5
    Bunch current 0mA
    Lrbbi false
    Beambeam true
    Slices 5
    Wiggler symplectic integration

    Lattice ~dlr/bmad_devel/6wigs/bmad_6wig_lum_20030915_v1.lat (details)

    Sextupoles designed with det4~0.3, and low weight on everything else.
  • Tracking initialization
  • lat_file
  • design lattice and sextupoles
    Horizontal Vertical
    Tune 0.527 0.576
    Synchrotron tune -0.092

    Number of particles 1
    Number of turns 1000
    Particle positrons
    Train 1
    Car 1
    Number of trains 9
    Number of cars 5
    Bunch current 0mA
    Lrbbi false
    Beambeam true
    Slices 5
    Wiggler symplectic integration
