Low emittance 4GeV

August 17, 2009

/nfs/cesr/user/dlr/public_html/damping_ring/4gev/cta_4000mev_20090814

• chamber profile: near L3 and table

  &synrad_params
  	sr_param%lat_file = "/home/dlr/lat/des/CesrTF/4gev/work/cta_4000mev_20090814.lat"    ! Input lattice.
  	sr_param%i_beam = 0.1            ! Beam current.
  	sr_param%epsilon_y = 10e-12      ! Vertical emittance.
  	seg_len = 0.01                    ! Segment length for calculation.
          beam_direction = 1              ! positron
  	wall_file = "CTAwall.dat"       ! "NONE" => Use a wall with a fixed offset from the beam.
  	wall_offset = 0.0448             ! Used when wall_file is set to "NONE"
  /


  • Power density positrons

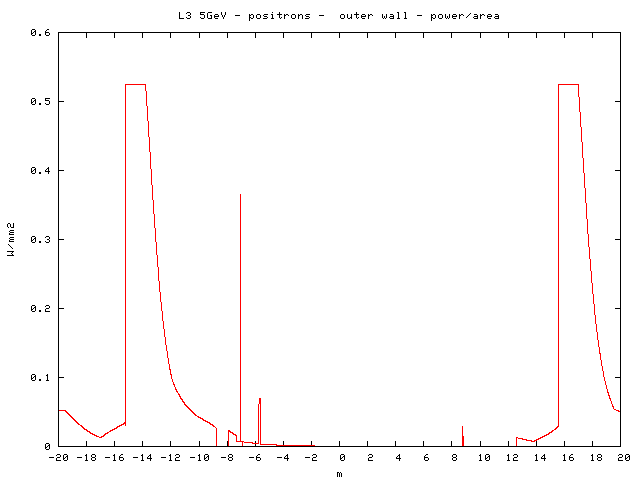

    • Outer wall near L3

    • Outer wall tabulated
    • Inner wall tabulated

  • Power density electrons

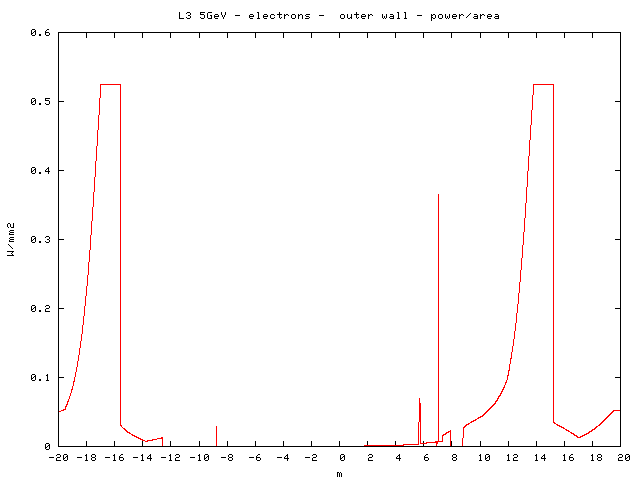

    • Outer wall near L3

    • Outer wall tabulated
    • Inner wall tabulated
