Low emittance 5GeV 6 1.9T wigglers in L0, layout and l0 profile updated 3/31/08

April 4, 2008

/nfs/cesr/user/dlr/lat/des/CesrTF/synch/080403/5gev

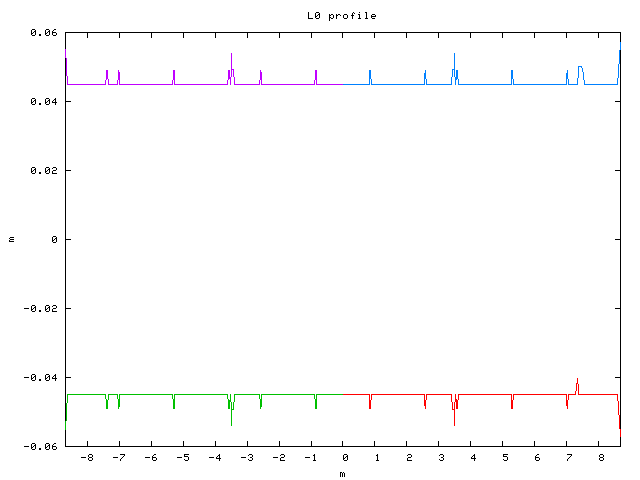

• l0 chamber profile: png and table

  &synrad_params
  	sr_param%lat_file = "/home/dlr/lat/des/CesrTF/5gev/ctf_20080403/ctf_20080403.lat"
  	sr_param%i_beam = 0.1            ! Beam current.
  	sr_param%epsilon_y = 10e-12      ! Vertical emittance.
  	seg_len = 0.001                    ! Segment length for calculation.
  	wall_file = "walls_v1.dat" ! "NONE" => Use a wall with a fixed offset from the beam.
  	wall_offset = 0.0448             ! Used when wall_file is set to "NONE"
  /


  • Power density positrons

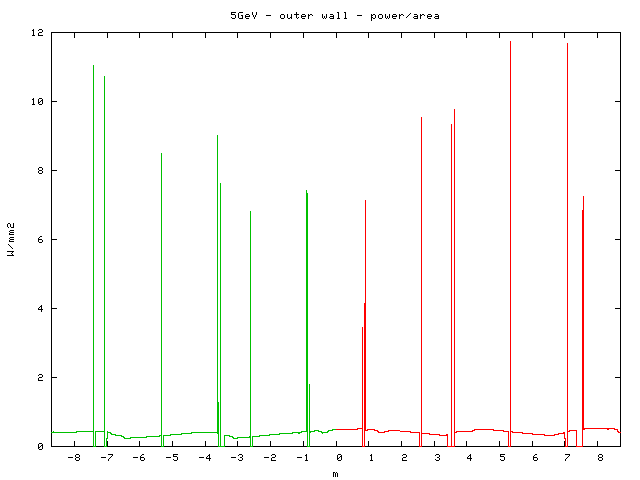

    • Outer wall

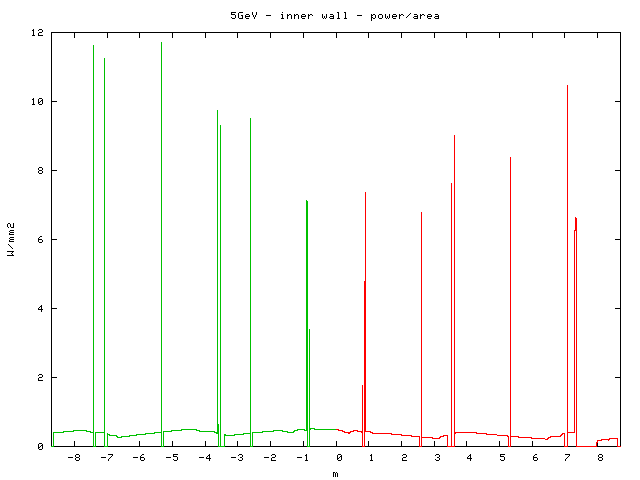

    • Inner wall

    • Inner wall tabulated
    • Outer wall tabulated
