Low emittance 5GeV

September 30, 2008

/nfs/cesr/user/dlr/lat/des/CesrTF/synch/080930/5gev

• chamber profile: png and table

  &synrad_params
  	sr_param%lat_file = "/home/dlr/lat/des/CesrTF/5gev/ctf_20080403/ctf_20080403.lat"    ! Input lattice.
  	sr_param%i_beam = 0.1            ! Beam current.
  	sr_param%epsilon_y = 10e-12      ! Vertical emittance.
  	seg_len = 0.001                     ! Segment length for calculation.
          beam_direction = -1               ! electron
          forward_beam  = "POSITRON"       ! "POSITRON" or "ELECTRON"
  	wall_file  = "walls_080929.dat"   ! "NONE" => Use a wall with a fixed offset from the beam.
  	wall_offset = 0.0448             ! Used when wall_file is set to "NONE"
  /


• Power density positrons

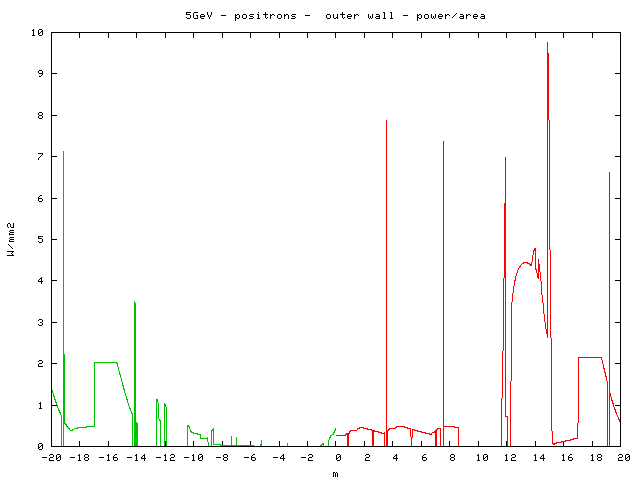

  • Outer wall

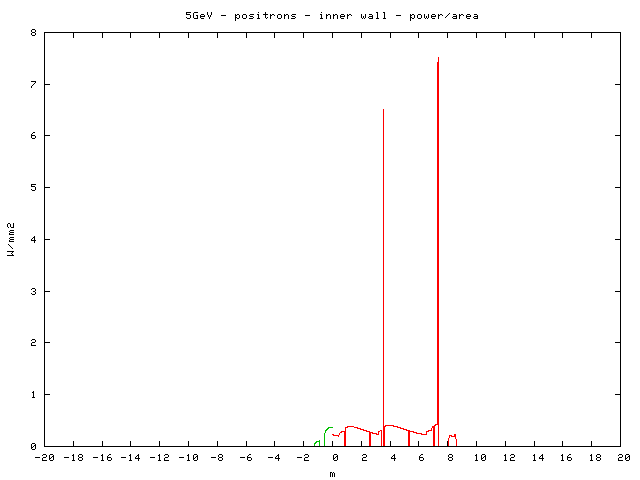

  • Inner wall

  • Inner wall tabulated
  • Outer wall tabulated

• Power density electrons

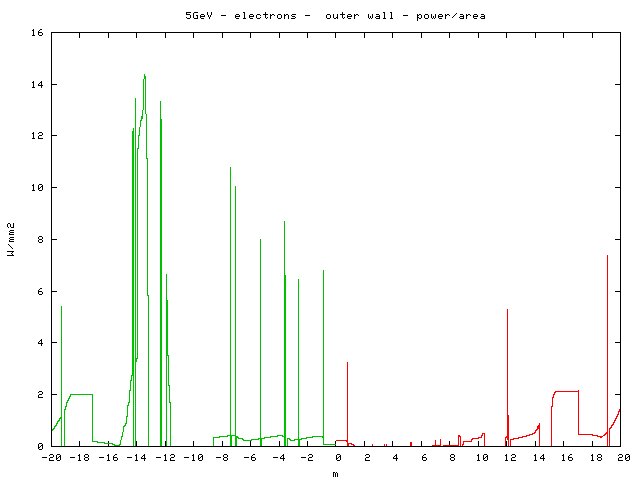

  • Outer wall

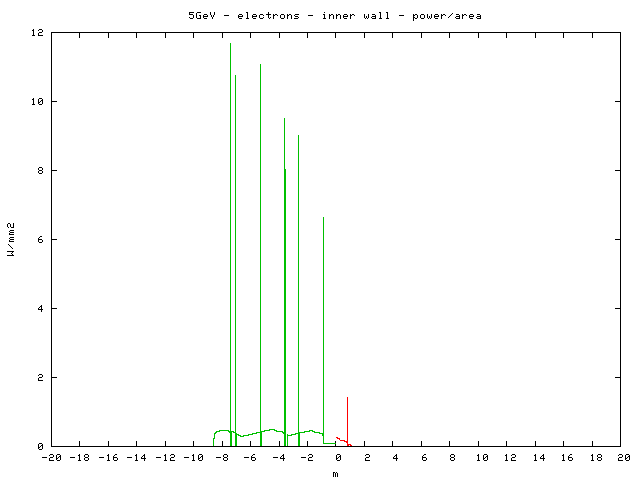

  • Inner wall

  • Inner wall tabulated
  • Outer wall tabulated

  Updated: October 3, 2008
