View of the upstream end of the load resistors that connects to the coax cable

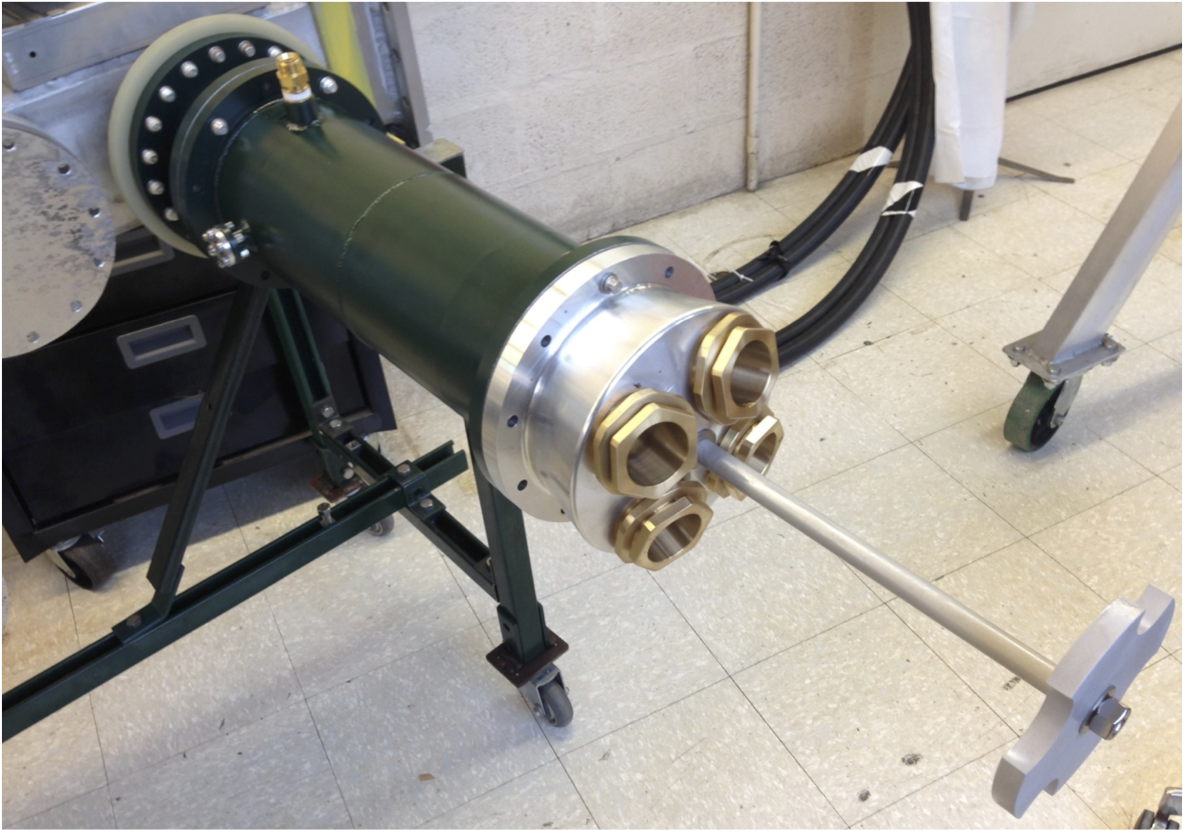

External view of load resistor canister (bazooka). The canister is filled with Fluorinert to cool the resistors
The combined resistance of the four parallel 50 ohm resistors is matched to the 12.5 ohm impedance of the Blumlein. Resistors are cooled by fluorinert.
