Flanges & Components  >  ISO >  ISO Flanges >  K (clamped) >

'K' Weld Flanges: SS

The ISO 'K' flanges use double claw clamp fasteners to connect two flange surfaces together. (Remember that K flanges are 'Klamped' together.) We offer blank flanges in 304 stainless steel or aluminum, and weld flanges in stainless steel.

Weld flanges fit standard U.S. tubing sizes. The clearance in the counterbore varies from 0.010" for the smaller flanges through 0.020" for medium or large flanges.

ISO hardware is made of stainless steel.

NEW!! Click Here to login to VacuCADSM, our free vacuum components
engineering file library offering downloadable 2D CAD Drawings (dxf)
and 3D Models (stp).

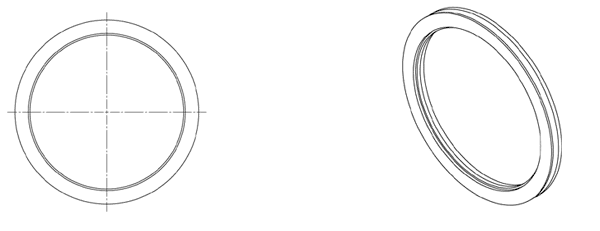

Figure 1 (bored K flange)

'K' Weld Flanges (SS)

ISO Flange
Size (mm)
Tube
OD (in.)
Bore
(in.)
A
(in.)
B
(in.)
VacuCAD Downloads
(Click Here to Login)
Part No. Price
(USA)
Add To Cart
 63  2.5  2.37  2.51  0.22 DXF STP QF63-SWK   $50.00
 80  3  2.87  3.01  0.22 DXF STP QF80-SWK   $60.00
 100  4  3.87  4.01  0.22 DXF STP QF100-SWK   $65.00
 160  6  5.83  6.02  0.22 DXF STP QF160-SWK   $95.00
 200  8  7.76  8.02  0.22 DXF STP QF200-SWK   $150.00
 250  10  9.75  10.02  0.22 DXF STP QF250-SWK   $195.00
 320  12.75  12.42  12.77  0.3 DXF STP QF320-SWK   $360.00
 400  16  15.5  16.02  0.3 DXF STP QF400-SWK   $490.00
 500  20  19.5  20.02  0.3 DXF STP QF500-SWK   $610.00
 630  24  23.75  24.02  0.394 DXF STP QF630-SWK   $895.00
Questions or comments contact our product specialists at: hardware@lesker.com
