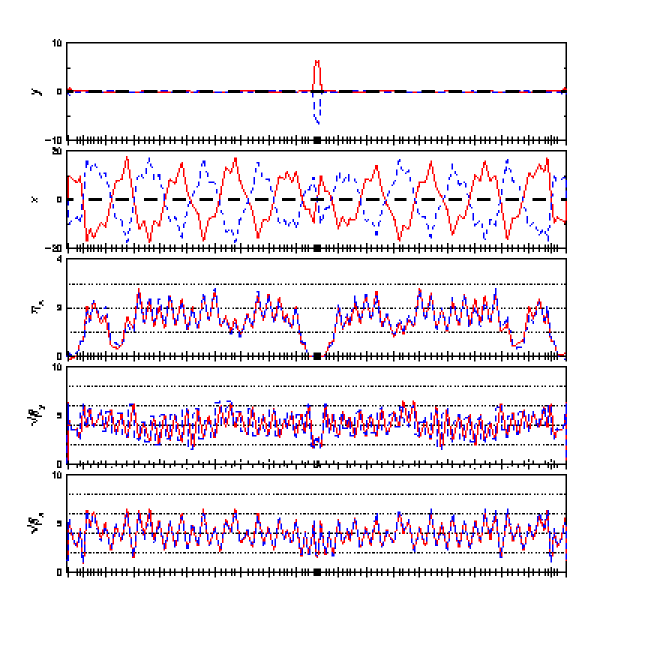

! Good looking half ring lattice with beta*v=17.5mm !+ ! Fri Oct 20 13:21:13 2006 => Documented by latdoc. ! Beam energy is 5.620 GeV ! Qx Qy Fx Fy Emitt(nm rad) ! e+ 10.53 9.58 206.7 226.6 168.3 ! e- 0.53 0.58 205.6 226.5 168.5 ! ! Bx* By* Eta* Alphax* Alphay* Eta'* Cr_ang(mrad) ! 1.44 0.0173 0.001 0.057 0.003 -0.027 2.262 ! ! Bx* By* Eta* Alphax* Alphay* -> Positron-Electron ! 0.03 -0.0001 0.003 0.124 -0.004 ! ! Bx By Eta Alphax Alphay Eta' -> all at IP_L3 ! 2.68 5.694 -0.000 -0.072 -0.014 -0.000 ! ! IP_L0 disp.: e+ x:6.96e-05 y:-2.87e-06 e- x:-2.85e-05 y:2.86e-06 ! ! IP_L0 cbar: 3.4e-05 1.2e-02 IP_L3 cbar: -1.5e-05 -2.3e-03 ! -7.5e-02 8.1e-04 1.2e-02 1.5e-04 ! ! Peak Arc Betas: e+ Bx:42.8 By:41.7 e- Bx:43.0 By:41.7 ! H_Sep Bx: 08w:26.72 08e:26.72 45w:11.87 45e:11.87 ! V_Sep By: 48w:11.55 48e:11.55 ! ! 9x5 info: Pr_apert:4.09e-02 Effic:0.55 I_bunch:6.66 B_param_i:6.23 ! Worst x disp e+:1.75e-02 at: Q14W, e-:-1.76e-02 at: Q14W ! 34w: e+ Bx:42.22 e- Bx:38.20 e+ Eta:1.54 Ring sigma_sep:6.84 ! 34e: e+ Bx:38.64 e- Bx:42.22 e- Eta:1.57 ! ! Full turn 4x4 det: 0.11 Momentum_comp: 1.13e-02 ! sync_beta_path x:0.0e+00 y:0.0e+00 _volt x:-1.0e-09 y:-9.5e-08 ! Qs-2Qx Mag e+: 4.41 e-: 5.12 ! *IP* dbeta(dE) x:17.25 y:-14.36 dbeta(dPretz) x:-1.72e-04 y:-1.71e-02 ! *max* dbeta(dE) x:20.50 y:62.95 dbeta(dPretz) x:1.21e-01 y:1.05e-01 ! Chrom x:-0.00 y:-0.51 Tonality x:0.17 y:-0.02 !- lattice := 5620mev call, file=BMAD_LAYOUT:cesr_iii_layout.bmad !----------------------------------------------------- !----------------------------------------------------- !-v01-
Last modified: Fri Nov 17 15:48:06 2006 Mike Forster
