Cornell/Harvard Black Box Solution
The model for the black box is the Fat Higgs with UV insensitive anomaly mediation.

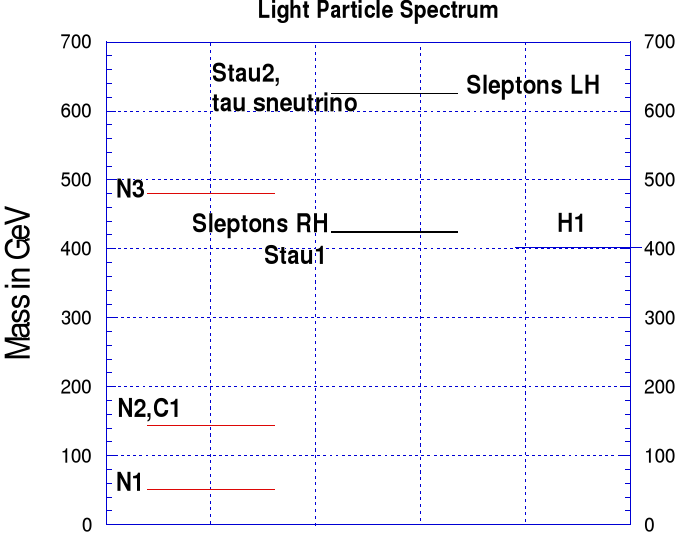

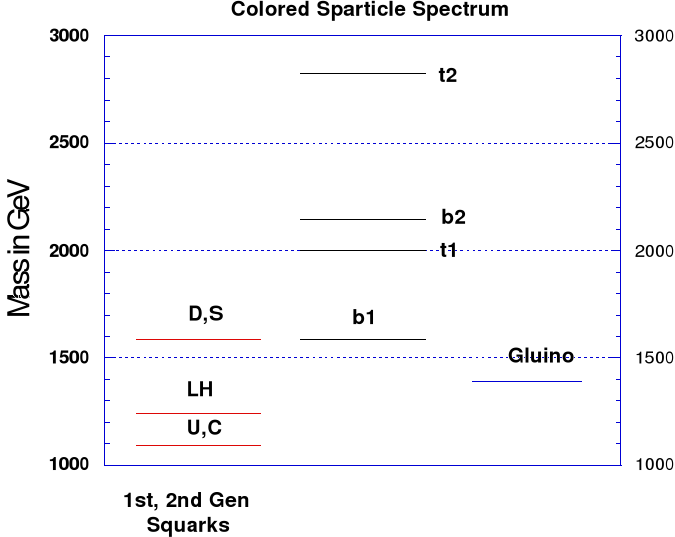

The Spectrum
Cross Sections (some of the largest)
Higgs via gluon-gluon fusion: 6440 fb
Higgs + 2 jets: 725 fb
Chargino1+ Chargino1- (winos): 2160 fb
Neutralino2(wino) Chargino1+: 947 fb
Neutralino2 Chargino1-: 531 fb
Gluino Right-handed up squark: 62 fb
Gluino Left-handed up squark: 43 fb
Gluino Left-handed down squark: 15 fb
Gluino Right-handed down squark: 6.3 fb
Neutralino2 Gluino: 10.2 fb
Chargino1+ Gluino: 9.3 fb
Chargino1+ Left-handed down squark: 10.4 fb
Neutralino2 Left-handed up squark: 5.2 fb
Higgs + 2 tops or 2 bottoms: 5.2 fb
Higgs + 2 leptons: 8.4 fb
Pair of right-handed up squarks: 28 fb
Right-handed up squark + left-handed up squark: 20 fb
Pair of left-handed up squarks: 17 fb
Assorted other squark pair production at the 10% level.
List of processes and cross sections
Decays
Higgs
w- w+ 0.451433
t t~ 0.217814
z z 0.209923
n1 n1 0.120075
b b~ 0.000568816
x1- x1+ 4.16773e-05
n2 n2 4.1832e-05
ta- ta+ 9.99727e-05
n1 n2 2.69824e-06
# Total width: 20.8526
Chargino 1:
n1 w+ 1
# Total width: 1.60632e-05
Neutralino 2:
n1 z 1
# Total width: 3.31137e-08
Neutralino 3:
e+ er- 0.169682
e- er+ 0.170329
mu+ mur- 0.169516
mu- mur+ 0.169807
ta+ ta1- 0.15803
ta- ta1+ 0.158532
x1- w+ 0.00198409
x1+ w- 0.0019918
n1 z 0.000125592
n1 h1 2.81787e-06
n2 z 2.60493e-08
# Total width: 0.35601
Gluino:
u~ ur 0.160752
u ur~ 0.16109
c~ cr 0.161149
c cr~ 0.161925
d~ dl 0.0445432
d dl~ 0.0443298
u~ ul 0.0443015
u ul~ 0.0444166
s~ sl 0.0444728
s sl~ 0.0443282
c~ cl 0.0442813
c cl~ 0.0444112
# Total width: 15.4258
Right-handed up squark:
u n3 0.999988
u n1 1.84109e-06
u n2 9.87156e-06
# Total width: 1.5979
Left-handed up squark:
d x1+ 0.659451
u n2 0.332451
u n3 0.00808786
u n1 9.33664e-06
# Total width: 15.2709
Right-handed down squark:
d go 0.879985
d n3 0.120014
d n1 1.74701e-07
d n2 9.45327e-07
# Total width: 6.15088
Left-handed down squark:
u x1- 0.660603
d n2 0.330895
d n3 0.00849153
d n1 1.07536e-05
# Total width: 15.3172
Left-handed selectron:
x1+ ve~ 0.653218
n2 e+ 0.328672
n3 e+ 0.0181015
n1 e+ 8.36882e-06
# Total width: 7.18029
Right-handed selectron:
n2 e+ 0.815561
n1 e+ 0.184439
# Total width: 1.35855e-05
MadGraph events
You can get the MadGraph events here.
Last modified: Thu Mar 22 16:24:25 EDT 2007
