Creating Textures for Celestia

Contents

0: Introduction.
1.0: Texture Files.

1.1: Image File Types.
1.2: Image Colors.
1.3: File Sizes.
1.4: File Locations.

2.0: Usage Within Celestia (How to use them).

2.1: Map Projections.

2.1.1: Simple Cylindrical.
2.1.2: Cubic.
2.1.3: Projection software.

2.2: Directories and Resolution.
2.3: Substituting Surface Textures.
2.4: Alternate Surface Textures.
2.5: Virtual Surface Textures.

2.5.1: Surface Texture specifying .ctx.
2.5.2: .ctx specifying tiles.
2.5.3: 13 levels of resolution.

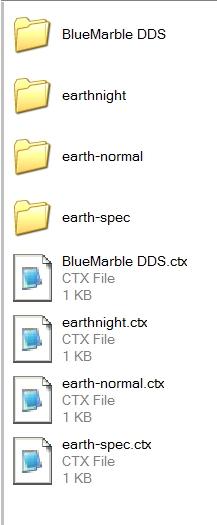

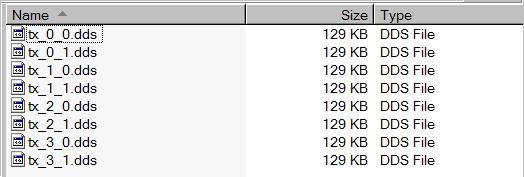

2.5.4: Summary images of VT folders.
2.5.5: VT creation utilities.

2.6: Normalmaps.

3.0: Uses Within Celestia (What to use them for).

3.1: Object Surfaces.
3.2: Specular Reflections, Mountains and Night Lights.
3.3: Overlays and the Limits of Knowledge.
3.4: Clouds.
3.5: Rings.
3.6: Nebulas.
3.7: Stars.

4.0: Common Problems.


A.0: Appendices.


A.1: Signature.
A.2: Admonishment.
A.3: Disclaimer.

• Selden's List of Resources for Celestia
  •  Selden's Contributions.

  •  A (not so) Brief Introduction to Add-Ons.
  • Creating and using .SSC files
  • Billboards for Celestia

• On the Celestia Web Forum: Graphics advice by Jens (aka "Jim")
  • Mini Texture FAQ for Celestia
  • A script for resizing DDS files
  • 3DS models in Celestia

• Virtual Textures for Dummies! (it's an 82KB or larger PDF document).
  by Bob Hegwood (Web site is gone: this links to the WayBack archive copy)
• Making Clouds for Celestia
  by John Hewett

0: Introduction.

Most objects in Celestia, stars, planets, asteroids, etc, start out as dull round globes. However, they can be given complicated appearances by specifying image files to be wrapped around them. These images, also called texture maps, can be used to provide surface colors, a bump (shadow) map, a nighttime image, cloud layers, a specular reflection map, and rings around the planet.

Despite the fancy name of "surface texture maps", these are all just pictures. You can create them using a fractal planet generator, your favorite paint program, or just copy them from a picture server. Pictures do get distorted when they are wrapped around an object in Celestia, but you usually don't have to worry about that. If necessary, some tools are available to provide the appropriate counter-distortions in advance.

1.0: Texture Files.

1.1: Image File Types.

Celestia can make use of three different types of image files: JPEG, PNG, and DDS texture format.

Discussion:

Each type of image has a different primary advantage: size on disk, support for an alpha channel (used for transparency or reflection), and performance, respectively. In some cases, BMP files can be used as surface textures for materials in 3DS models, but their use is discouraged. (BMP is an extremely complicated standard. Celestia implements only a very tiny fraction of it. If it works, you're lucky.)

Remember that the internal structure of JPG, PNG and DDS files are quite different from one another. The file extension (the filetype) is normally used by the computer to decide how to interpret the file. Simply renaming a file from earth.dds to earth.png will not work. Trying to interpret a DDS texture as if it were a PNG image will certainly not do what you want. Other operating systems may use a file's 16bit "magic number" to determine the type of data that it contains. The "magic number" is contained in the first two bytes of the file.
[back to Contents]

1.1.1: DDS Format.

DDS format is becoming popular with Celestia users who have current generation graphcs cards. The name is short for "Direct Draw Surface", a standard first used in Microsoft's DirectX software. This format can be used with most graphics chips that were designed within the past few years. It does not work with some older graphics cards. As of v1.3.0, there are three formats of DDS files often used with Celestia: DXT1, DXT3 and DXT5. DXT1 is the smallest. It contains only a single highly compressed picture. much like a JPEG image. DXT3 contains two somewhat compressed texture maps: the primary image and an Alpha channel. It's often used instead of a PNG file. A DDS file created in DXT1C or DXT5 format can contain multiple texture images. These "Mipmaps" in a DXT file are at progressively lower resolutions and can be created automatically by the NVDXT utility. The graphics hardware will use the image which is at the appropriate resolution for the size that the object is being shown on the screen. This results in better performance for objects that occupy fewer pixels.

DDS files can contain many other types of information that can be used by graphics cards that support them. For example, in addition to Mipmaps, DDS files have special provisions for Cubicmaps and Normalmaps.

A discussion of some of the different types of DXT compression algorithms can be found at http://www.intel.com/cd/ids/developer/asmo-na/eng/324337.pdf: Real-Time DXT Compression (2.5 MB PDF)

Standalone utilities and PhotoShop plugins are available from ATI, NVidia and Microsoft to convert various image formats into DDS files and to view DDS files as thumbnail images. Some of these programs are mentioned on my main Celestia Web page in section 9..



[back to Contents]

1.1.2: Wildcards.

Wildcard filetypes are available in Celestia v1.3.1 and later. When a texture image is specified in an SSC flle or in the material of a Mesh in any catalog file, you can use an asterisk (*) to tell Celestia to use whichever of four image file types that it finds. Celestia will look for CTX, PNG, JPG and DDS files, in that order. If you specify a texture name of "Mars.*", for example, Celestia will look through the appropriate texture directories for images named Mars.ctx, Mars.png, Mars.jpg and Mars.dds, in that order. (See section 2.5 below for a description of the CTX format, which is used for "Virtual Textures.")



[back to Contents]

1.1.3: Alpha Channel.

When a texture map image file contains an Alpha channel, Celestia will do one of two things with the Alpha channel. If the texture is specified using a Texture directive in an SSC or STC catalog, that is, if it is being used as the surface texture of a planet or model, its Alpha channel defines the surface specularity: white areas are reflective, black areas are dull. If the texture is used to define a cloud layer or a planetary ring or is specified within a 3D model, the Alpha channel defines the opacity of the surface: white is completely opaque, black is completely transparent.



[back to Contents]

1.1.4: Summary.

• PNG
  • Can contain an Alpha channel
  • Non-lossy compression (high quality images, large size files)
  • Must be expanded by Celestia before use
• JPG
  • No alpha channel
  • Lossy compression (low quality images, small size files)
  • Must be expanded by Celestia before use
• DDS
  • May or may not have an Alpha channel depending on format
  • May use lossy compression or no compression depending on format
  • Can contain more information than just surface texture images.
  • No expansion required: directly loaded into graphics card
• CTX
  • Points to tiles made with any one of the three above types (Used for Virtual Textures. See below.)
• BMP
  • Do not use: convert to PNG
  • Incompletely implimented in Celestia
  • Uncompressed, so wastes disk space
  • Sometimes can work with models
• Wildcard flietypes (name.*) select CTX, PNG, JPG, DDS.
• Alpha channel used for opacity or specularity

[back to Contents]

1.2: Image Colors.

Celestia requires that images contain 8 bits per color or grey channel.

Discussion:

Surface texture maps can be 24 bit color (8 bits each of Red, Green and Blue). 8 bit greyscale images that are to be used as surface textures must be converted to 24bit images. Also, Alpha channels, which are used for specular highlights or transparency, must be 8 bit grey-scale images. Although the PNG image file format supports other color depths, Celestia can't use those files. Developing a texture, height map or normal vector map with greater color resolution and then reducing the resolution in the final image usually produces a better result than working in the lower resolution required by Celestia.


[back to Contents]

1.3: File Sizes.

Celestia needs its image files to have dimensions (in pixels) which are powers of two: 256x256, 1024x512, 4096x2048, etc.

Discussion:

The pixels are assumed to be square. This size restriction is built into the design of most graphics chipsets. Display packages that allow surface textures with other sizes actually have to rescale the images before they use them. It's better to design your images at an appropriate size to begin with. This provides better performance and prevents loss of detail due to scaling. With Celestia, you have no choice but to do this.

Celestia v1.5.0 (or later) makes possible the use of textures which are not a power-of-two on a side. However, if the graphics card itself does not support such a file size, Celestia will scale the image down to a power-of-two size that it can use. This may severely damage the quality of the texture.


[back to Contents]

1.4: File Locations.

Celestia looks for surface texture image files in a textures subdirectory. When loading its own objects, Celestia looks in its main directory. When an Addon is being loaded, Celestia first looks in the textures subdirectory in that Addon's directory. If the texture isn't found there, it will look in the main directory.

Within each textures directory. Celestia looks in the subdirectories medres, hires, and lores. Surface texture images specified in the materials of 3D model Mesh files must be in the medres subdirectory.

When you create an Addon (e.g. a planet orbiting some distant star) its folder should be put in Celestia's "extras" folder. The Addon's textures would go in folders within the Addon's folder.

On a computer running Windows 7, Celestia's extras directory might be either
C:\Program Files (x86)\Celestia\extras\
or
C:\Users\<userid>\AppData\Local\Celestia\extras\

On a computer running MacOS, Celestia's extras directory is likely to be
/Users/<userid>/Library/ApplicationSupport/CelestiaResources/extras/

As a result, on some computers running Windows 7, the Addon (let's call it MyAddon) should be in the folder
C:\Users\<userid>\AppData\Local\Celestia\extras\MyAddon\
Its textures would be in
C:\Users\<userid>\AppData\Local\Celestia\extras\MyAddon\textures\
And its medres textures would be in
C:\Users\<userid>\AppData\Local\Celestia\extras\MyAddon\textures\medres\

For more details, See Section 2.2: Directories and Resolution.

For more information about the structure of Addons, see A (not so) Brief Introduction to Celestia Addons

2.0: Usage Within Celestia (How to use them).

2.1: Map Projections.

2.1.1: Simple Cylindrical.

Celestia's spheres require surface texture image maps that have been created in simple cylindrical projection.

Discussion:

A Simple Cylindrical map projection is one of many ways to describe the surface of a 3D sphere on a flat, 2D surface.

Surface textures to be used for spherical objects in Celestia must be simple cylindrical projections with 0 degrees of longitude in the center and 180 degrees of longitude at the sides. The North pole should be at the top and the South pole at the bottom of the picture.

Most maps of planets and moons that you find on the Web are already in this format. Some maps have 180 degrees of longitude in the center, however, and have to be edited so they'll have consistant alignments when used with Celestia.

Within Celestia, Longitude is measured increasing toward the East, toward the right side of the image. Often map references on the Web will say something like "270 degrees of West Longitude." This is in the opposite direction from what Celestia uses. 270 degrees West is the same as 90 degrees East.

Background

When a flat image is wrapped around a sphere, it gets distorted and stretched out of shape.

When used with Celestia, rectangular images of planetary maps that are going to be wrapped around spherical objects should be created in the format called "Simple Cylindrical Projection", which is also known as "Plate Carré" (spelled variously Caree, Carre & Carree). This is one of many different projection coordinate systems that have been developed so the surface of a sphere can be mapped onto a flat surface. Simple Cylindrical Projection is used by most 3D design systems when wrapping a rectangular image around a spherical object.

Simple Cylindrical Projections have a distinctive appearance. The top and bottom parts of the image are streatched horizontally. The center of the image looks normal. This stretching compensates for the fact that the top and bottem are "squeezed" when they are wrapped around the poles of a sphere. If you use an image that doesn't have this horizontal stretch, the poles of a planet will look "pinched".

"Simple Cylindrical" or "Cylindrical Equidistant" = "Plate Carré"

"Plate Carré" in 3D

The more common Mercator projections, like the one below, look similar to Simple Cylindrical Projections but have at least one major difference. Latitude (north-south) dimensions on Mercator projections become larger and larger as they approach the poles. The top and bottom of a Mercator map are stretched vertically while latitudes near the equator are shrunk. In contrast, the latitude distances on Simple Cylindrical Projections all have the same dimensions. They are not stretched vertically.

Mercator projection

When converting a piece of a flat map or picture into a surface map for an imaginary planet, treating the initial image as if it were a Mollweide projection seems to produce reasonable results. When it's converted to Simple Cylindrical, the top and bottom get stretched appropriately.

Mollweide projection

Whatever program you use to change an image's projection, you'll probably need to edit the cylindrical picture so that the features at its sides match. Otherwise there'll be a visible seam at the 180 degree position on the body drawn by Celestia.

[back to Contents]

2.1.2: Cubic.

A Cubic Map is another projection often used in computer graphics to describe the surface of a sphere.

It seems possible that Celestia may someday support Cubic Maps in additional to simple cylindrical maps. In anticipation of this possibility, I'm collecting some notes about that format.

Cubic maps are directly supported in the graphics hardware and avoid some of the problems seen with simple cylindrical projections, although they introduce some of their own.

Advantages:
• No "pinch" effects at the poles
• Higher resolution individual surface textures
• ~25% more efficient storage for a given resolution
• Higher performance than VTs, but VTs provide the highest resolution
Disadvantages:
• Cubic maps have discontinuity problems at each of their eight corners
• Cubic maps have discontinuity problems along each of their six edges
• Many graphics cards do not filter across cube map faces, causing other artifacts.

The six faces of the cube can be generated using gnomonic projections.

Here are the commands to create them from a simple cylindrical image using MMPS:

#! /usr/bin/sh -x
convert $1.jpg tmp.ppm
../project gnomonic -grid  -gridcolor 255:255:255 \
  -scale 2 -lat 0 -long  90 -w 512 -h 512 -f tmp.ppm >tmp_px.ppm
../project gnomonic -grid  -gridcolor 255:255:255 \
  -scale 2 -lat 0 -long 270 -w 512 -h 512 -f tmp.ppm >tmp_nx.ppm
../project gnomonic -grid  -gridcolor 255:255:255 \
  -scale 2 -lat  90 -long 0 -w 512 -h 512 -f tmp.ppm >tmp_py.ppm
../project gnomonic -grid  -gridcolor 255:255:255 \
  -scale 2 -lat -90 -long 0 -w 512 -h 512 -f tmp.ppm >tmp_ny.ppm
../project gnomonic -grid  -gridcolor 255:255:255 \
  -scale 2 -lat 0 -long   0 -w 512 -h 512 -f tmp.ppm >tmp_pz.ppm
../project gnomonic -grid  -gridcolor 255:255:255 \
  -scale 2 -lat 0 -long 180 -w 512 -h 512 -f tmp.ppm >tmp_nz.ppm
#
convert xc:black -geometry 512x512 black.ppm
#
montage black.ppm  tmp_py.ppm black.ppm  black.ppm \
        tmp_nx.ppm tmp_pz.ppm tmp_px.ppm tmp_nz.ppm \
        black.ppm  tmp_ny.ppm black.ppm  black.ppm \
-mode Concatenate -tile 4x3 $1_cubic.jpg

These faces can be stored directly in a single DDS file.

The order of faces should be
Positive X
Negative X
Positive Y
Negative Y
Positive Z
Negative Z

More details on DDS Cube Map format are available on the Web page http://msdn.microsoft.com/en-us/library/ee415223%28VS.85%29.aspx

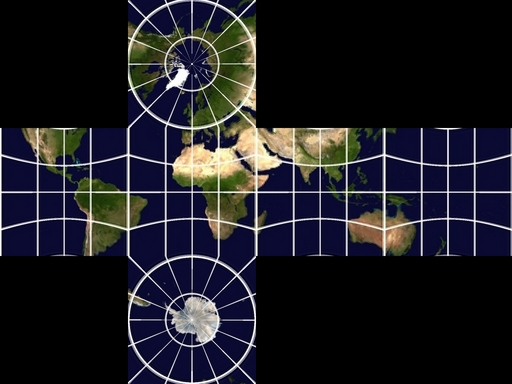

Merged Cubic projection

[back to Contents]

2.1.3: Projection Software.

Various programs are available for remapping (distorting) a "flat" image into a cylindrical projection.

Some freeware utilities are

• A "Spherical Mapping Corrector" Photoshop plugin by Richard Rosenman,
  "Spherical Mapping Corrector" can be found at http://www.richardrosenman.com/software/downloads/ It stretches the top and bottom of an image horizontally more than the center of the image so that the top and bottom don't create a "pinched" look at the poles. The results are not necessarily mathematically accurate.

  Photoshop plugins can be used with most paint programs, not just with Adobe Photoshop.

• "MMPS: Matthew's Map Projection Software" by Matthew Arcus
  "MMPS" can be found at http://www.users.globalnet.co.uk/~arcus/mmps/mmps.html. It produces mathematically correct conversions between many different map projections. (I used MMPS to generate the Mercator, Mollweide and Cubic projections that are shown on this page.)
• Iris, by Christian Buil.
  Iris is an astronomical image processing package which includes functions to remap images among a dozen different map projections. See http://astrosurf.com/buil/us/iris/iris.htm. Except for minor "off by one" bugs, Iris does use mathematically correct conversions.
• PDL::Transform::Cartography may also be usable.
  "PDL - The Perl Data Language" is available at http://pdl.perl.org/.
  PDL::Transform::Cartography documentation can be seen at http://pdl.sourceforge.net/PDLdocs/Transform/Cartography.html and at http://search.cpan.org/~csoe/PDL-2.4.3/Lib/Transform/Cartography/Cartography.pm
  PDL::Transform::Cartography examples can be seen at http://www.boulder.swri.edu/~deforest/PDL/index.html
[back to Contents]

2.2: Directories and Resolution.

Celestia has three directories and two commands which can be used to change the appearance of an object:

The directories are

1. ...\textures\lores\,
2. ...\textures\medres\, and
3. ...\textures\hires\.

Notes:

1. replace "..." by the appropriate directory path for your Addon. See Section 1.4: File Locations.

2. the "r" and "R" commands have been eliminated in Celestia v1.6.0 and newer. Instead, use Celestia's menu Render / Texture Resolution.

   The resolution commands used in Celestia v1.5.1 and older are

   1. r (reduce resolution)
   2. R (increase resolution)

Discussion:

The Texture Resolution menu (previously "r" and "R" commands) usually can be used to select among Celestia's lower and higher resolution surface textures. (They work for AltSurface textures, too.)

Celestia can select among as many as three different image resolutions for the surface texture of a body. The image files used for this must all have the same name (e.g. earth.jpg), but they are kept in separate subdirectories.

If an object's Texture declaration in an STC or SSC file specifies a wildcard filetype (e.g. earth.*), then the image files do not all have to be the same type. Celestia will look for CTX, PNG, JPG and DDS files, in that order. (See section 2.5 below for a description of the CTX format, which is used for "Virtual Textures.")

Celestia looks for texture files in the subdirectories textures\medres, textures\hires, and textures\lores, in that order. The older Celestia distribution include Lores and Medres surface textures for many bodies in the Solar System. Celestia v1.6.0 includea a few Hires textures, too.

To select among the three textures in older versions of Celestia, the key "r" selects the file that is in the next lower resolution directory, while "R" selects the file that is in the next higher resolution directory. Celestia v1.6.0 and newer have appropriate menu items.

Note that the texture images in these different directories don't actually have to be different resolution versions of the same image. The pictures could be completely different from one another. The directory names and the selection commands are just a convenience.

[back to Contents]

2.3: Substituting Surface Textures.

When you want to substitute a new texture for an old one, you have several choices:

1. "Permanently" Modify the object's catalog entry
2. Specify an AltSurface that can be selected while Celestia is running
3. Select different resolutions
4. Replace the existing texture.
5. Edit the object's catalog to specify a different texture.

Discussion:

Preferred:
1. To "permanently" replace a surface texture, provide an additional SSC catalog file in the extras directory which uses the Modify keyword to specify a different image file name and filetype.

   On a computer running Windows 7, Celestia's extras directory might be either C:\Program Files (x86)\Celestia\extras\ or C:\Users\<userid>\AppData\Local\Celestia\extras\

   On a computer running MacOS, Celestia's extras directory is likely to be /Users/<userid>/Library/ApplicationSupport/CelestiaResources/extras/

   This SSC and the replacement image should be in extras or their own Addon directory. For example, the ssc file plate_caree.ssc might be in the directory extras\my_plate_caree\, while the corresponding image file plate_caree.jpg would be in the directory extras\my_plate_caree\textures\medres\.

   Using the Modify keyword in a new SSC file is relatively straightforward. Modify should be the first word on the first line of an object's redefinition. The body of the object's definition should include the lines that you want to be different from the original definition. For example, to replace Celestia's standard surface Texture for the Earth by the Plate Carré image shown above, one could use this SSC catalog:

   Modify "Earth" "Sol" {
   	Texture "plate_caree.*"
   }


2. If you want to be able to select among several different surfaces while Celestia is running, create an SSC catalog to define an Alternate Surface. See Section 2.4 for details.

3. Provide an additional image file that has the same name in Celestia's /textures/hires/ subdirectory. Then you can use r and R to select among the images in the /lores/, /medes/ and /hires/ subdirectories.

   Discouraged:

4. Replace the existing image file in its /textures/ subdirectory with a new one that has the same name.

   I.e. rename the new file to have the same name as the original image file. If necessary, you could convert the format of the new image file to be the same as the original surface texture image file. You can leave the format and filetype of the new image file unchanged if the object's catalog file specifies a wildcard filetype.

5. Manually edit Celestia's catalog file to specify a different texture file name (this should be avoided whenever possible).

   Although you can edit solarsys.ssc to change the image file's name when you want to permanently replace one or more of Celestia's default planet surfaces with new ones, this is not recommended. solarsys.ssc is a plain text file and can be edited with your favorite text editor: Notepad, Wordpad, emacs, vi, whatever. One problem is that when you install a new version of Celestia, it will overwrite your changes. You also run the risk of damaging solarsys.ssc beyond repair. Instead, you can either create an AltSurface Addon that can be selected while Celestia is running, or you can create an Addon that uses the SSC directive "Modify" to substitute a different Texture command permanently.

   Note:
   data\solarsys.ssc is critical to the operation of Celestia. Copy it elsewhere first. It is too easy to make a typographical error which makes the file unusable. Celestia does not generate any error messages when something goes wrong. Depending on the problem, Celestia may just skip the bad directive or it may ignore the rest of the file entirely. If you have a copy of the original file, you can compare it with your new version to see what has changed.

Remember that the internal structure of JPG, PNG and DDS files are quite different from one another. The file extension (the filetype) is normally used to decide how to interpret the file. Simply renaming a file from earth.dds to earth.png will not work. Trying to interpret a DDS texture as if it were a PNG image will certainly not do what you want.


[back to Contents]

2.4: Alternate Surface Textures.

Starting with Celestia v1.3.1, there is another option for replacing the surface texture of a body: Celestia now supports the use of Alternate Surface Textures.

An AltSurface is declared in an SSC file:

---

AltSurface "Name of Surface" "path to body"
	{
		surface texture map declarations
	}

---

For example:

---

AltSurface "Lowell's Canals: monochrome" "Sol/Mars"
  {
   Texture "plmars-texture-v2.*"
   BumpMap "marsbump.*"
   BumpHeight 2.5
  }

---

In an .SSC file, you can specify one or more AltSurfaces which list textures to be associated with an object. Then when Celestia runs, you can choose the appropriate set of surface textures by Selecting the object and then using the "Right-Mouse-Button-context-menu". Click on the object with the "Right-Mouse-Button" ("Ctrl-Click" on a Mac). The pop-up menu will include the menu item "Alternate Textures" whenever there are alternate surfaces associated with the Selected object. Alternate surfaces can include all of the qualities associated with surface textures traditionally used for Celestia's objects, including bumpmaps, specular reflections, etc. Atmospheric effects with clouds are not available, however.

When you select a particular AltSurface, Celestia also respects the resolution selection commands "r" and "R". In other words, each AltSurface can have as many as three different surface images, one in each of the lores, medres and hires directories.

Alternate surface textures can be defined in their own SSC file. They do not have to be defined in the same .SSC file with the object that they're associated with. The SSC file which defines the host body does have to be loaded before the file contining the AltSurface definition, though, so that Celestia already knows the body it uses. An AltSurface declaration specifies its own name plus the name of the body to which it should be applied.

Some restrictions you need to keep in mind:

• When defining a BumpMap or SpecularTexture you also must include their modifiers: BumpHeight, SpecularColor and SpecularPower. For details, see the sections 3.2.1: Specular Reflections and 3.2.2: Mountains and Craters.

• When you run Celestia and select an AltSurface, only those surface texture images declared in that AltSurface definition will be shown.

  Surface textures are not inherited from other declarations for that body. If an AltSurface only mentions a Texture, no NightTexture will be shown. The surface textures that can be specified are Texture, BumpMap (or NormalMap), SpecularTexture, NightTexture and OverlayTexture surface map images. Only CloudMap texture images, which are declared in an SSC's Atmosphere definitions and are not surface modifiers, are inherited from the object's "Normal" surface definition.

  (Note that the word "Normal" is used ambiguously in Celestia. NormalMap images are used to define surface shading that changes as the body rotates. The word "Normal" also is used to indicate "standard" or "default" surfaces. These default surfaces are the surface texture images which are declared in an object's initial SSC declaration, not in an AltSurface declaration.)

• All of the AltSurfaces which have that same name are selected for all objects when you select an AltSurface with that name for any object. There is only one AltSurface name active at a time. It is used to select AltSurfaces for all objects at once.

  You can define a different AltSurface texture image for each of many different objects, and you can give all of their different AltSurfaces the same name, "Ancient" for example.

  If you select an AltSurface named "Ancient" for the Earth, and if an "Ancient" is defined for Mars, you will see the AltSurface "Ancient" when you GoTo Mars. You do not have to select it separately. Objects which do not have an AltSurface of the specified name revert to showing their "Normal" surfaces.

  For example, this would specify "Ancient" topologies for Venus, Earth and Mars:

  ---

  AltSurface "Ancient" "Sol/Venus"
    {
     Texture "ancient_venus.*"
     BumpMap "ancient_venusbump.*"
     BumpHeight 2.5
    }
  AltSurface "Ancient" "Sol/Earth"
    {
     Texture "ancient_earth.*"
     BumpMap "ancient_earthbump.*"
     BumpHeight 2.5
    }
  AltSurface "Ancient" "Sol/Mars"
    {
     Texture "ancient_mars.*"
     BumpMap "ancient_marsbump.*"
     BumpHeight 2.5
    }


  ---

• CloudMaps cannot be specified in an AltSurface definition.

  Only the surface textures are affected by the AltSurface definition. These are the Texture, BumpMap (or NormalMap), SpecularTexture, NightTexture, and OverlayTexture surface map images. CloudMap texture images, which are declared in SSC Atmosphere definitions and drawn on a sphere above the body's surface sphere, always are inherited from the object's "normal" (default SSC) surface definition. They can be changed using the "r and "R" resolution selection commands or menu options, though. See section 2.2.

---

Here's an example .SSC file specifying AltSurface maps for Mars. If it is put in the directory Celestia\extras\MyMars\ then its corresponding surface textures should be in Celestia\extras\MyMars\textures\medres\.

This SSC uses textures available from my Mars Web page at gallery-002.html. Mars is defined in Celestia's solarsys.ssc, so it's already known when an Addon's SSC file is loaded from the \extras\ directory.

• mars-maps.ssc (1.5KB, 19jun03)

Here are a couple of examples taken from that file:

---

AltSurface "Lowell's Canals: monochrome" "Sol/Mars"
  {
   Texture "plmars-texture-v2.*"
   BumpMap "marsbump.*"
   BumpHeight 2.5
  }
AltSurface "Lowell's Canals: colored" "Sol/Mars"
  {
   Texture "plmars2-texture-v2.*"
   BumpMap "marsbump.*"
   BumpHeight 2.5
  }

---

[back to Contents]

2.5: Virtual Surface Textures.

Virtual Textures can be used to provide extremely high resolution surfaces for Celestia's builtin spheres. (They don't work on 3D models.)

Please see Bob Hegwood's description of how to get started using and creating Virtual Textures in his PDF document Virtual Textures for Dummies! (it's a 61KB PDF document).

A very brief description of Virtual Textures is available in A brief How-To for Virtual Textures.

Acknowledgement:

Much of the information here is taken from Chris Laurel's original description of the VT features when they were made available in a Celestia prerelease. That description can be read on the Celestia Web Forum at http://www.shatters.net/forum/viewtopic.php?t=3041.

Starting with Celestia v1.3.1, high resolution surface textures of planets and their satellites can be provided as groups of many smaller images. A 32Kx16K surface texture no longer has to be one gigantic file. Instead of loading one image for the entire surface of an object, Celestia loads only those images that are needed to display the part of the surface that you're looking at. As a result, the surface textures load much more quickly and Celestia runs more smoothly.

(Well, sort of. Often there are so many tiles visible that loading all of their files individually takes longer than loading a single larger image file.)

A virtual texture consists of these elements:

• A surface texture declaration specifying a .ctx texture
  (This declaration must be in a .SSC file. You can modify solarsys.ssc, but I prefer to use a separate .SSC file in an Addon directory.)
• A .ctx file declaring the name of the folder containing the texture image tiles which are components of the CTX virtual texture.
  (The .ctx file is in an apppriate textures sub-directory, usually either medres or hires. The folder it specifies is in that same sub-directory.)
• As many as 13 levels of resolution (0 through 12) in separate folders
• Appropriate image tiles to be drawn by Celestia at each level of resolution.
[back to Contents]

2.5.1: Surface Texture pointing to a .ctx.

The easiest way to use a Virtual Texture is to declare it as an AltSurface in an SSC file. This SSC catalog file should be in the main directory that is named for and associated with this VT Addon. While the SSC catalog file could be put directly into your /extras/ directory, you will regret that later.

Here's an example for the Earth. On my system, it lives in \extras\Addons\BlueMarble DDS\BlueMarble.ssc. This SSC catalog specifies the Virtual surface Texture file named BlueMarble DDS.ctx along with a NightTexture, NormalMap, and others. The smallest possible AltSurface would include only the Texture specification.

---

Celestia\extras\Addons\BlueMarble\BlueMarble.ssc

---

AltSurface "BlueMarble DDS" "Sol/Earth"
   {
	Color [ 0.6 0.6 1.0 ]
	Texture "BlueMarble DDS.ctx"

	NightTexture "earthnight.ctx"

	NormalMap "earth-normal.ctx"

	SpecularTexture "earth-spec.ctx"
	SpecularColor [ 0.5 0.5 0.55 ]
	SpecularPower 25.0

	HazeColor [ 1 1 1 ]
	HazeDensity 0.3
   }

---

[back to Contents]

2.5.2: .ctx specifying tiles.

A .ctx file is a plain text file which describes the tiles that compose the virtual texture. The .ctx file goes into the texture\hires directory associated with this VT Addon, just as a JPG or PNG image would. On my system, it lives in \extras\Addons\BlueMarble DDS\textures\hires\

The .ctx file specifies the name of the next lower folder of this VT Addon. This next lower folder contains up to 13 folders named level0 through level12. The level folders actually contain the images that form the tiles of the virtual texture.

For example, here is the file \textures\hires\BlueMarble DDS.ctx It says that the next folder down, \extras\Addons\BlueMarble DDS\textures\hires\BlueMarble DDS, contains the folders of tiles for this virtual surface texture.

---

Celestia\extras\Addons\BlueMarble\textures\hires\BlueMarble DDS.ctx

---

VirtualTexture
  {
        ImageDirectory "BlueMarble DDS"
        BaseSplit 0
        TileSize 512
        TileType "dds"
  }

---

• ImageDirectory specifies the location of the individual texture files.
• BaseSplit determines the number of tiles in the lowest level of detail, level0.
  (2^(BaseSplit + 1) tiles wide, 2^BaseSplit tiles high. A BaseSplit of 0 requires 2 tiles in the first directory level.)
• TileSize specifies the value (in pixels) to be used when calculating when to change the resolution level of textures being shown in Celestia's display. It does not necessarily correspond to the actual widths of the tiles themselves.
  • There is in fact a "fencepost" problem in the way Celestia uses this number. If you use a TileSize that corresponds to the number of pixels in each tile, when a new resolution level is loaded, the visible resolution improves. This is because the lower resolution level was being displayed past the point where its resolution matched the screen resolution. Its pixels were being blurred across several onscreen pixels. It's generally best to specify a TileSize pixel value which is half the width of the tiles. If you have tiles which are 512x512 pixels, specify a TileSize of 256. The next level of tiles will be loaded when you have reached the point where the resolution visible on screen matches the resolution of the lower resolution tiles.
  • VT tile images do not have to be square, although they do have to be a power of two on a side. Celestia scales them appropriately. In particular, this means that you can use rectangular tiles for areas near the poles. This can save a lot of disk space.
• TileType specifies the type of image format used for the tiles. This can be JPG, PNG, DDS or, in v1.5, DXT5NM. (See section 2.6 for a description of DXT5nm normalmaps.)

[back to Contents]

2.5.3: 13 levels of resolution.

Starting with Celestia v1.4.0pre1, Virtual Textures can use as many as 13 levels of resolution (0 through 12) stored in separate folders.

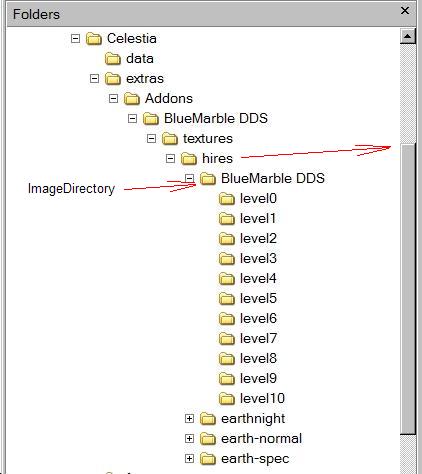

BlueMarble folder structure

Contents of Celestia\extras\Addons\BlueMarble\textures\hires\

---

Virtual textures consist of as many as 13 levels (0 through 12) of detail. Each level corresponds to an image area that is four times the size of the previous level: twice the width and twice the height. If level0 consists of two 512x512 images (which is the equivalent of a 1K surface texture) then level1 can contain eight 512x512 images (the equivalent of a 2K surface texture) and so on.

On the Earth, this means that level0 has a resolution of about 40km/pixel. The Earth has a circumference of about 40000 km. 40000 / 1024 = about 40. If the level10 folder conatains tiles that are 512x512 pixels, they will provide a resolution of about 40 meters/pixel. Larger tiles would provide proportionately better resolution for level10.

(If level0 = 1K pixels wide, level1 = 2K, level2 = 4K, level3 = 8K, level4 = 16K, level5 = 32K, level5 = 64K, level7 = 128K, level8 = 256K, level9 = 512K, and level10 would be the equivalent of 1024K pixels wide. 40,000,000 meters/1,000,000 pixels = 40 meters/pixel)

Each level of detail consists of up to 2n x n texture tiles, where n must be a power of two. Fully populated, each level would contain 4 times as many tiles as the previous level. Only the lowest resolution level, level0, must be fully populated, however. If tiles are omitted from higher reslolution levels, then the area that would be covered by the missing tiles is filled in from lower resolution levels.

(if level0 contains 2 files, level1 = 8, level2 = 32, level3 = 128, level4 = 512, level5 = 2K, level6 = 8K, level7 = 32K, level8 = 128K, level9 = 512K, and level10 could contain as many as 2 million files. 2M tiles 512 pixels wide = 2x1024x1024 tiles x 512x512x4 bytes = the equivalent of two TeraBytes.)

When placing tiles in a virtual texture with a BaseSplit of 0, level0 contains two tiles, each covering 180 degrees. Level1 has 8, 90 degree tiles; level2: 32, 45 deg; level3: 128, 22.5 deg; level4: 512, 11.25 deg; level5: 2048, 5.625 deg; etc. Use the spreadsheet in the Tools section below to help in calculating the latitude and longitude of tiles.

Celestia chooses the level of detail to use based on the size in pixels of the object shown on the screen and the TileSize specified in the ctx file. The image change is not based on the actual sizes of the tile images.

When a level is fully populated, the equivalent width of the tiles at that level is always double the height if they're considered to be a simple cylindrical projection as used by Celestia. (e.g. 1024x512 or 32768x16384)

The individual tiles do not have to be square, however. In particular, the tiles near the poles could be rectangular, perhaps 2 or 4 times as tall as they are wide. They do have to be powers of two on a side. Celestia (actually your graphics card) stretches them to the appropriate size to be projected on the associated part of the globe.

All the levels of detail do not need to be fully populated, but the lower resolution level folders do have to exist. If you have a few high resolution tiles in level7, all of the folders named level0 through level6 must be there. Level0 should be fully populated with its two tiles, but the intermediate folders can be left empty.

If a tile at the requested level of detail is not available, Celestia will fall back to the next lower level of detail that's available. This allows you to map planets with very high resolution at particular locations without forcing you to map the entire planet at that resolution. For example, the level10 folder below contains high resolution tiles of the Cape Canaveral area. You might want to create some for your home town.

Contents of \level0\ (fully populated)

Contents of \level1\ (fully populated)

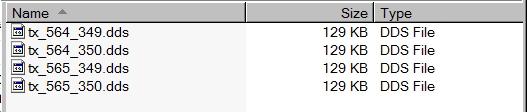

Contents of \level10\ (only partially populated)



This table is for a BaseSplit of 0 and a tile width of 512 pixels.

Level	# tiles	Degrees per tile	Pixels across	Resolution per pixel	equivalent size
0	2	180	1024	40km	2MegaBytes
1	8	90	2048	20km	8MB
2	32	45	4096	10km	32MB
3	128	22.5	8K	5km	128MB
4	512	11.25	16K	2.5km	512MB
5	2048	5.6	32K	1.25km	2GB
6	8K	2.8	64K	625m	8GB
7	32K	1.4	128K	312m	32GB
8	128K	0.7	256K	156m	128GB
9	512K	0.35	512K	78m	512GB
10	2M	0.175	1M	39m	2TB
11	8M	0.0875	2M	19.5m	8TB
12	32M	0.04375	4M	9.75m	32TB

[back to Contents]

2.5.4: Summary images of VT folders.

These images link to much larger ones. They show an overview of one way to organize your Virtual Texture folders.

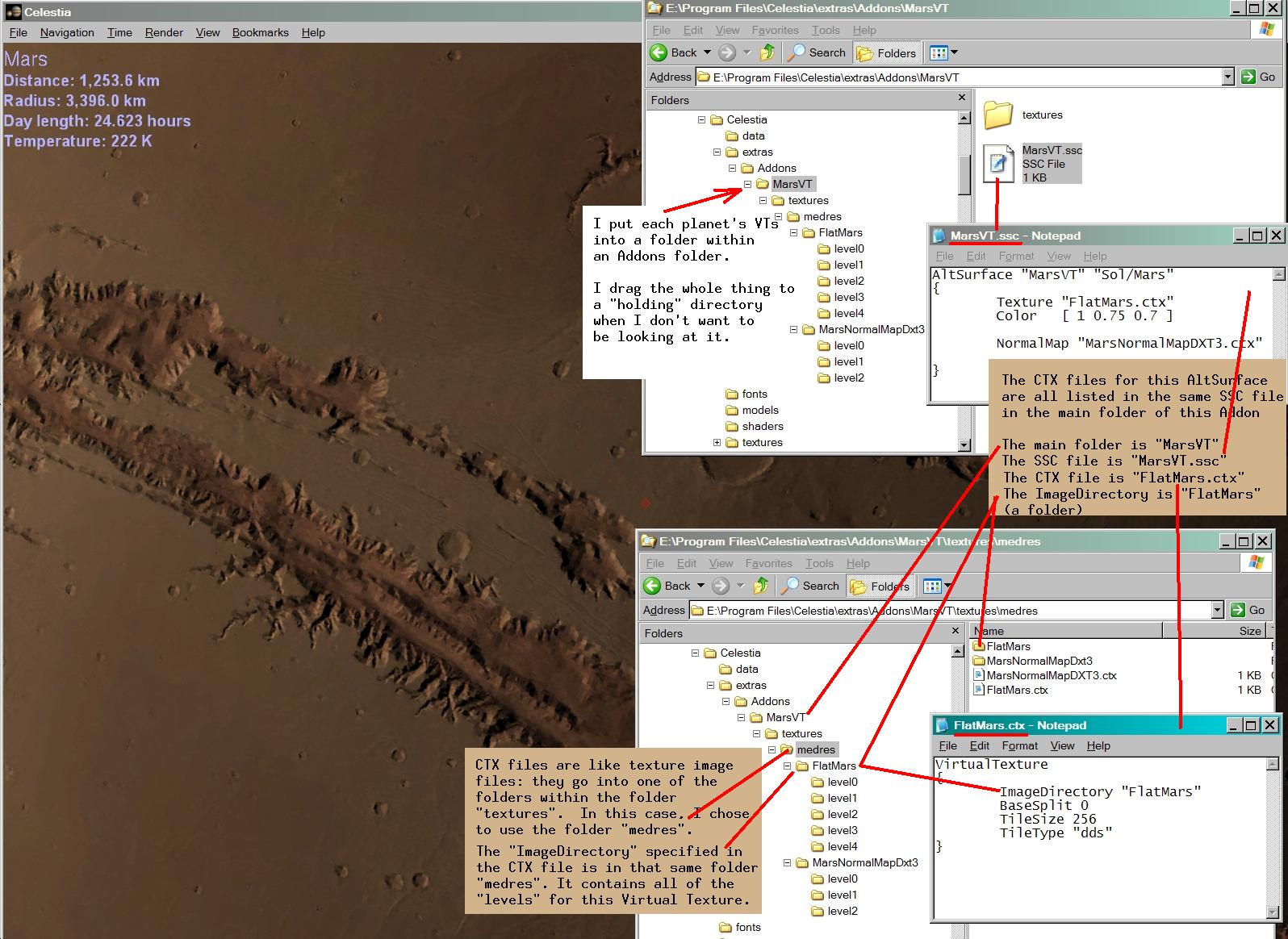

Backdrop: Tributaries of the Amazon	Backdrop: Valles Marineris

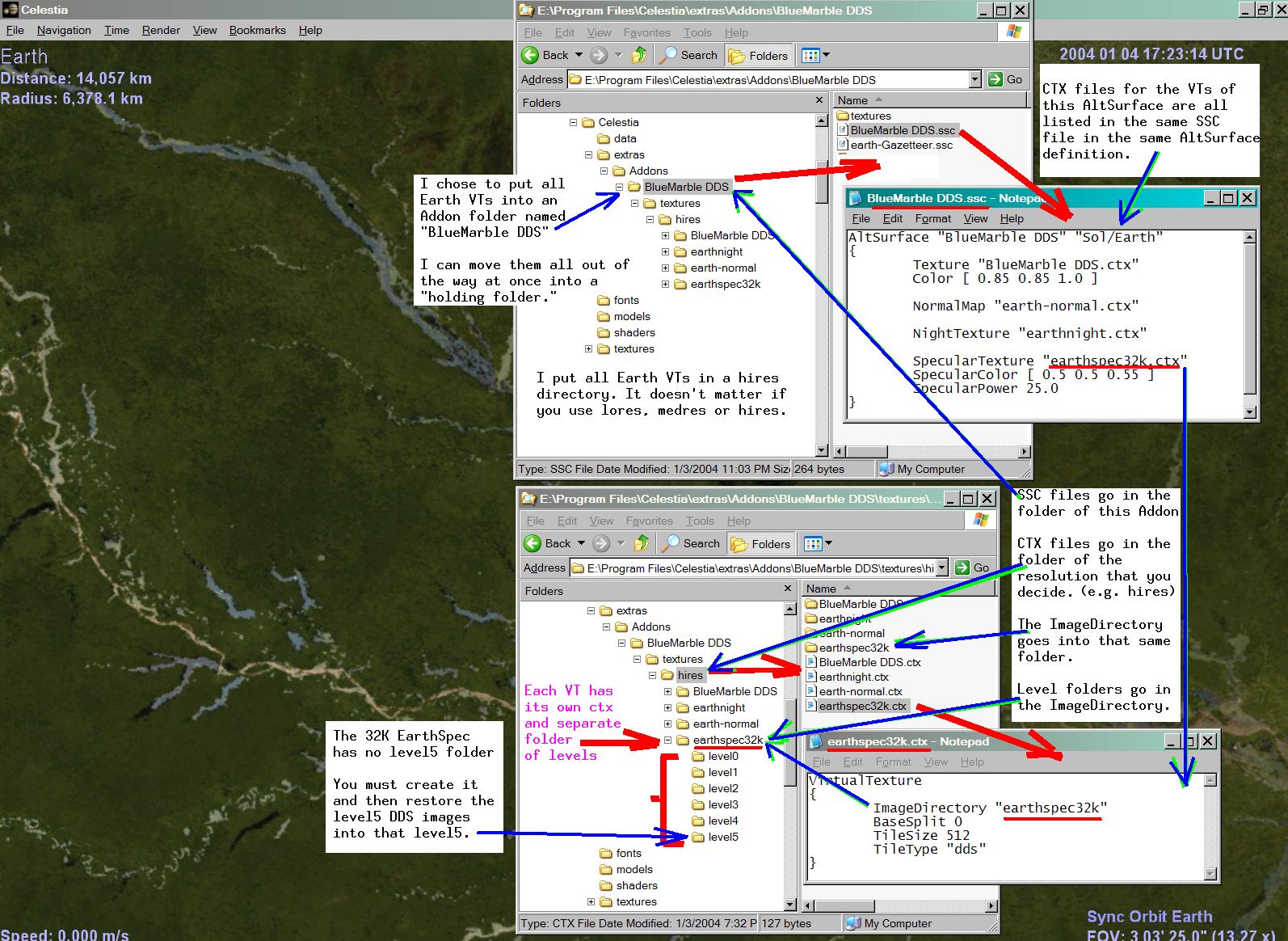

Blue Marble folders	FlatMars VT folders

[back to Contents]

2.5.5: VT creation utilities.

Several tools are available to help create Virtual Textures.

• Fridger Schrempp wrote a zsh script that cuts large surface texture images into the desired size tile images. You can download it from Shatters.net at http://www.shatters.net/~t00fri/virtualtex. This script can be used on a Linux system or on a Windows system that has both Cygwin and ImageMagick installed.
• Additional tools for manipulating textures are available at http://www.celestialmatters.org/?q=node/30

• "Jim" Jens wrote a spreadsheet to calculate the latitude and longitude boundaries for tile images. You can download it from Shatters.net at http://www.shatters.net/~t00fri/VT-tile-calculator_2.zip The spreadsheet was written for Excel but should work with OpenOffice, too.

• Additional instructions are available at http://www.shatters.net/forum/viewtopic.php?t=3089

[back to Contents]

2.6: Normalmaps.

Normalmaps provide detailed information about the roughness of a surface.

Discussion:

"Surface normal vectors" are pointers which indicate what direction is perpendicular to the local area on an object. ("Normal" is a mathematical synonym for "perpendicular".) They describe the orientation of a region on the surface of a model. They control both how it is illuminated, including how shadows are drawn on it, and whether the surface is drawn at all. Surfaces that have normals pointing toward a lignt are illuminated. Surfaces that have normals pointing away from a lignt are shaded. Surfaces that have normals pointing toward the observer have to be drawn if they are not obscured by another object. Surfaces that have normals pointing away from the observer do not have to be drawn.

A normalmap makes a flat region look like it has bumps. Using a normalmap to describe the shading of a region is much less expensive (i.e. has better performance) than using a 3D model containing all of the details of that area.

Celestia can use several different formats of normalmaps.

• BumpMap -- an 8bit grey-scale image: a heightmap which Celestia converts into a normalmap internally. White pixels indicate the highest regions and black the lowest.
• NormalMap -- a file which contains three channels of information about the surface normal vectors of a surface: the magnitudes of their x, y and z components.

  Normalmaps can be provided as either RGB color images or (in v1.5 and later) as special DDS/DXT compressed files. Color images used for normapmaps have a distinctive pink-blue-purple coloration.

  In general, PNG images provide the most accurate normalmaps since they use a lossless compression. However, they are expensive in memory and CPU because they have to be decompresed to full resolution before they can be used. Although they're smaller, JPG and DDS tend to be worse in accuracy because their compression algorithms permanently discard or change some of the colors.

  When adding a surface normal texture map in a CMOD model, the model file's vertices must include tangents. Use cmodfix with the qualifier --tangents.

  Celestia v1.5.0 (and later) will support two different NormalMap DDS formats, both the traditional normalized RGB format and a compressed format called DXT5nm. Normalmaps provided in DXT5nm format must have the .dxt5nm filetype. When DXT5nm format normalmaps are used as a Virtual Texture and declared in a .ctx file, the TileType must be declared to be "dxt5nm". This new format is visible only in Celestia's "OpenGL 2.0" render path. It requires graphics hardware that supports OpenGL v2.0.

  For more information about the compressed normalmap format, see http://developer.nvidia.com/object/bump_map_compression.html Normalmap tools to develop DXT5NM textures for Celestia are available at http://www.celestialmatters.org/.

  Tradeoffs in normalmap textures:

  • PNG (24-bit RGB) normal maps:
    • Advantages:
      • Better quality
      • Works on any hardware that supports the vertex shader/DOT3 path
    • Disadvantages:
      • Requires a lot of memory
  • DXT5nm
    • Advantages:
      • Uses less memory (4:1 compression because 24 bit per pixel RGB textures get expanded to 32-bit per pixel RGBA textures in video memory.)
      • Since normal z is generated, the normals will *always* have unit length
    • Disadvantages:
      • Requires DX9/OpenGL 2.0 class hardware
      • Extra calculation required in the pixel shader--could be slower on some systems
      • Quality not quite as good as 24-bit RGB
      • About twice as large on disk as PNG.


Utilities to generate the new format:

Fridger Schrempp has written tools to manipulate normal maps for use with Celestia. For details, pease visit the Website http://www.celestialmatters.org/.

V8.22 and later of Nvidia's nvdxt can generate this new compressed format:

nvdxt -quality_highest -file *.png -nomipmap -dxt5nm

It copies r->alpha, g -> r,b and then DXT5 compresses the result.

ImageMagick v6 and later includes an enhanced convert utility which can operate on individual layers using the -channel and -fx qualifiers. Although slower, this can be used with other utilities to produce normalmaps in this new format.

Normalmap tools to develop DXT5NM textures for Celestia are available at http://www.celestialmatters.org/.

A procedure for generating 3-channel normalmaps from photographs with special orientations is described at http://66.70.170.53/Ryan/nrmphoto/nrmphoto.html. It includes a program for converting normalmaps into bumpmaps. However, Celestia's progression has been from the use of Bumpmaps, which use a relatively low 8bit resolution, to higher resolution (24bit) Normalmaps.

Bumpmaps can be converted to (low resolution) Normalmaps using ATI's utility.

• command line utilities
  • Nvidia's nvdxt for Windows
    http://developer.nvidia.com/object/nv_texture_tools.html
  • ATI's NormalMapGenerator (TGAtoDOT3) for Windows
    http://www.ati.com/developer/sdk/radeonSDK/html/Tools/ToolsPlugIns.html
• paint programs with plugins
  • Photoshop (or compatible: many paint programs use Photoshop's plugin format)
    • Nvidia's "Normal Map Filter" plugin:
      http://www.nvidia.com/object/photoshop_dds_plugins.html
  • Gimp
    • GIMP normalmap plugin:
      http://nifelheim.dyndns.org/%7Ecocidius/normalmap/

  See also: http://www.ati.com/developer/sdk/RadeonSDK/Html/Tutorials/RadeonBumpMap.html

3.0: Uses Within Celestia (What to use them for).

Sections 3.1 through 3.5 describe the uses of texture images within a SSC (Solar System Catalog) file. They are used for Planets, Moons, Asteroids, Comets and Spacecraft. The final two sections, 3.6 and 3.7, describe how surface textures are used within a DSC (Deep Space Catalog) file for Nebula objects and in an STC (STar Catalog) file for Star objects.

[back to Contents]

3.1: Object Surfaces.

You can define new surface colorations for spheres or models by using the SSC directive
Texture "imagefilename"

To change the appearance of a planet, replace its texture map or change its Texture declaration in the appropriate .SSC file. The planets of the solar system and their associated Textures are defined in data\solarsys.ssc. Don't modify that file if you can avoid it, however. Instead, create a new .SSC file in your extras directory which uses Modify or defines an AltSurface. See Section 2.3.

If you provide a PNG image or a DDS texture, it can include an Alpha channel in addition to its primary image. Celestia uses that Alpha channel to define the specularity (reflectivity) of the surface: white makes it bright over oceans and black makes it dull over land areas. If the Texture image does not include an Alpha channel, you can use a separate image to define the surface specularity.

If you provide a JPEG image as the surface texture, it will define only the surface coloration. JPEG images cannot include Alpha channels, so a separate image must be provided if you want to define the surface specularity. See below.

Texture declarations in SSC and STC catalog files can be used for Celestia's spherical bodies and for CMS, CMOD and 3DS models.


[back to Contents]

3.2: Specular Reflections, Mountains and Night Lights.

You can change the appearance of a spherical object like a planet by providing the different types of textures described below. Unfortunately, only the basic surface Texture works for CMS, CMOD or 3DS models. The other types of texture files don't do anything when applied to CMS, 3DS or CMOD models.

Example Earth, showing nightlights in Europe specular reflections in the western Atlantic Click on this Cel:// URL to cause Celestia to take you to this viewpoint: Multitexture & Vertex program demo If your graphics card supports Multitextures, you'll be able to see the European city lights. If your graphics card supports OpenGL vertex programs, the western Atlantic will be lit up. If Celestia shows that highlight, then it also will show shadows on mountainsides and on crater walls. You may need to type Ctrl-V several times to cause Celestia to select the advanced Rendering options.

Although Celestia can be used with any graphics card, it needs certain advanced 3D rendering features in order to display some of its "eye candy." Type a Ctrl-V several times to get Celestia to step through the rendering options available on your computer while displaying their names.

• Render path: Basic (objects, clouds and eclipse shadows)
• Render path: Multitexture (NightLights)
• Render path: OpenGL vertex program (Specular and BumpMaps & Ring shadows)
• Render path: OpenGL 2.0 (multiple light sources & shadows. This path is available in Celestia v1.4.0 and later.)

[back to Contents]

3.2.1: Specular Reflections.

A specular reflection happens when sunlight reflects off a smooth surface, glinting off the sides of waves on a body of water, for example. On a 3D model, a specular reflection is represented by a highlight. The graphics hardware doesn't actully show reflected images.

For Celestia to display specular reflections, your graphics card must support "OpenGL vertex programs". If you can see specular reflections, you'll also see the effects of BumpMaps and NormalMaps.

A SpecularTexture defines areas of a surface which can cause reflections of sunlight. Celestia uses one for the Earth to simulate the Sun reflecting off the Earth's oceans, for example.

You can create specular reflections on a sphere or model by using the SSC directives
SpecularTexture "imagefilename"
SpecularColor color (no default; 3 numbers in [ ] )
SpecularPower number (default = 0 = no specularity)

Specular reflection textures are grey-scale images which are white where reflections are the brightest and black where there should be no reflection.

If you create a surface texture that has an Alpha channel and use it for a planetary body, that Alpha channel is treated as a specular reflection texture and you don't need a separate file for it, and you don't need to provide a SpecularTexture declaration.

If only SpecularColor and SpecularPower are present, and no Alpha channel is present in the surface texture, the entire surface of the body is treated as if it were smooth and shiny.

SpecularTexture declarations in SSC catalog files only work for spherical bodies. They don't work on CMS, CMOD or 3DS models. However, specular surfaces can be specified for models by using appropriate material definitions within them if you're running Celestia v1.5 or later.

[back to Contents]

3.2.2: Mountains and Craters.

The wrinkles in mountainous surfaces can be made apparent by using either a BumpMap or a NormalMap. Their sunlit sides will be bright and their shaded sides will be drawn darker. Celestia does not support self shadowing as a result of bumpmaps, though, so they won't cast shadows across other parts of the landscape.

For Celestia to display shadows due to bump or normal maps, your graphics card must support "OpenGL vertex programs". If you can see the effects of BumpMaps and NormalMaps, you'll also see specular reflections.

To apply a BumpMap to the surface of a sphere, use the SSC directives
BumpMap "imagefilename"
BumpHeight number (default = 2.5)

For a Bumpmap, provide a grey-scale image that's white at the highest altitudes and black at the lowest. Although Celestia can use only an 8bit greyscale image, development of a bumpmap using more bits per pixel can produce a better result when you finally reduce it for use with Celestia.

Internally, Celestia converts bumpmaps into normalmaps for use by your graphics hardware. Since bumpmap images can contain only 256 height values, this may cause problems when displaying a surface at high resolution. You can provide your own NormalMap to improve on this.

BumpMap SSC declarations only work for spherical bodies. They don't work on CMS, CMOD or 3DS models. Also, bumpmap textures do not work in material definitions in models. Use normalmaps instead.

To apply a NormalMap to the surface of a sphere, use the SSC directive
NormalMap "imagefilename"

For a NormalMap, provide a full color image. The R, G and B channels define the amplitudes of the surface normal vectors in the X, Y and Z directions respectively for each pixel.

In this usage, "Normal" is an abbreviation for "Surface Normal Vectors". They're the directions which are perpendicular to the wrinkled surface at each pixel's location. (Celestia also uses the word "Normal" to indicate the default surface texture when AltSurface textures are in use. This can be confusing at times.)

NormalMap declarations in SSC catalog files only work for spherical bodies. They don't work on CMS, CMOD or 3DS models. However, materials in models can specify normalmaps for use with Celestia v1.5 or later.

Celestia v1.5.0 (and later) will support two different NormalMap DDS formats, both the traditional normalized RGB format and a compressed format. See http://developer.nvidia.com/object/bump_map_compression.html and section 2.6 above.

For a detailed comparison of Normal maps and Bump maps, see What is a Normal Map? by James Hastings-Trew.

[back to Contents]

3.2.3: Night Lights.

A NightTexture is used to color the dark side of a sphere. Brightly colored areas look like lights on the surface.

For Celestia to display night lights, your graphics card must support "Multitextures."

To draw nightlights on a sphere, use the SSC directive
NightTexture "imagefilename"

Provide a colored texture that includes an Alpha channel. Just as with a CloudMap, this Alpha channel defines the opacity of the texture map. The Alpha channel should be opaque (white) where there are lights and transparent (black) where there are no lights. If your NightTexture does not include an Alpha channel, it will still work, but the body's surface Texture won't be visible on the night side. Only the NightTexture will be visible on the night side of the body.

NightTexture declarations in SSC catalog files only work for Celestia's default spherical bodies. They don't work on CMS, CMOD or 3DS models. However, models can contain emissive material definitions, which are equivalent, for use with Celestia v1.5 or later.


[back to Contents]

3.3: Overlays and the Limit of Knowledge.

Some areas on some of the planets and moons have never been photographed. We really don't know what most of the surface of Mercury looks like, for example. Celestia includes several pictures of bodies that have had the unknown areas filled in with artistic guesses. Opaque overlays can be added to cover the areas that we've never seen.

For Celestia to display overlays, your graphics card only needs to support "Basic" rendering.

To apply an OverlayTexture to a sphere, use the SSC directive
OverlayTexture "imagefilename"

An OverlayTexture can be used to blank out the unknown areas of a sphere. This helps to distinguish the valid surface information from the imaginary imagery that has been used to fill in the empty space.

Provide a colored texture that includes an Alpha channel. Just as with a CloudMap, this Alpha channel defines the opacity of the texture map. Where the opacity channel is black, you can see the underlying surface texture. You can see the OverlayTexture's coloration where the opacity channel is white.

The OverlayTexture is drawn on top of all of the other surface textures, beneath the CloudMap.

An OverlayTexture often is used within an AltSurface declaration called "Limit of knowledge". Many are included in Celestia's solarsys.ssc

OverlayTextures only work for spherical bodies. They don't work on CMOD, CMS or 3DS models. However, an AltSurface Texture can be used instead of an OverlayTexture to specify an appropriate replacement surface texture image for the entire surface of a model.

There is a bug in Celestia v1.4.1 which prevents OverlayTextures from being drawn in "Render path: OpenGL 2.0". Overlays do work in the other Render paths. This bug has been fixed for v1.5.


[back to Contents]

3.4: Clouds.

A Cloud layer defines a partially transparent layer that can move across the surface of an object.

For Celestia to display clouds, your graphics card only needs to support "Basic" rendering.

For Clouds, use these directives within an SSC's Atmosphere declaration:
CloudMap "imagefilename"
CloudHeight number (km)
CloudSpeed number (deg/day)

Provide a colored texture that includes an Alpha channel. This Alpha channel defines the opacity of the texture map. Where the opacity channel is black, you can see through the clouds to the underlying surface texture. You can see the colors of the CloudMap's image where the opacity channel is white.

The CloudMap is drawn after the OverlayTexture.

Clouds for the Earth usually are defined as a completely white image plus an opacity channel that defines the shapes of the clouds.

An Atmosphere declaration works fine for CMOD, CMS and 3DS models, so you can have Clouds flowing around them. Clouds are always drawn on a sphereoid, so this can look a little strange.

The size of a CloudTexture image used for moving clouds is limited to the size of your graphics card's texture buffer. This might be 1K, 2K or as much as 4K pixels on a side. If you specify a CloudSpeed of 0, however, then the CloudTexture can be any size, or even a VirtualTexture.

Features new with Celestia v1.5.0 and later:

• shadows are cast under clouds
• CloudNormalMap string: "your-cloud-normalmap.png"
  • Either normalized PNG or DDS/DXT5nm compressed normalmaps can be used. Normalmaps with filetypes of PNG, JPG or DDS must be provided in a normalized format (vector length = 1). Normalmaps provided in DXT5nm format must have the .dxt5nm filetype. When DXT5nm format normalmaps are used in a Virtual Texture (.ctx file), the TileType must be declared to be "dxt5nm". Normalmap tools to develop DXT5NM textures for Celestia are available at http://www.celestialmatters.org/.
  • Bumpmaps are not supported.

[back to Contents]

3.5: Rings.

A Ring texture is a linear image which defines a partially transparent system of circles around a planet. Each opaque pixel is drawn as a circle. Transparent pixels can be seen through.

For Celestia to display rings, your graphics card only needs to support "Basic" rendering. To display planet shadows on Rings, Multitexture support is required. However, to project ring shadows onto the planet, your graphics card must support "OpenGL vertex program" rendering. (Even so, Nvidia MX cards cannot draw ring shadows on planets. They can draw only the shadow of the planet on the rings.)

To define Rings around an object, use these directives within an SSC's Rings declaration:
Texture "imagefilename"
Inner number (default = 0.0 km)
Outer number (default = 0.0 km)
Color color (default = [ 1 1 1 ])

The definition of Saturn in Celestia's catalog file /data/solarsys.ssc shows how these declarations should be structured.

The Texture image used for the rings around a planet should include an alpha channel in addition to the primary image. The primary image determines its color and brightness. The alpha channel determines its opacity. These images typically are long and skinny: 512x16 and 1024x64 are common sizes. The width of a texture image used for a Ring's Texture is limited to the size of your graphics card's texture buffer. This might be 1K, 2K or as much as 4K pixels on a side.

Most of the image file actually isn't used. Celestia only expands its first raster line. That scanline is used to define the ring's appearance along a radius: along a line extending outward from the center of the planet. Celestia expands it in a circle around the planet's equator to produce the final image.


[back to Contents]

3.6: Nebulas.

To display Nebulas, your graphics card only needs to do "Basic" rendering. For older versions of Celestia, you have to remember to turn on "Show Galaxies" in Celestia's "View Options" menu, keyboard shortcut "u". For Celestia v1.4.0 and later, you have to remember to turn on "Show Nebulae" in Celestia's "View Options" menu, keyboard shortcut "^" (caret: "^ space" on keyboards that support diacritical marks).

A Nebula's surface texture is not specified explicitly within a DSC (Deep Space Catalog) file: DSC files may not contain any Texture directives. Instead, the names of the image files used to color a Nebula must be specified within its 3DS or CMOD model. Nebulas cannot use AltSurface textures.

A Nebula's texture image file may be any of the image file types supported by Celestia except for CTX virtual textures. Like Ring textures and moving Cloud textures, though, the size of a Nebula's surface texture image is limited to the size of your graphic card's texture buffer. This might be 1K, 2K or as much as 4K pixels on a side.

If the texture file includes an Alpha channel, the Alpha channel is a grey-scale image which defines the opacity of the surface coloration.

Depending on the 3D design program you use, you may not be able to specify the type of image file that you need to use with Celestia. Many 3D design packages do not directly support the use of DDS texture files, for example. In such cases, you will have to edit the 3DS model file using a binary file editor to change the texture file name. (I use Emacs.) Making this change usually isn't very difficult. The surface material specifications usually are near the beginning of the 3DS model file.

If you use 3DSTOCMOD to translate the 3DS model into a CMOD ASCII file, of course, any text editor can be used to change the names of the surface texture image files declared within the ASCII CMOD model file.

If you use Anim8or v0.95 or later, a CMOD export script is available: http://www.lepp.cornell.edu/~seb/celestia/files/export_cmod_plugin.a8s. It creates CMOD files which contain wildcard texture specifications. Although you'll have to use GIF or JPG images while working in Anim8or, you can use PNG or DDS files in Celestia without editing the CMOD file.

Celestia does not yet support volumetric particle (foggy smoke) rendering for Mesh objects. It only draws a model's surfaces.

Celestia v1.5 supports Point Sprites in CMOD models. in principle they could be used to create volumetric effects. See cmod_format.html#1.1.2 for more information.


[back to Contents]

3.7: Stars.

Starting with Celestia v1.4.0, Star surface textures can be specified in .STC catalog files. By default, Celestia uses the surface texture image "astar.*".

You can define a different surface pattern for a Star sphere or model by using the STC directive
Texture "imagefilename"

The surface texture map of a Star can be a PNG, JPG, DDS or CTX (Virtual Texture) image. Unlike for planets, Celestia ignores any Alpha channel when drawing a Star.

Just as for planet textures in SSC files, the "r" and "R" commands can be used to select lores, medres and hires Star surface textures, and a wildcard filetype works, too.


[back to Contents]

4.0: Common Problems.

See also Section 6: Common Addon Problems in the Introduction to Addons.

Unfortunately older versions of Celestia don't provide much help when things go wrong. This has changed starting with Celestia v1.3.1, which includes an error message display. Type a "tilde" (~) to see it. (European keyboards require a space after the tilde.)

When there are problems with a surface texture, Celestia will draw the object without that surface texture. This usually results in a dull white or black ball. For example, if it draws Mars as a dull pink ball, that means that no surface texture has been loaded.

This will happen if you provide an image file of the wrong type or size, or if you specify the name of a texture file that doesn't exist, or if you've filled up the memory in your graphics card.

1. Check the image file: it could be the wrong format or the wrong size.
   1. Make sure that the image really is what you think it is: JPG, PNG or DDS. The filetype extension of the file name must be correct for the type of file that it is.

   2. Make sure that it is a format that your graphics card can display. DDS texture files can only be shown by cards that were designed in the past few years. Cards made by 3dfx, for example, can't show them. Microsoft's software OpenGL routines can't draw them, either. Microsoft's software OpenGL is what is used under Windows if you disable your graphics card's hardware acceleration.

   3. Make sure that the image size is a power of two on a side: 1024x512 or 4096x2048, for example.

2. Check your SSC to make sure the file name is OK
   1. A crosshatch (#) in solarsys.ssc (or in any catalog file, for that matter) means "ignore the rest of this line". Make sure there is no # in front of the Texture declaration you want. There must be only one active Texture declaration for each planet definition: make sure there is a # in front of every other Mars Texture definition that you've left in.

   2. Check to make sure you have not made a typographical error in the Texture file name. It must be enclosed in quotes (").

3. Also make sure that the image is small enough to fit into the memory on your graphics card. A PNG image that's 8Kx4K requires a card that has more than 8K*4K*4 = 128 MegaBytes of memory. DDS image textures don't need that much room on the card. The graphics chips that can use DDS images store the file directly on the card and do the decompression themselves.

[back to Contents]

updated: 1Dec04
updated: 13mar06 for Celestia v1.4
updated: 30mar06 to clarify NightTexture Alpha channels.
updated: 1aug06 to bold texture declaration names and fix some typos. updated: often in 2007

• Selden's List of Resources for Celestia
  •  Selden's Contributions.

  •  A Brief Introduction to Add-Ons.
  • Creating and using .SSC files
  • Billboards for Celestia

• On the Celestia Web Forum: Graphics advice by Jens (aka "Jim")
  • Mini Texture FAQ for Celestia
  • A script for resizing DDS files
  • 3DS models in Celestia

• Virtual Textures for Dummies! (it's a 61KB PDF document).
  by Bob Hegwood (Web site gone)
• Making Clouds for Celestia
  by John Hewett

Contents

0: Introduction.
1.0: Texture Files.

1.1: Image File Types.
1.2: Image Colors.
1.3: File Sizes.
1.4: File Locations.

2.0: Usage Within Celestia (How to use them).

2.1: Map Projections.

2.1.1: Simple Cylindrical.
2.1.2: Cubeic.
2.1.3: Projection software.

2.2: Directories and Resolution.
2.3: Substituting Surface Textures.
2.4: Alternate Surface Textures.
2.5: Virtual Surface Textures.

2.5.1: Surface Texture specifying .ctx.
2.5.2: .ctx specifying tiles.
2.5.3: 13 levels of resolution.
2.5.4: Summary images of VT folders.
2.5.5: VT creation utilities.

2.6: Normalmaps.

3.0: Uses Within Celestia (What to use them for).

3.1: Object Surfaces.
3.2: Specular Reflections, Mountains and Night Lights.
3.3: OverlayTexture and the Limits of Knowledge.
3.4: Clouds.
3.5: Rings.
3.6: Nebulas.
3.7: Stars.

4.0: Common Problems.


A.0: Appendices.


A.1: Signature.
A.2: Admonishment.
A.3: Disclaimer.

A.0 Appendices.

[back to Contents]

A.1: Signature.

This Web page is maintained by Selden Ball at Wilson Lab.

A.2: Admonishment.

Please send any questions, comments or corrections to seb@lepp.cornell.edu
Alternatively, you can post a message (anonymously or otherwise) on Celestia's Web Forum or use its Private Message page.

If you don't tell me that something's missing, unclear or wrong, I can't improve it.

A.3: Disclaimer.

The author disclaims all liability and endorsement.
Copyrights may apply.
For details, please read the full text of his disclaimer.
