2009.08.12 - Closed Beta Bump

Constrain the following parameters:

• \beta_{x,y} outside the bump region
• \eta_x outside the bump (\eta_y = \eta'_y = 0 in design lattice, with zero coupling)
• Q_{x,y} (overall tunes)
• The amplitude of the bump

2.085GeV Optics - cta_2085mev_20090516.lat

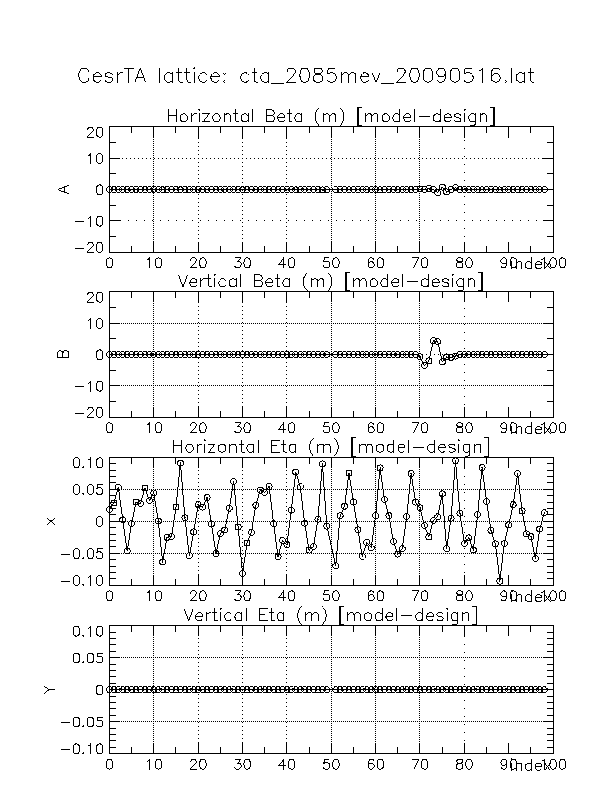

Set the target amplitude as beta.b[DET_24W:DET_23W] abs_min = 5m:
Tao bump input (read in to Tao to generate bump)
Tao quad output
Tao "uni" data
Bmad group

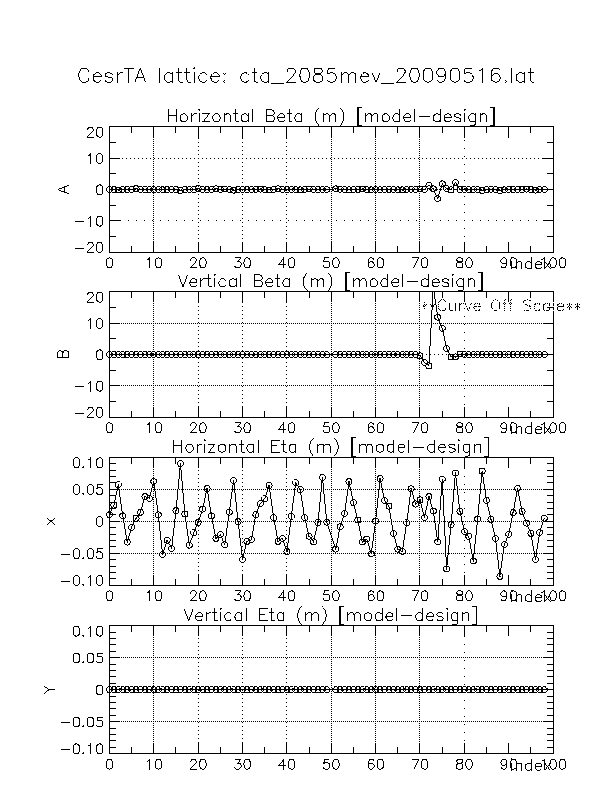

Set target amplitude as beta.b[DET_24W:DET_23W] abs_min = 15m:
Tao bump input (read in to Tao to generate bump)
Tao quad output
Tao "uni" data
Bmad group

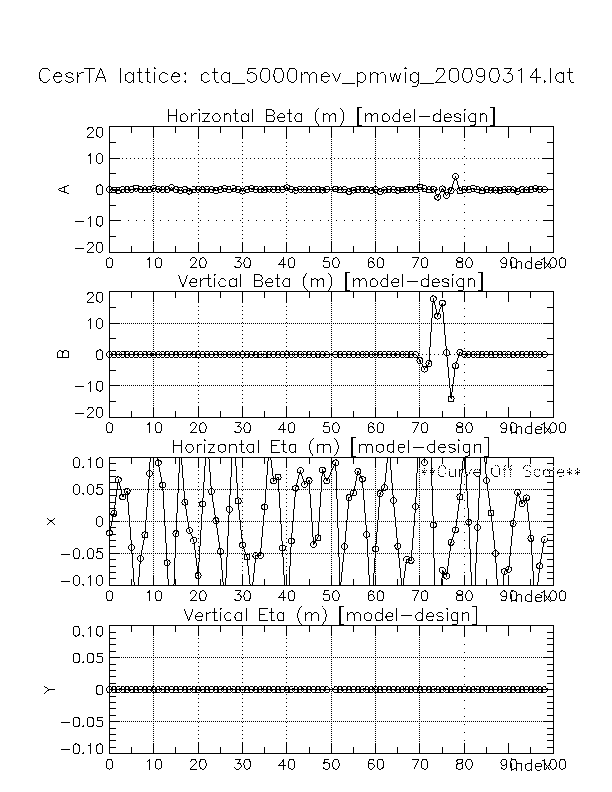

5.0GeV Optics - cta_5000mev_pmwig_20090314.lat

• Set target amplitude as beta.b[DET_24W:DET_23W] abs_min = 15m
• Increase weight on tune constraints
