2010.04.23 - Contributions to xi(2)

For the CTA 4GeV lattice, Plot the individual contributions to xi(2) from each quad and sextupole to see if there are any significant single sources.

Format of output files: ele_name, ring%ele(ix), xix2 contribution, integrated xix2, xiy2 contribution, integrated xiy2

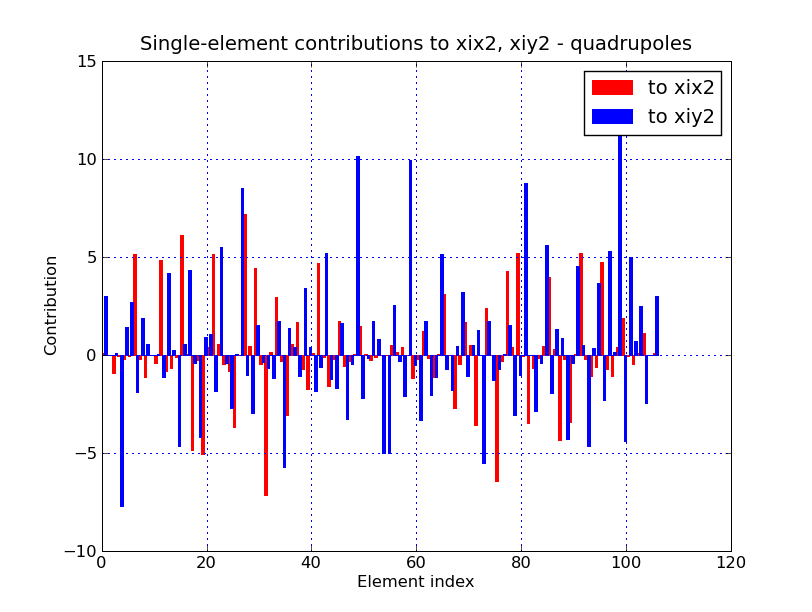

Quad Contributions

original data: xix2_quad.out

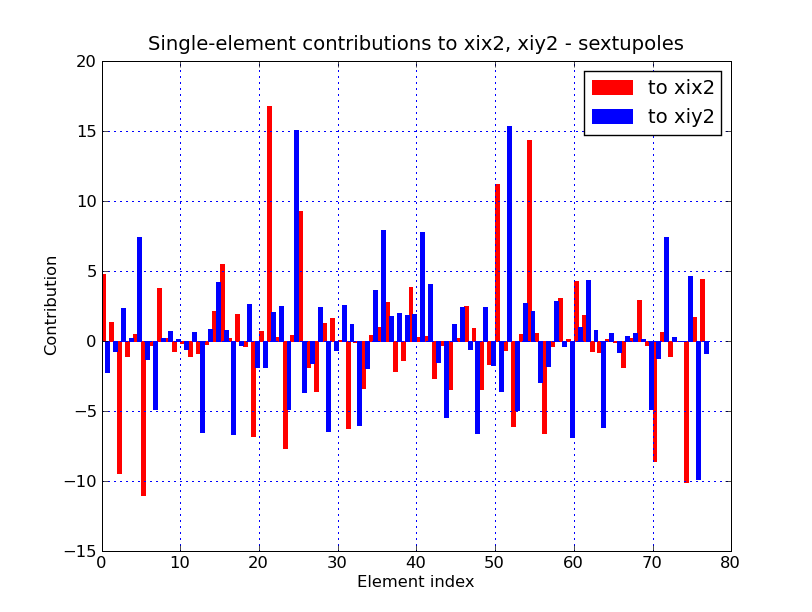

Sextupole Contributions

original data: xix2_sext.out
