2010.04.28 - New Sextupole Distribution

Using Bengtsson's resonance formalism, and starting with the 2fam version of cta_2085mev_20090516.lat, optimize the sextupoles.

2fam

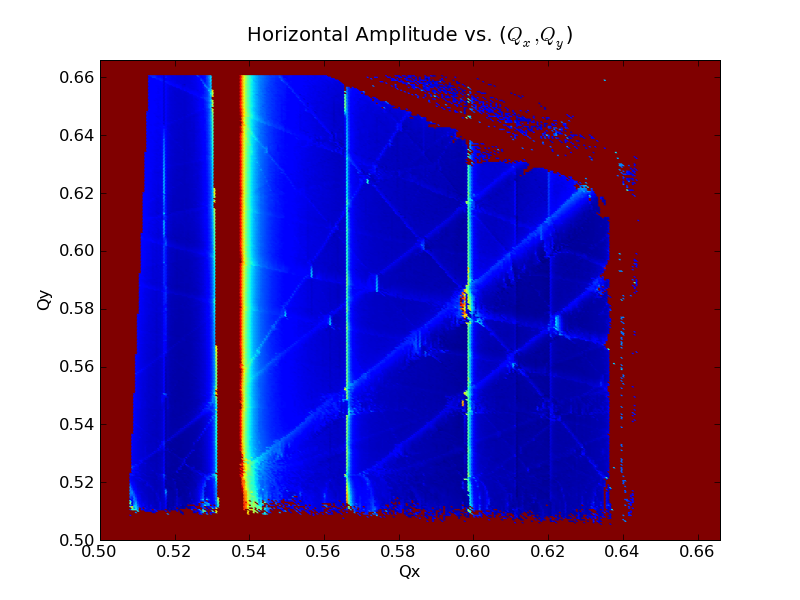

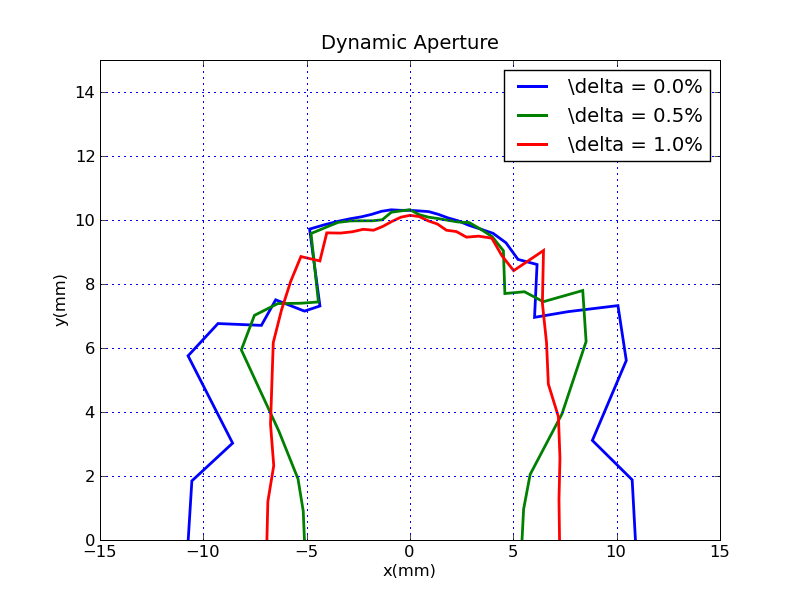

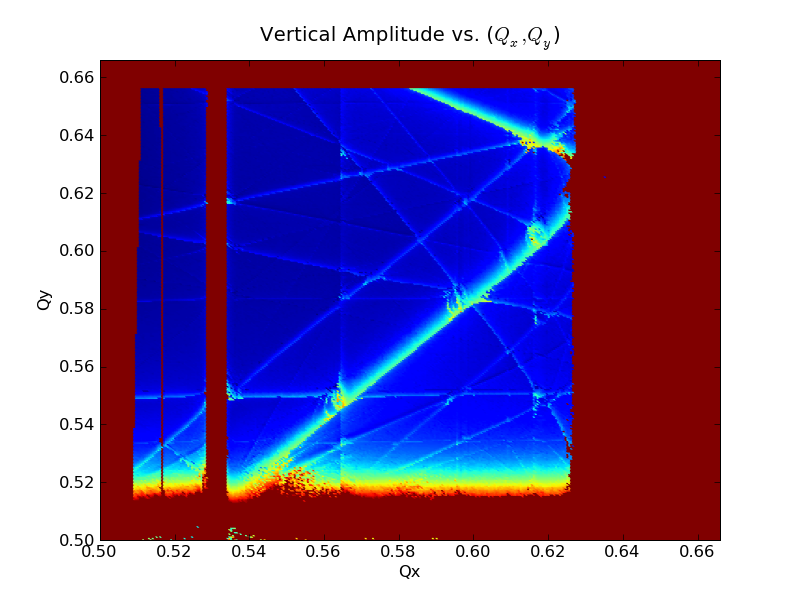

2010.04.27 DLR Sextupoles

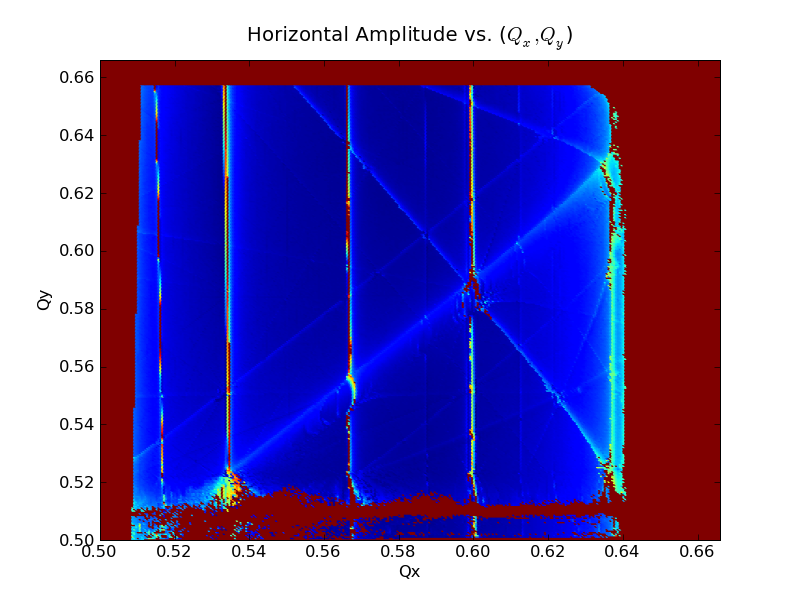

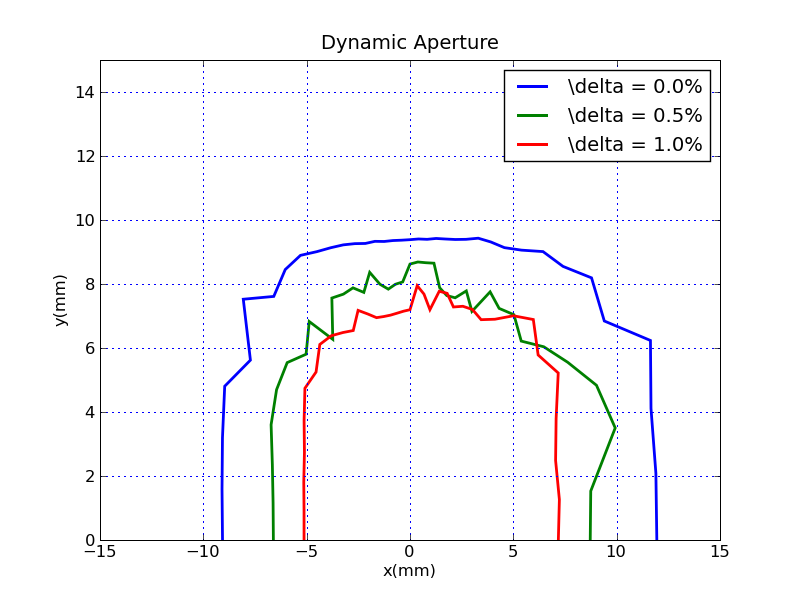

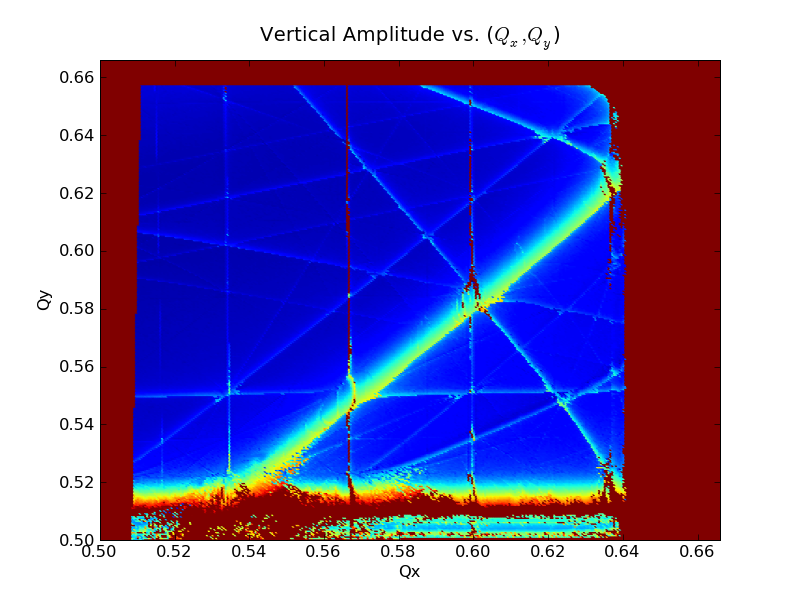

2010.04.28 JSh Sextupoles

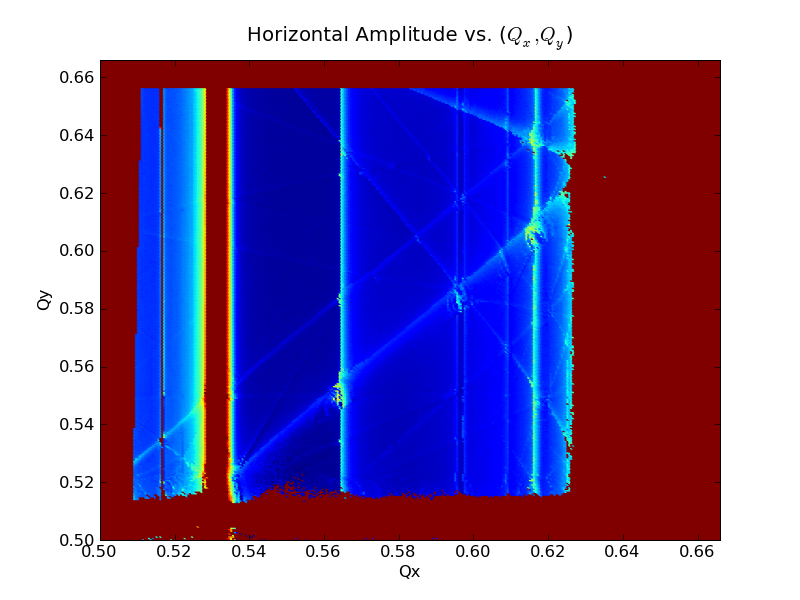

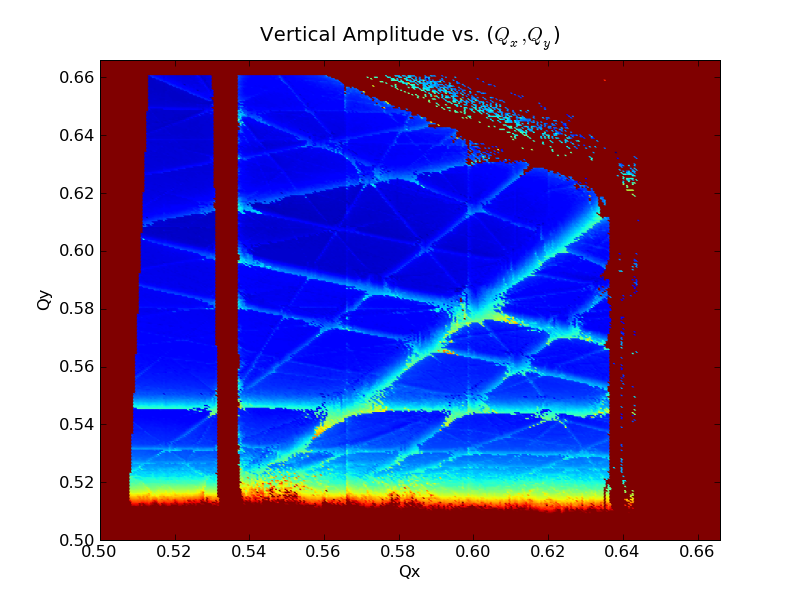

Try increasing the weight on chromaticity by an order of magnitude, to drive it towards 1 in both x and y. Leave all other constraints the same.

BMADz input: cons_sext.in
BMADz output: new_bmad_input.
