2010.06.24 - Quad Errors on BIGD Lattice with D-Line xBSM Orbit

For the lattice cta_2085mev_xr20m_20091205.lat with new sextupole distribution (2010.05.08) and D-line xBSM orbit, introduce quadrupole misalignments with the following distributions:

220 micro-radians quad tilt
125 micron vertical quad offset

Correct coupling and vertical orbit using skew quads and vertical steerings simultaneously.

Misalignments and corrections
da.in

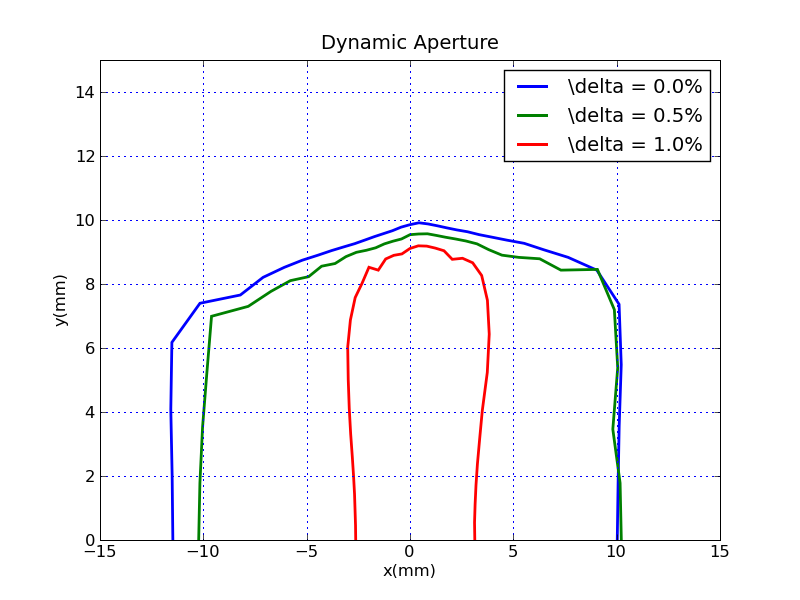

da.dat
Tune scan inputs

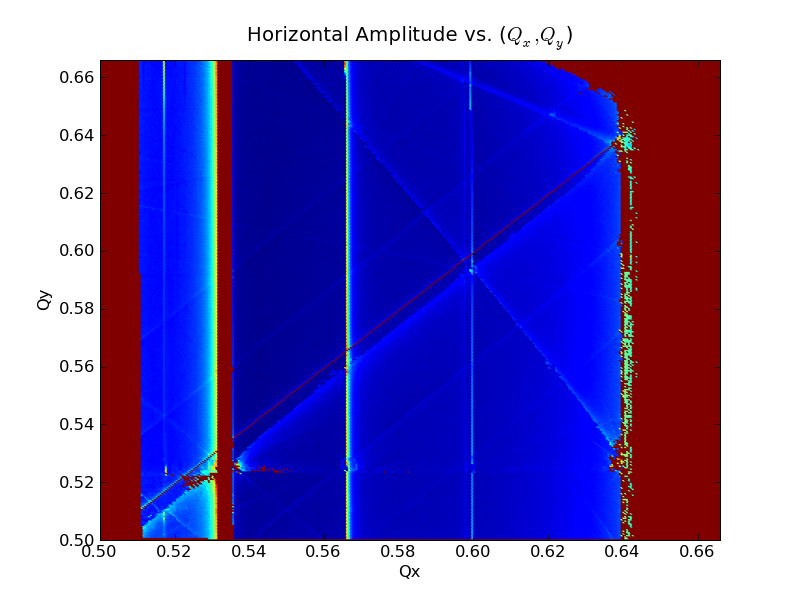

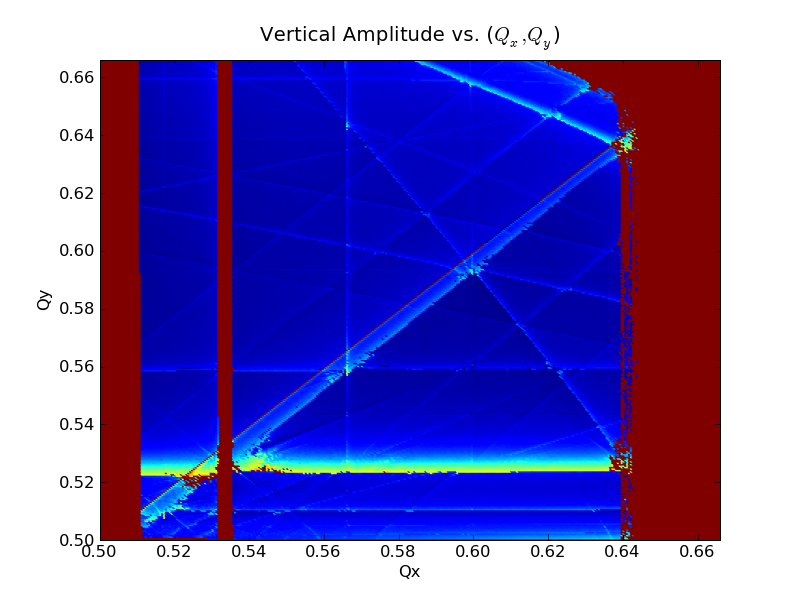

Tune scan output
Frequency map inputs

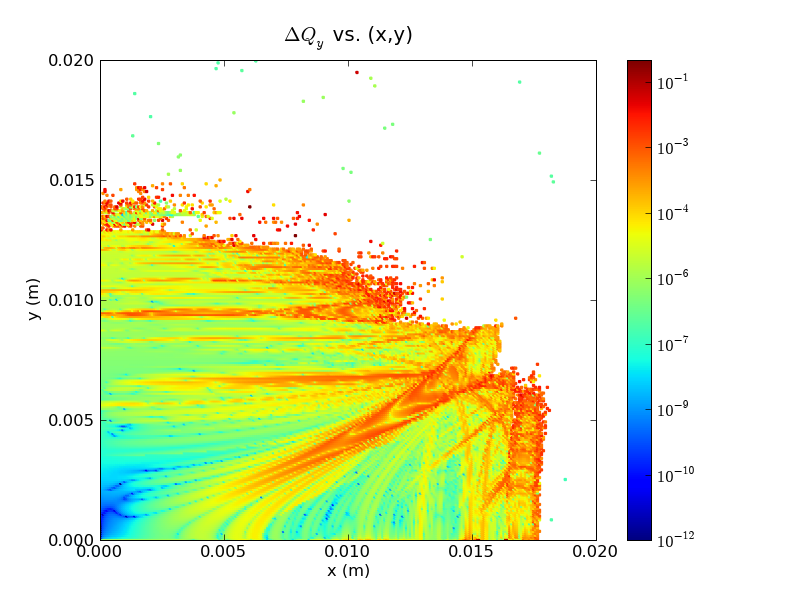

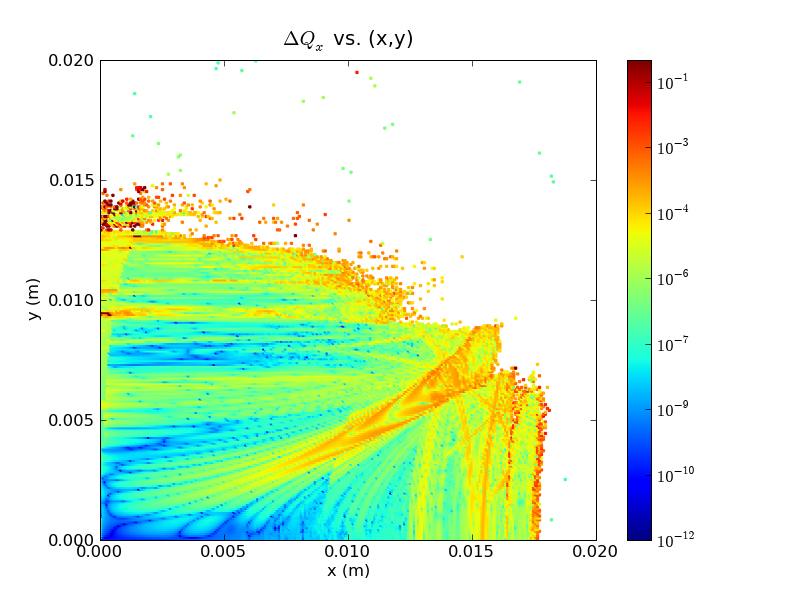

Frequency map output
