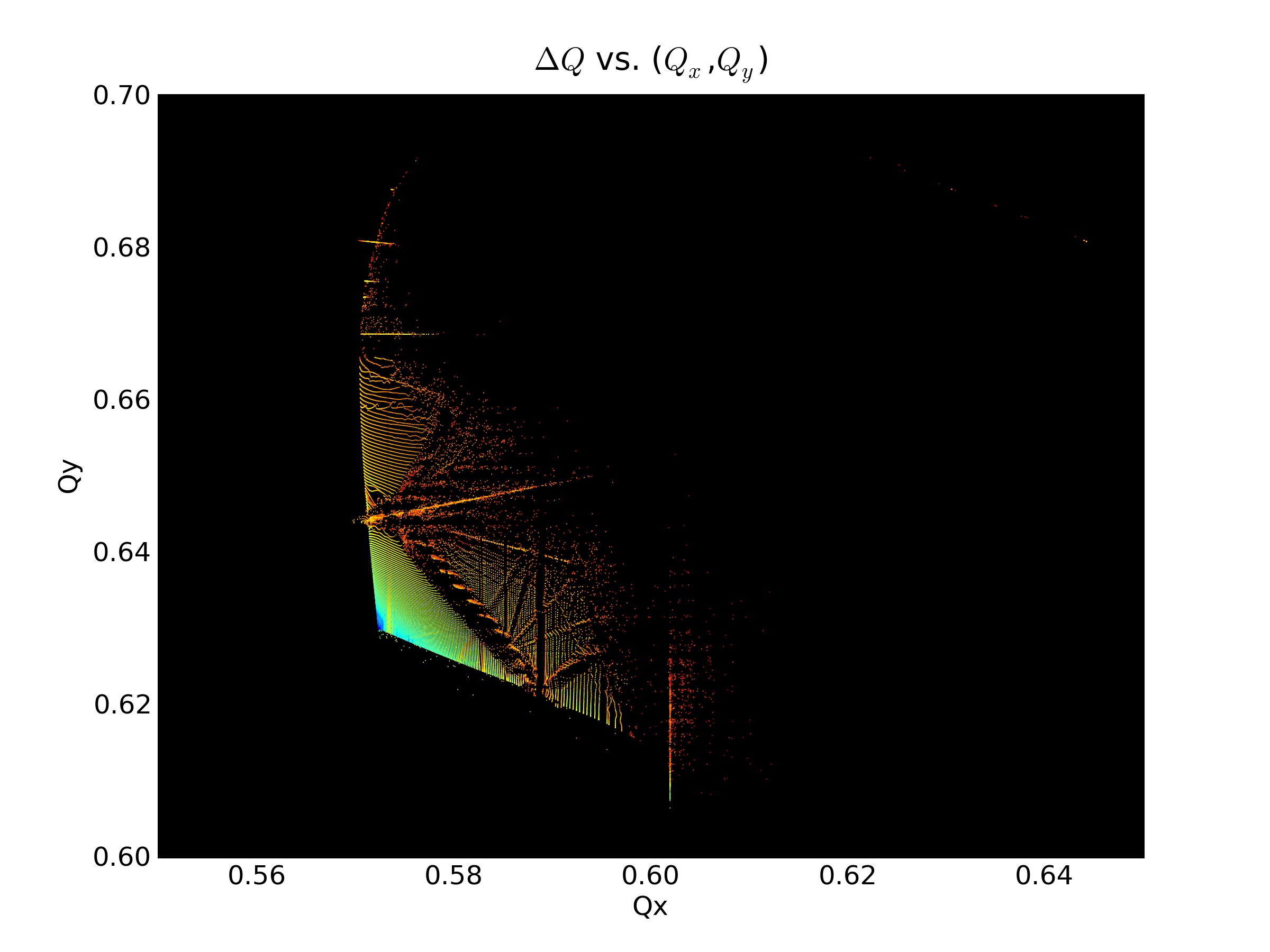

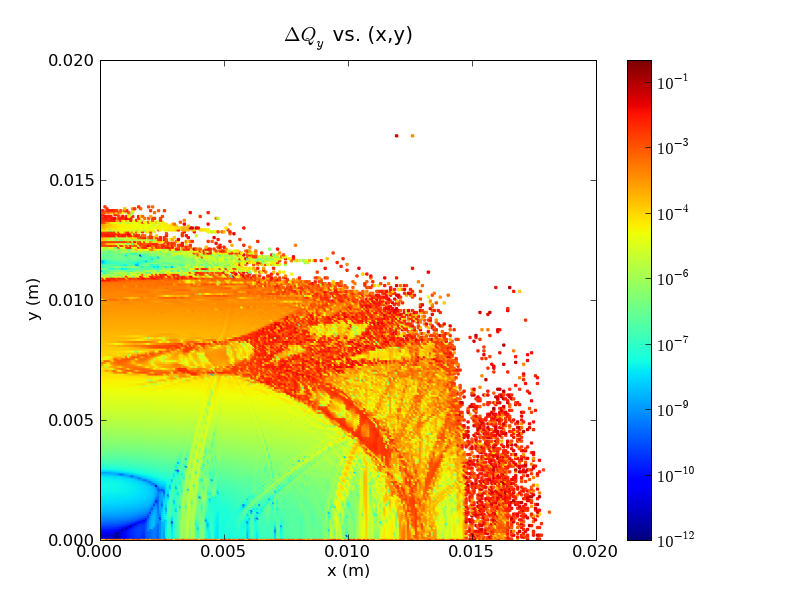

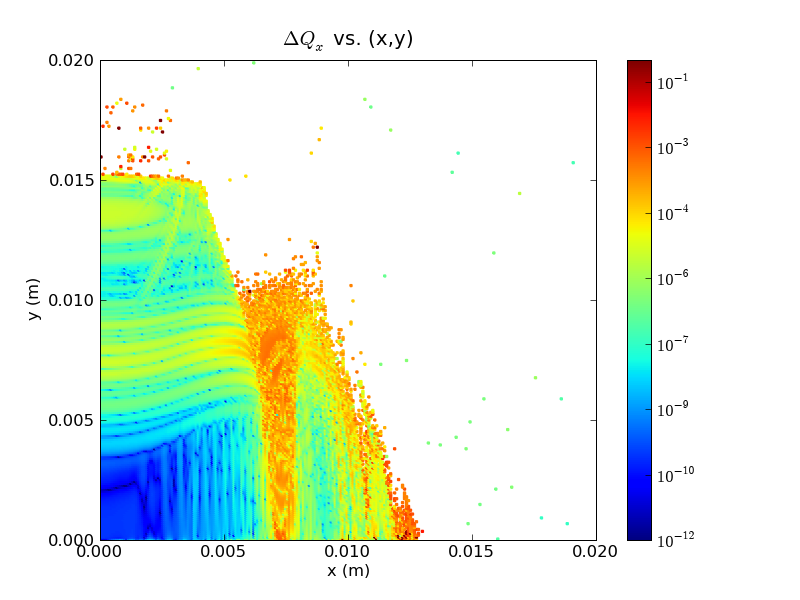

2010.06.30 - Frequency Map with 2408 turns / 1024 per FFT

Many other facilities using frequency map analysis track for 2048 turns total, with 1024 turns used for identifying the tunes. Do this for 'norm' 2fam lattice.

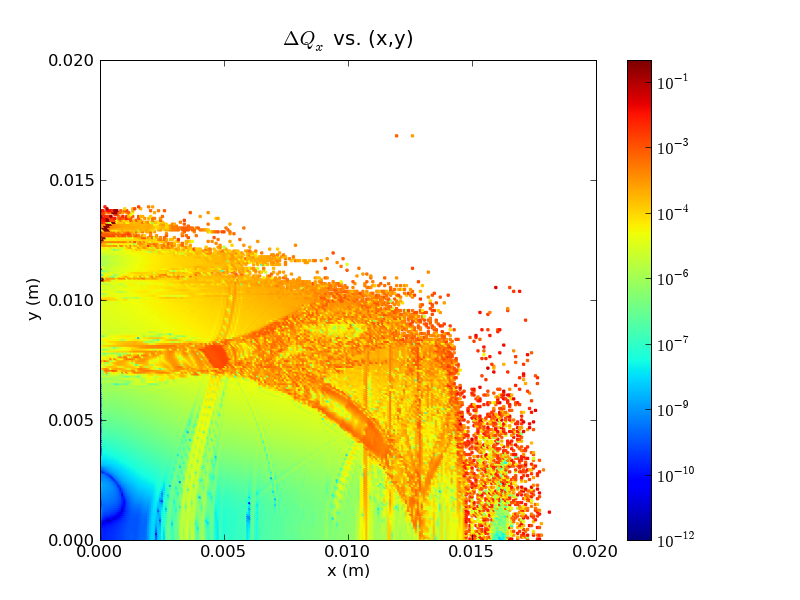

1024 turns tracked / 512 per FFT

For comparison, here are the results from tracking 1024 turns, using 512 per FFT. (re-posted from 2010.06.11):

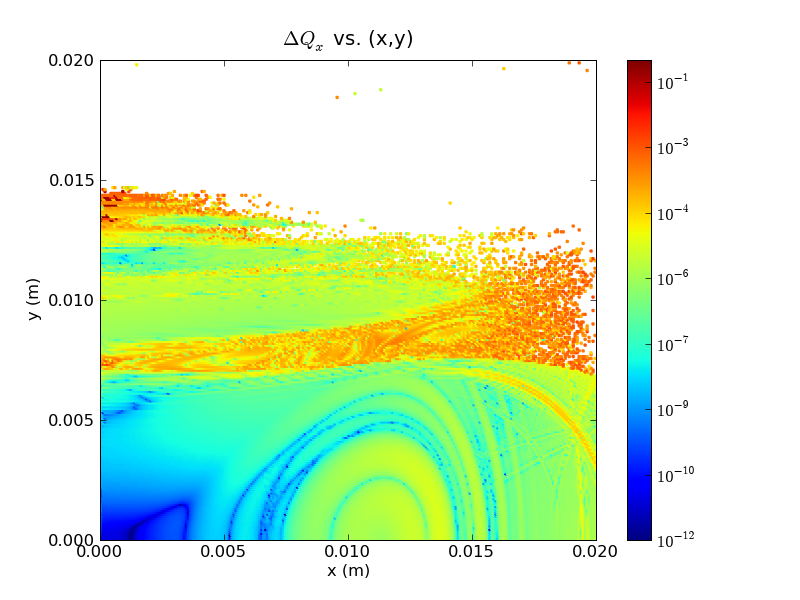

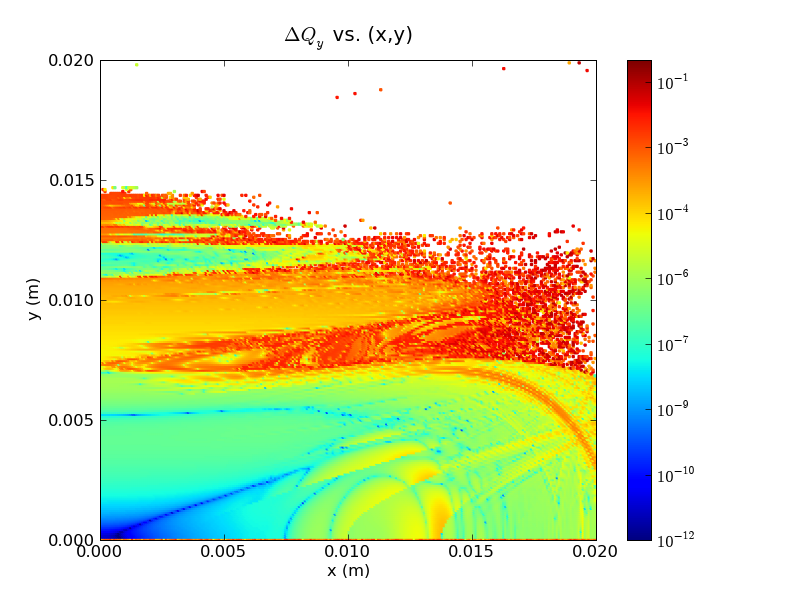

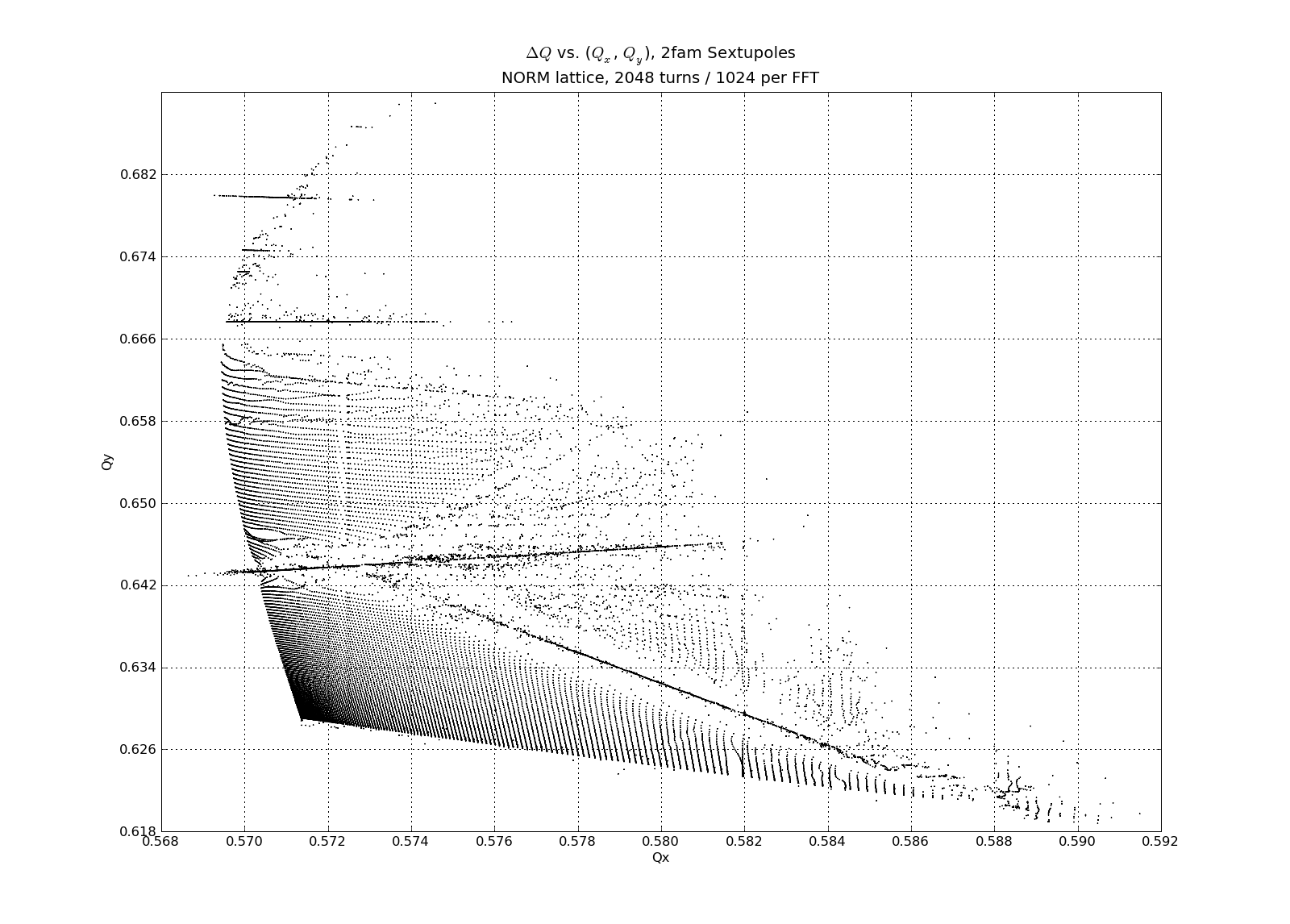

2048 turns tracked / 1024 per FFT

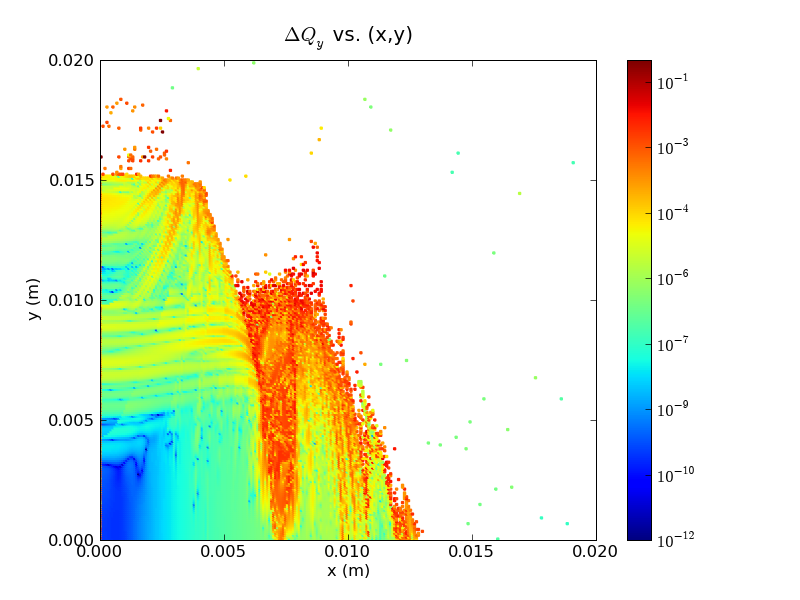

JSh-optimized NORM sextupoles - 1024 turns / 512 per FFT

For comparison, here are the same plots for the optimized sextupoles on this lattice.
