2010.07.01 - Frequency Maps with New Tunes

For 2009.05.16 "NORM" optics, both 2fam and JSh-optimized sextupoles, change the working point from (0.571,0.628) to (0.578,0.542). Run frequency map analyses on these new lattices, using 2048 turns tracked / 1024 per FFT.

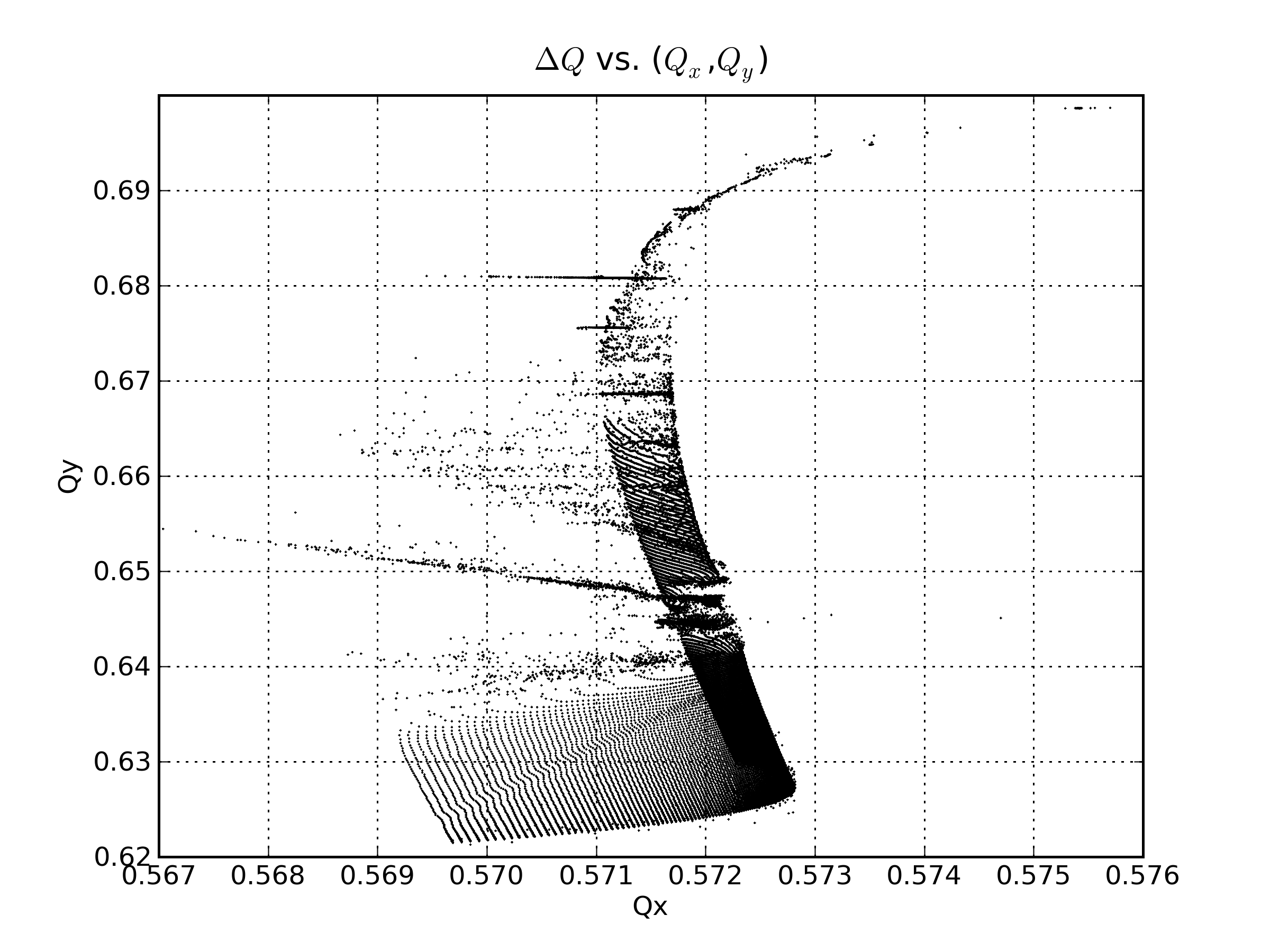

Working point = (0.571,0.628)

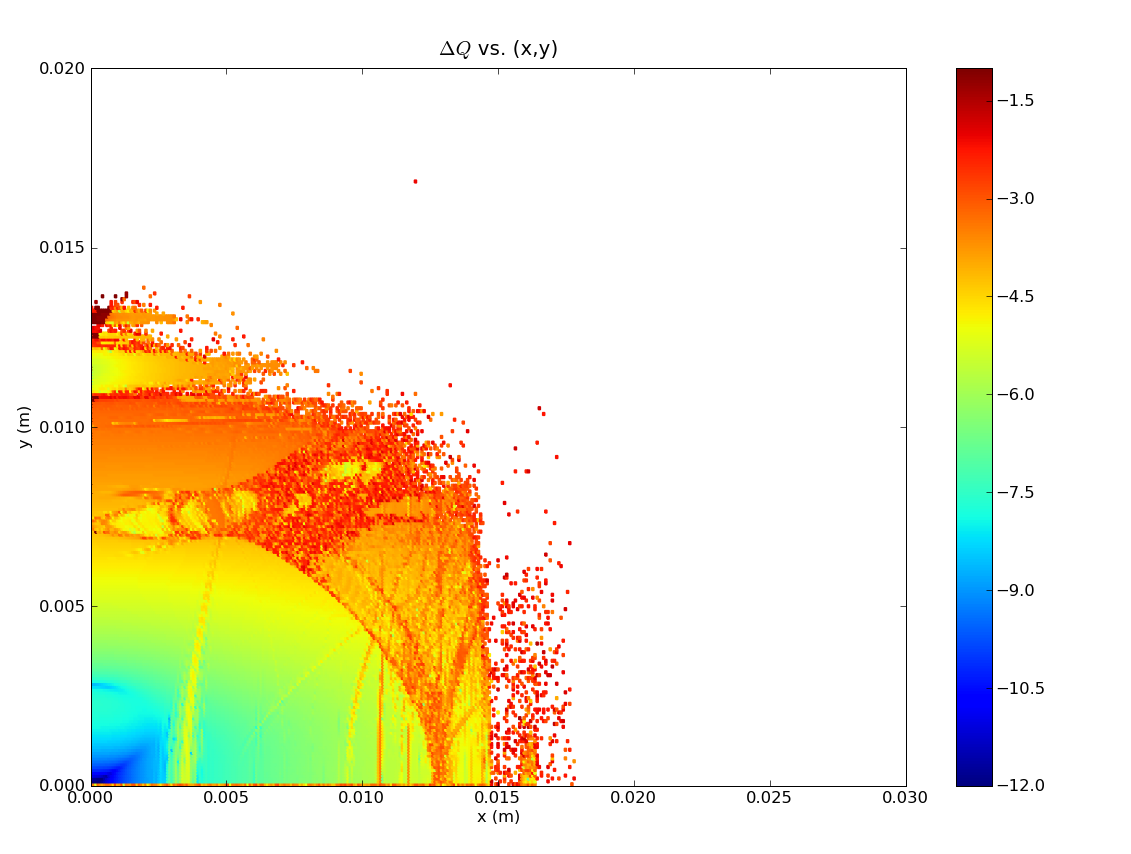

2fam

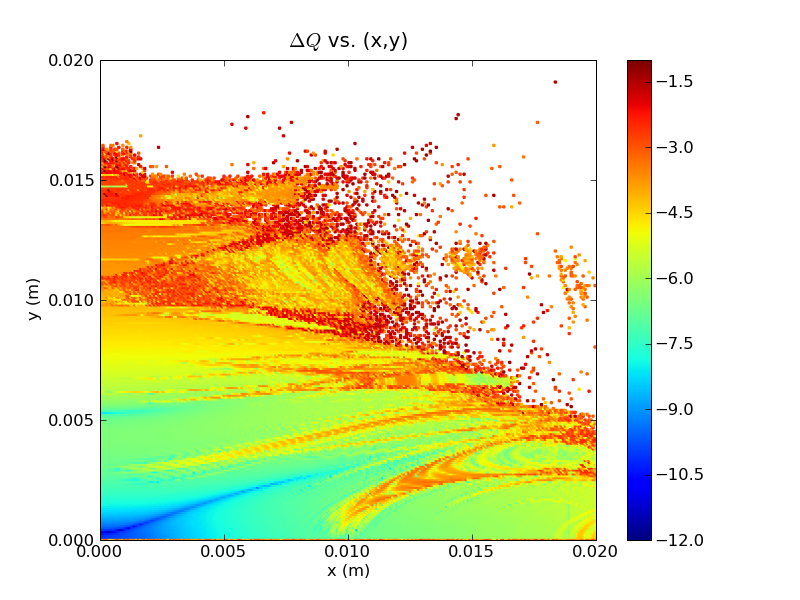

2010.05.04 JSh-optimized sextupoles

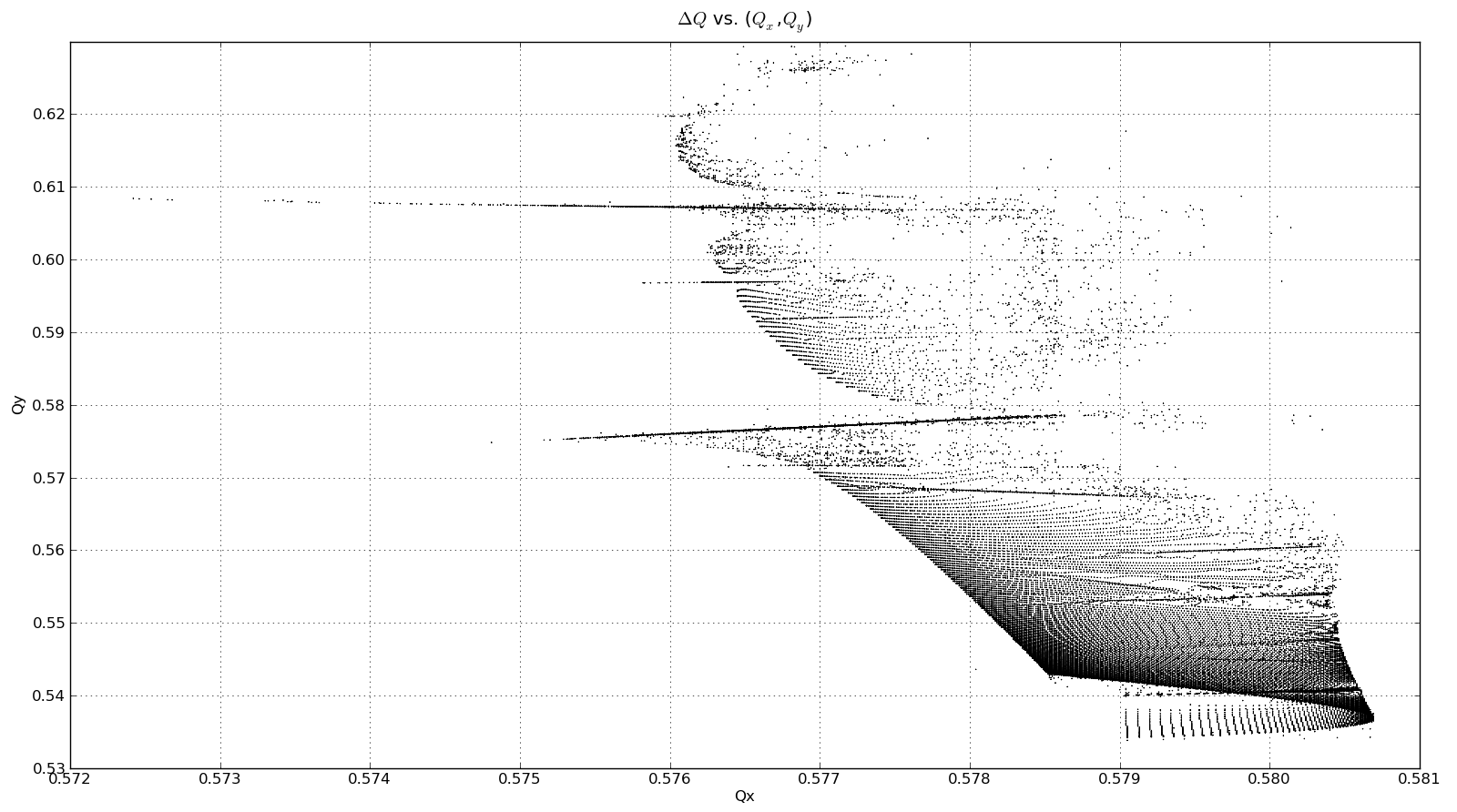

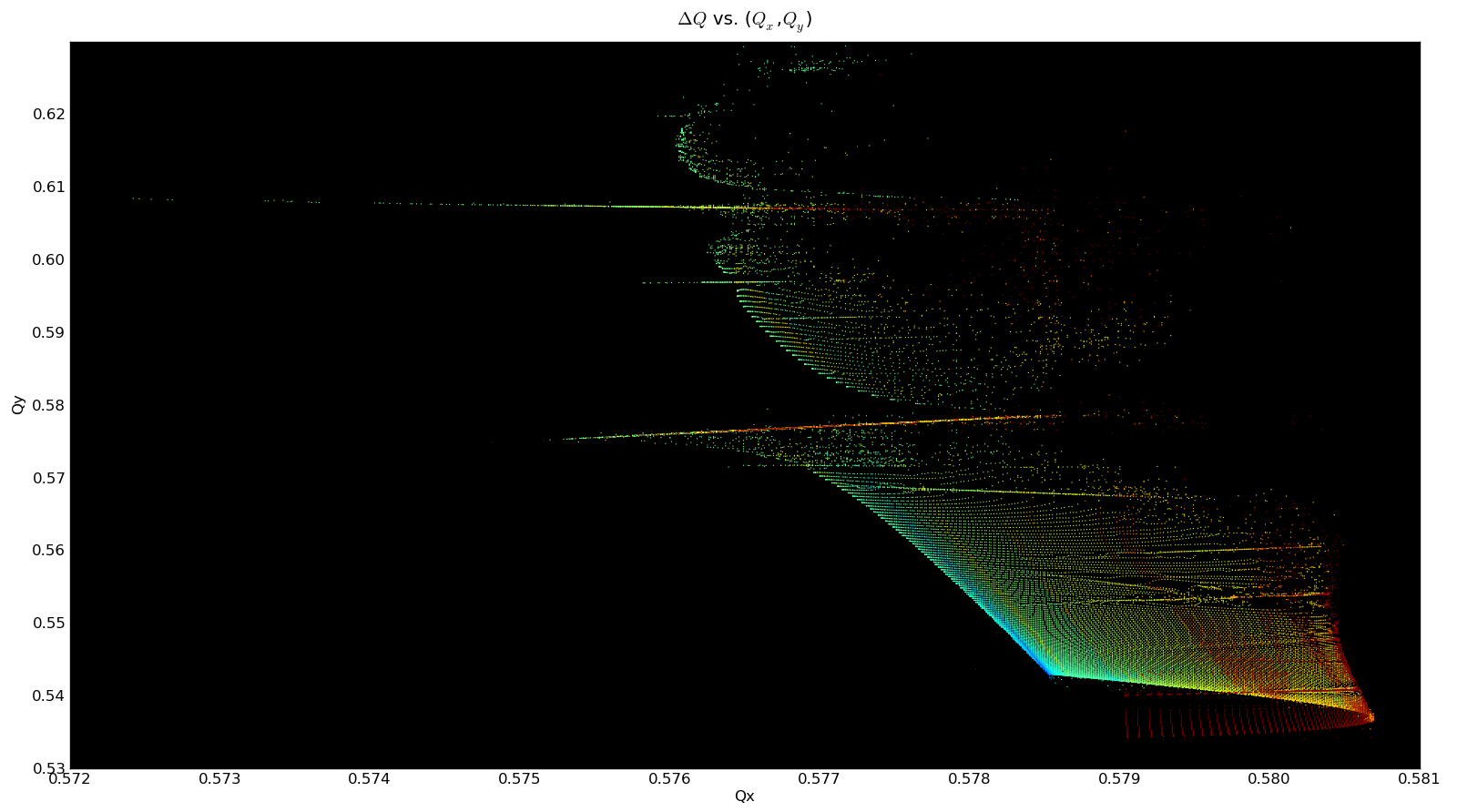

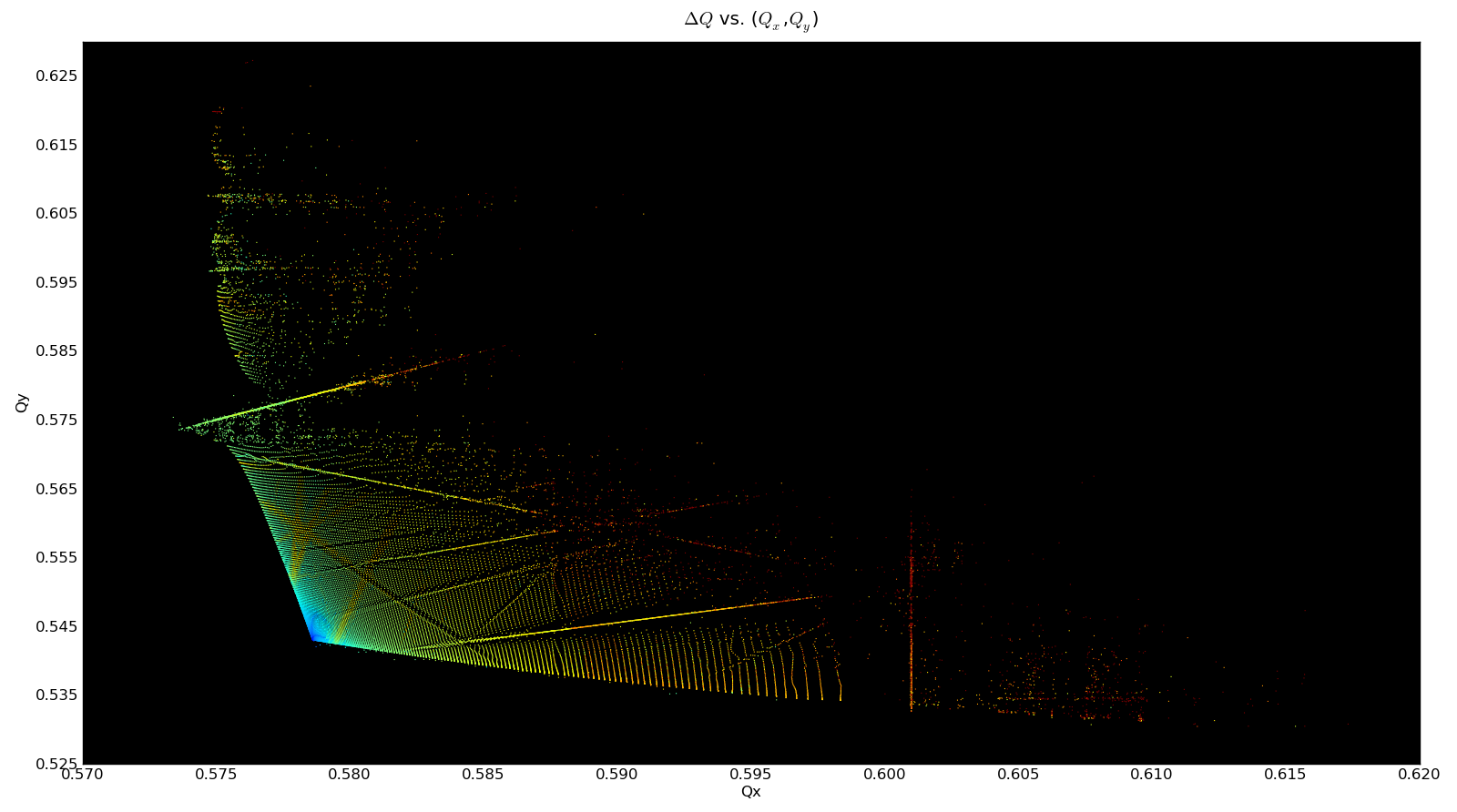

Working point = (0.578,0.542)

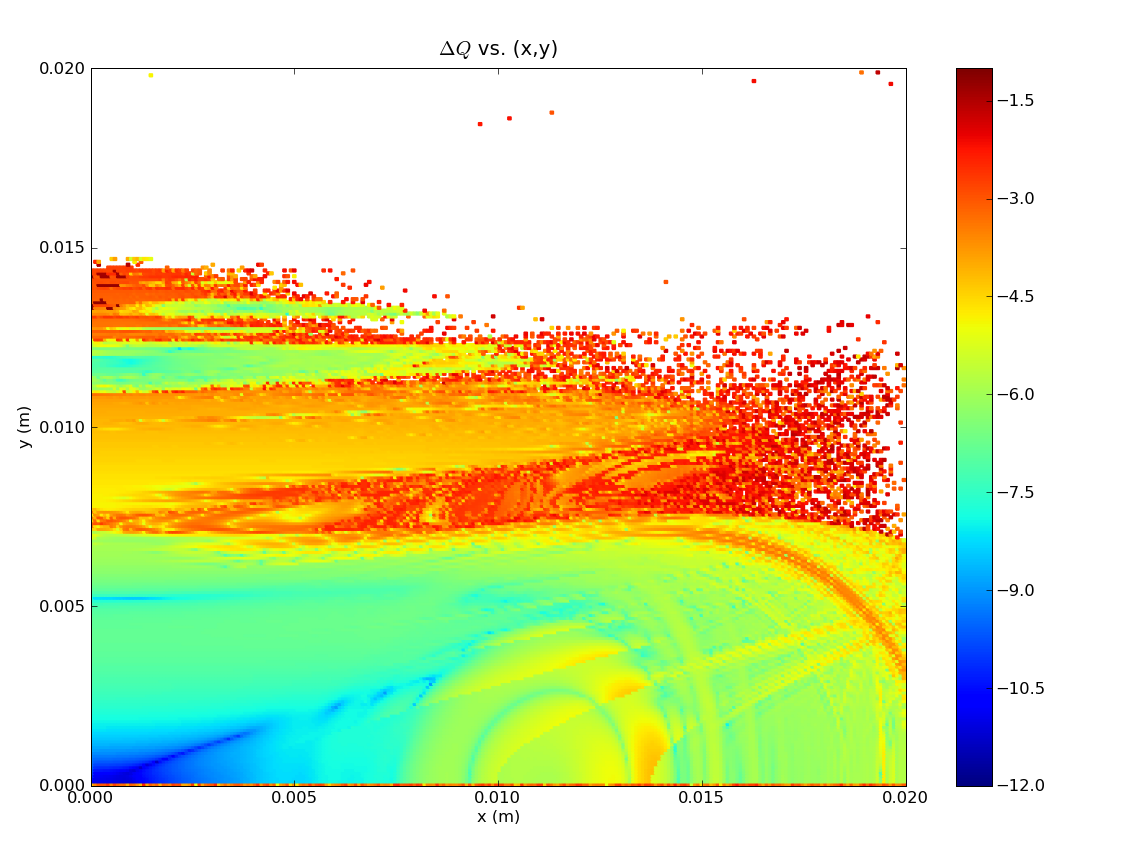

2fam

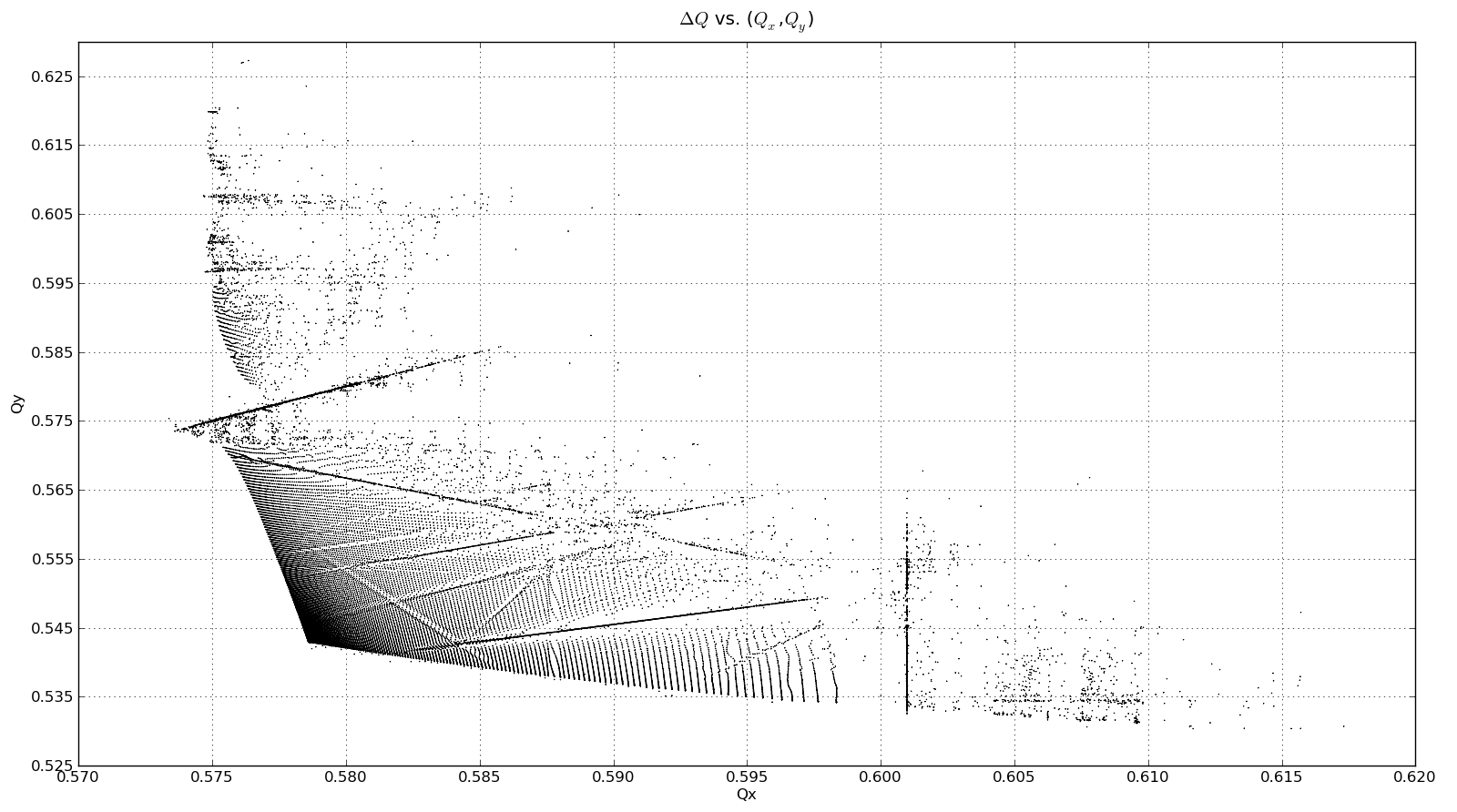

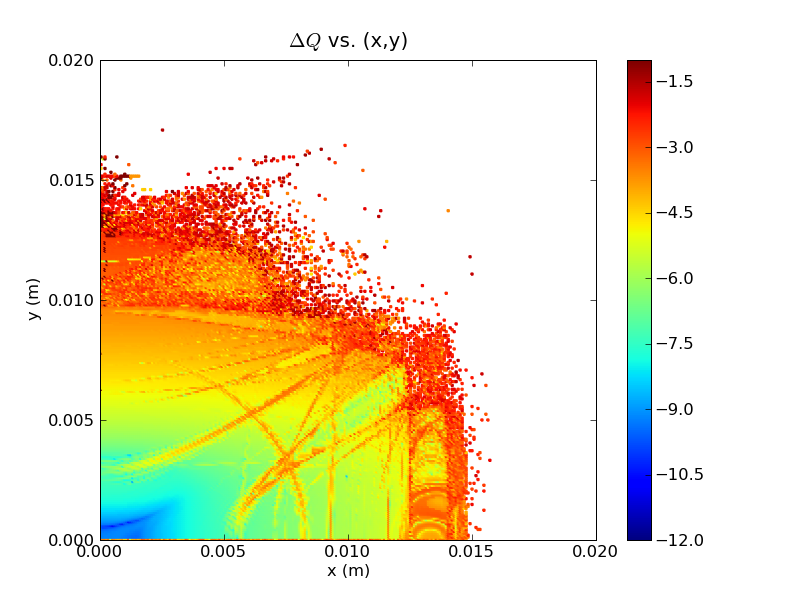

2010.05.04 JSh-optimized sextupoles
