2010.11.11 - Sextupole Optimizations - xqune 2fam

Using the 2010.05.04 NORM sextupole optimization as a starting point, take the 2fam sextupole distribution and xqune to xi.x,y = (6,6). Use the same constraints as 2010.05.04, except target chromaticities increased to +6.

2fam, xi = 6

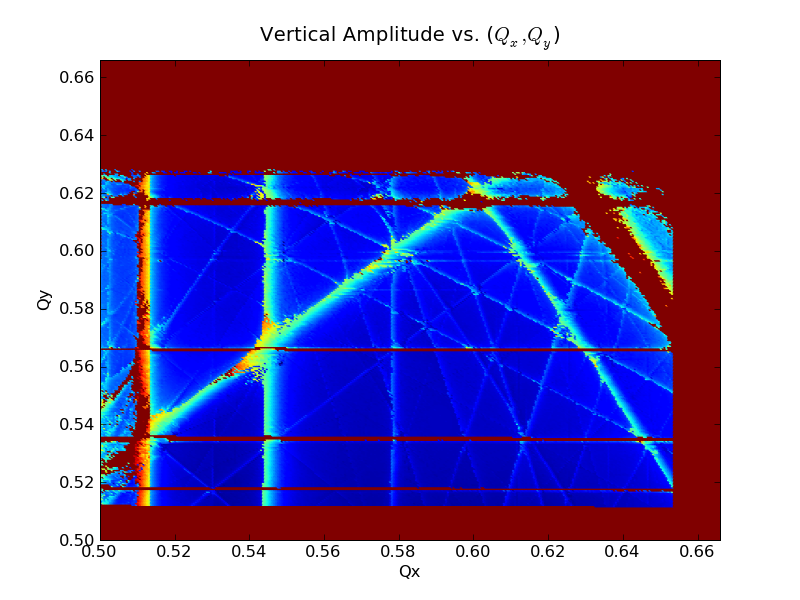

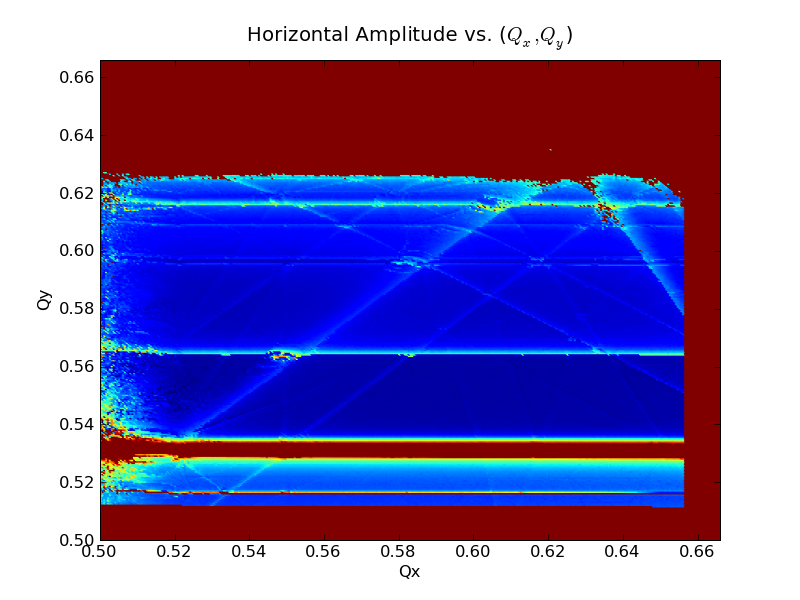

Tune scans:

Optimized Sextuples, xi = 6

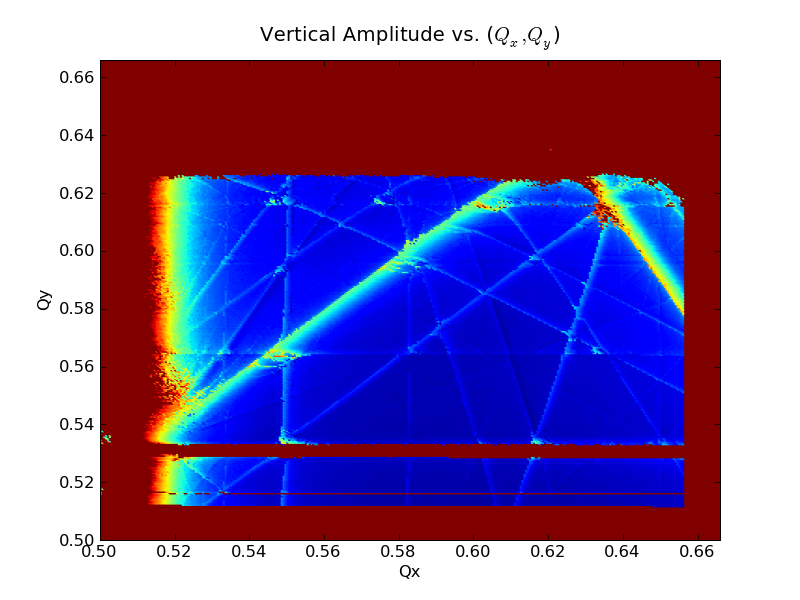

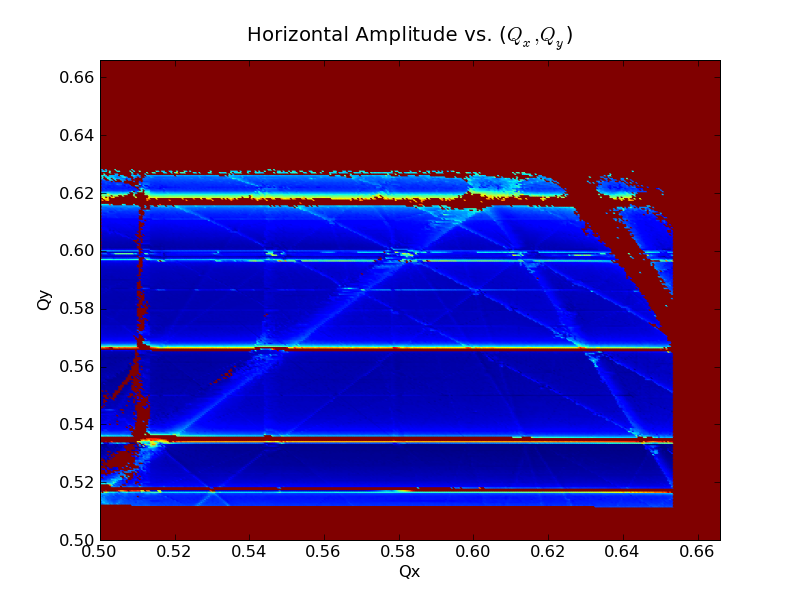

Tune scans:

Compare to 2010.05.04 optimizations.
