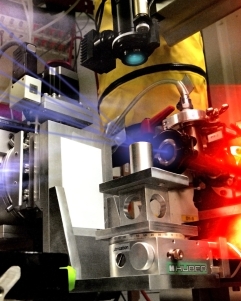

Scattering geometry

Grazing-Incidence Small-Angle X-ray Scattering (GISAXS) is a versatile tool for characterizing nanoscale density correlations and/or the shape of nanoscopic objects at surfaces, at buried interfaces, or in thin films. GISAXS combines features from Small-Angle X-ray Scattering (the mesoscopic length scale, incident beam definition by multiple slits, area detector) and diffuse X-ray Reflectivity (the scattering geometry and sample goniometer). Furthermore, GISAXS can be considered as the little brother of Grazing-Incidence Diffraction (scattering geometry and sample goniometer). The technique was originally introduced by Joanna Levine and Jerry Cohen [Levine],[Levine2], but has come to full flourish only in the past decade for the study of nanostructured thin films.

In order to make x-ray scattering surface sensitive, a grazing incidence angle a is chosen between about half the critical angle ac and several times the critical angles of the film material. The actual choice depends on the system to be studied. For free-standing quantum dots, an incident angle below ac may be chosen to make the scattering exclusively surface-sensitive. Largest scattering cross sections are achieved when the incident angle is inbetween the critical angles of the film and the substrate, however, multiple scattering effects have to be taken into account to properly model the data. If the incident angle is somewhat above the critical angle of the substrate, dynamic scattering effect are much reduced, and often the data can be modeled well within the quasi-kinematic approximation introduced by [Naudon]. In each of the latter two cases, a full penetration of the sample of several 100 nm is ensured.

The area detector records the scattering intensity of scattered rays over a range of exit angles b and scattering angles y in the surface plane. A beam stop has to be set up to block spill-over direct beam as well as the reflected beam and the intense diffuse scattering in the scattering plane. The scattering geometry is thus relatively simple, and lends itself to study samples in in-situ environments [Renaud, Smilgies]. As the scattering intensity in the forward direction is high, real-time studies have become feasible [Renaud, Dourdain, KimSmilgies2Papadakis2, Paik, Zhang2].

In the scattering plane the GISAXS intensity distribution corresponds to a detector scan in Diffuse Reflectivity [Sinha]. The intensity distribution parallel to the surface plane corresponds to a line cut through the corresponding transmission SAXS pattern. The full GISAXS intensity map can be theoretically described within the framework of the Distorted-Wave Born-Approximation [Sinha, Rauscher, Lazzari, Lee1, Busch3, Tate, Stein].

GIWAXS is a related scattering technique probing atomic and molecular distances in crystal lattices. It is closely related to Grazing Incidence Diffraction, however, typically area detectors are used as in GISAXS. GIWAXS is typically used to probe the morphology of conjugated molecules and polymers[ Sirringhaus, Breiby, Chabinyc, He, Huang, Osaka]. Combined GISAXS and GIWAXS studies reveal the orientational order of crystalline blocks in polymers [Busch5, Sasaki, Darko] and orientational order of nonspherical nanocrystals on their superlattice sites [Bian, Choi, Choi2].

Structure factor - lateral and normal density correlations

GISAXS provides information both about lateral and normal ordering at a surface or inside a thin film. This shall be illustrated with the example of lamellar films formed by symmetric polystyrene-polybutadiene block copolymers. In a block copolymer two immiscible polymer chains are coupled by a chemical bond. If both chains occupy equal volumes, a lamellar phase is formed. In a thin film, i.e. if the thickness of the film is on the order of the lamellar period, the presence of two interfaces, air-film and film substrate, may induce preferential order in the film as compared to the bulk polymer which forms a 3D powder of micron-sized lamellar domains:

If interfacial energies are the dominant factor, i.e. if one of the block strongly favors the interface, parallel lamellae are formed. If the interfacial energies of the blocks are similar, interfacial entropy will determine the orientation of the blocks. In particular, chain stretching in the vicinity of the bond between the chains yields a perpendicular orientation of the lamellae, while the chain end effect favors a parallel orientation [Pickett]. As the entropic effects scale with the chain lengths, even a morphology change as a function of chain length is possible. This has been indeed observed for PS-PB, where parallel lamellae are observed for short chains and perpendicular lamellae for long chains [Papadakis]

What kind of scattering will result from these two extreme cases ?

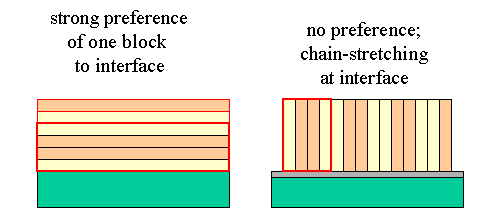

If one of the blocks strongly favors one of the two interfaces, or even both, the lamellae will be parallel to the substrate. The classic example is PS-PMMA on a Si wafer covered with the native oxide [Anastasiadis]. The signature of parallel lamellae in GISAXS are stripes of intensity at regular spacings along the qz direction. In Langmuir-Blodgett films, such stripes in the diffuse reflectivity are referred to as Bragg sheets. The schematic shows the diffuse scattering only (the intense specular reflection from the surface is omitted).

Strictly speaking, the sketched pattern is obtained within the validity of the Born-Approximation, i.e. if the incident angles and scattering angles are well above the critical angles of film and substrate. For incident angles between the critical angles of film and substrate, scattering patterns may be more complicated, which can be explained within the framework of DBWA theory [Busch3

If both blocks have similar interface energies, chain stretching at the interface comes into play. Chain stretching occurs at the link between the immiscible blocks of the polymer. A nematic ordering of this stretched part parallel to the interface may become favorable giving rise to the formation of perpendicular lamellae. As both interactions scale differently with the degree of polymerization [Pickett, Potemkin], there can be a transition from parallel lamellae to vertical lamellae, as we have found for PS-PB [Busch]. The signature of perpendicular lamellae are correlation peaks parallel to the interface, with a rod-like shape normal to the surface, similar to the scattering rods in Grazing-Incidence Diffraction [Als-Nielsen].


Note that perpendicular lamellae still have the freedom to change direction parallel to the surface plane - in fact AFM pictures [Busch, Busch2] show that meandering lamellae are formed (aka "fingerprint patterns"). Such a system constitutes a 2D powder, similar to monolayers at the air-water interface [Als-Nielsen]. Another way of describing thin film samples is that they have uniaxial alignment. Closely related to such scattering patterns is fiber diffraction, and sometimes such images are also refered to as having "fiber texture" [Breiby]. While a fiber is the dual system to a thin film, it should be kept in mind that fiber diffration is a transmission experiment and well described within the kinematic approximation, while GISAXS works in reflection geometry, and reflection-refraction effect have to be included in a proper interpretation.

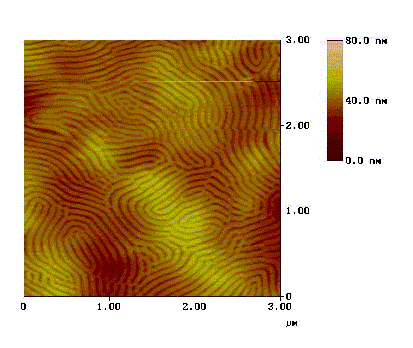

AFM image of a diblock copolymer film
displaying vertical lamellae [Busch2]

GISAXS from the polymer film
shown on the left.

The scattering from such a lamellar system with a period of about 75 nm is strong and the ordering kinetics sufficiently slow, so that in-situ time-resolved measurements of the swelling of the film in solvent vapor on a timescale of tens of seconds were possible [Smilgies].

Often, though, the ordering is not quite so perfect:

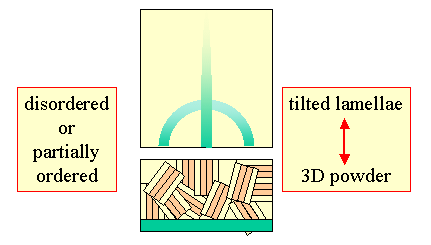

In thick films the ordering induced at the interfaces may not prevail throughout the film, and the interior of the film may assume the 3D powder bulk structure.

Rings or partial rings in the intensity maps can indicate anything from complete disorder of the lamellar domains to partial ordering, e.g. lamellae with a finite distribution of tilt angles with respect to the interface.

Not always does the kinetics of the film formation allow a complete ordering of the films. This is particularly important in a system like PS-PB [Busch, Papadakis, Busch3, Busch4, Potemkin], where the morphology changes from parallel lamellae to perpendicular lamellae as a function of chain length. At intermediate chain lengths there is only a small preference of one morphology over the other, and the system is hence slow to reach equilibrium. In this case a mixture of different structures is observed.

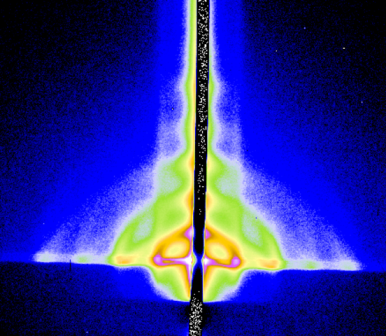

sample PSPB-V5

PS-PB sample with a chain length in the intermediate regime.
A mixture of  parallel, perpendicular, and unoriented lamellae
is observed. (Busch, Smilgies, Posselt, Papadakis, unpublished)

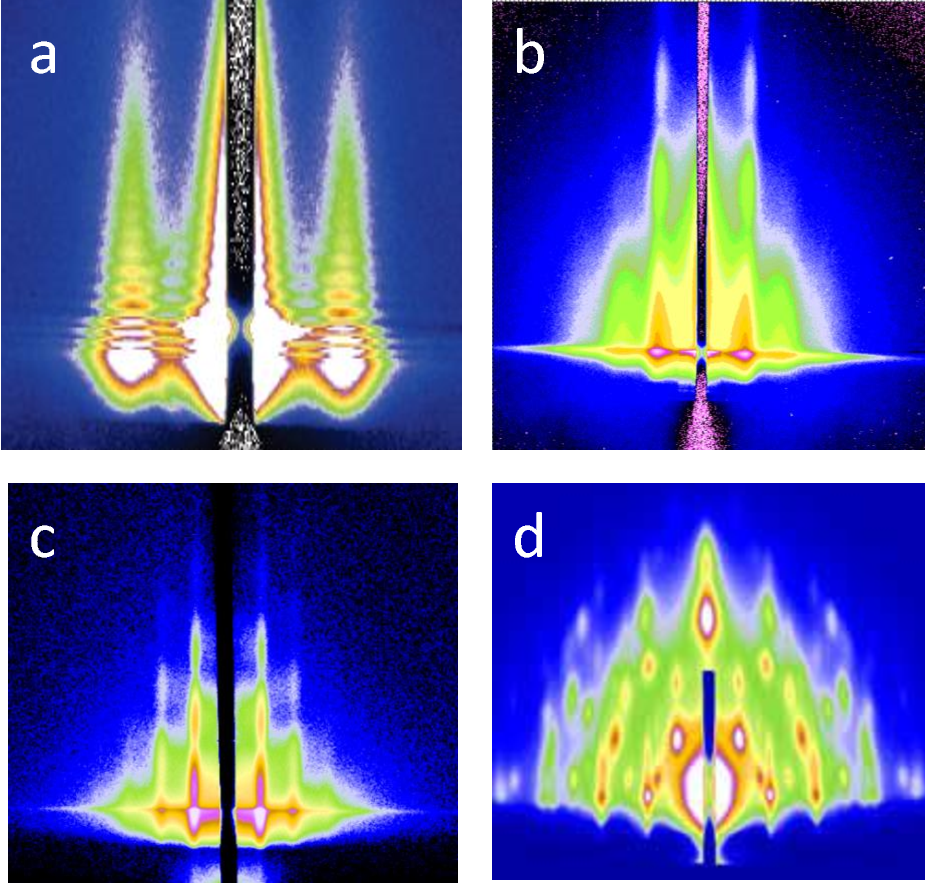

Thin films with other block copolymer morphologies than the lamellar phase have been analyzed as well: Du et al. characterized and modelled a monolayer of spherical voids in a matrix [Du] using the IsGISAXS code by [Lazzari] and applying Babinet's theorem. [Xu] and [Li] characterized standing hexagonal cylinders. The Ree group investigated lying hexagonally-packed cylinders, hexagonal perforated layers, and gyroid phases [Lee1, Park-I] and modeled the scattering for the cylinder phase within DWBA. In addition they characterized and modelled a film with randomly distributed spherical pores [Lee2].  The Hillhouse group independently  analyzed the gyroid phase [Tate, Urade]. Ed Kramer's group  performed a comprehensive study of thin film ordered spherical phases, from hexagonally packed monolayers to several tens of monolayers that form bcc-packed spheres with a (110) orientation, as expected from the bulk equilibrium phase [Stein]. More recently [Zhang-Q] and collaborators described how to form single gyroid superlattices, Hence most of the regular bulk phases have been characterized, as they occur in thin film morphology, and preferential alignment with regard to the substrate surface could always be achieved.

In their study of silica surfactant mesophases the kinetics of the formation of various morphologies has been studied by [Gibaud]. [Wolff] studied the absorption of spherical micelles from the liquid onto a silicon substrate with grazing-incedence neutron scattering . Jin Wang, Sunil Sinha, and collaborators have shown, how nanoparticles trapped between two polymer surfaces diffuse laterally using resonance-enhanced GISAXS [Narayanan]. The Korgel group showed that monodisperse CuS nanodisks can form ordered columnar arrays on drop casting [Saunders]. Many more papers on nanoparticle self-assembly into two and three dimensional superlattices have been published recently, for example [Alexandrovic, Bian, Campolongo, Choi, Dunphy, Goodfellow, Hanrath, Heitsch, Smith, Zhang]

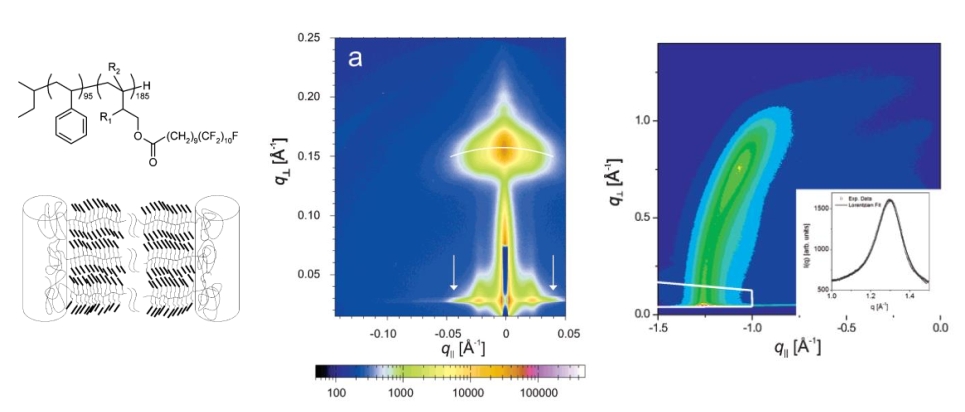

Hierarchical ordering has been reported by [Busch5] where a block copolymer in the cylindrical phase and with liquid crystalline side chains in the majority block showed ordering on the mesocopic scale (30 nm), the scale of the scale of the smectic layers (3 nm), and the molecular scale of the alkyl chain packing (0.5 nm). [Sasaki] studied thermal treatment of polyethylene films in-situ with simultaneous small- and wide-angle scattering. Simultaneous small and wide angle scattering was also the key to unravel the intricate relation of superlattice symmetry and on-site orientation of individual particles in PbS and PbSe nanocrystal assemblies [Bian, Choi, Choi2].
  [Ree] has recently provided a comprehensive review on the multitude of scattering patterns observed in polymer films.

Preferential lateral ordering and patterning

All examples discussed so far were 2D powders, i.e. had a well-aligned axis perpendicular to the substrate and rotational averaging with respect to the surface normal, resulting in a rotationally homogeneous scattering intensity with respect to the azimuth angle f. However, by patterning the substrate, further ordering may be imposed on the film, and structures may show a preferential lateral orientation with respect to the substrate as seen in polymer blends, where the surface had been prepared by alternating hydrophobic and hydrophilic stripes [Böltau].

Similarly, regular patterns can be prepared in photoresists by lithographic techniques representing artificial lamellar systems. In these cases the GISAXS intensity distribution depends now also on the azimuth angle f of the substrate. The Kowalewski group has developed the method of zone casting, which makes the preparation of laterally oriented block copolymer domains possible, and after calcination, the creation of oriented carbon nanogratings [Tang]. Nanogratings can also be prepared by using oriented block copolymer films as templates for reactive ion etching [Park-M], as shown in the example below. A quantitative description of such in-plane texture for the use with area detectors has been suggested by [Breiby] et al.

Basic scattering angles for a GISAXS experiment. If the structure is anisotropic in the film plane,
the GISAXS intensity map will depend on the sample azimuth f.

laterally oriented nanostructure

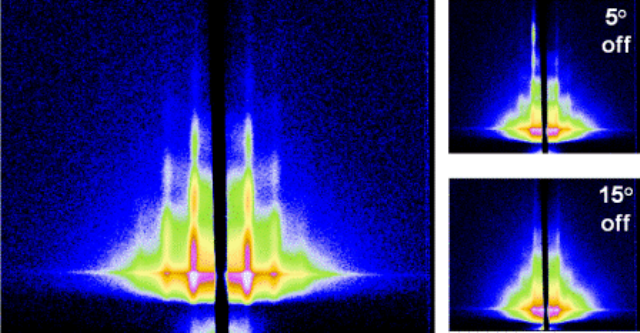

Scattering off an ordered array of Al nanowires, prepared by reactive ion etching of an shear-oriented
block copolymer template [Angelescu, Pelletier]. When the sample is rotated by f, the scattering features become weaker.
Note that on the macroscopic scale, i.e. in the illuminated area of about 0.5 mm by 10 mm, the grating is not perfect.
Sample: Pelletier & Chaikin, Princeton. Scattering data: Smilgies & Gruner, CHESS (unpublished).

Form factor

Another type of scattering is observed for nano-objects with a narrow size distribution and well-defined shape. Here the form factor dominates the scattering, in particular, if the nano-objects are randomly placed on the surface. Examples are monodisperse voids in a silica film on a wafer surface [Du], molecular sieves based on standing block copolymer cylinders with the cylinder material removed [Li] as well as quantum dot arrays [Metzger]. Below the calculated scattering intensity from a dilute layer of oblate elliptical nanoparticles on a wafer surface is shown in the quasikinematic approximation (left panel).

elliptical nanoparticles: dilute layer

oblate elliptical nanoparticles: dense layer
with in-plane correlations

The characteristic form factor oscillations are clearly to be seen in the parallel and the perpendicular direction. When the exit angle of the scattered beam is close to the critical angle, signal enhancement due to the Vineyard effect [Vineyard] occurs, resulting in a bright band of intensity at the critical angle. This is also referred to as the Yoneda peak [Yoneda]. Below the critical angle the scattering intensity falls quadratically off to zero. For thin films the Yoneda band extends between the critical angles of the film and the substrate, in particular if the former is smaller than the latter, as often encountered in organic thin films.

For a dense layer of nano-objects, particles have more or less well-defined nearest-neighbor distances. This density correlation gives rise to a structure factor with characteristic modulations parallel to the surface, but constant in the perpendicular direction (right panel).  The characteristic intensity streaks are related to the scattering rods in Grazing-Incidence Diffraction [Als-Nielsen], and are modulated by the form factor.


structure factor

form factor
(log scale)

Vineyard factor

Contributions to a GISAXS intensity map in the quasikinematic approximation.

Note that in this simulation, all the structure was produced by the product of just three functions, the form factor F(qy,qz), the structure factor S(qy), and the Vineyard factor T(qz), where the qy and qz components of the scattering vector q are parallel and perpendicular to the substrate surface, respectively. This quasi-kinematic approach was first introduced by [Naudon] for studying the formation of nanoparticles on surfaces and in buried layers, and is based on the seminal work by [Vineyard] on grazing-icidence diffraction. [Heitsch] and [Smilgies5] have recently applied the quasi-kinematic approximation to model full 2D scattering images of monolayers and multilayers of PtFe nanocrystals deposited by the Langmuir-Blodgett and Langmuir-Schaefer techniques. Particle size distribution and deposition techniques were correlated with the degree of order observed in the layers, as modeled by a static Debye-Waller Factor [Foerster].

NC monolayer

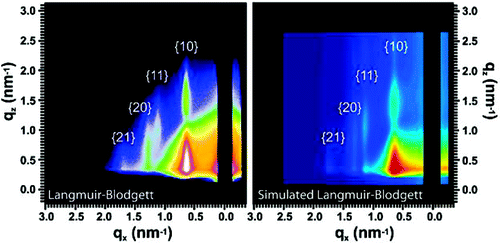

GISAXS image from a Langmuir-Blodgett film of FePt nanocrystals (left) and simulation within the quasi-kinematic approximation (right). [Heitsch].

Laterally oriented nanostructures

The highest degree of information on nanoparticles is obtained, if these have not only uniform shape, but also uniform orientation. The classic example are pyramid-shaped quantum dots on single crystalline surfaces [Metzger]. In the latter case the scattering intensity of a line scan taken parallel to the surface depends on the relative orientation of the pyramids to the beam as given by the azimuth angle f of the sample. Another spectacular example of very highly oriented monodisperse nanoparticles are the in-situ growth studies by Renaud et al. in an all-vacuum, windowless small-angle scattering set-up [Renaud]. [Tang] created carbon nanogratings based on zone casting of a lamellar block copolymer and subsequent pyrolysis which removed one block and converted the other to carbon.

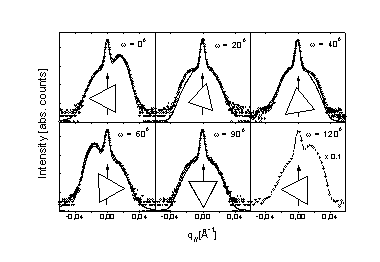

Orientation-dependence of the scattering from quantum dots
shaped like three-sided pyramids [Metzger].

GISAXS from nanoscale gratings were characterized in great detail by [Hofmann] and [Rueda]. [Lu] introduced a new way of obtaining grazing-incidence transmission patterns which considerably simplifies the scattering theory. [Park-S] showed that laterally highly oriented hexagonal arrays of block copolymer cylinders can be obtained on a miscut surface with regular steps.

Dynamic scattering effects

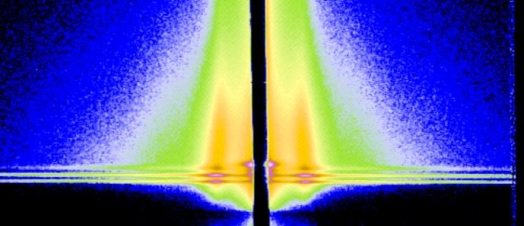

A well-known feature of grazing incidence scattering is the Yoneda-Vineyard peak which shows up as a bright line of enhanced diffuse scattering intensity on an area detector when the exit angle equals the critical angle of the surface, a result of the Vinyard function introduced in the above section. The origin of the enhancement lies in the fact that at the critical angle incident beam and reflected beam are of similar amplitude and in phase [Vineyard, Als-Nielsen]. The situation is more complex for thin films which feature two critical angles for film and substrate, and the line expands into the Yoneda band of enhanced scattering between the critical angles.

If the film has lower electron density than the substrate, as is usually the case for organic thin films on silicon wafers, the reflectivity shows pronounced oscillations between the critical angles which are related to the incident wave resonantly coupling to waveguide modes inside the layer [Feng]. At such a resonance, the electric field inside the film is greatly enhanced [Wang-J]. As a consequence, the scattering intensity is also enhanced. If a film has a well-defined thickness such as a spin-coated polymer film, the Yoneda band features bright bands of intensity corresponding to waveguide resonance in the exit wavefunction. If in addition the incident wave is tuned to a waveguide resonance, too, the largest enhancement effect results [Pfeiffer, Narayanan]. Samples may also be engineered to optimize waveguide performance by coating them with a thin metal top layer such as Ti or Al.

Resonant scattering making use of several waveguide modes can also be applied to reconstruct the electron density in the film [Babonneau2, Jiang2]. As the number of nodes of the waveguide mode incleases, the parts of the films at the antinodes are probed, while the parts at the nodes do not contribute much. This provides additional information for the reconstruction of the electron density profile in the film.

Another interesting angle range is when the incident wave is below the critical angle of the film. In this case the wave penetrating into the film is evanescent, i.e. exponentially damped. This can be used to separate information of near-surface structure, using an angle of incidence of about half the critical angle of the film, from the full film scattering at higher angles. Again perfect films are needed, so that the incident angle is well-defined. In addition for a quantitative analysis, care has to be taken to properly include the reflected wave from the interface to the substrate. This calculation can be done withing the framework of the DWBA theory, which describes all 3 scattering regimes in GISAXS - evanescent, dynamic, and quasi-kinematic [Smilgies7].

Full scattering simulations

An exact formulation of the scattering theory has been given by [Rauscher] within the framework of distorted-wave Born approximation (DWBA) [Sinha, Vinyard] which was further elaborated by [Lazzari] for the case of self-organized metal clusters on oxide surfacs [Renaud]. Remi Lazzari's "IsGISAXS" program is available on the web (see links). In this work the case of finite objects on a substrate surface is treated.

 [Lee1, Lee2] and [Busch3] investigated basic DWBA models suitable for porogens, cylindrical block copolymers, and lamellar block copolymers, respectively. [Tate2] presented an approach of combining scattering calculations with electron density models using discrete Fourier transforms. Recently [Babonneau] made his program "FitGISAXS" available (see links), which is capable of modelling nanostructures in buried layers. In these formulations of the DWBA objects embedded in a thin film are treated. The thin film itself gives rise to new phenomena, such as two critical angles for film and substrate, wave guide resonances inbetween the two critical angles, as well as oscillations related to Kiessig fringes above the critical angle of the substrate. Hence scattering from thin film systems features additional complexity and is important to consider in the interpretation of GISAXS scattering data [Busch3].

Detailed modelling of the scattering from block copolymer thin films has been preformed by Ree's group [Lee2, Yoon, Yoon2, Jin] for lying and standing cylinders, lamellar, and gyroid phases, respectively, while [Du] and [Stein] analyzed spherical phases. Finally [Lee3] introduced a phasing method to solve the previously not very well known structure of the hexagonal perforated layer phase. This means that now detailed models of all block copolymer phases exist.

Detailed modelling goes beyond structure simulation - the fading of the intensity at higher q-values is related to the kind of disorder in the system. Disorder models employed so far include the paracrystal model [Lazzari, Lee2] and the static Debye-Waller factor model [Foerster, Heitsch], which describe disorder of the second kind and of the first kind, respectively. More support from theoretical modelling would be highly desireable, in order to quantify which kind of disorder is present in a given sample, and how to best model it.

Indexation of complex scattering patterns

Self-organized nanoparticles synthesized by solution chemistry have attained better and better quality and monodispersity. Some spectacular results have been achieved for monolayers deposited on the air-water interface [Schultz] and on solid substrates  [Alexandrovic, Jiang, Heitsch]. Moreover, highly ordered and oriented unary [Saunders, DunphyHanrath, Zhang] and binary [Smith] superlattices have be obtained. A key for these latter studies was careful tuning of deposition technique and annealing conditions.

crystallization of PbS and PbSe nanoparticles

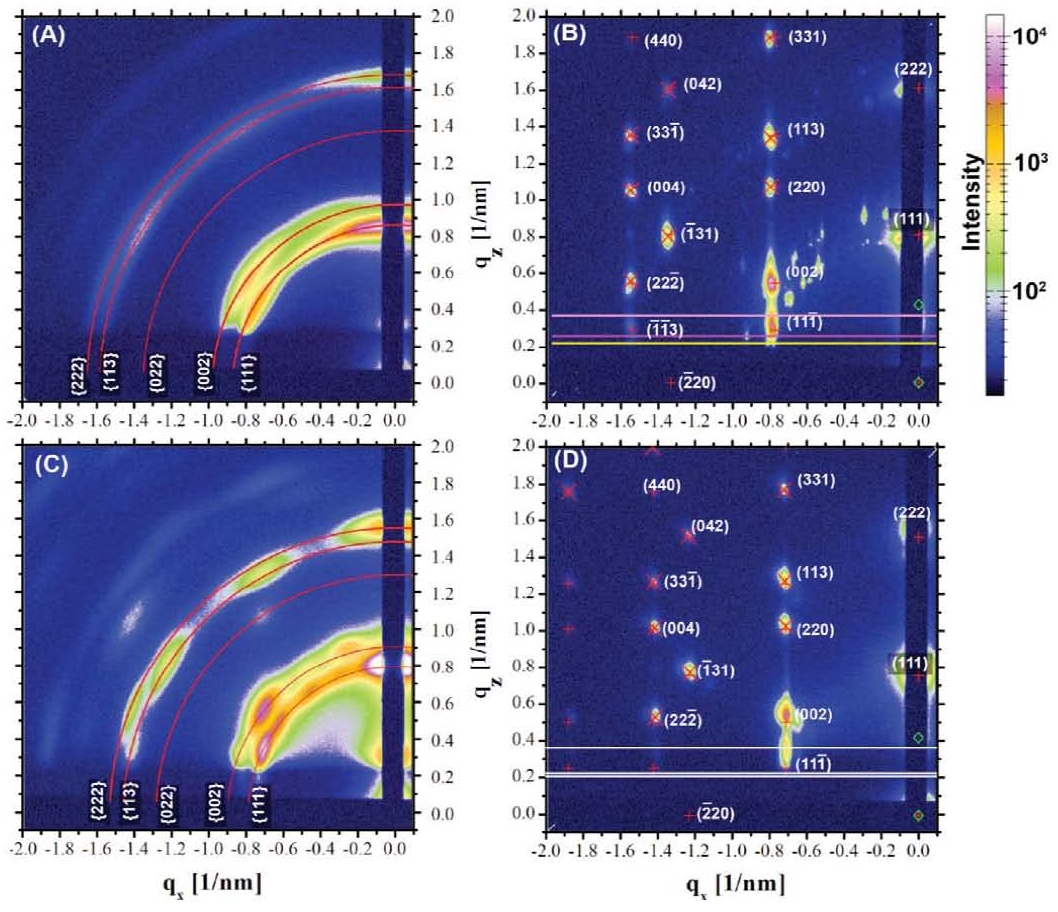

Crystallization of PbSe (top) and PbS (bottom) nanocrystals dropcast onto a Si wafer into an FCC superlattice.
Fast drying (left) yields randomly oriented FCC domains, while slow drying (right) leads to
oriented 3D assemblies with their (111) faces parallel to the substrate [Hanrath].

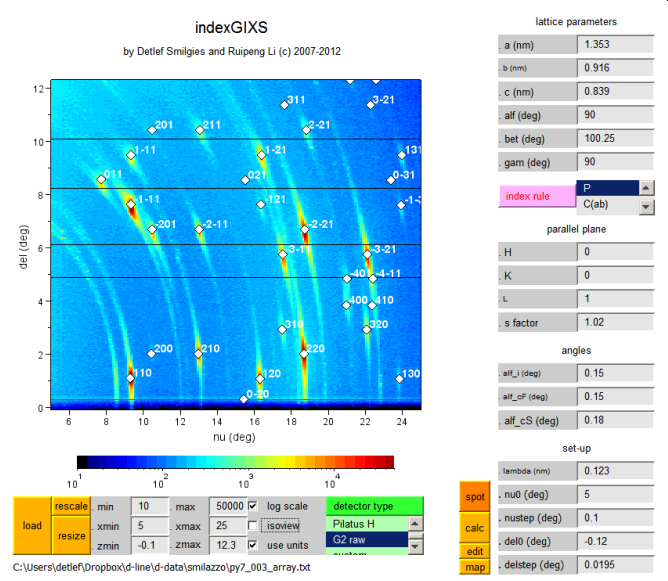

Indexation schemes for such complex patterns have been described by [Breiby, Smilgies3, Tate].

Other 3D nanostructures than nanoparticle assemblies and block copolymers have been studied with GISAXS as well: Nanotube forests can be grown using metal nanoparticles as nuclei and have been analyzed with GISAXS [Sendja]. Complex 3D nanostructured materials recently studied with GISAXS are block-copolymer templated nanoporous materials [Urade, Crossland] which are of interest for organic solar cells, catalyst scaffolds, and molecular sieves. Such structures a based on bicontinous phases such as the double gyroid and give rise to complex spot patterns.

Grazing-Incidence Wide-Angle Scattering (GIWAXS) and Soft X-ray Scattering (GISoXS)

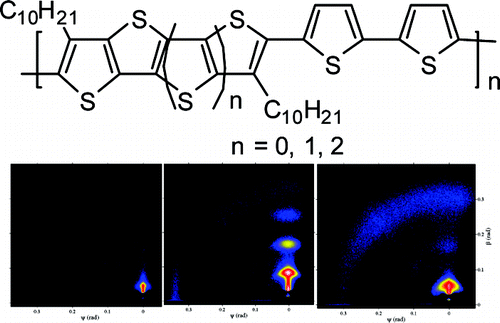

Fused Thiophenes

Structure-function relationship of a family of fused thiophenes.The fused moieties corresponding to the GIWAXS series have 3, 4, and 5 rings, respectively [He].

GISAXS can be extended into the wide-angle region (GIWAXS), the transition is somewhat fluid. GID and GIWAXS are quite similar except for the data collection strategy - GIWAXS uses an area detector without collimation which works reasonably up to about 30deg scattering angle, while in GID typically a point or line detector is used, with appropriate collimation and mounted on a diffractometer detector arm. As such GID has better resolution and access to the full range of scattering angles, while GIWAXS is advantageous because of the simple collection geometry enabling fast experiments [Smilgies6]. Typically semicrystalline polymer films such as conjugated polymers [Sirringhaus, Chabinyc, Osaka] are efficiently studied with GIWAXS. Also full crystal structure determination for conjugated molecules has been shown using large area detectors [Breiby, Mannsfeld].

Combined GISAXS and GIWAXS studies have been employed by [Sasaki, Darko] to correlate polymer morphology with polymer crystallization. In oriented nanoparticle superlattices, complementary GIWAXS from the crystalline cores provided detailed information of the orientation of non-spherical nanocrystals on their lattice sites [Bian, Choi, Choi2].

[Wang-C] developed grazing-incidence scattering using soft x-rays in the vicinity of the carbon edge. The pronounced resonant scattering of carbon atoms in different bonding configurations permits to distinguish between different polymer blocks with chemical sensitivity; in addition, contrast matching is possible.

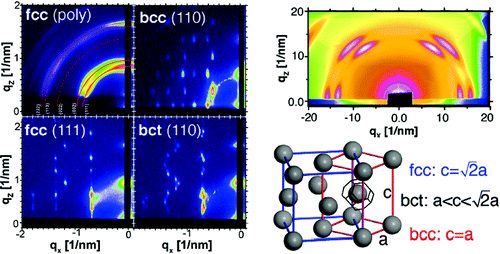

Bain transition

Bain transition in PbS nanocrystal superlattices as a function of drying dynamics. Structures covering the whole Bain path fcc > bct > bcc can be obtained by tweaking the drying kinetics. As structures approach bcc, nanocrystals display increasing relative orientation on their superlattice sites.
nanocrystal superlattices

Orientational ordering of nanocrystals in oriented FCC(111) and BCC(110) superlattices [Choi].
In the FCC lattice nanocrystals behave like spheres and have random orientation on their lattice sites.
In the BCC lattice formed by PbS nanocrystals with reduced ligand density GIWAXS data of the
PbS atomic lattice reveals that particles are highly oriented.

Microstructure characterization

lamellar order

Microstructure of a conjugated polymer derived from GIWAXS (center) correlated with device properties (left) and AFM (right) [Osaka].

From spot-like diffraction patterns information about the microstructure of soft materials can be obtained. The basic ingredients of the microstructure are
The microstructure provides may clues about the film formation and may help to optimize process parameter. Moreover the microstructure often can be related to devices performance, for instance mobility in organic thin film transistors or efficiency of organic solar cell materials.

Spatially resolved studies

OFET scanning

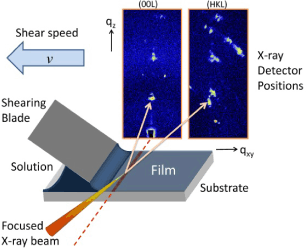

Solution Shearing

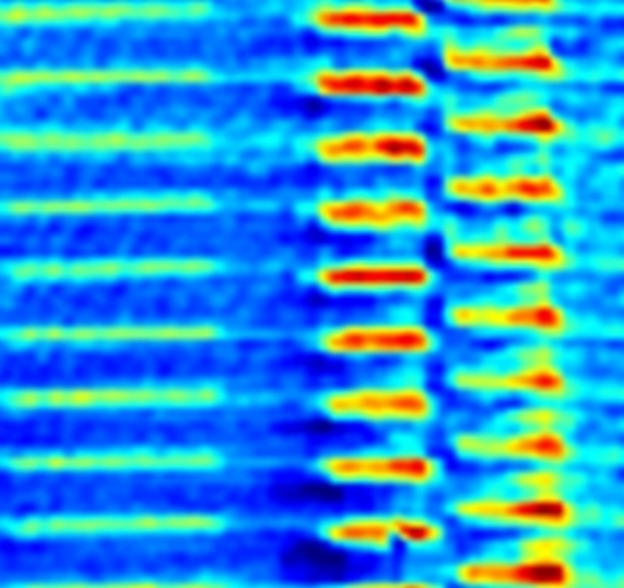

Left: Scanning GIWAXS to elucidate the morphology of a TIPS-pentacen film in the gate channel of an organic transistor [Li-R].

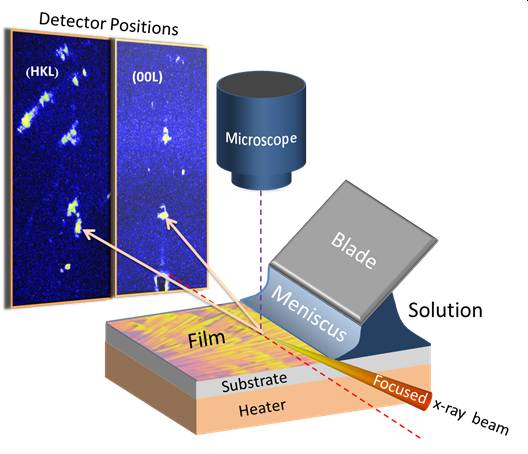

Right: Scanning the meniscus region during solution shearing of a TIPS-pentacene film [Smilgies6].

Gibbs layers

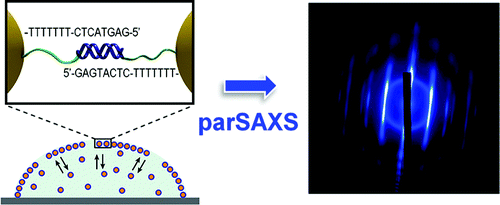

Scanning a droplet of a solution of DNA-coated gold nanoparticles revealed formation of an ordered Gibbs layer at the apex of the drop [Campolongo].
The x-ray beam was parallel to the substrate (parSAXS).

In-situ and real-time studies

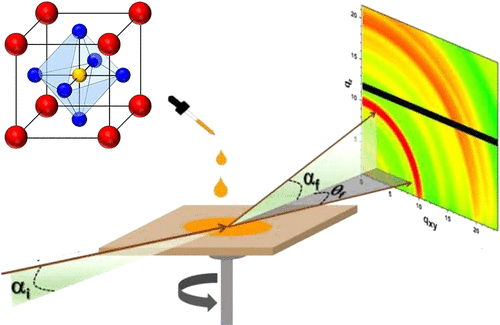

Recently the focus of GISAXS studies has shifted towards the study of sample processing conditions and in-situ treatment of samples (such as heating, solvent annealing, or thermal quenching as well as the study of deposition techniques in-situ) [Smilgies, Renaud, Gibaud, WolffDourdainKim, Narayanan, Paik, Smilgies2, Papadakis2, Hanrath, Smilgies6].

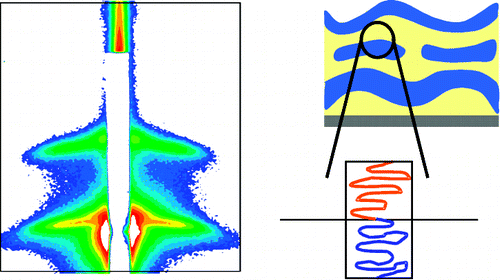

Instabilities during swelling of block copolymer lamellae [Papadakis2].

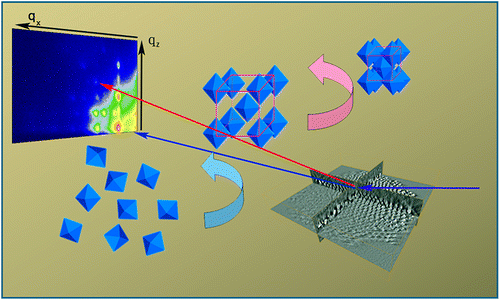

Kirkwood-Alder transition

Kirkwood-Alder transition in dropcast PtCu nanoctahedra during drying under
controlled vapor pressure [Zhang2].

nanocube crystallization

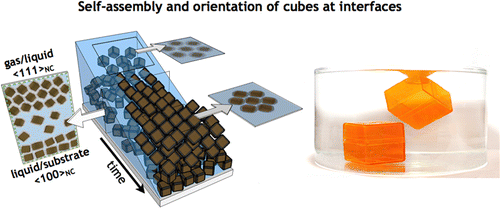

Crystallization of nanocubes with competing structures at the substrate-solution interface and the air-solution interface [Choi2].

self-organized Oswald ripening

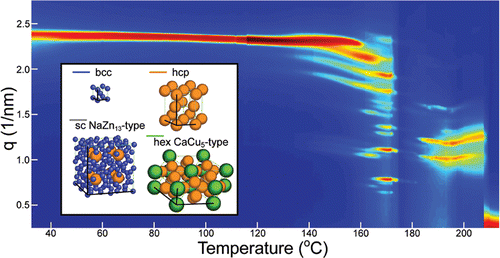

Self-organized Oswald ripening of 2nm gold nanocrystals during heating. Binary
superlattices of large fused particles and the original small particles are formed [Goodfellow].

A current trend is towards a more detailed understanding of the thermodynamics, the kinetics and the driving forces of self-organization processes in soft materials thin films:

Block copolymers:

Organic electronics:

These discoveries were facilitated by the ability to study nanostructured materials in a well-controlled in-situ sample environment and in real time. It is to be expected that the GISAXS and GIWAXS techniques will unfold their full potential here.

Coherence Effects

At third-generation sources GISAXS can be combined with coherent scattering methods. [Sun] have recently used Coherent Diffraction Imaging in GISAXS mode to reconstruct a nanosized non-periodic test object. By including the incident angle dependence of the scattering images a full 3D reconstruction of the test object was obtained.

[Bicondoa] have combined GISAXS with x-ray photon correlation spectroscopy to study the nanostructuring of a GaSb surface during sputter ablation.

Both approaches show high promise to obtain further insights into model-free structure reconstruction on non-periodic objects (CDI) or nanoscale dynamics and kinetics (XPCS) beyond regular GISAXS measurements.

Summary and Outlook

Mesoscopic systems can display a large range of ordering properties. Each of these has a well-defined signature in its GISAXS and/or GIWAXS intensity pattern.  Moreover, due to the penetration power of x-rays, not only surface structures, but also the internal structure of thin films and buried interfaces can be studied without any need of elaborate sample preparation, as needed for instance for cross-section transmission electron microscopy.

Hard x-rays can penetrate air, vapor, and small amounts of liquid allowing samples to be studied in-situ [Smilgies]. The GISAXS and GIWAXS scattering geometries  are straightforward and, in many cases, without the need for scanning, making GISAXS and GIWAXS very attractive to combine with elaborate in-situ chambers [Renaud]. GISAXS scattering intensities are high compared to grazing incidence diffraction, and in combination with the essentially static scattering geometry, make GISAXS an ideal technique to combine with real-time measurements. Typical CCD cameras acquire at 1 frame per 10 sec down to 1 frame per sec; commercially available pixel array detector can acquire data up to 100 frames per second.  While swelling kinetics in block copolymers happens on the time scale of minutes, and is well matched for the study of polymer kinetics, conjugated  molecules crsytallize from solution on a msec time scale. As area detectors are evolving, the msec time scale has become readily accessible with the Pilatus pixel array detector family, opening a new window in the self-organization kinetics of nanostructured materials.

All of these features make GISAXS and GIWAXS versatile tools to study shape and density correlations in nanoscopic systems in situ and in real time.

(based on a talk given at the Physical Electronics Conference on Cornell Campus in June 2003)


- Tutorials
Wikipedia GISAXS page
GISAXS wiki by Kevin Yager (Brookhaven National Lab0
GISAXS tutorial by Andreas Meyer (Uni Hamburg)
Byeongdu Lee's SAXS and GISAXS pages (Advanced Photon Source)

- DWBA calculation software
IsGISAXS manual by Remi Lazzari (Université Curie)
FitGISAXS page by David Babonneau (Université Poitiers)
Born Again site by the Juelich group
HipGISAXS site by the Berkeley group

- Data analysis software
Fit2D generic executable (Windows, Mac, Linux) for area detectors (ESRF)
GISAXSshop for analysis of 2D detector images in Igor by Byeongdu Lee (Advanced photon Source)
GIXSGUI for analysis of 2D detector images in Matlab by Zhang Jiang (Advanced Photon Source)
SciAnalysis for 2D detectors in Python (CMS group at NSLS-II)
SIIR-kit for GIWAXS data reduction by the Stanford group
GIXSpak for batch data processing and indexing of area detector data by Detlef Smilgies (distributed by the author)

- Software Overviews
SAS Portal: overview of SAXS/GISAXS software
GIXS software overview by Kevin Yager

A Final Comment

GISAXS and GIWAXS experiments, particaly for the charactrization of soft materials thin films, have recently experienced tremendous popularity and it has become hard to keep this tutorial up to date. Many new groups have gotten involved and are building up their own expertise. Please do not hesitate to point out papers describing new applications or technical break throughs that I may have missed. And please take a moment to fill out the feedback below. DS

The content of this tutorial is
If somone asks you about GISAXS:
This web page was
Other comments


[Alexandrovic] Vesna Aleksandrovic, Denis Greshnykh, Igor Randjelovic, Andreas Frömsdorf, Andreas Kornowski, Stephan Volker Roth, Christian Klinke, and Horst Weller: "Preparation and Electrical Properties of Cobalt-Platinum Nanoparticle Monolayers Deposited by the Langmuir-Blodgett Technique", ACS Nano 2,  1123–1130 ( 2008).
[Als-Nielsen] J. Als-Nielsen and D. McMorrow: "Elements of modern X-ray physics", (John Wiley & Sons, New York, 2001).
[Anastasiadis] S. H. Anastasiadis, T. P. Russell, S. K. Satija, and C. F. Majkrzak: "Neutron reflectivity studies of the surface-induced ordering of diblock copolymer films", Phys. Rev. Lett. 62, 1852-1855 (1989)
Dan E. Angelescu, J. H. Waller, D. H. Adamson, P. Deshpande, S. Y. Chou, R.A. Register, and P. M. Chaikin: "Macroscopic Orientation of Block Copolymer Cylinders in Single-Layer Films by Shearing", Adv. Mater. 16, 1736-1740 (2004).
[Babonneau] David Babonneau: "FitGISAXS: software package for modelling and analysis of GISAXS data using IGOR Pro", J. Appl. Cryst. 43, 929–936 (2010).
[Babonneau2] D. Babonneau, S. Camelio, D. Lantiat, L. Simonot, and A. Michel, "Waveguiding and correlated roughness effects in layered nanocomposite thin films studied by grazing-incidence small-angle x-ray scattering", Phys. Rev. B 80, 155446 (2009).
[Baker] Jessy L. Baker, Asaph Widmer-Cooper, Michael F. Toney, Phillip L. Geissler, and A. Paul Alivisatos: "Device-Scale Perpendicular Alignment ofColloidal Nanorods", Nano Lett. 10, 195-201 (2010).
[Baker2] Jessy L. Baker, Leslie H. Jimison, Stefan Mannsfeld, Steven Volkman, Shong Yin, Vivek Subramanian, Alberto Salleo, A. Paul Alivisatos, and Michael F. Toney: "Quantification of Thin Film Crystallographic Orientation Using X-ray Diffraction with an Area Detector", Langmuir 26, 9146 (2010).
Anatoly V. Berezkin, Florian Jung, Dorthe Posselt, Detlef M. Smilgies, and Christine M. Papadakis: "Vertical vs. Lateral Macrophase Separation in Thin Films of Block Copolymer Mixtures: Computer Simulations and GISAXS Experiments", ACS Appl. Mater. Interfaces 2017, 9, 31291–31301
Anatoly V. Berezkin, Florian Jung, Dorthe Posselt, Detlef-M. Smilgies, and Christine M. Papadakis: "In Situ Tracking of Composition and Morphology of a Diblock Copolymer Film with GISAXS during Exchange of Solvent Vapors at Elevated Temperatures", Adv. Funct. Mater. 2018, 1706226
Kaifu Bian, Joshua J. Choi, Ananth Kaushik, Paulette Clancy, Detlef-M. Smilgies, and Tobias Hanrath: "Shape-anisotropy driven symmetry transformations in nanocrystal superlattice polymorphs", ACS Nano. 5  2815–2823 (2011).
Oier Bikondoa, Dina Carbone, Virginie Chamard, Till Hartmut Metzger: "Ageing dynamics of ion bombardment induced self-organization processes", Scientific Reports 3, 1850; DOI:10.1038/srep01850 (2013)
[Breiby] Dag W. Breiby, Oliver Bunk, Jens W. Andreasen, Henrik T. Lemked and Martin M. Nielsen: "Simulating X-ray diffraction of textured films", J. Appl. Cryst. 41, 262–271(2008).
[Böltau] M. Böltau, S. Walheim, J. Mlynek, G. Krausch, U. Steiner, Nature 391, 877 (1998).
Arvid P. L. Böttiger, Mikkel Jørgensen, Andreas Menzel, Frederik C. Krebs, and Jens W. Andreasen: "High-throughput roll-to-roll X-ray characterization of polymer solar cell active layers", J. Mater. Chem. 22, 22501–22509 (2012).
[Busch] P. Busch, D.-M. Smilgies, D. Posselt, F. Kremer, and C.M. Papadakis: "Grazing-incidence small-angle x-ray scattering (GISAXS) - Inner structure und kinetics of thin block copolymer films", Macromol. Chem. Phys. 204, F18-F19 (2003). (preprint)
P. Busch, D. Posselt, D.-M. Smilgies, F. Kremer and C. M. Papadakis: ''Diblock copolymer thin films investigated by tapping mode AFM: Molar mass dependence of surface ordering'', Macromolecules 36, 8717-8727 (2003).
[Busch3] P. Busch, M. Rauscher, D.-M. Smilgies, D. Posselt, and C. M. Papadakis: "Grazing-incidence small-angle x-ray scattering (GISAXS) as a tool for the investigation of thin nanostructured block copolymer films - The scattering cross-section in the distorted wave Born approximation", J. Appl. Cryst. 39, 433-442 (2006).
P. Busch, D. Posselt, D.-M. Smilgies, M.Rauscher, and C.M. Papadakis: "The Inner Structure of Thin Films of Lamellar Poly(Styrene-b-Butadiene) Diblock Copolymers as Revealed by Grazing-Incidence Small-Angle Scattering", Macromolecules 40, 630-640 (2007).
Peter Busch, Sitaraman Krishnan, Marvin Paik, Gilman E. S. Toombes, Detlef-M. Smilgies, Sol M. Gruner, and Christopher K. Ober: "Surface induced tilt propagation in thin films of semifluorinated liquid-crystalline side-chain block copolymers", Macromolecules 40, 81-89 (2007).
Michael J. Campolongo, Shawn J. Tan, Detlef-M. Smilgies, Mervin Zhao, Yi Chen, Iva Xhangolli, Wenlong Cheng, and Dan Luo:"Crystalline Gibbs Monolayers of DNA-Capped Nanoparticles at the Air–Liquid Interface", ACS Nano (2011), Article ASAP, DOI: 10.1021/nn202383b
Michael L. Chabinyc, Michael F. Toney, R. Joseph Kline, Iain McCulloch, and Martin Heeney, "X-ray Scattering Study of Thin Films of Poly(2,5-bis(3-alkylthiophen-2-yl)thieno[3,2-b]thiophene)", JACS 129, 3226-3237 (2007).
Michelle A. Chavis, Detlef-M. Smilgies, Ulrich B. Wiesner and Christopher K. Ober: "Widely Tunable Morphologies in Block Copolymer Thin Films Through Solvent Vapor Annealing Using Mixtures of Selective Solvents", Adv. Funct. Mater. 25, 3057–3065 (2015).
Alexander Z. Chen, Michelle Shiu, Jennifer H. Ma, Matthew R. Alpert, Depei Zhang, Benjamin J. Foley, Detlef-M. Smilgies, Seung-Hun Lee & Joshua J. Choi: "Origin of vertical orientation in two-dimensional metal halide perovskites and its effect on photovoltaic performance", Nature Commun. (2018) 9:1336.
Joshua J. Choi, Clive R. Bealing, Kaifu Bian, Kevin J. Hughes, Wenyu Zhang, Detlef-M. Smilgies, Richard G. Hennig, James R. Engstrom, and Tobias Hanrath, "Controlling Nanocrystal Superlattice Symmetry and Shape-Anisotropic Interactions through Variable Ligand Surface Coverage", J. Am. Chem. Soc. 2011, 133, 3131–3138.
Joshua J. Choi, Kaifu Bian, William J. Baumgardner, Detlef-M. Smilgies, and Tobias Hanrath: " Interface-Induced Nucleation, Orientational Alignment and Symmetry Transformations in Nanocube Superlattices", Nano Lett. 12, 4791–4798 (2012).
Kang Wei Chou, Buyi Yan, Ruipeng Li, Er Qiang Li, Kui Zhao, Dalaver H. Anjum, Steven Alvarez, Robert Gassaway, Alan Biocca, Sigurdur T. Thoroddsen, Alexander Hexemer, and Aram Amassian: "Spin-Cast Bulk Heterojunction Solar Cells: A Dynamical Investigation", Adv. Mater. 25, 1923–1929 (2013).
[Crossland] Edward Crossland, Marleen Kamperman, Mihaela Nedelcu, Caterina Ducati, Ulrich Wiesner, Gilman Toombes, Marc Hillmyer, Sabine Ludwigs, Ullrich Steiner, Detlef-M. Smilgies, and Henry Snaith:  "A bicontinuous double gyroid hybrid solar cell", Nano Lett. 9, 2807-2812 (2009).
[Darko] C. Darko, I. Botiz, G. Reiter, D.W. Breiby, J.W. Andreasen, S.V. Roth, D.-M. Smilgies, E. Metwalli, and C.M. Papadakis: "Multiscale study of crystallization in diblock copolymer thin films at different supercooling", Phys. Rev. E 79, 041802 (2009).
[Di] Zhenyu Di, DorthePosselt, Detlef-M. Smilgies, and Christine Papadakis: "Structural rearrangements in a lamellar diblock copolymer thin film during treatment with saturated solvent vapor",  Macromolecules 43, 418–427 (2010).
S. Dourdain, A. Rezaire, A. Mehdi, B.M. Ocko, A. Gibaud: "Real time GISAXS study of micelle hydration in CTAB templated silica thin films", Physica B 357, 180–184 (2005).
[Du] Phong Du, Mingqi Li, Katsuji Douki, Xuefa Li, Carlos B.W. Garcia, Anurag Jain, Detlef- M. Smilgies, Lewis J. Fetters, Sol M. Gruner, Ulrich Wiesner, Christopher K. Ober: "Additive-driven Phase Selective Chemistry in Block Copolymer Thin Films:  The Convergence of Top Down and Bottoms Up Processing", Advanced Materials 16, 953-957 (2004).
[Dunphy] Darren Dunphy, Hongyou Fan, Xuefa Li, Jin Wang, and C. Jeffrey Brinker: "Dynamic Investigation of Gold Nanocrystal Assembly Using In Situ Grazing-Incidence Small-Angle X-ray Scattering", Langmuir 24, 10575-10578 (2008).
Y. P. Feng, S. K. Sinha, H. W. Deckman, J. B. Hastings, and D. P. Siddons: "X-Ray Flux Enhancement in Thin-Film Waveguides Using Resonant Beam Couplers", PRL 71, 537-540 (1993).
[Foerster] Forster, S.; Timmann, A.; Konrad, M.; Schellbach, C.; Meyer, A.; Funari, S. S.; Mulvaney, P.; Knott, R. "Scattering Curves of Ordered Mesoscopic Materials", J. Phys. Chem. B 109, 1347–1360 (2005).
Benjamin J. Foley, Justin Girard, Blaire A. Sorenson, Alexander Z. Chen, J. Scott Niezgoda, Matthew R. Alpert, Angela F. Harper, Detlef Smilgies, Paulette Clancy, Wissam A Saidi and Joshua J. Choi: "Controlling Nucleation, Growth, and Orientation of Metal Halide Perovskite Thin Films with Rationally Selected Additives", J. Mater. Chem. A, 2017, 5, 113-123.
[Gibaud] A. Gibaud et al.: "Evaporation-Controlled Self-Assembly of Silica Surfactant Mesophases",  J. Phys. Chem. B 107, 6114-6118 (2003).
Gaurav Giri, Ruipeng Li, Detlef-M Smilgies, Er Qiang Li, Ying Diao, Kristina M. Lenn, Melanie Chiu, Debora W. Lin, Ranulfo Allen, Julia Reinspach,    Stefan C. B. Mannsfeld,    Sigurdur T. Thoroddsen,    Paulette Clancy, Zhenan Bao and Aram Amassian: "One-dimensional self-confinement promotes polymorph selection in large-area organic semiconductor thin films", Nature Communications 5, 3573 (2014).
Brian W. Goodfellow, Michael R. Rasch, Colin M. Hessel, Reken N. Patel, Detlef-M. Smilgies, and Brian A. Korgel: "Ordered Structure Rearrangements In Heated Gold Nanocrystal Superlattices", Nano Lett. 13, 5710–5714 (2013).
Yibei Gu, Rachel M. Dorin, Kwan W. Tan, Detlef-M. Smilgies, and Ulrich Wiesner, In Situ Study of Evaporation-Induced Surface Structure Evolution in Asymmetric Triblock Terpolymer Membranes, Macromolecules 2016, 49, 4195−4201.
[Hanrath] Tobias Hanrath, Joshua J. Choi, and Detlef-M. Smilgies: "Structure/Processing Relationships of Highly Ordered Lead Salt Nanocrystal Superlattices", ACS Nano 3, 2975–2988 (2009).
Mingqian He, Jianfeng Li, Michael L. Sorensen, Feixia Zhang, Robert R. Hancock, Hon Hang Fong, Vladimir A. Pozdin, Detlef-M. Smilgies and George G. Malliaras: "Alkylsubstituted Thienothiophene Semiconducting Materials: Structure−Property Relationships", J. Am. Chem. Soc., 2009, 131,  11930–11938.
[Heitsch] Andrew T. Heitsch, Reken N. Patel, Brian W. Goodfellow, Detlef-M. Smilgies, and Brian A. Korgel: "GISAXS Characterization of Order in Hexagonal Monolayers of FePt Nanocrystals", J. Phys. Chem. C 2010, 114, 14427–14432.
T. Hofmann, E. Dobisz, and B. M. Ocko: "Grazing incident small angle x-ray scattering: A metrology to probe nanopatterned surfaces", J. Vac. Sci. Technol. B 27, 3238 (2009).
Yi-Fang Huang, Chan-Wei Chang, Detlef-Matthias Smilgies, U-Ser Jeng, Anto R. Inigo, Jonathon David White, Kang-Chuang Li, Tsong-Shin Lim, Tai-De Li, Hsiang-Yun Chen, Show-An Chen, Wen-Chang Chen, and Wun-Shain Fann: "Correlating Nanomorphology with Charge-Transport Anisotropy in Conjugated-Polymer Thin Films", Adv. Mater. 21, 1–5 (2009).
Alan G. Jacobs, Clemens Liedel, Hui Peng, Linxi Wang, Detlef-M. Smilgies, Christopher K. Ober, and Michael O. Thompson: "Kinetics of Block Copolymer Phase Segregation during Sub-millisecond Transient Thermal Annealing, Macromolecules 2016, 49, 6462−6470.
[Jiang] Zhang Jiang, Xiao-Min Lin, Michael Sprung, Suresh Narayanan, and Jin Wang: "Capturing the Crystalline Phase of Two-Dimensional Nanocrystal Superlattices in Action", Nano Lett. 10, 799–803 (2010).
Zhang Jiang, Dong Ryeol Lee, Suresh Narayanan, and Jin Wang: "Waveguide-enhanced grazing-incidence small-angle x-ray scattering of buried nanostructures in thin films", Phys Rev B 84, 075440 (2011).
[Jin] Sangwoo Jin, Jinhwan Yoon, Kyuyoung Heo, Hae-Woong Park, Jehan Kim, Kwang-Woo Kim, Tae Joo Shin, Taihyun Chang, and Moonhor Ree: "Detailed analysis of gyroid structures in diblock copolymer thin films with synchrotron grazingincidence X-ray scattering", J. Appl. Cryst. 40, 950–958 (2007).
Seung Hyun Kim, Matthew J. Misner, Ling Yang, Oleg Gang, Benjamin M. Ocko, and Thomas P. Russell: "Salt Complexation in Block Copolymer Thin Films", Macromolecules 39, 8473-8479 (2006).
Marion Kuhlmann, Jan M. Feldkamp, Jens Patommel, Stephan V. Roth, Andreas Timmann, Rainer Gehrke, Peter Muller-Buschbaum, and Christian G. Schroer: "Grazing Incidence Small-Angle X-ray Scattering Microtomography Demonstrated on a Self-Ordered Dried Drop of Nanoparticles", Langmuir 25, 7241–7243 (2009).
[Lazzari] R. Lazzari: "IsGISAXS: a program for grazing-incidence small-angle X-ray scattering analysis of supported islands", J. Appl. Cryst. 35, 406-421 (2002).
Byeongdu Lee, Jinhwan Yoon, Weontae Oh, Yongtaek Hwang, Kyuyoung Heo, Kyeong Sik Jin, Jehan Kim, Kwang-Woo Kim, and Moonhor Ree: "In-Situ Grazing Incidence Small-Angle X-ray Scattering Studies on Nanopore Evolution in Low-k Organosilicate Dielectric Thin Films", Macromolecules 38, 3395 (2005).
Byeongdu Lee, Insun Park, Jinhwan Yoon, Soojin Park, Jehan Kim, Kwang-Woo Kim, Taihyun Chang, and Moonhor Ree: "Structural Analysis of Block Copolymer Thin Films with Grazing Incidence Small-Angle X-ray Scattering", Macromolecules 38, 4311-4323(2005).
[Lee3] Byeongdu Lee, Insun Park, Haewoong Park, Chieh-Tsung Lo, Taihyun Chang, and Randall E. Winans: "Electron density map using multiple scattering in grazing-incidence small-angle X-ray scattering", J. Appl. Cryst. 40, 496–504 (2007).
J. R. Levine, J. B. Cohen, Y. W. Chung and P. Georgopoulos:" Grazing-incidence small-angle X-ray scattering: new tool for studying thin film growth" , J. Appl. Cryst. 22, 528-532 (1989).
[Levine2] J. R. Levine Parrill, P. Georgopoulos, Y.-W. Chung, and J. B. Cohen:  "GISAXS - Glancing incidence small angle X-ray scattering", J. Phys. IV France 3-C8, 411-417 (1993).
Jianbo Li, Rahim Munir, YuanYuan Fan, Tianqi Niu, Yucheng Liu, Yufei Zhong, Zhou Yang, Bo Liu, Jie Sun, Detlef-M. Smilgies, Aram Amassian, Kui Zhao, and Shengzhong (Frank) Liu: "Phase transition control for high-performance blade-coated perovskite solar cells", Joule 2018, 2, 2018, 1313-1330.
Mingqi Li, Kasuji Douki, Ken Goto, Xuefa Li, Christopher Coenjarts, Detlef M. Smilgies, and Christopher K. Ober: "Spatially Controlled Fabrication of Nanoporous Block Copolymers", Chem. Mater. 16, 3800-3808 (2004).
Ruipeng Li, Jeremy W. Ward, Detlef-M. Smilgies,  Marcia  M. Payne, John  E.  Anthony, Oana D. Jurchescu, and Aram Amassian: "Direct Structural Mapping of Organic Field-Effect Transistors Reveals Bottlenecks to Carrier Transport", Adv. Mater. 24, 5553–5558 (2012).
Xinhui Lu, Kevin G. Yager, Danvers Johnston, Charles T. Black, and Benjamin M. Ocko: "Grazing-incidence transmission X-ray scattering: surface scattering in the Born approximation", J. Appl. Cryst. 46, 165–172 (2013).
Stefan C. B. Mannsfeld, Ming  Lee  Tang, and Zhenan Bao: "Thin Film Structure of TriisopropylsilylethynylFunctionalized Pentacene and Tetraceno[2,3-b]thiophene from Grazing Incidence X-Ray Diffraction", Adv. Mater. 23, 127–131 (2011).
David T. Moore, Hiroaki Sai, Kwan W. Tan, Detlef-M. Smilgies, Wei Zhang, Henry J. Snaith, Ulrich Wiesner, and Lara A. Estroff: "Crystallization Kinetics of Organic−Inorganic Trihalide Perovskites and the Role of the Lead Anion in Crystal Growth", J. Am. Chem. Soc. 2015, 137, 2350−2358.
P. Müller-Buschbaum, S.V.Roth, M. Burghammer, A.Diethert, P. Panagiotou and C. Riekel: "Multiple-scaled polymer surfaces investigated with micro-focus grazing-incidence small-angle X-ray scattering", Europhys. Lett. 61, 639–645 (2003).
[Metzger] T. H. Metzger, I. Kegel, R. Paniago, A. Lorke, J. Peisl, J. Schulze, I. Eisele, P. Schittenhelm, and G. Abstreiter: "Shape, size, strain and correlations in quantum dot systems studied by grazing incidence X-ray scattering methods", Thin Solid Films 336,1-8 (1998); T. H .Metzger, I. Kegel, R. Paniago and J. Peisl: "Grazing incidence x-ray scattering: an ideal tool to study the structure of quantum dots", J. Phys. D: Appl. Phys. 32,  A202–A207 (1999).
Suresh Narayanan, Dong Ryeol Lee, Rodney S. Guico, Sunil K. Sinha, and Jin Wang: "Real-Time Evolution of the Distribution of Nanoparticles in an Ultrathin-Polymer-Film-Based Waveguide", Phys. Rev. Lett. 94, 145504 (2005).
[Naudon] A. Naudon in H. Brumberger (ed.): "Modern Aspects of Small-Angle Scattering", (Kluwer Academic Publishers, Amsterdam, 1995), p. 191.
Tianqi Niu, Jing Lu, Ming-Chun Tang, Dounya Barrit, Detlef M Smilgies, Zhou Yang, Jianbo Li, Yuanyuan Fan, Tao Luo, Iain Mcculloch, Aram Amassian, Shengzhong Frank Liu and Kui Zhao: "High performance ambient-air-stable FAPbI3 perovskite solar cells with molecule-passivated Ruddlesden-Popper/3D heterostructured film", Energy Environ. Sci., 2018, 11, 3358-3366.
Christian Ocier, Detlef-M. Smilgies, Richard Robinson, and Tobias Hanrath:  "Reconfigurable Nanorod Films: An In-Situ Study of the Relationship Between Tunable Nanorod Orientation and the Optical Properties of their Self-Assembled Thin Films", Chem. Mater. 27, 2659–2665 (2015).
Itaru Osaka, Rui Zhang, Genevieve Sauve, Detlef-M. Smilgies, Tomasz Kowalewski, and Richard D. McCullough: "High-Lamellar Ordering and Amorphous-Likeπ-Network in Short-Chain Thiazolothiazole-Thiophene Copolymers Lead to High Mobilities", JACS 131, 2521–2529 (2009).
[Paik] Marvin Y. Paik, Joan K. Bosworth, Detlef-M. Smilgies, Evan L. Schwartz, Xavier Andre, and Christopher K. Ober: "Reversible Morphology Control in Block Copolymer Films via Solvent Vapor Processing: An In-Situ GISAXS study", Macromolecules Macromolecules 2010, 43, 4253–4260.
[Papadakis] C. M. Papadakis, P. Busch, D. Posselt, and D.-M. Smilgies: "Morphological Transition in Thin Lamellar Diblock Copolymer Films as Revealed by Combined GISAXS and AFM Studies ", Advances in Solid State Physics, Vol. 44 (Springer Verlag, Heidelberg, 2004) p. 327-338.
[Papadakis2] Christine M. Papadakis, Zhenyu Di, Dorthe Posselt, and Detlef-M. Smilgies: "Structural Instabilities in Lamellar Diblock Copolymer Thin Films During Solvent Vapor Uptake", Langmuir 24, 13815-13818 (2008).
Miri Park, Christopher Harrison, Paul M. Chaikin, Richard A. Register, Douglas H. Adamson: "Block Copolymer Lithography: Periodic Arrays of 1011 Holes in 1 Square Centimeter", Science 276, 1401-1404 (1997).
Insun Park, Byeongdu Lee, Jinsook Ryu, Kyuhyun Im, Jinhwan Yoon, Moonhor Ree, and Taihyun Chang: "Epitaxial Phase Transition of Polystyrene-b-Polyisoprene from Hexagonally Perforated Layer to Gyroid Phase in Thin Film", Macromolecules 38, 10532-10536 (2005).
Soojin Park, Dong Hyun Lee, Ji Xu, Bokyung Kim, Sung Woo Hong, Unyong Jeong, Ting Xu, Thomas P. Russell: "Macroscopic 10-Terabit–per–Square-Inch Arrays from Block Copolymers with Lateral Order", Science 323, 1030-1033 (2009).
Vincent Pelletier, Koji Asakawa, Mingshaw Wu, Douglas H. Adamson, Richard A. Register, and Paul M. Chaikin: "Aluminum nanowire polarizing grids: Fabrication and analysis", Appl. Phys. Lett. 88, 211114 (2006).
Louis A. Perez, Kang Wei Chou, John A. Love, Thomas S. van der Poll, Detlef-M. Smilgies, Thuc-Quyen Nguyen, Edward J. Kramer, Aram Amassian and Guillermo C. Bazan: "Solvent Additive Effects on Small Molecule Crystallization in Bulk Heterojunction Solar Cells Probed During Spin Casting", Advanced Materials 25, Pages: 6380–6384 (2013).
J. Perlich, M. Schwartzkopf, V. Körstgens, D. Erb, J. F. H. Risch, P. Müller-Buschbaum, R. Röhlsberger, S. V. Roth, and R. Gehrke: "Pattern formation of colloidal suspensions by dip-coating: An in situ grazing incidence X-ray scattering study", Phys. Status Solidi RRL 6, 253–255 (2012).
F. Pfeiffer, U. Mennicke and T. Salditt: "Waveguide-enhanced scattering from thin biomolecular films", J. Appl. Cryst. 35, 163-167(2002).
[Pickett] G. Pickett, T. Witten, S. Nagel, Macromolecules 26, 3194 (1993).
Dorthe Posselt, Jianqi Zhang, Detlef-M. Smilgies, Anatoly Berezkin, Igor I. Potemkin, Christine M. Papadakis: "Restructuring in block copolymer thin films: In-situ GISAXS investigations during solvent vapor annealing", Progr. Polymer Sci. 66 (2017) 80–115.
Igor I. Potemkin, Peter Busch, Detlef-M. Smilgies, Dorthe Posselt, Christine M. Papadakis: "Effect of the Molecular Weight of AB Diblock Copolymers on the Lamellar Orientation in Thin Films: Theory and Experiment", Macromol. Rap. Commun. 28, 579-584 (2007). (cover)
[Pozdin] Vladimir A. Pozdin, Detlef-M. Smilgies, Hon Hang Fong, Michael Sorensen, and Mingqian He: "Thermal Reorganization of Alkyl-substituted Thienothiophene Semiconductors",  J. Mater. Chem. C, 2016, 4, 5255-5262.
[Rauscher] M. Rauscher, T. Salditt, and H. Spohn: "Small-angle X-ray scattering under grazing incidence: the cross section in the distorded-wave Born approximation", Phys. Rev. B, 52(23), 16855-16863, (1995).
M. Ree: "Probing the Self-Assembled Nanostructures of Functional Polymers with Synchrotron Grazing Incidence X-Ray Scattering", Macromol. Rapid Commun. 2014, 35, 930−959.
[Renaud] G. Renaud et al.: "Real-Time Monitoring of Growing Nanoparticles", Science 300, 1416 (2003).
Jonathan Rivnay, Rodrigo Noriega, R. Joseph Kline, Alberto Salleo, and Michael F. Toney: "Quantitative analysis of lattice disorder and crystallite size in organic semiconductor thin films", Phys. Rev. B 84, 045203 (2011).
S. V. Roth, M. Burghammer, C. Riekel, P. Müller-Buschbaum, A. Diethert, P. Panagiotou, H. Walter: "Self-assembled gradient nanoparticle-polymer multilayers investigated by an advanced characterisation method: Microbeam grazing incidence x-ray scattering", Appl.Phys.Lett. 82, 1935 (2003).
Rudov, A. A.; Patyukova, E. S.; Neratova, I. V.; Khalatur, P. G.; Posselt, D.; Papadakis, C. M.; Potemkin, I. I. Macromolecules 2013, 46, 5786– 5795.
D. R. Rueda, I. Martín-Fabiani, M. Soccio, N. Alayo, F. Pérez-Murano, E. Rebollar, M. C. García-Gutiérrez, M. Castillejo and T. A. Ezquerra: "Grazing-incidence small-angle X-ray scattering of soft and hard nanofabricated gratings", J. Appl. Cryst. 45 (2012).
Monamie Sanyal, Benjamin Schmidt-Hansberg, Michael F. G. Klein, Alexander Colsmann, Carmen Munuera, Alexei Vorobiev, Uli Lemmer, Wilhelm Schabel, Helmut Dosch, and Esther Barrena: "In Situ X-Ray Study of Drying-Temperature Influence on the Structural Evolution of Bulk-Heterojunction Polymer–Fullerene Solar Cells Processed by Doctor-Blading", Adv. Energy Mater. 2011, 1, 363–367.
Sono Sasaki, Hiroyasu Masunaga, Hiroo Tajiri, Katsuaki Inoue, Hiroshi Okuda, Hiromichi Noma, Kohji Honda, Atsushi Takaharad and
Masaki Takata: "In situ investigation of annealing effect on lamellar stacking structure of polyethylene thin films by synchrotron grazing-incidence small-angle and wide-angle X-ray scattering", J. Appl. Cryst. 40, s642–s644 (2007).
Aaron E. Saunders, Ali Ghezelbash, Detlef-M. Smilgies, Michael B. Sigman Jr., and Brian A. Korgel: "Columnar Self-Assembly of Colloidal Nanodisks", Nano Letters 6, 2959-2963(2006). Erratum: Nano Letters 7, 541 (2007).
[Schultz] David G. Schultz, Xiao-Min Lin, Dongxu Li, Jeff Gebhardt, Mati Meron, P. James Viccaro, and Binhua Lin: "Structure, Wrinkling, and Reversibility of Langmuir Monolayers of Gold Nanoparticles", J. Phys. Chem. B, 110, 24522-24529 (2006).
[Sendja] B Thiodjio Sendja, R Eba Medjo, J Mane Mane, G Ben Bolie, D Diop and P Owono Ateba: "A GISAXS study of the angular dependence of carbon nanotubes grown on a plain substrate by the dc HF CCVD process", Phys. Scr. 82, 025601 (2010).
Andrew J. Senesi, Daniel J. Eichelsdoerfer, Robert J. Macfarlane, Matthew R. Jones, Evelyn Auyeung, Byeongdu Lee, and Chad A. Mirkin: "Stepwise Evolution of DNA-Programmable Nanoparticle Superlattices", Angew. Chem. Int. Ed. 52, 6624 –6628 (2013).
S. K. Sinha, E. B. Sirota, S. Garoff, and H. B. Stanley: "X-ray and neutron scattering from rough surfaces", Phys. Rev. B 38, 2297-2311 (1988).
H. Sirringhaus, P. J. Brown, R. H. Friend, M. M. Nielsen, K. Bechgaard, B. M. W. Langeveld-Voss, A. J. H. Spiering, R. A. J. Janssen, E. W. Meijer, P. Herwig, and D. M. de Leeuw: "Two-dimensional charge transport in self-organized, high-mobility conjugated polymers", Nature 401, 685-688 (1999).
[Smilgies] Detlef-M. Smilgies, Peter Busch, Dorthe Posselt, and Christine M. Papadakis: "Characterization of Polymer Thin Films with Small-Angle X-ray Scattering under Grazing Incidence (GISAXS)", Synchrotron Radiation News, Issue 15(5), p. 35-42, 2002. (reprint)
[Smilgies2] Detlef-M. Smilgies, Ruipeng Li, Zhenyu Di, Charles Darko, Christine M. Papadakis, and Dorthe Posselt: "Probing the Self-Organization Kinetics in Block Copolymer Thin Films.", Mater. Res. Soc. Symp. Proc. 1147-OO01-01 (2009). (reprint).
[Smilgies3] D.-M. Smilgies and D. R. Blasini: "Indexation scheme for oriented molecular thin films studied with grazing-incidence reciprocal-space mapping", J. Appl. Cryst. 40, 716-718 (2007).
[Smilgies4] Detlef-M. Smilgies: "Scherrer Grain-Size Analysis Adapted to Grazing-Incidence Scattering with Area Detectors", J. Appl. Cryst. 42, 1030-1034 (2009).
Detlef-M. Smilgies, Andrew T. Heitsch, and Brian A. Korgel: "Stacking of Hexagonal Nanocrystal Layers during Langmuir−Blodgett Deposition", J. Phys. Chem. B 116, 6017−6026 (2012).
Detlef-M. Smilgies, Ruipeng Li, Gaurav Giri, Kang Wei Chou, Ying Diao, Zhenan Bao, and Aram Amassian: "Look fast: Crystallization of conjugated molecules during solution shearing probed in-situ and in real time by X-ray scattering", Phys. Status Solidi - Rapid Research Letter 7, 177-179 (2013).
Detlef-M. Smilgies: "Grazing-Incidence Small-Angle Scattering (GISAXS)" in: Heimo Schnabelegger and Yashveer Sing: "The SAXS Guide, 4th Edition" (Anton Paar GmbH, 2017, ISBN 18012013) Chapter 6.2. (preprint)
Detlef-M. Smilgies and Tobias Hanrath: "Superlattice self-assembly: Watching nanocrystals in action", EPL 119 (2017) 28003.
[Smith] Danielle K. Smith, Brian Goodfellow, Detlef M. Smilgies, and Brian A. Korgel: "Self-Assembled Simple Hexagonal AB2 Binary Nanocrystal Superlattices: SEM, GISAXS and Substitutional Defects", J. Am. Chem. Soc. 131, 3281–3290 (2009).
Gila E. Stein, Edward J. Kramer, Xuefa Li, and Jin Wang: "Layering Transitions in Thin Films of Spherical-Domain Block Copolymers", Macromolecules 40, 2453-2460 (2007).
Tao Sun, Zhang Jiang, Joseph Strzalka, Leonidas Ocola, and Jin Wang: "Three-dimensional coherent X-ray surface scattering imaging near total external reflection", Nature Photonics 6, 586-590 (2012).
Chuanbing Tang, Adam Tracz, Michal Kruk, Rui Zhang, Detlef-M. Smilgies, Krzysztof Matyjaszewski, Tomasz Kowalewski:"Long-range Ordered Thin Films of Block Copolymers by Zone-Casting and Their Thermal Conversion into Ordered Nanostructured Carbon",  J. Am. Chem. Soc. 127 (Communication), 6918-6919 (2005).
Michael P. Tate, Vikrant N. Urade, Jonathon D. Kowalski, Ta-chen Wei, Benjamin D. Hamilton, Brian W. Eggiman, and Hugh W. Hillhouse: "Simulation and Interpretation of 2D Diffraction Patterns from Self-Assembled Nanostructured Films at Arbitrary Angles of Incidence: From Grazing Incidence (Above the Critical Angle) to Transmission Perpendicular to the Substrate", J. Phys. Chem. B 110, 9882-9892 (2006).
[Tate2] Michael P. Tate and Hugh W. Hillhouse: "General Method for Simulation of 2D GISAXS Intensities for Any Nanostructured Film Using Discrete Fourier Transforms", J. Phys. Chem. C111, 7645-7654 (2007).
Vikrant N. Urade, Ta-Chen Wei, Michael P. Tate, Jonathan D. Kowalski, and Hugh W. Hillhouse: "Nanofabrication of Double-Gyroid Thin Films", Chem. Mater. 19, 768-777 (2007).
[Vineyard] G. H. Vineyard: "Grazing-incidence diffraction and the distorted-wave approximation for the study of surfaces", Phys. Rev. B 26, 4146-4159 (1982).
Jing Wan, Yang Li, Jeffrey G. Ulbrandt, Detlef-M. Smilgies, Jonathan Hollin, Adam C. Whalley, and Randall L. Headrick: "Transient phases during fast crystallization of organic thin films from solution", APL Mater. 4, 016103 (2016).
Cheng Wang,Dong Hyun Lee, Alexander Hexemer, Myung Im Kim, Wei Zhao, Hirokazu Hasegawa, Harald Ade, and Thomas P. Russell: "Defining the Nanostructured Morphology of Triblock Copolymers Using Resonant Soft X-ray Scattering", Nano Lett. 11, 3906–3911 (2011).
Jin Wang, Michael J. Bedzyk, and Martin Caffrey: "Resonance-Enhanced X-rays in Thin Film: A Structure Probe for Membranes and Surface Layers", Science 258, 775-778 (1992).
Mark C. Weidman, Detlef-M. Smilgies and William A. Tisdale: "Kinetics of the self-assembly of nanocrystal superlattices measured by real-time in situ X-ray scattering", Nature Materials (online 3/2016)   <DOI: 10.1038/NMAT4600>
Max Wolff, Uwe Scholz, Rainer Hock, Andreas Magerl, Vincent Leiner, and Hartmut Zabel: "Crystallization of Micelles at Chemically Terminated Interfaces", Phys. Rev. Lett. 92, 255501 (2004).
[Xu] T. Xu, J. T. Goldbach, M. J. Misner, S. Kim, A. Gibaud, O. Gang, B. Ocko, K. W. Guarini, C. T. Black, C. J. Hawker, and T. P. Russell: "Scattering Study on the Selective Solvent Swelling Induced Surface Reconstruction", Macromolecules 37, 2972-2977 (2004).
[Yoneda] Y. Yoneda: "Anomalous Surface Reflection of X Rays", Phys. Rev. 131, 2010-2013 (1963).
[Yoon] Jinhwan Yoon, Seung Yun Yang, Byeongdu Lee, Wonchul Joo, Kyuyoung Heo, Jin Kon Kimb, and Moonhor Ree: "Nondestructive quantitative synchrotron grazing incidence X-ray scattering analysis of cylindrical nanostructures in supported thin films", J. Appl. Cryst. 40, 305–312(2007).
[Yoon2] Jinhwan Yoon, Kyeong Sik Jin, Hyun Chul Kim, Gahee Kim, Kyuyoung Heo, Sangwoo Jin, Jehan Kim, Kwang-Woo Kim ,and Moonhor Ree: "Quantitative analysis of lamellar structures in brush polymer thin films by synchrotron grazing-incidence X-ray scattering", J. Appl. Cryst. 40, 476–488 (2007).
Yixuan Yu, Avni Jain, Adrien Guillaussier, Vikas Reddy, Thomas M Truskett, Detlef Smilgies, Brian A Korgel: "Nanocrystal Superlattices that Exhibit Improved Order On Heating: An Example of Inverse Melting?", Faraday Discuss.181, 181-192 (2015).
Jun Zhang, Zhiping Luo, Zewei Quan, Yuxuan Wang, Amar Kumbhar, Detlef-M. Smilgies and Jiye Fang: "Low Packing Density Self-Assembled Superstructure of Octahedral Pt3Ni Nanocrystals", Nano Lett. 11, 2912–2918 (2011).
Jun Zhang, Zhiping Luo, Benjamin Martens, Zewei Quan, Amar Kumbhar, Nathan Porter, Yuxuan Wang, Detlef-M. Smilgies, and Jiye Fang: "Reversible Kirkwood-Alder Transition Observed in Pt3Cu2 Nanoctahedron Assemblies under Controlled Solvent Annealing/Drying Conditions", J. Am. Chem. Soc. 134, 14043–14049 (2012).
Jianqi Zhang, Dorthe Posselt, Alessandro  Sepe, Xuhu Shen, Jan Perlich, Detlef-M. Smilgies, Christine M. Papadakis: "Structural Evolution of Perpendicular Lamellae in Diblock Copolymer Thin Films during Solvent Vapor Treatment Investigated by Grazing-Incidence Small-Angle X-Ray Scattering", Macromol. Rapid Commun. 34, 1289−1295 (2013).
Qi Zhang, Fumiaki Matsuoka, Hyo Seon Suh, Peter Beaucage, Shisheng Xiong, Detlef-M. Smilgies, Kwan Wee Tan, Jörg Werner, Paul Nealey and Ulrich Wiesner: "Pathways to Mesoporous Resin/Carbon Thin Films with Alternating Gyroid Morphology", ACS Nano 2018,  12, 347-358.
Xu Zhang, Xiaodong Ren, Bin Liu, Rahim Munir, Xuejie Zhu, Dong Yang, Jianbo Li, Yucheng Liu, Detlef-M Smilgies, Ruipeng Li, Zhou Yang, Tianqi Niu, Xiuli Wang, Aram Amassian, Kui Zhao, Shengzhong Frank Liu: "Stable high efficiency two-dimensional perovskite solar cells via cesium doping",  Energy Environ. Sci., 2017, 10, 2095-2102.
Yufei Zhong, Rahim Munir, Jianbo Li, Ming-Chun Tang, Muhammad R. Niazi, Detlef-M. Smilgies, Kui Zhao, and Aram Amassian: "Blade-Coated Hybrid Perovskite Solar Cells
with Efficiency > 17%: An In Situ Investigation", ACS Energy Lett. 2018, 3, 1078−1085.
