x-ray Beam Size Monitor optics chips

2008-??-?? received "first one"
2008-12-11 received 8D905
2008-12-24 "first one" burned in CHESS run
2009-01-06 install 8D905 in D-line
2009-05-11 received AP917N1 and AP918N
2009-07-14 AP917N1 cracked during mounting in D-line
2009-07-14 install 8D905 in D-line, emails JPA 20090714, 20090904
2009-07-14 install AP918N* in C-line, emails JPA 20090714, 20090904
2009-09-04 8D905 burned in HE x-rays in D-line
2009-11-11 AP918N* moved from C-line to D-line, emails 20091112
2009-11-19 received N911
2010-02-10 receive J026N, J030N, F003N
2010-04-02 receive NTTATN 5 micron optics chips
2010-04-07 C-line LE chip change: install NTTATN 5 micron #1;
2011-01-28 C-line LE chip change: remove NTTATN 5 micron #1; install N911;
2011-11-23 D-line LE chip change: remove AP918N*; install J026N "I";
2012-11-12 C-line LE chip change: remove N911; install F003N "III";
2013-08-05 receive NEWCA01: new coded aperture, old coded aperture, and square opening
2013-09-10 D-line: install J026N "I" with 1.1mm mask;
2013-09-18 C-line: re-install F003N "III" with 1.1mm mask; install NEWCA01 with 1.1mm mask;

the chips

the "first one"
Received: 2008
pattern: box, 8 slit CA, FZP
gold:
current location: gone

history:
2008-12-24: burned in CHESS run, email from JPA

photos

8D905
Received: 2008-12-11
pattern: box, 8 slit CA, FZP
gold: 0.70 micron, email 20091124
current location: gone

history:
2009-01-06: installed in D-line 2009-01-06
2009-09-04: burned in HE x-rays in D-line, email from Hopkins

photos

AP917N1 (note: might be AP918N)
Received: 2009-05-11
pattern: box, 8 slit CA, FZP
gold: 0.62 micron, email 20091124
current location: gone

history:
2009-07-14: cracked during mounting, email from JPA

photos

AP918N (note: might be AP917N1)
Received: 2009-05-11
pattern: box, 8 slit CA, FZP
gold: 0.55 micron, email 20091124
current location: in stock

history:
* note: we will call this "AP918N" until proven otherwise with a gold thickness measurement
2009-07-14: installed in C-line
2009-11-11: removed from C-line, installed in D-line

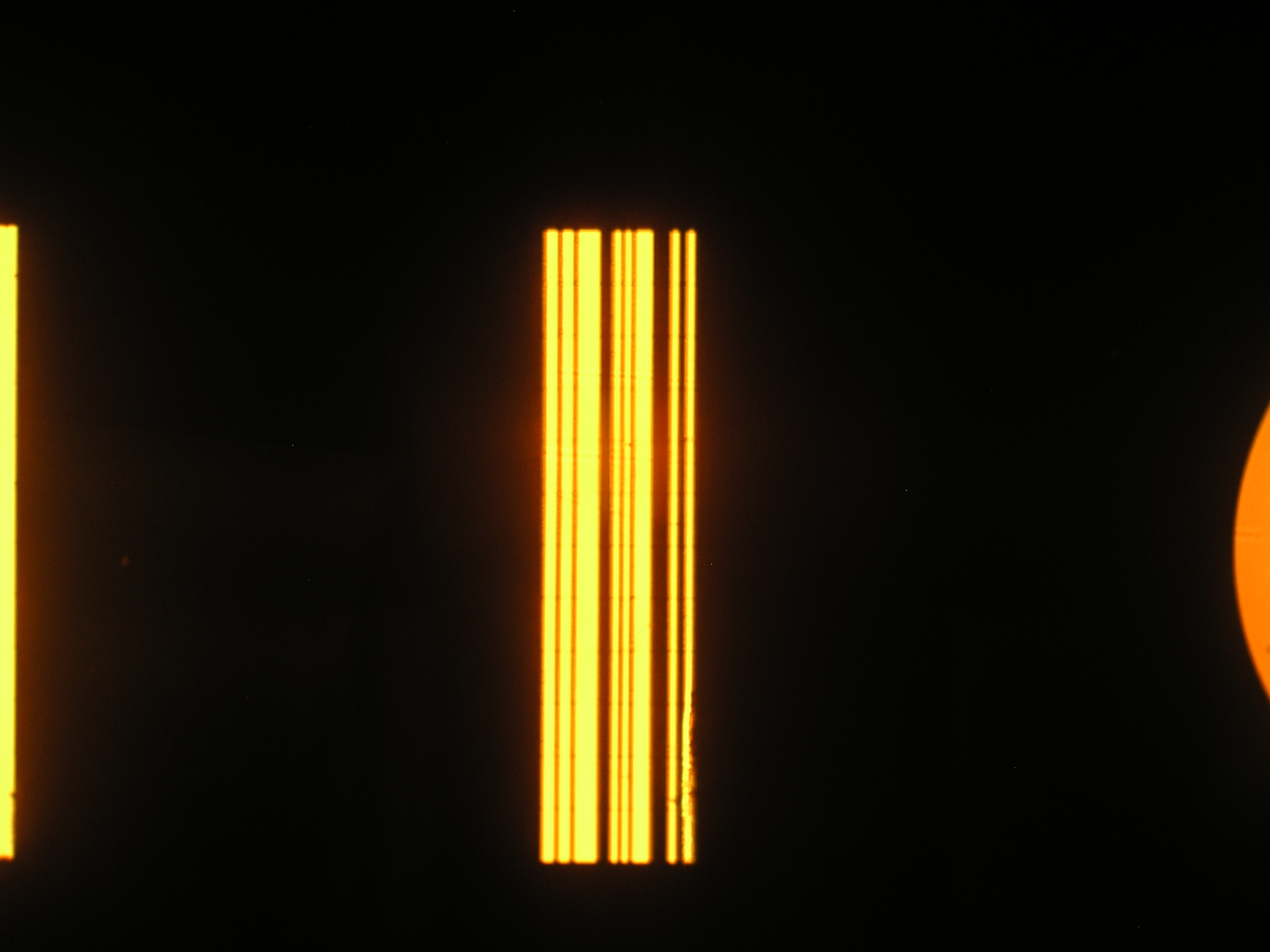

2011-11-22: removed from D-line, email 2011-11-23, noted "hole in FZP" and "opaque sustance in the CA bands"
this is currently in the "I" container; it was removed from D-line when J026N was installed
2013-01-31: confirm that chip in "I" container is the one pictured 2011-11-23 and 2012-06-07

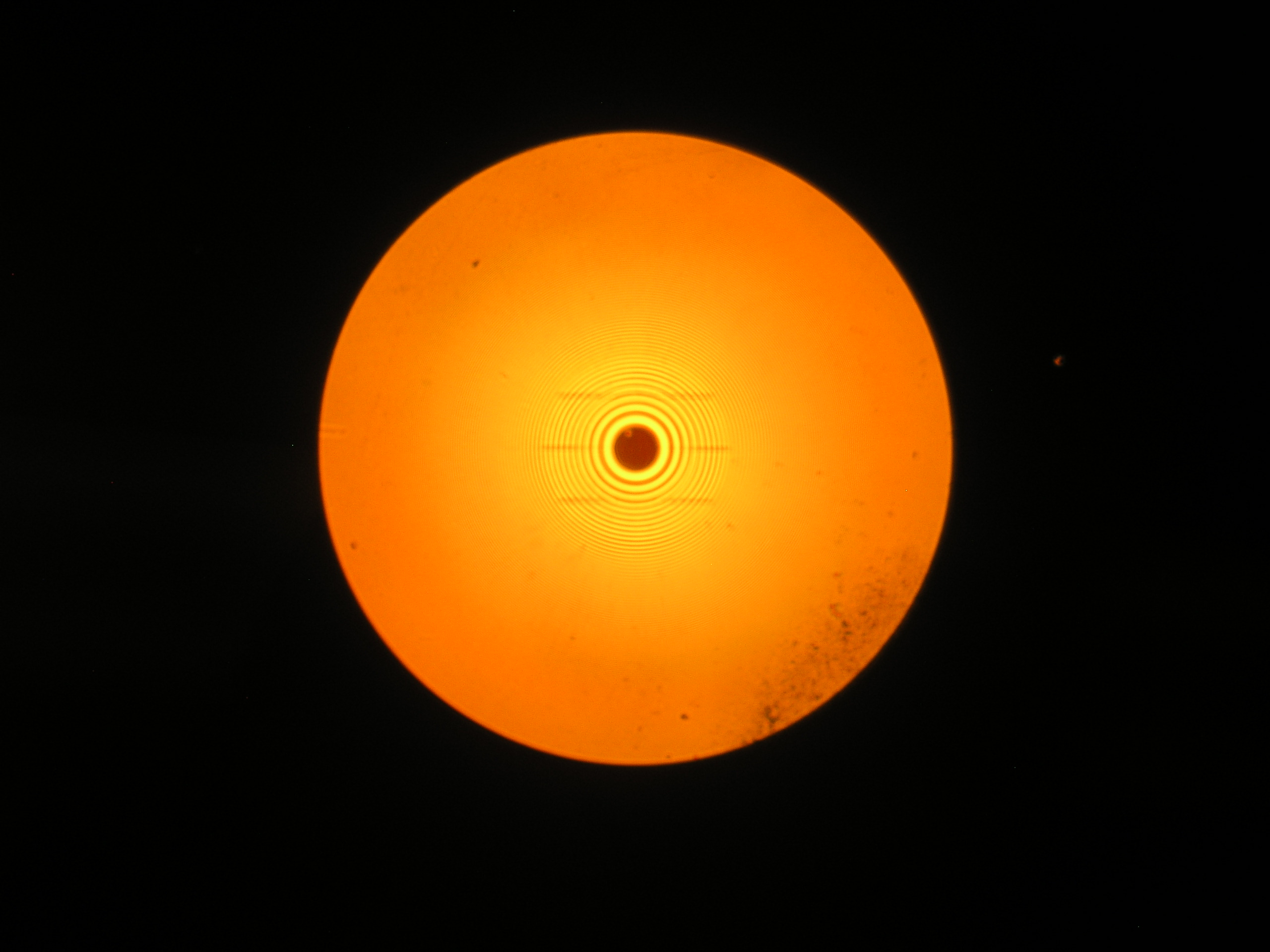

photos taken 2011-11-23, at time of removal from D-line

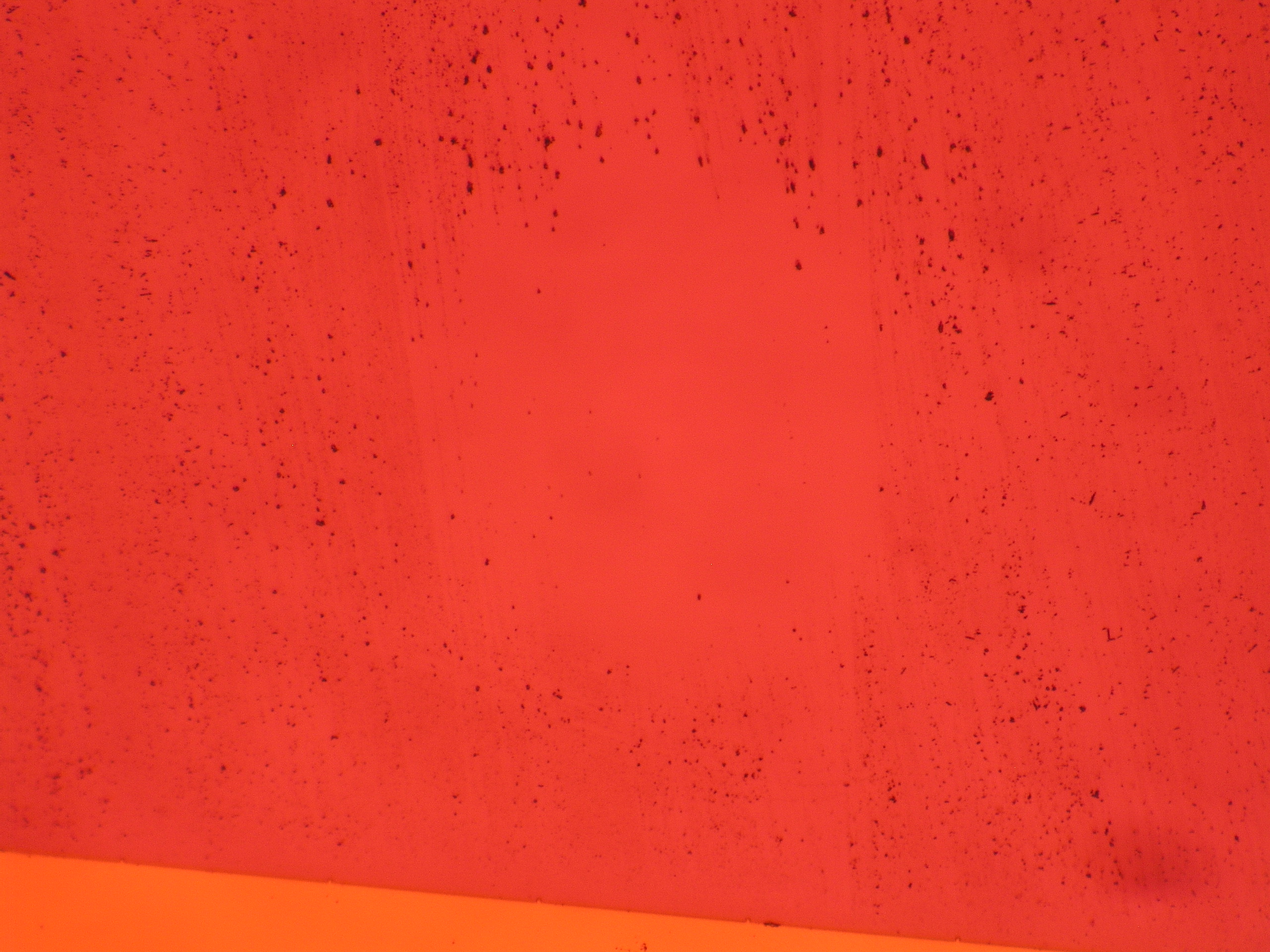

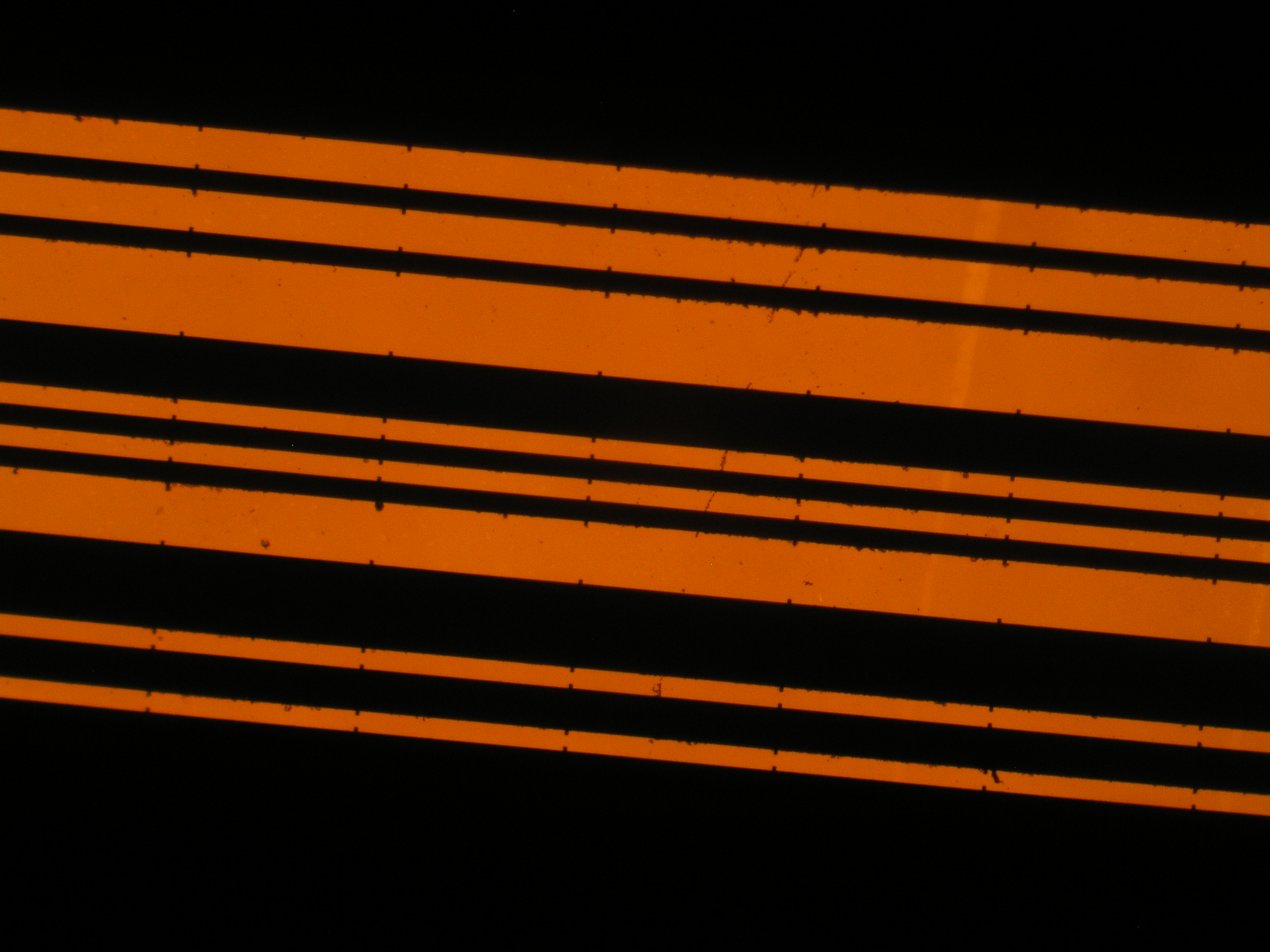

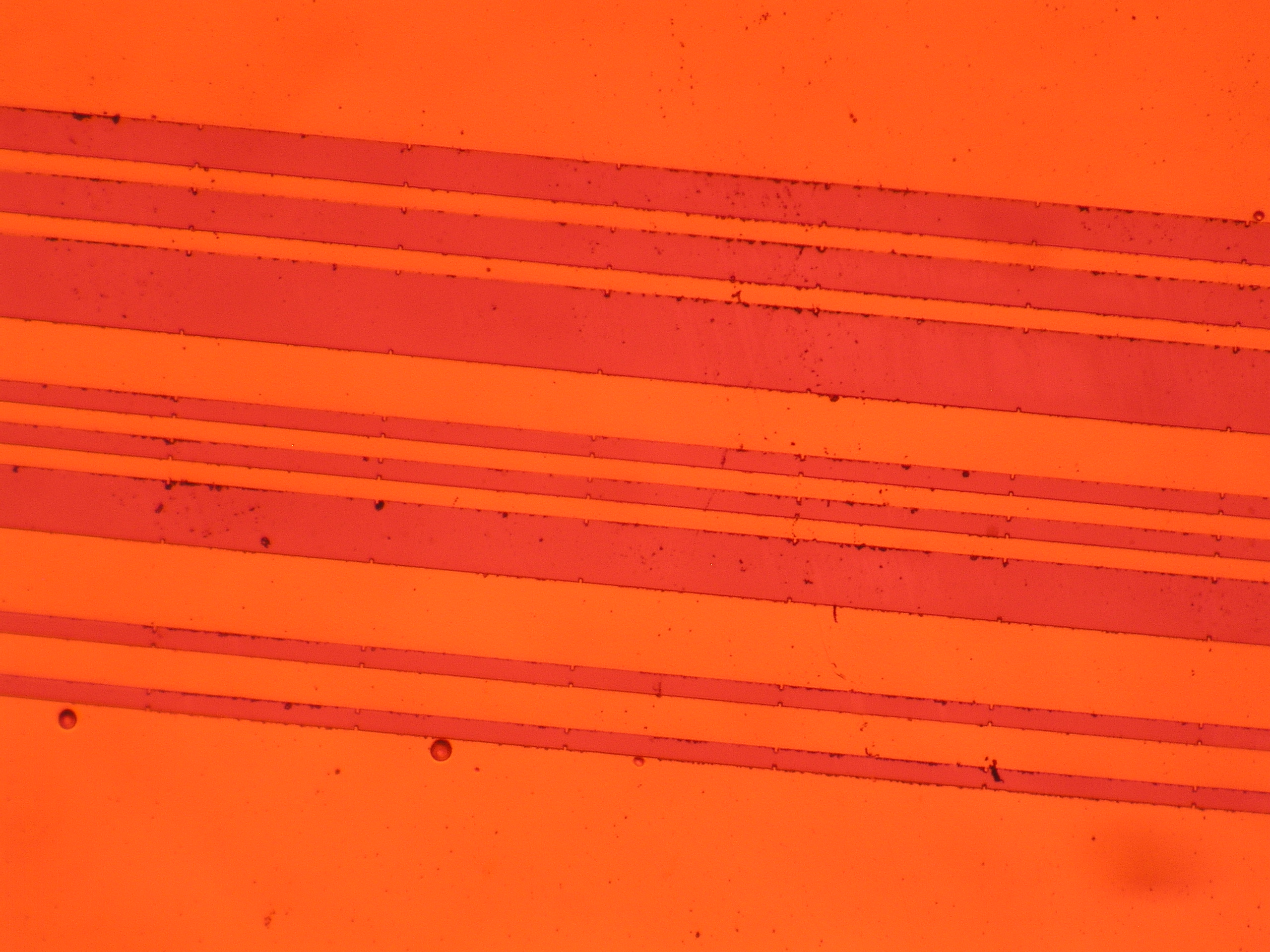

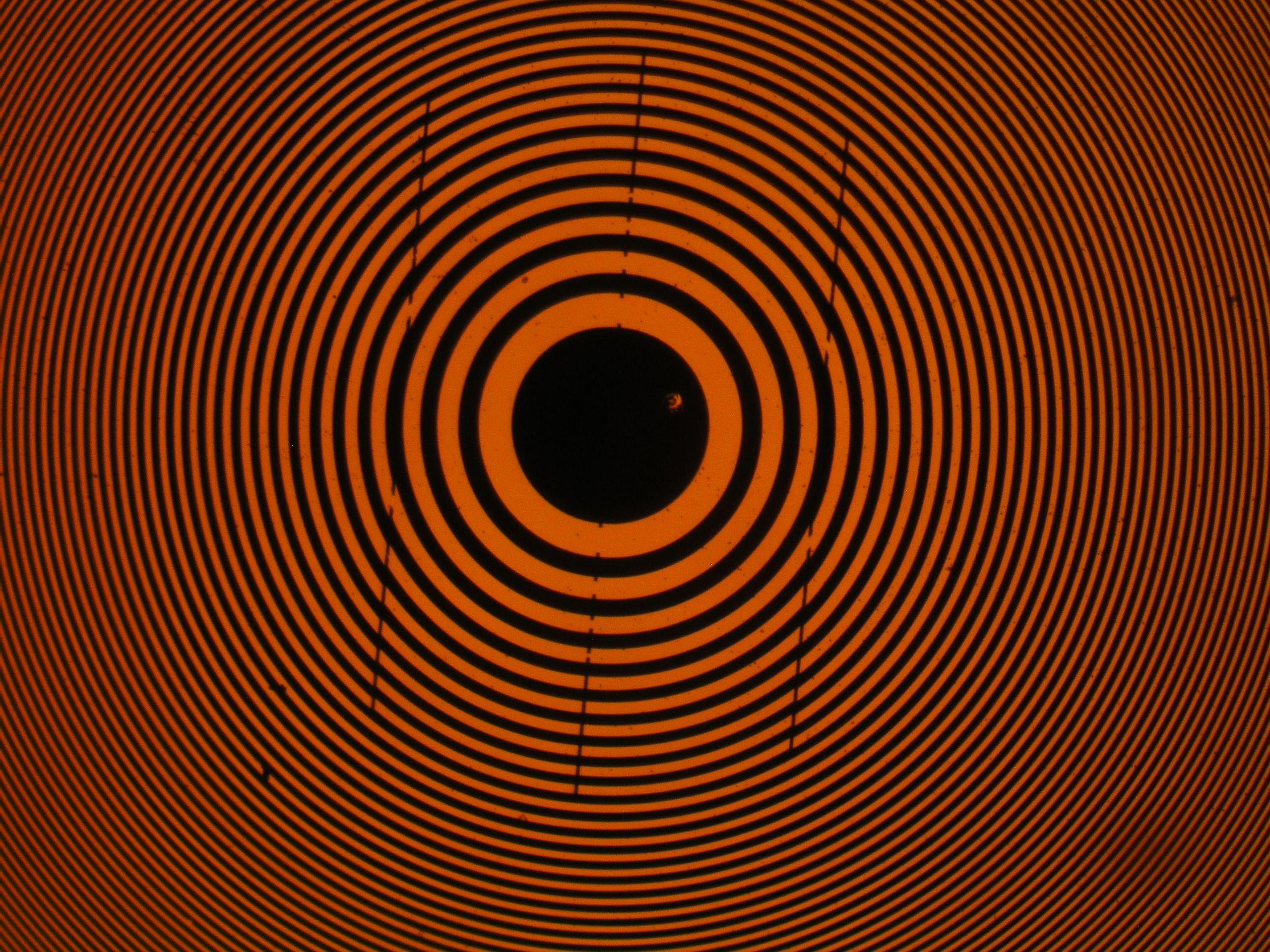

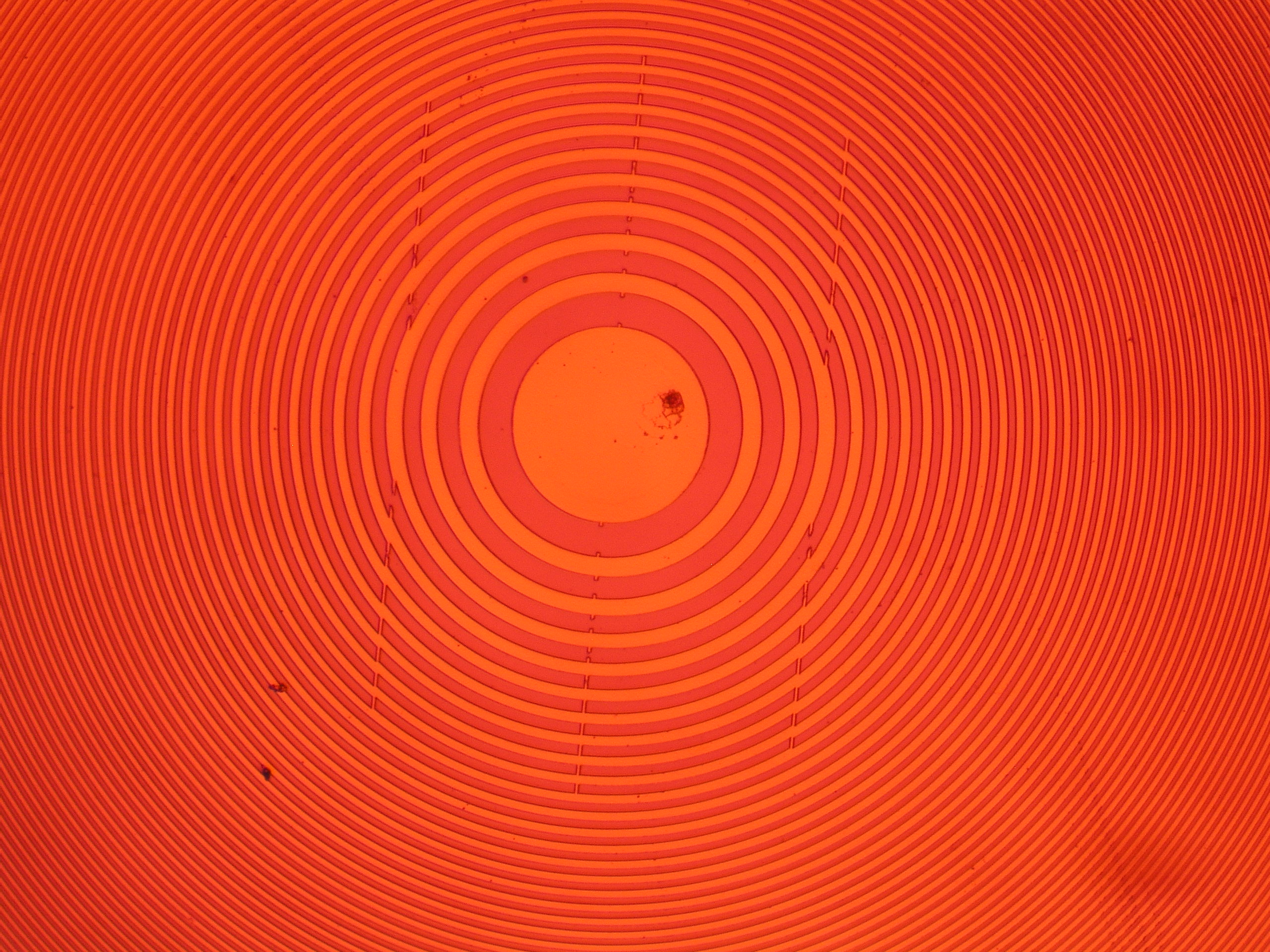

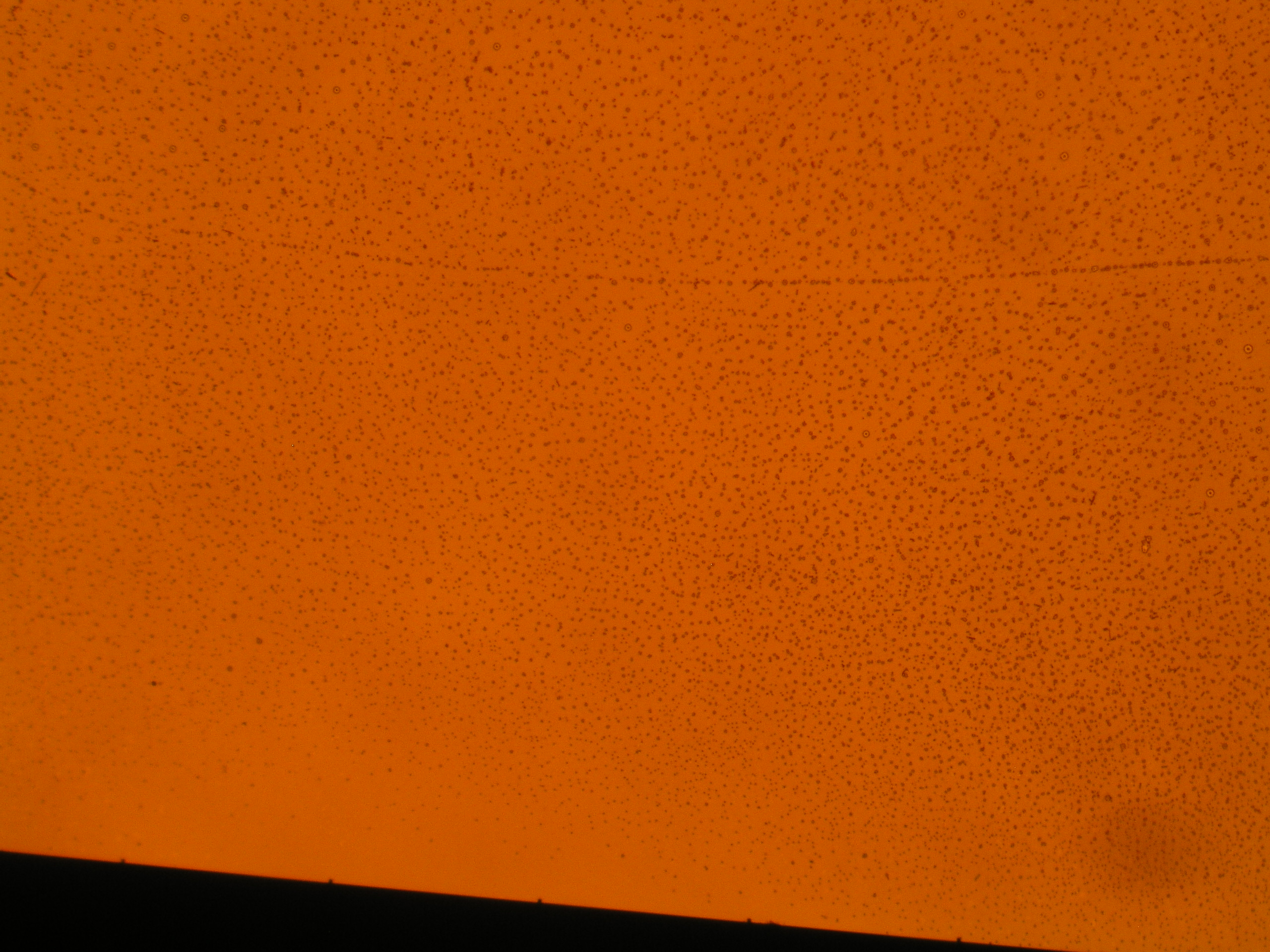

photos taken 2012-06-07, took pictures of optics in stock

N911
Received: 2009-11-19
pattern: box, 8 slit CA, FZP
gold: 0.53 micron, email 20091124
current location: in stock

history:
2011-01-28: installed in C-line
2012-09-06: believed to be damaged during April 2012 run; see presentation 2012-09-06
2012-11-12: removed from C-line; see email 2012-11-20
2013-01-31: confirm chip in container is the one pictured 2012-11-20; see cresent and "coffee stain"

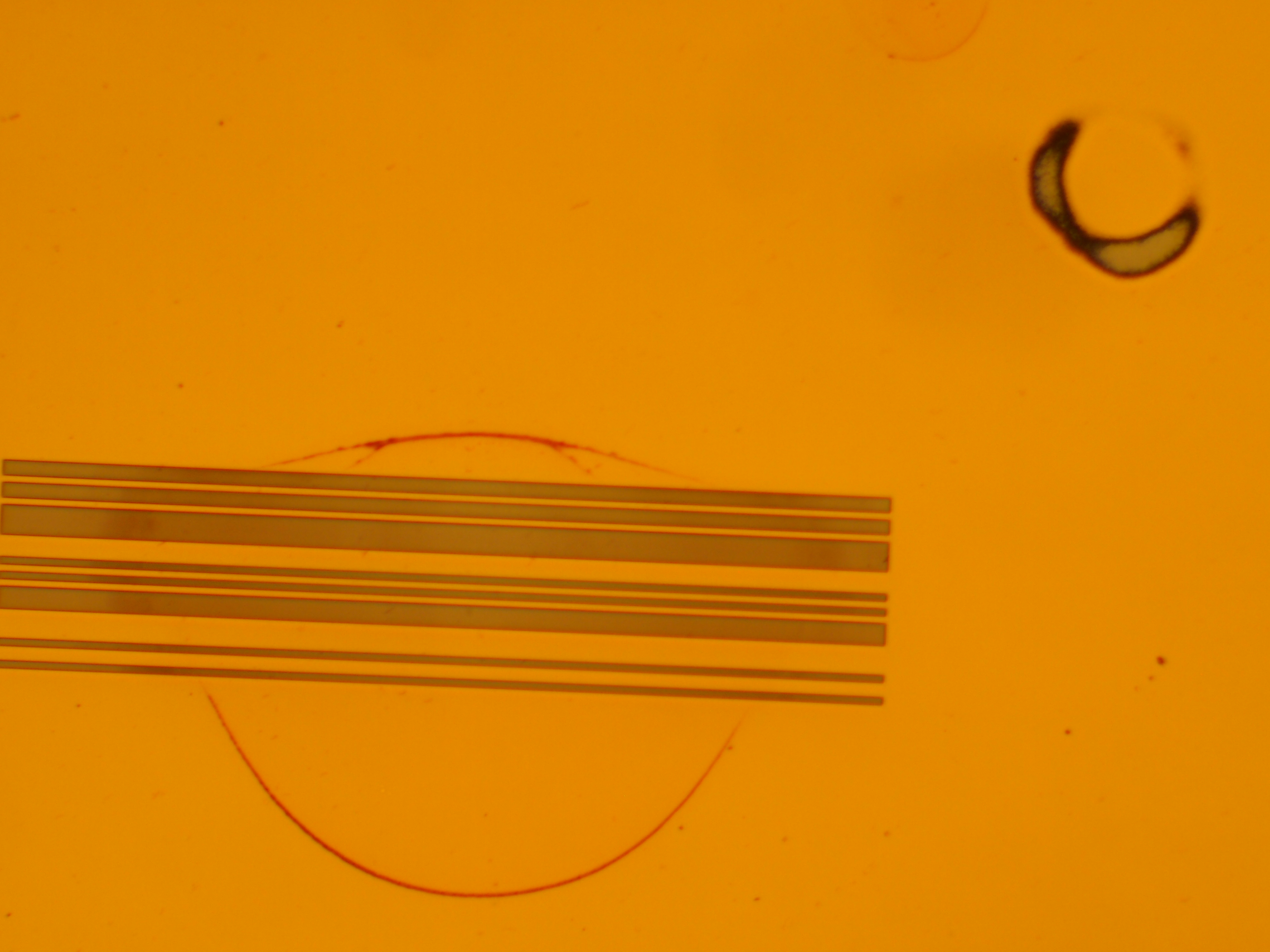

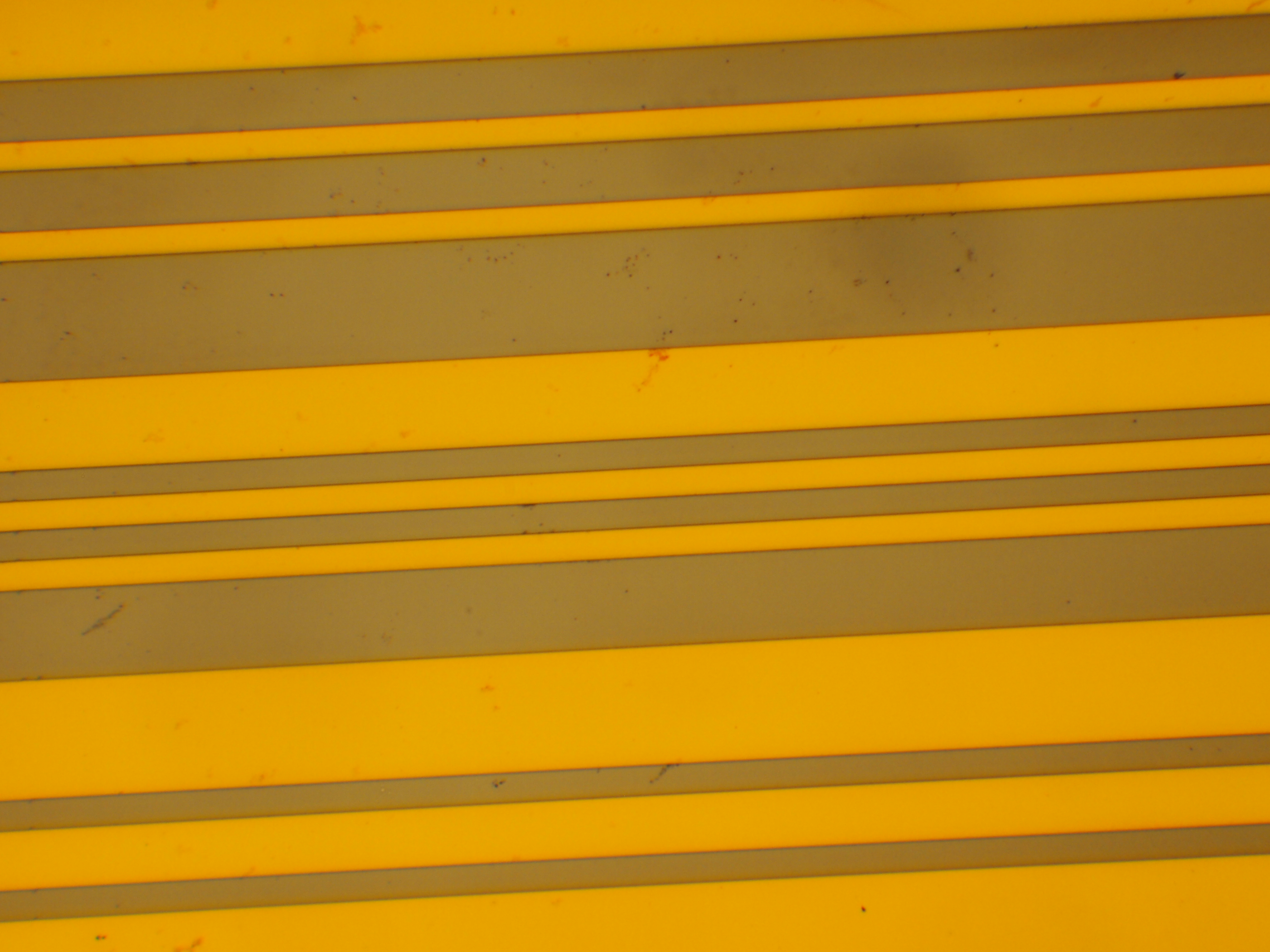

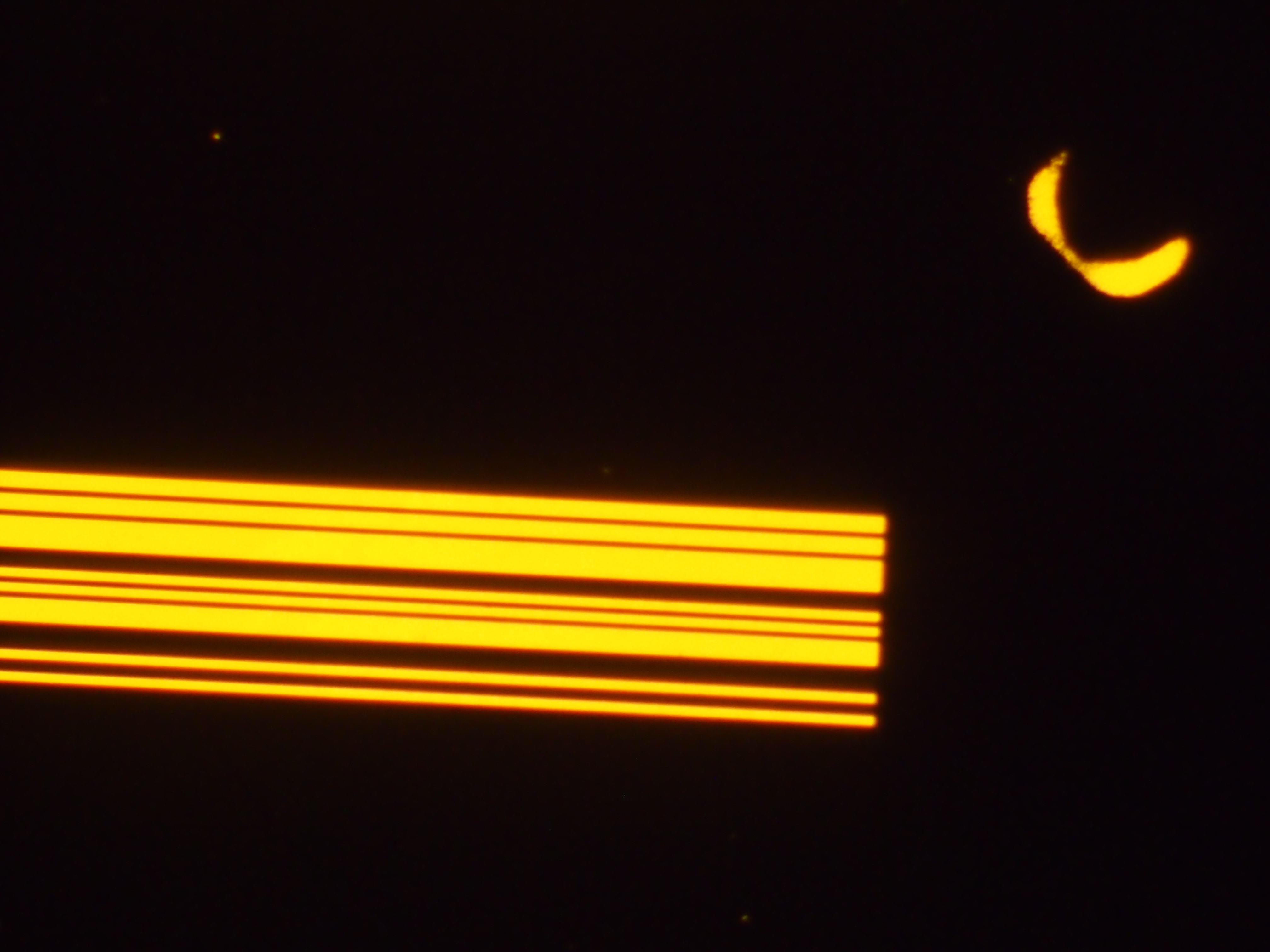

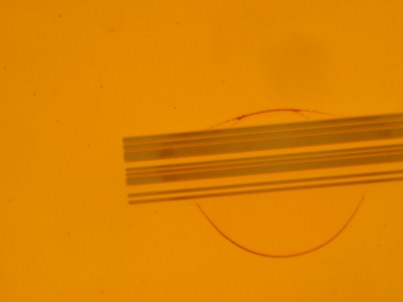

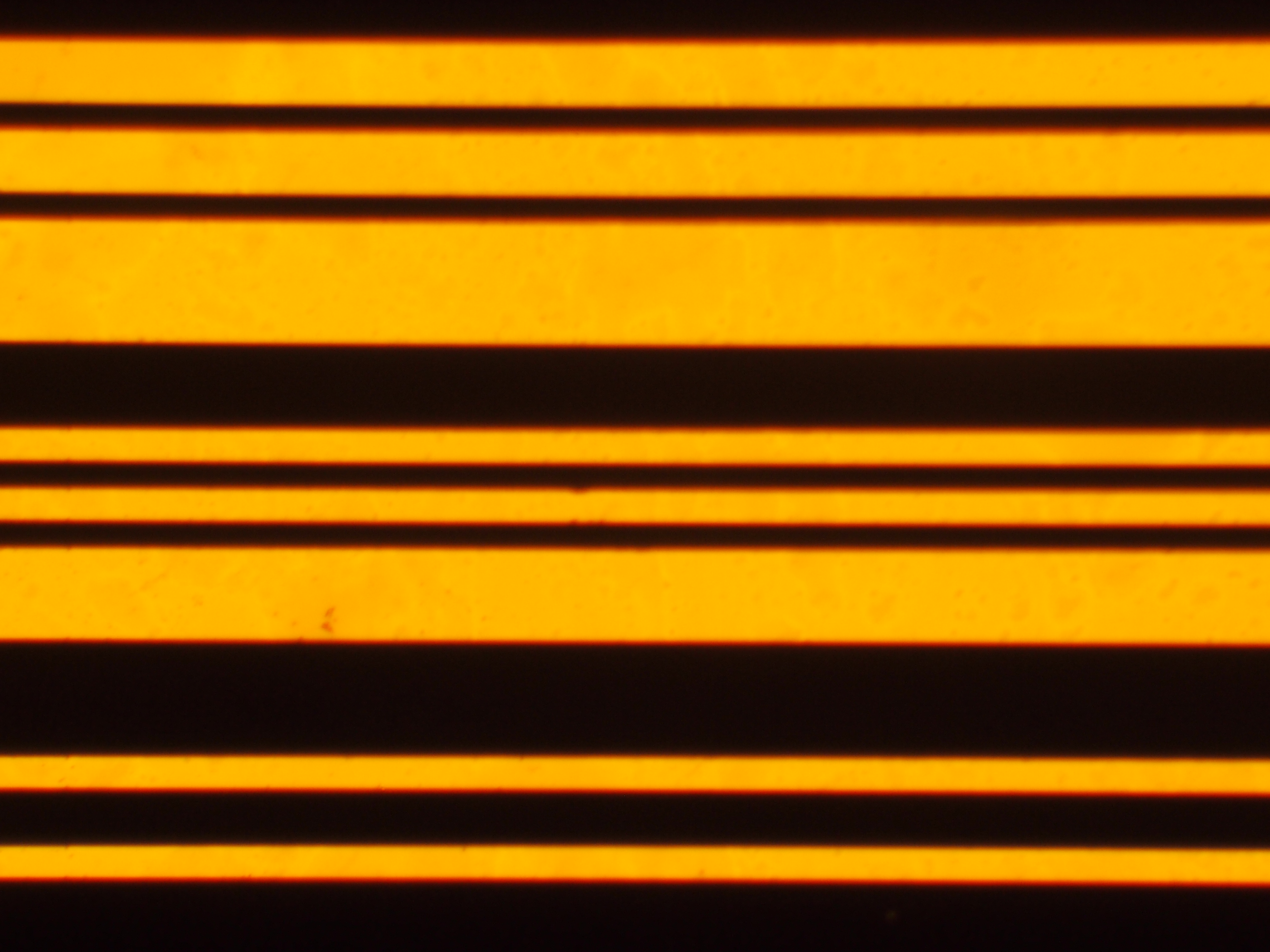

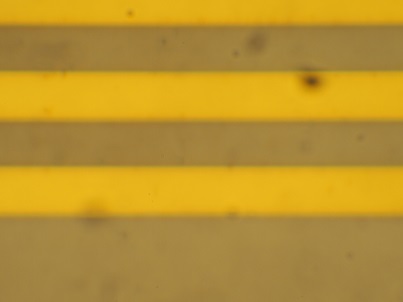

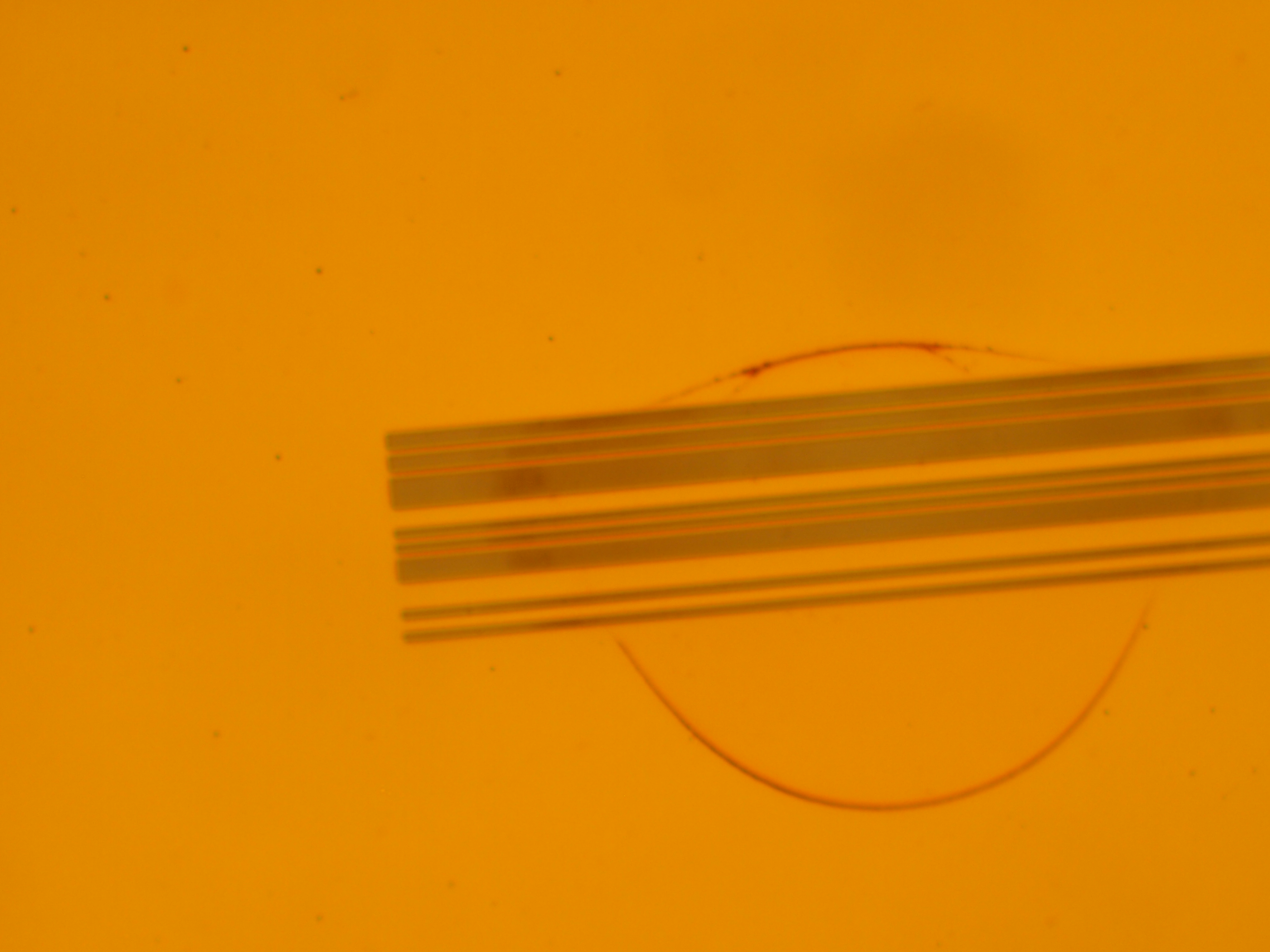

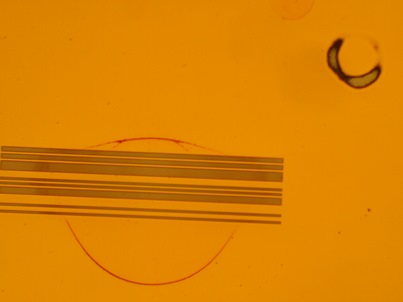

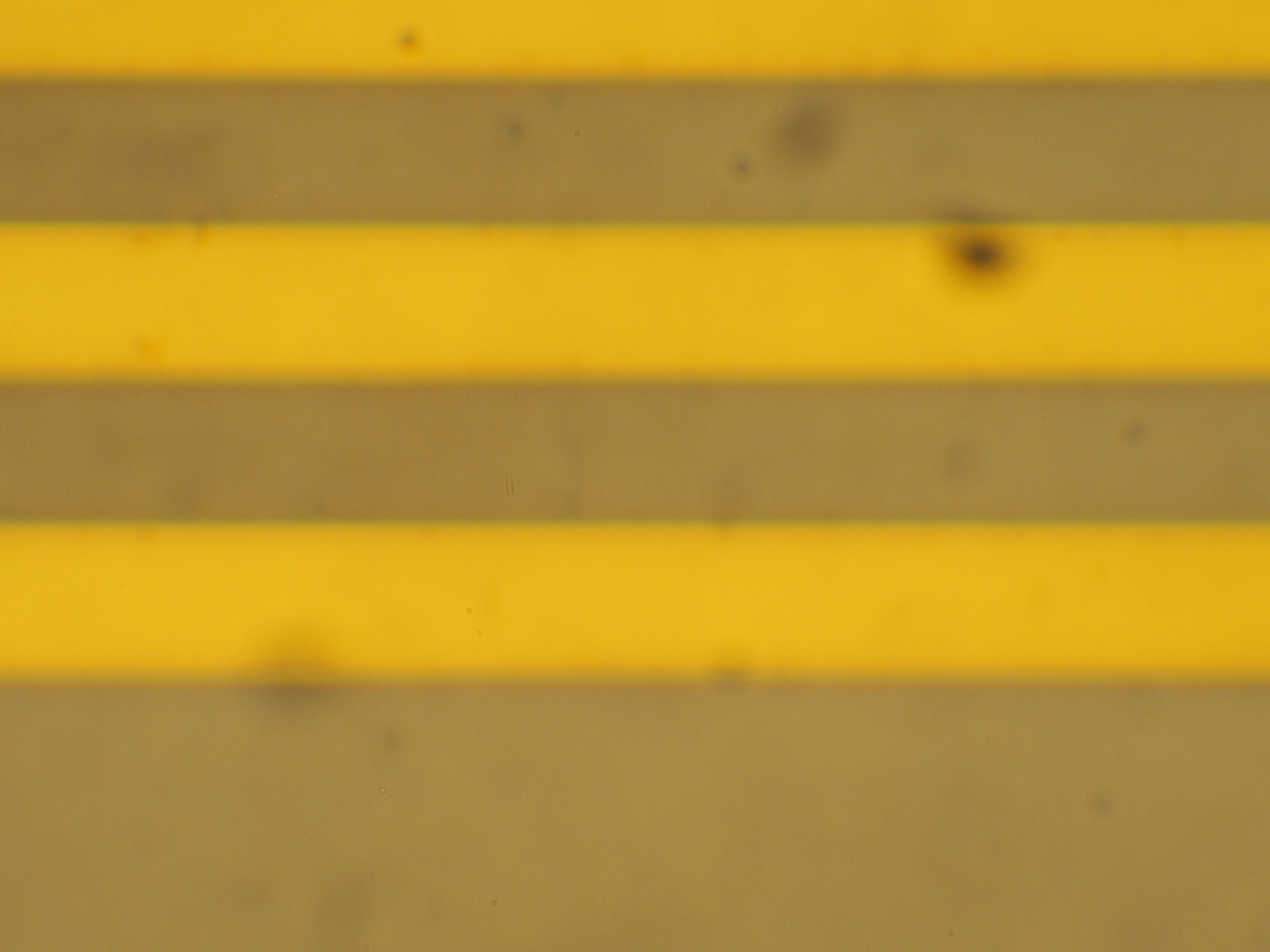

photos taken 2012-11-20

J026N "I"
Received: 2010-02-10
pattern: box, 8 slit CA, FZP
gold: 0.69 micron, email 20100218
current location: installed in D-line

history:
2010-02-22 noted "one hole in gold outside region of interest"
2011-11-22: installed in D-line; email 2011-11-23
2013-09-10: re-installed in D-line with 1.1mm mask

photos taken 2010-02-22, at time of receiving

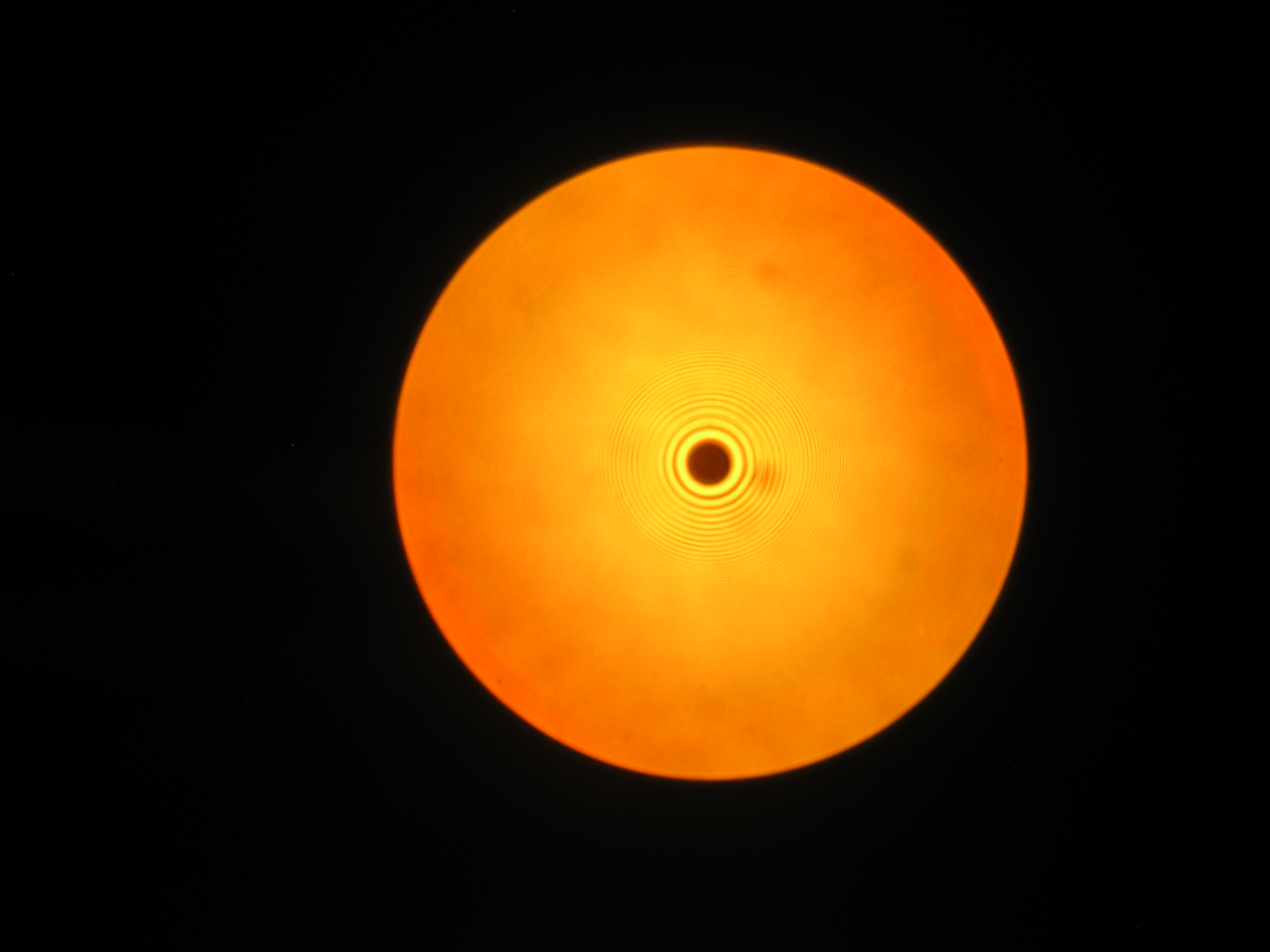

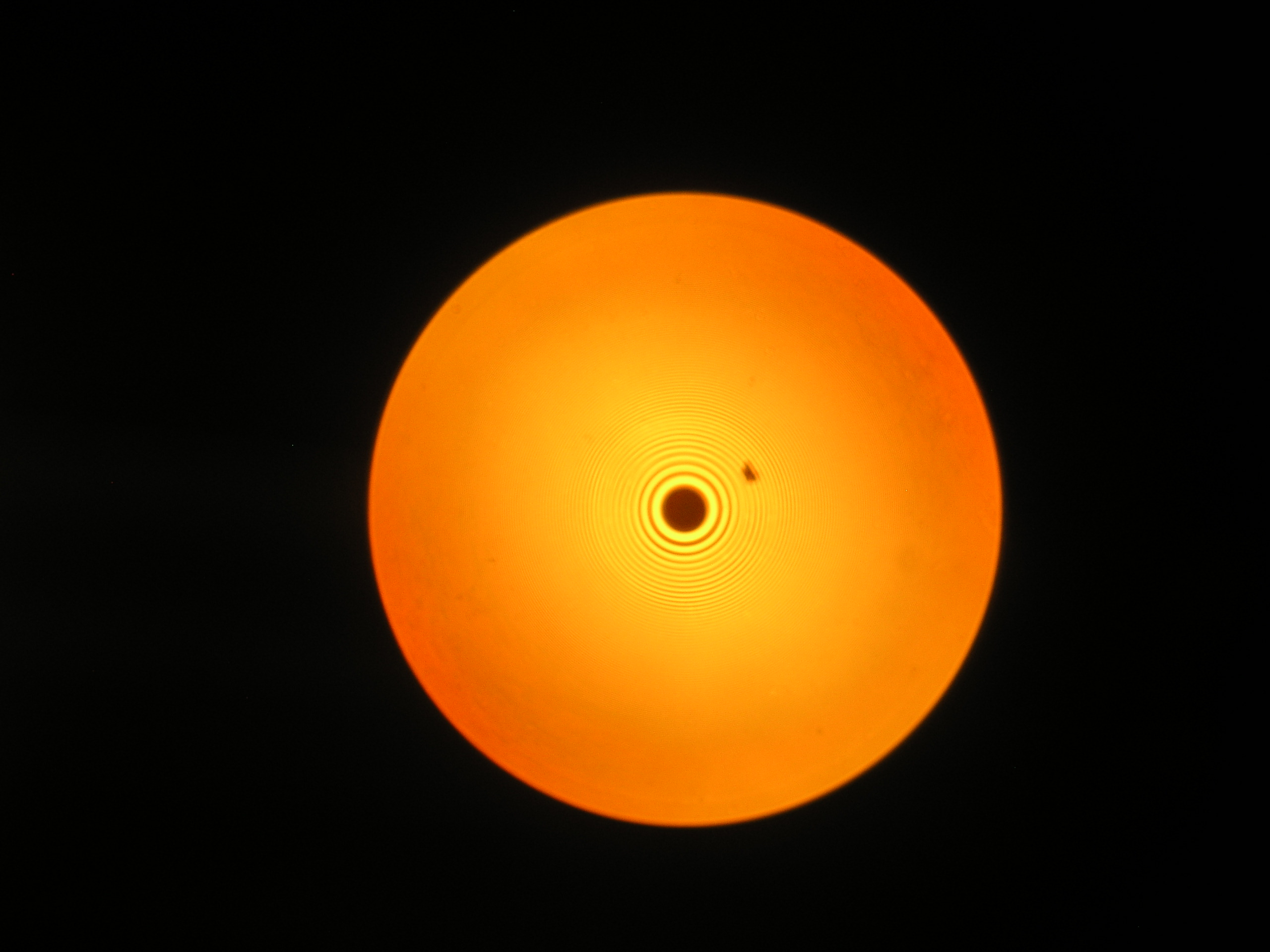

photos taken 2011-11-22, at time of installing in D-line

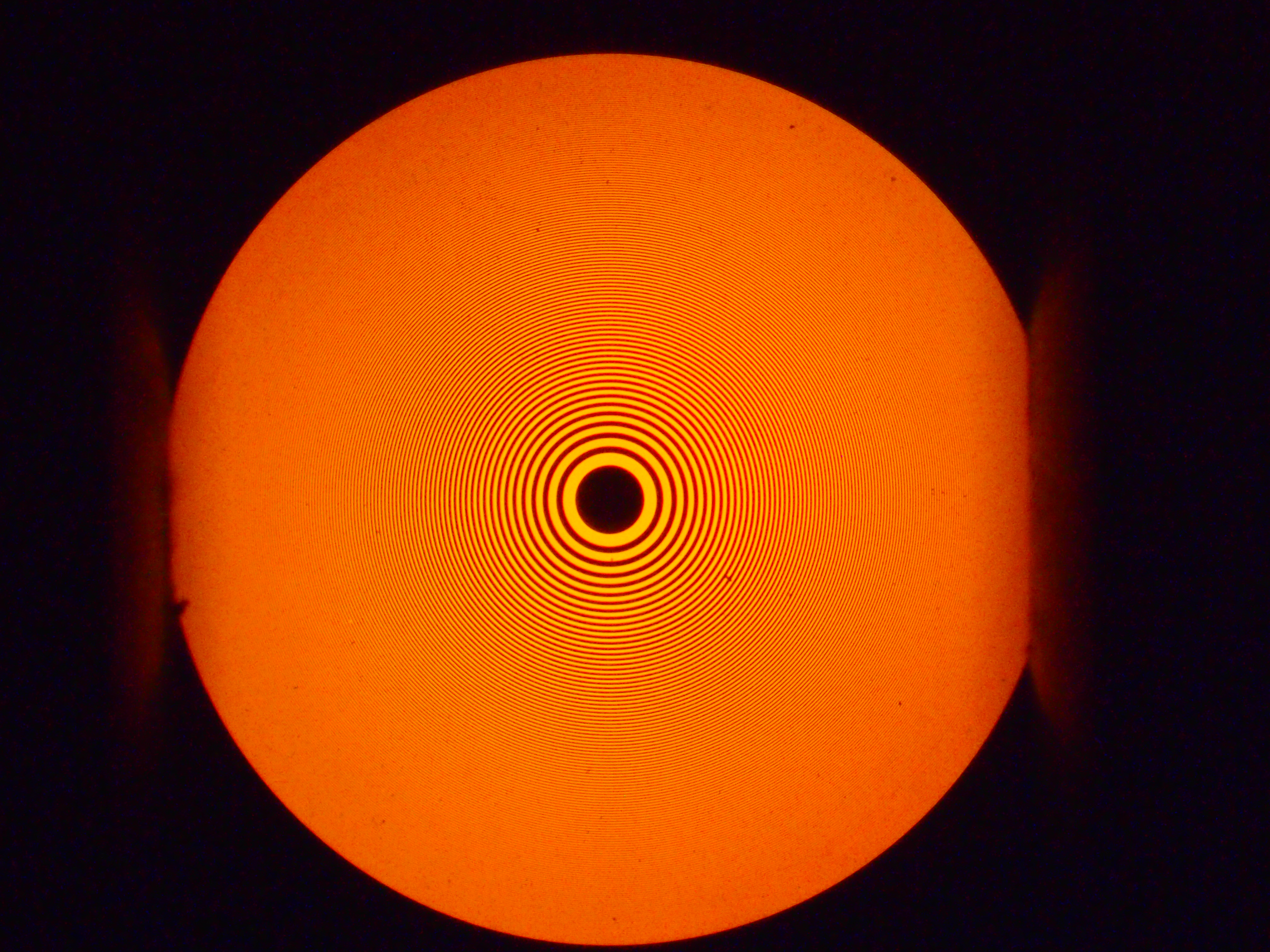

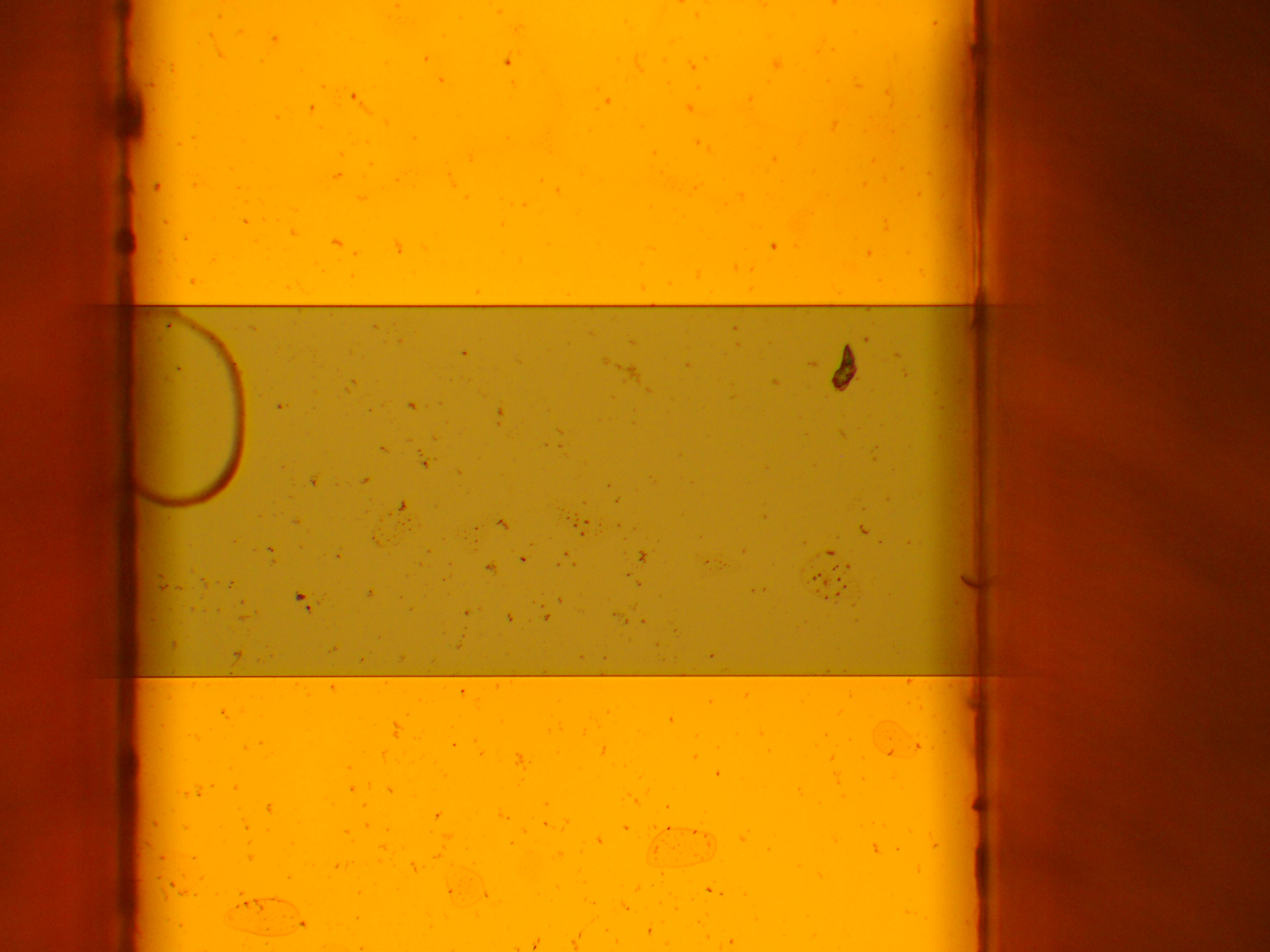

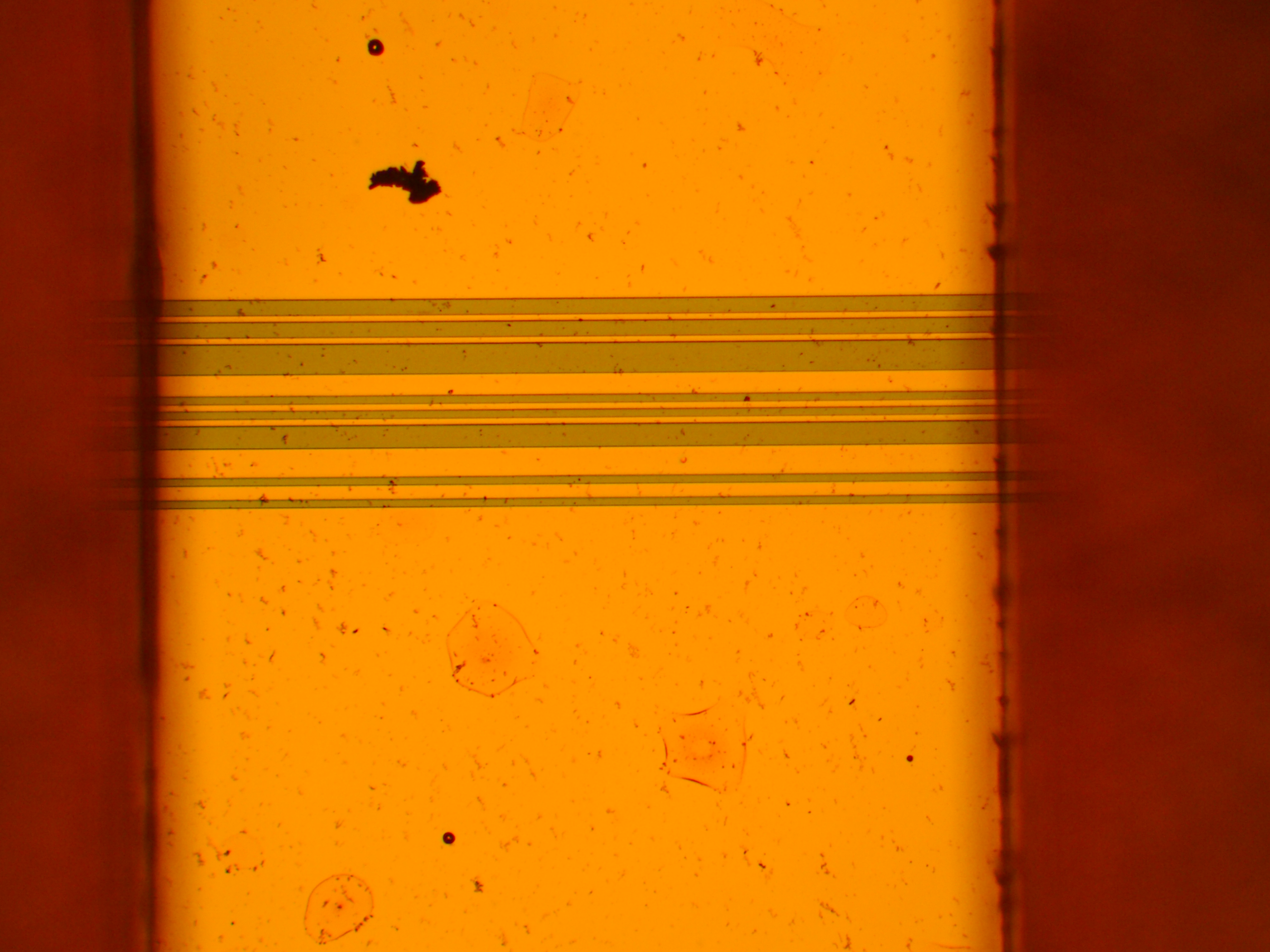

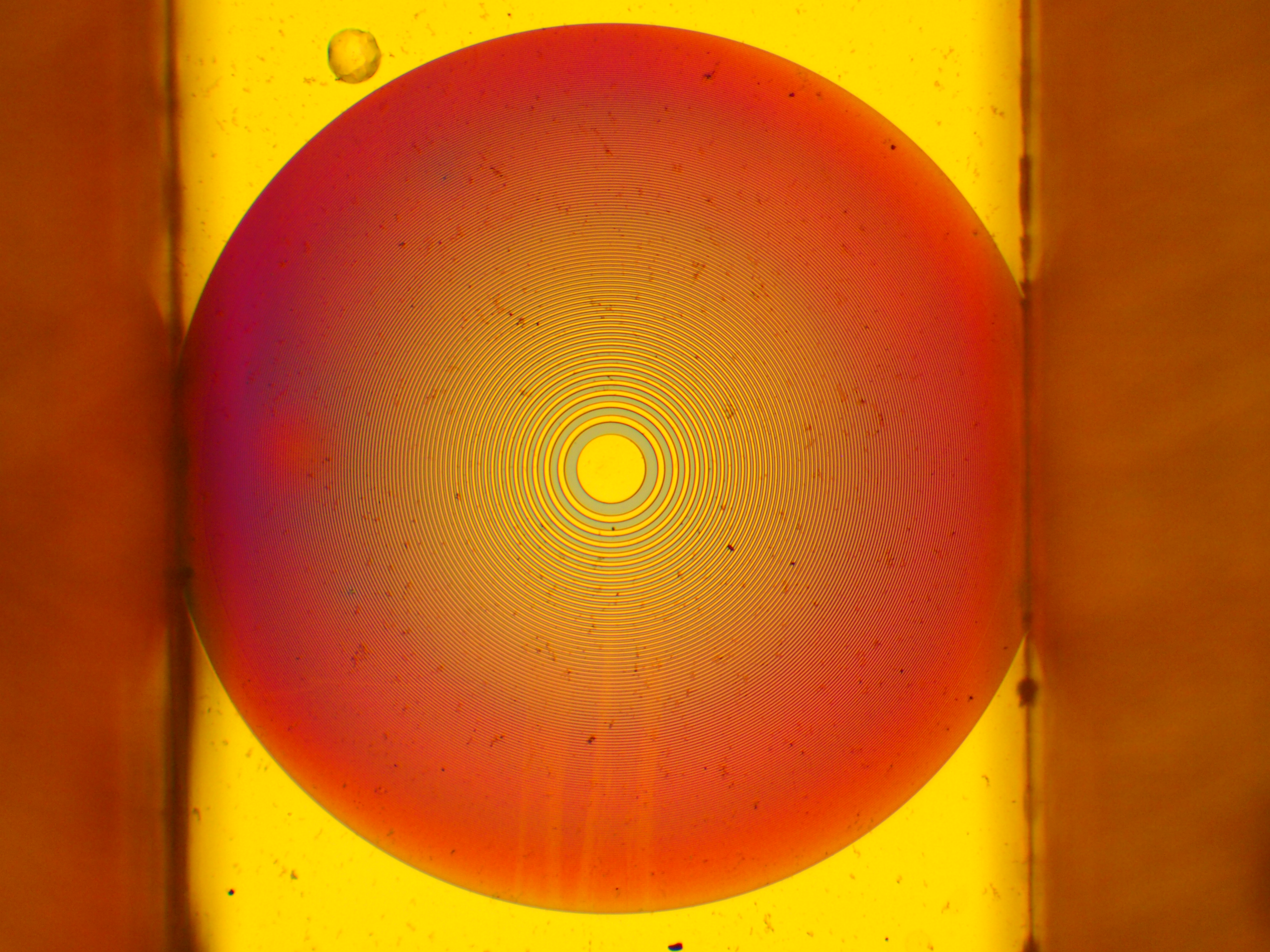

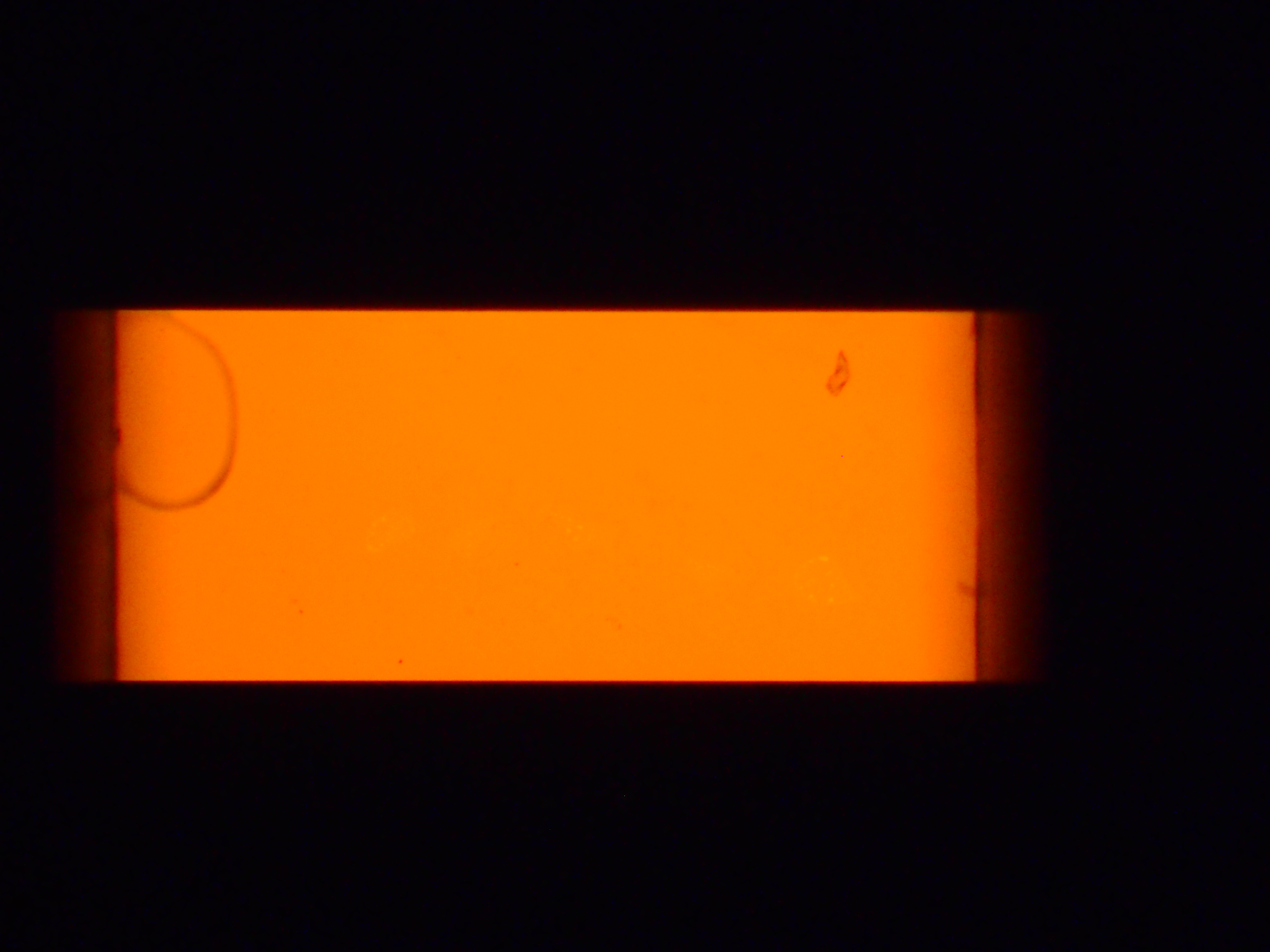

photos taken 2013-09-10, at time of re-installing in D-line with 1.1mm mask

photos taken 2013-09-10, this picture was taken after those above, don't really know what it is
But the chip was mounted 3 times: after the 1st, the stainless clamp had to be remachined; after the 2nd, the copper block had to be remachined

J030N "II"
Received: 2010-02-10
pattern: box, 8 slit CA, FZP
gold: 0.72 micron, email 20100218
current location: in stock

history:
2010-02-22 noted "numerous large holes", "one hole in zone plate"
2012-01-31: confirm chip in container "II" is the one pictured 2010-02-22; saw holes

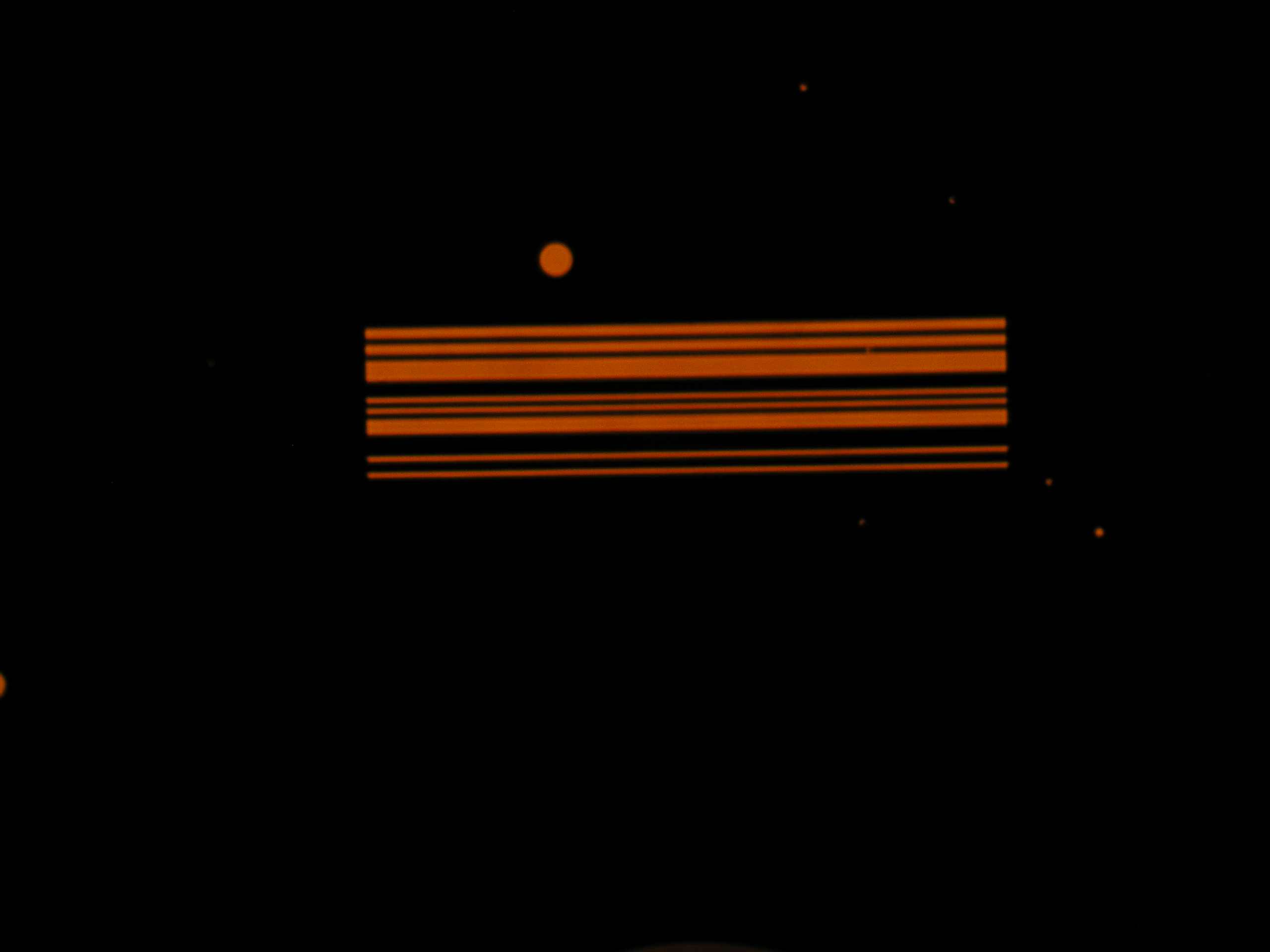

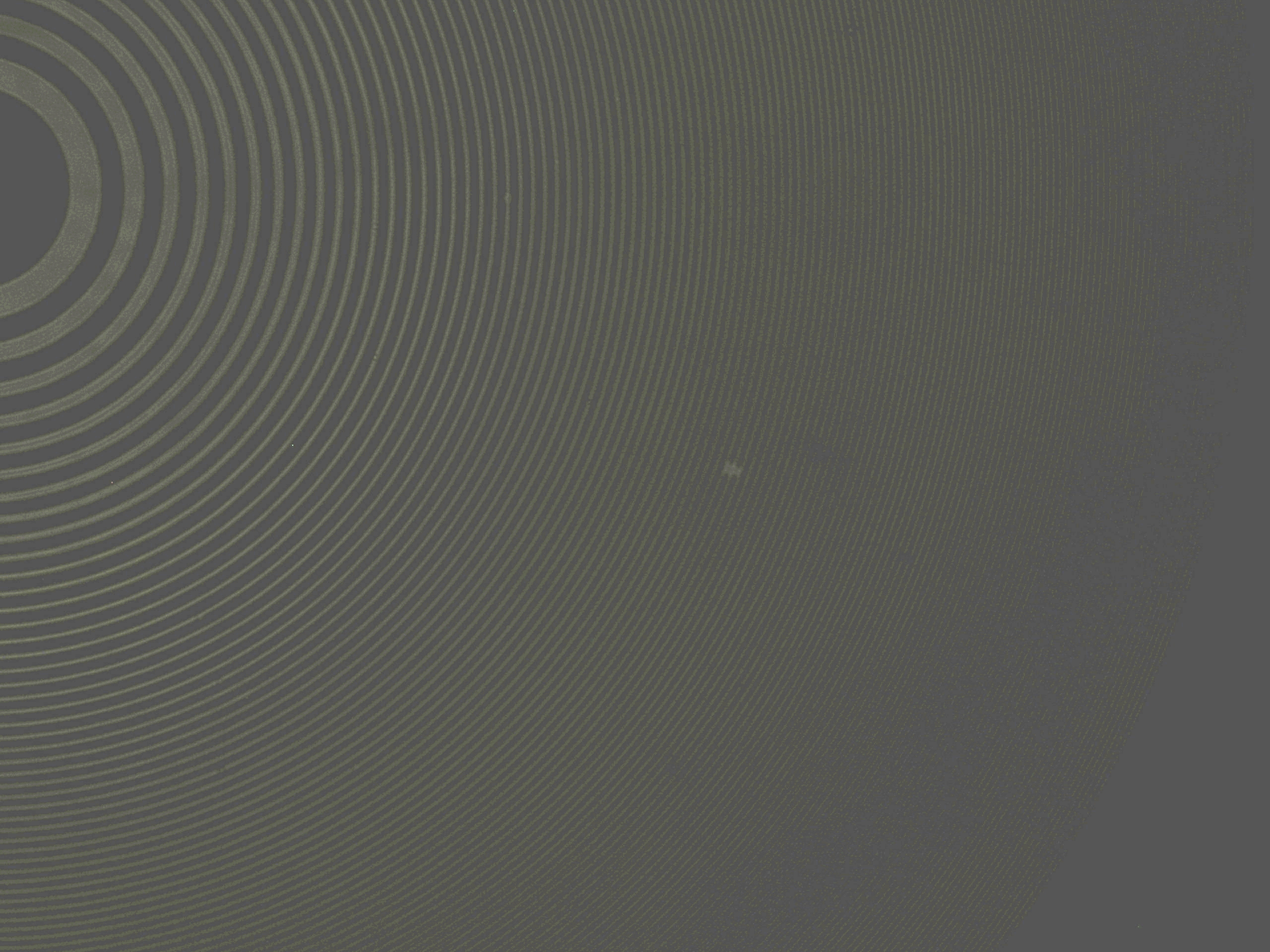

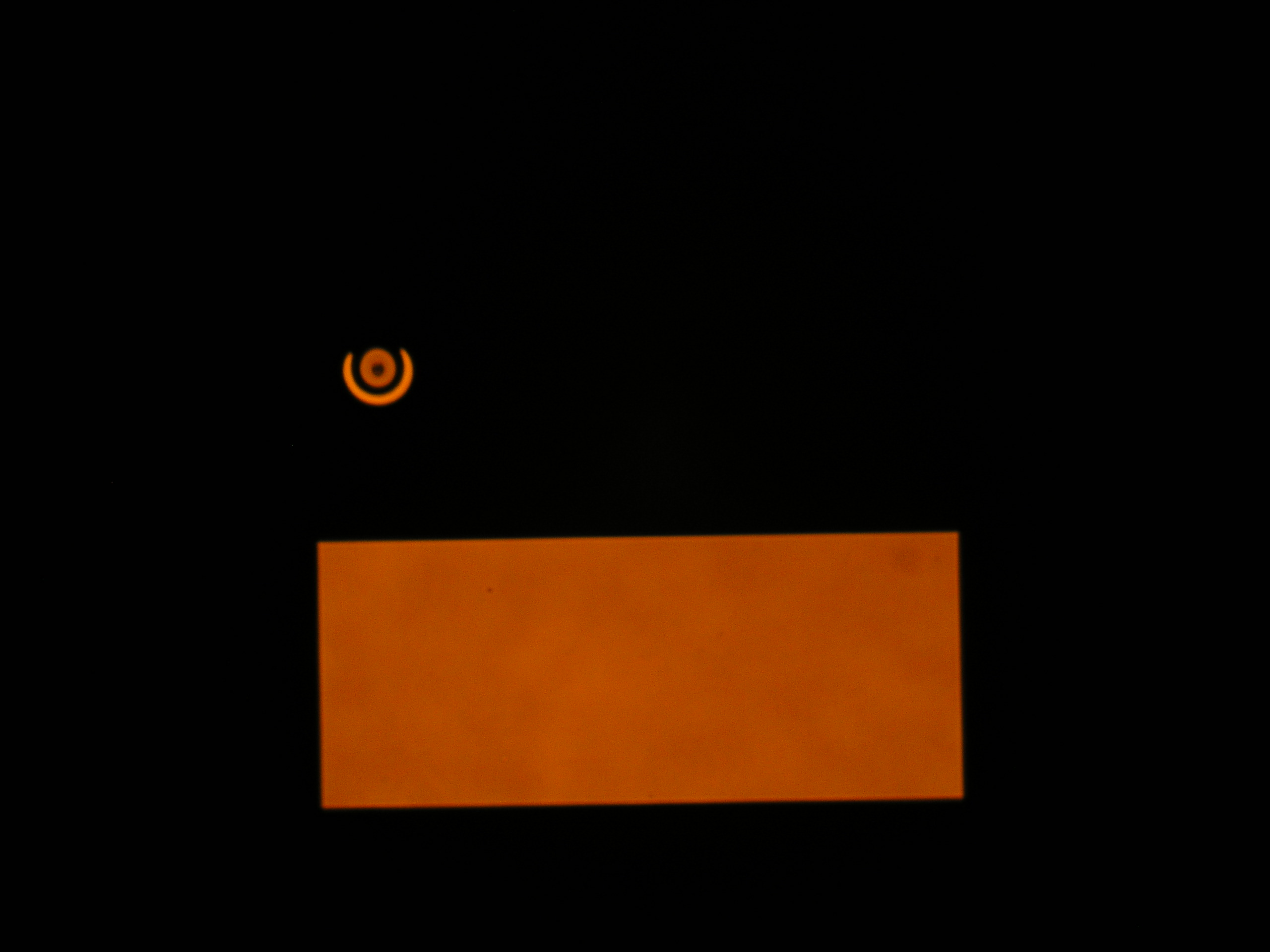

photos taken 2010-02-22, at time of receiving

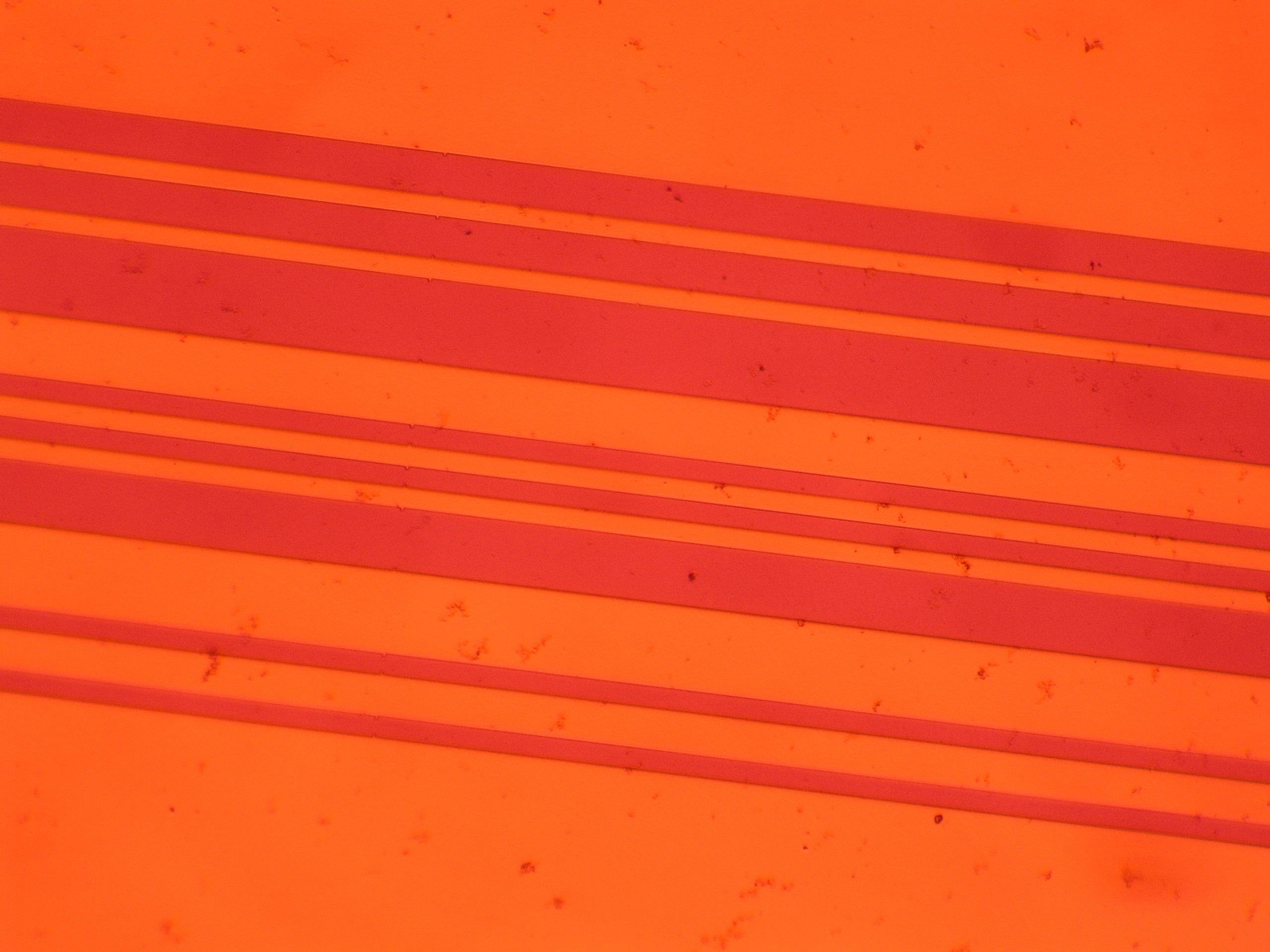

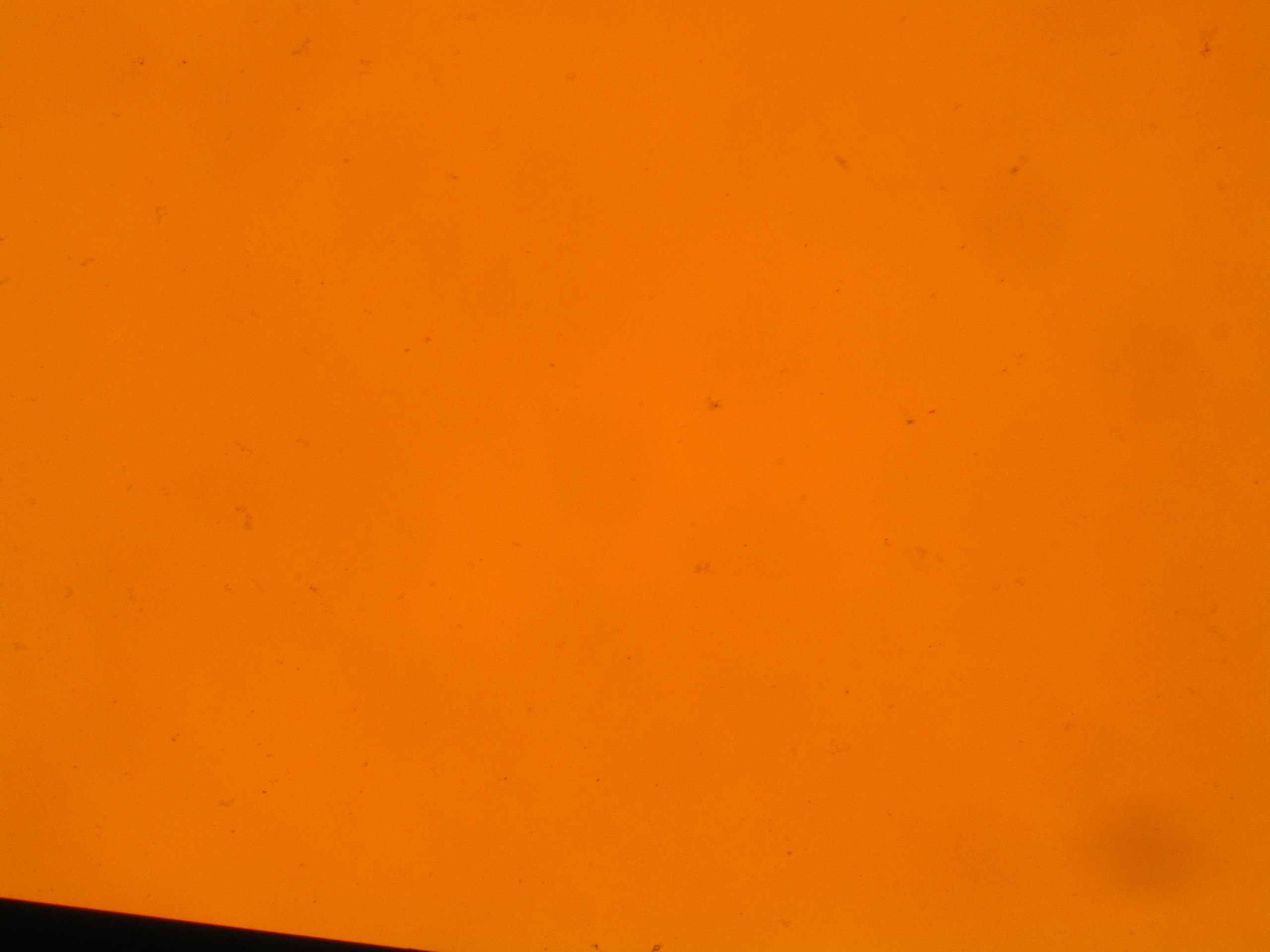

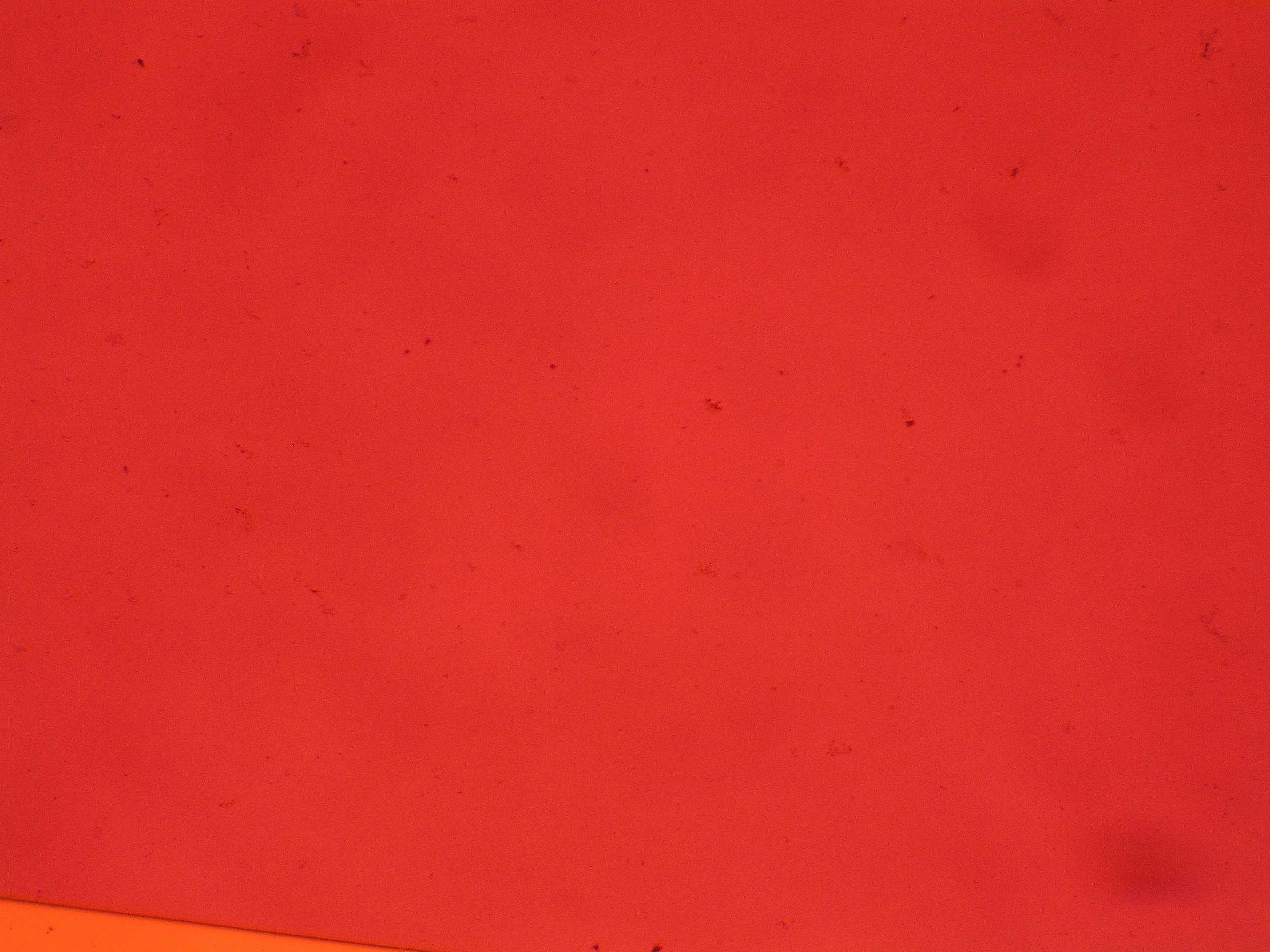

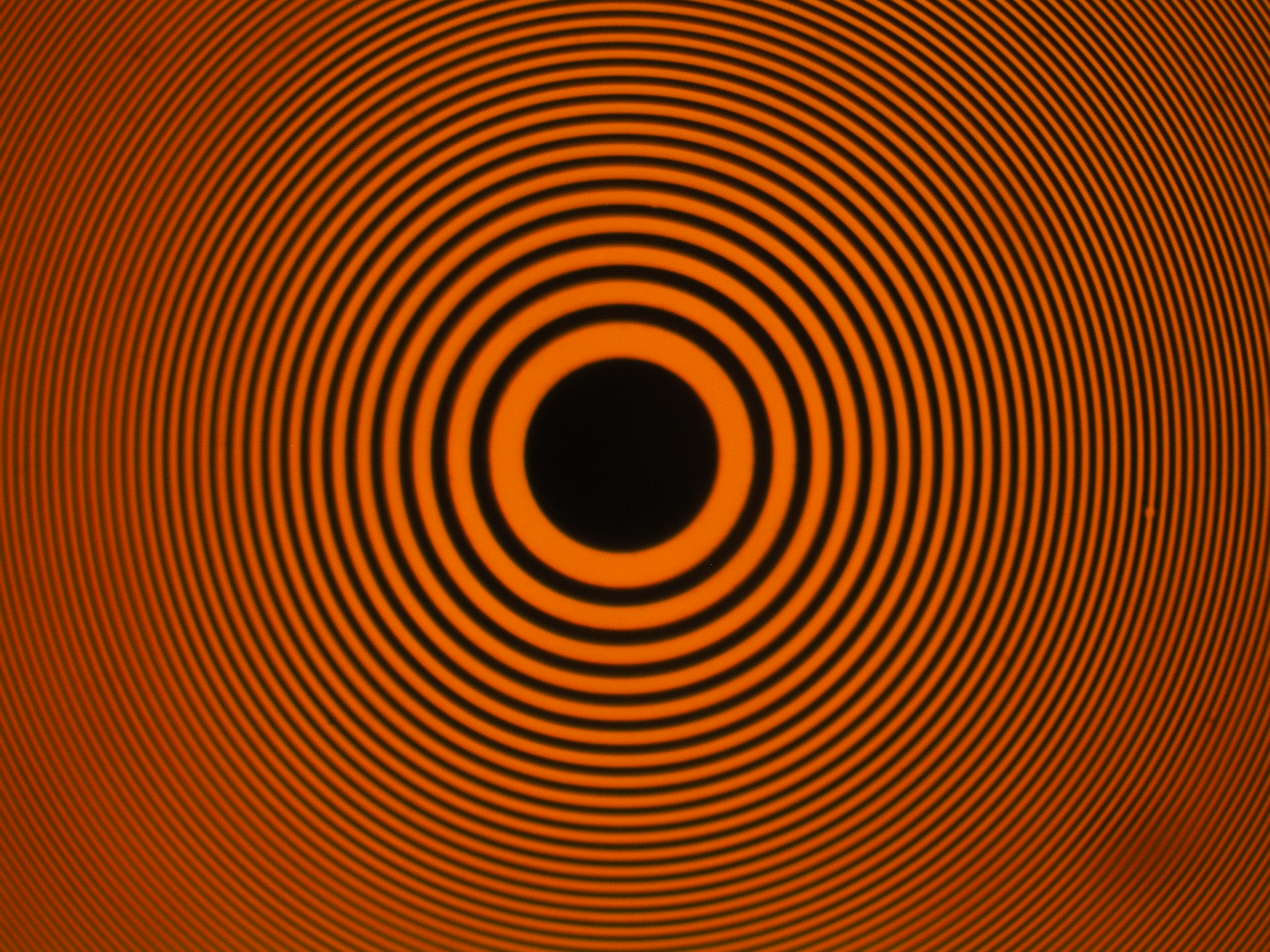

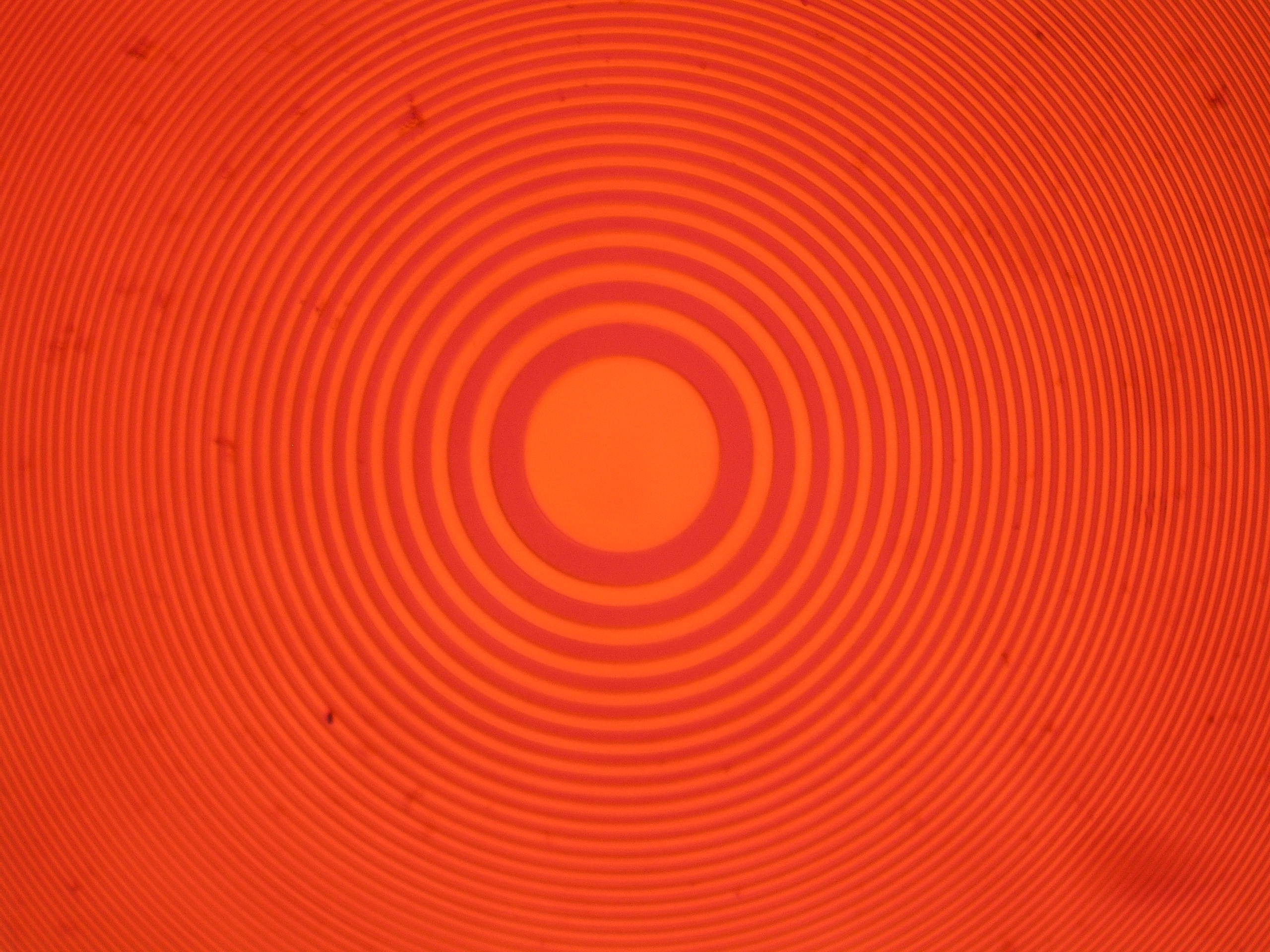

photos taken 2012-06-07, took pictures of optics in stock

F003N "III"
Received: 2010-02-10
pattern: box, 8 slit CA, FZP
gold: 0.71 micron, email 20100218
current location: installed in C-line

history:
2010-02-22 noted "no holes in gold"
2012-11-12: installed in C-line; see email 2012-11-20
2013-09-18: re-installed in C-line with 1.1mm mask

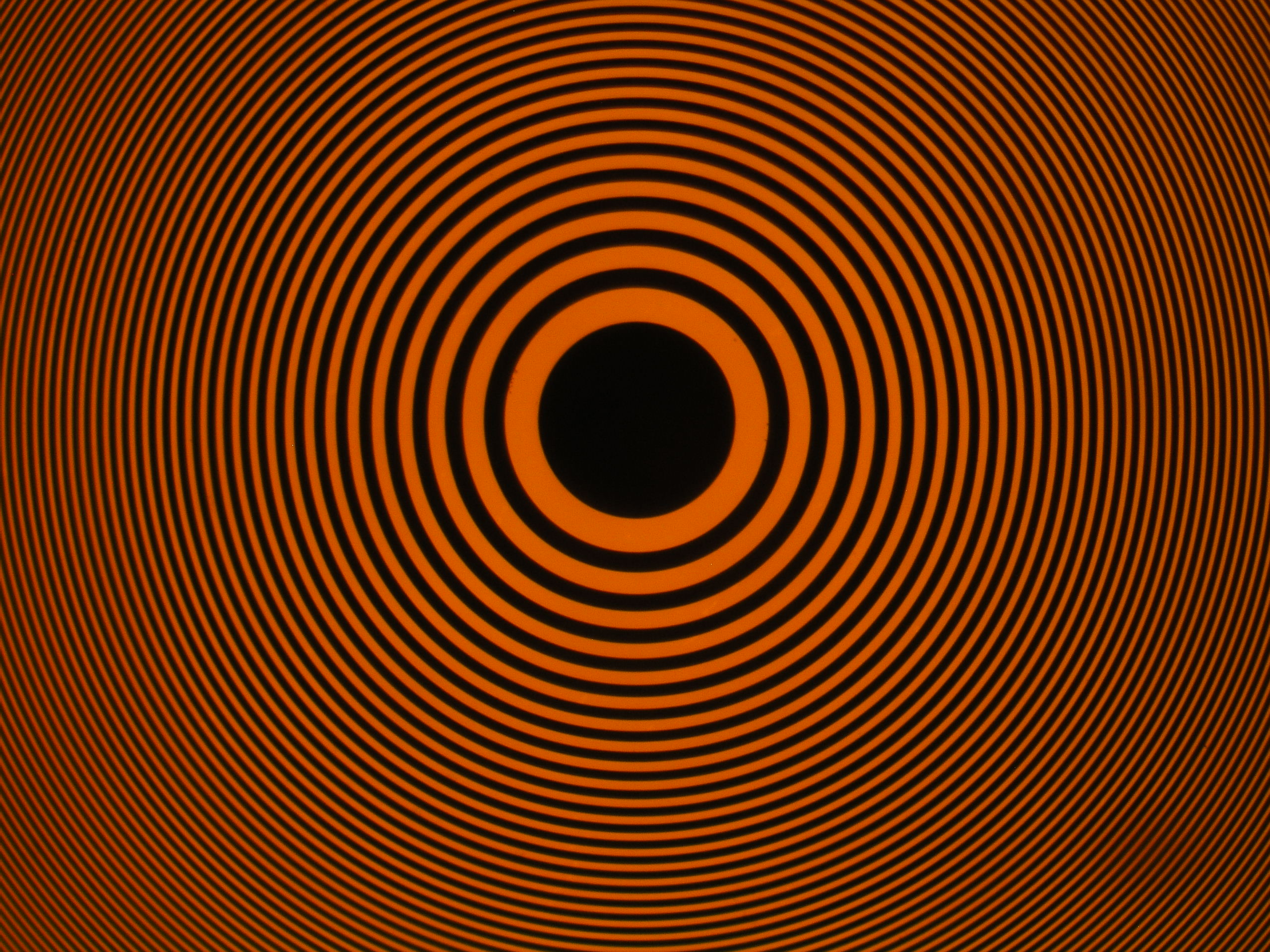

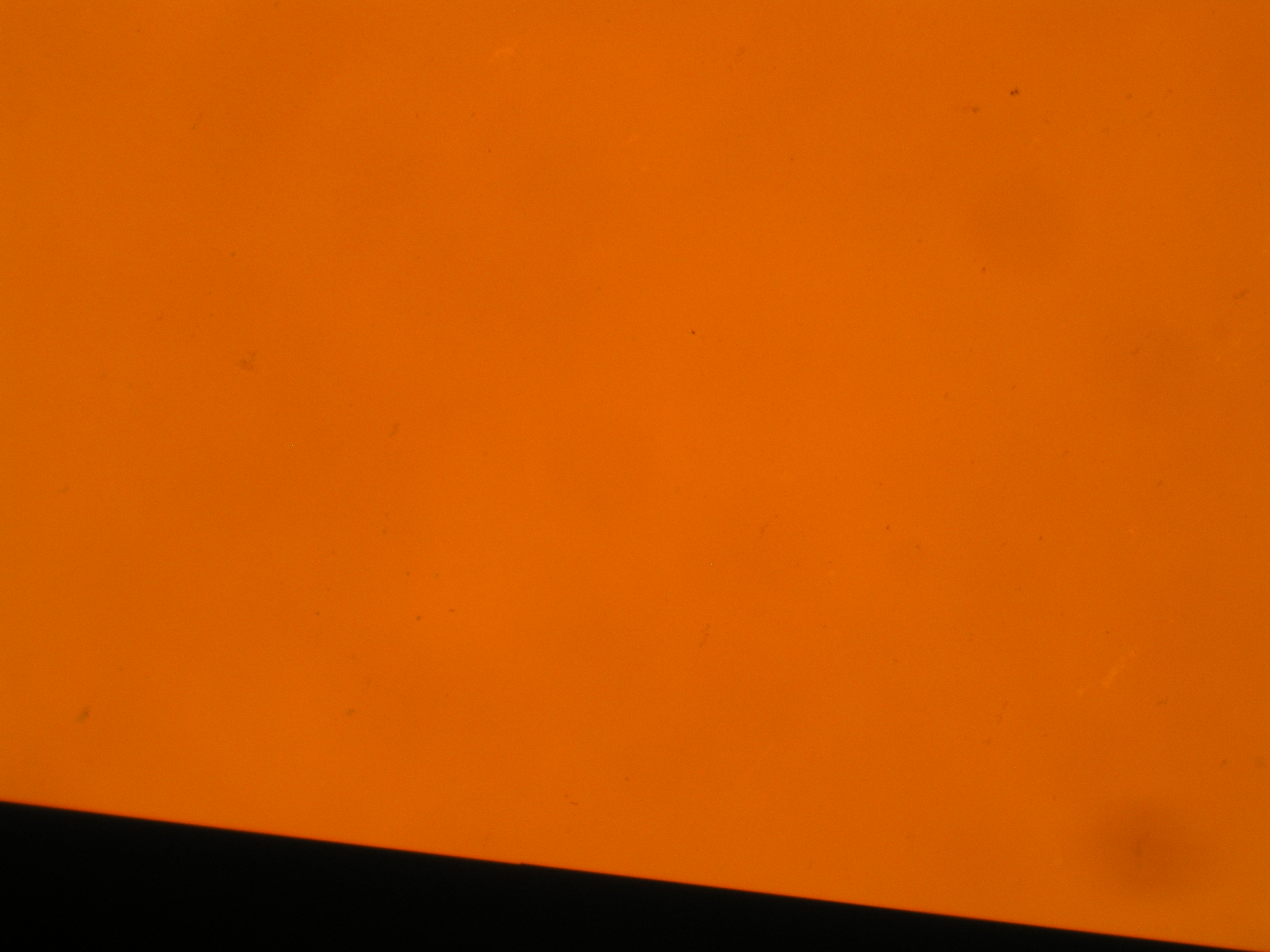

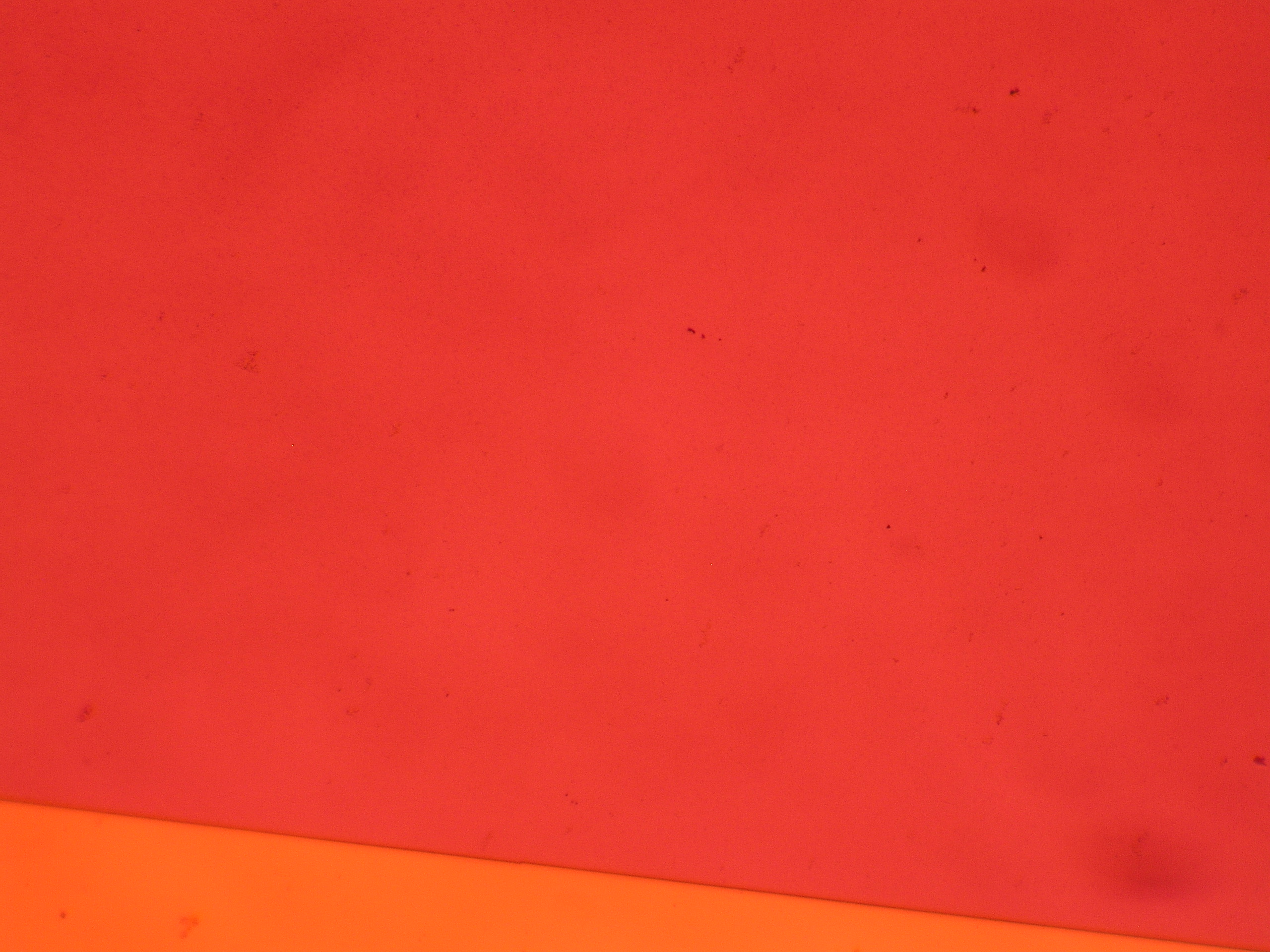

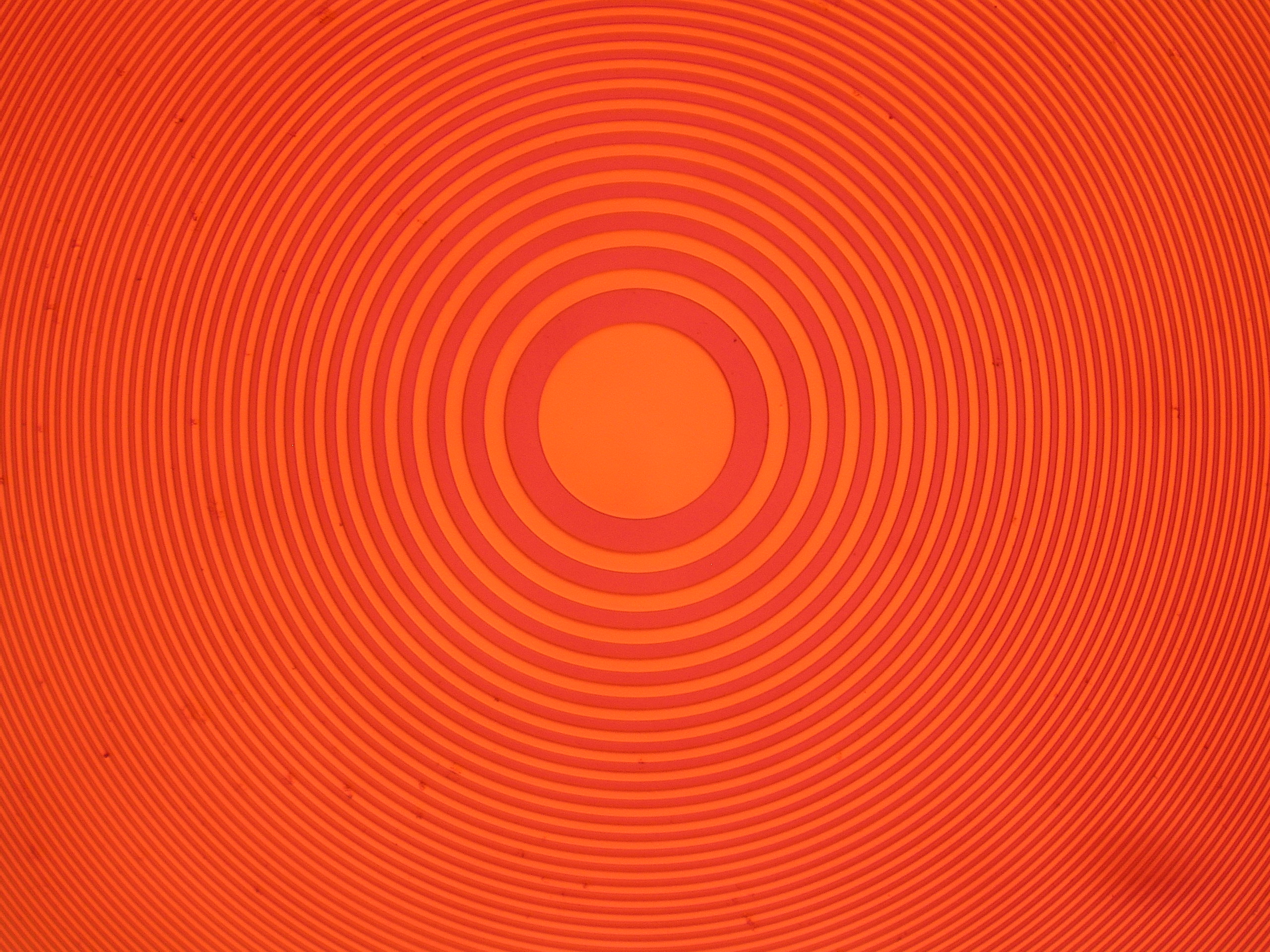

photos taken 2012-06-07, took pictures of optics in stock

photos taken 2013-09-18, at time of re-installing in C-line with 1.1mm mask

NEWCA01
Received: 2013-08-05
pattern: box, old 8 slit CA, new 5 slit CA
gold: 0.60 micron, email delivery report 20130801, spec 0.70 micron email 20130122, tolerance: 680-750 email 20130610
silcon: 2.0 micron, email delivery report 20130801, spec 2.5 micron email 20130122, verified spec thickness email 20130218
current location: installed in C-line (HE location)

history:
2013-08-07 noted "no holes in gold"
2013-09-18 installed in C-line (high energy location)

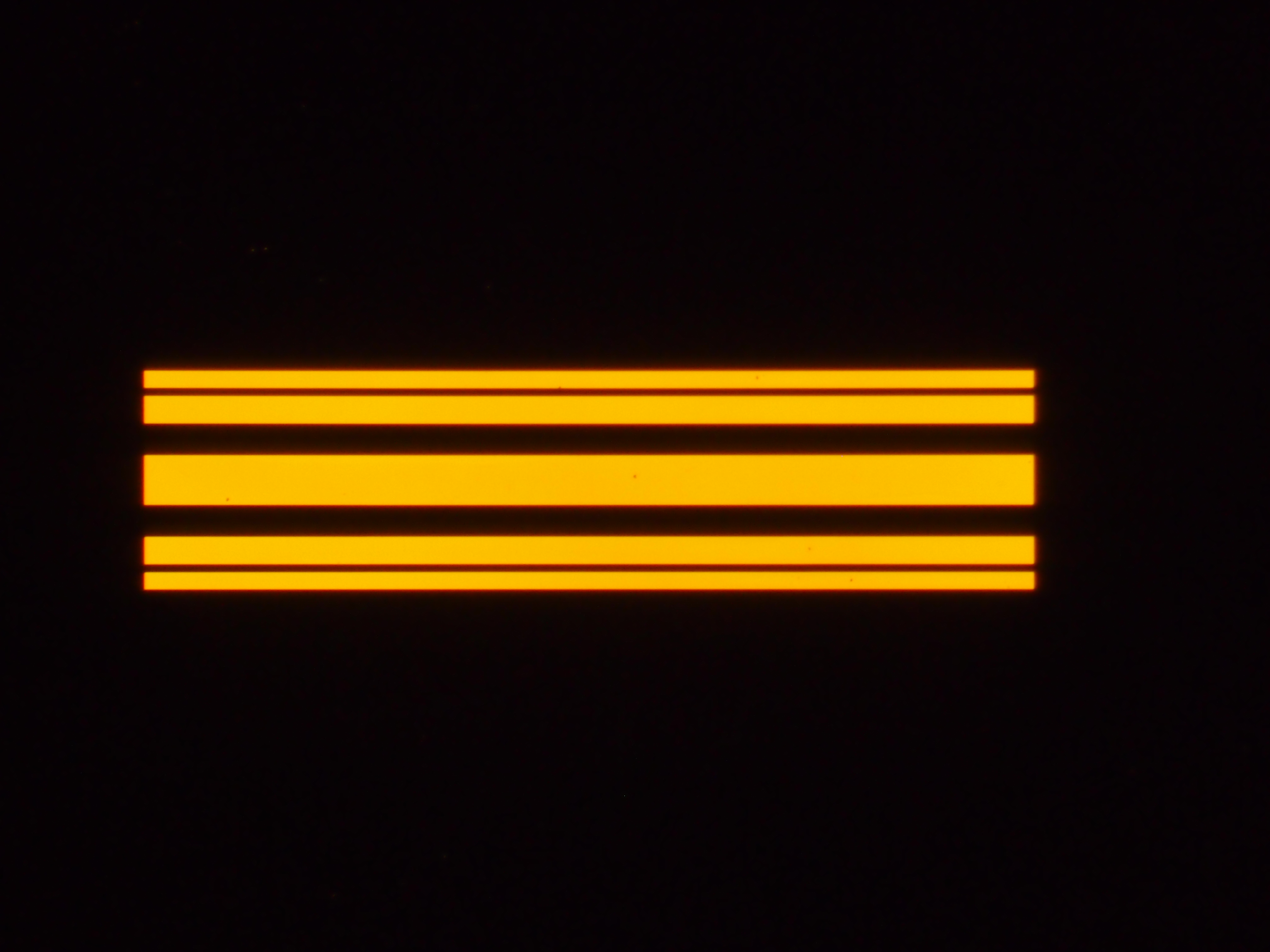

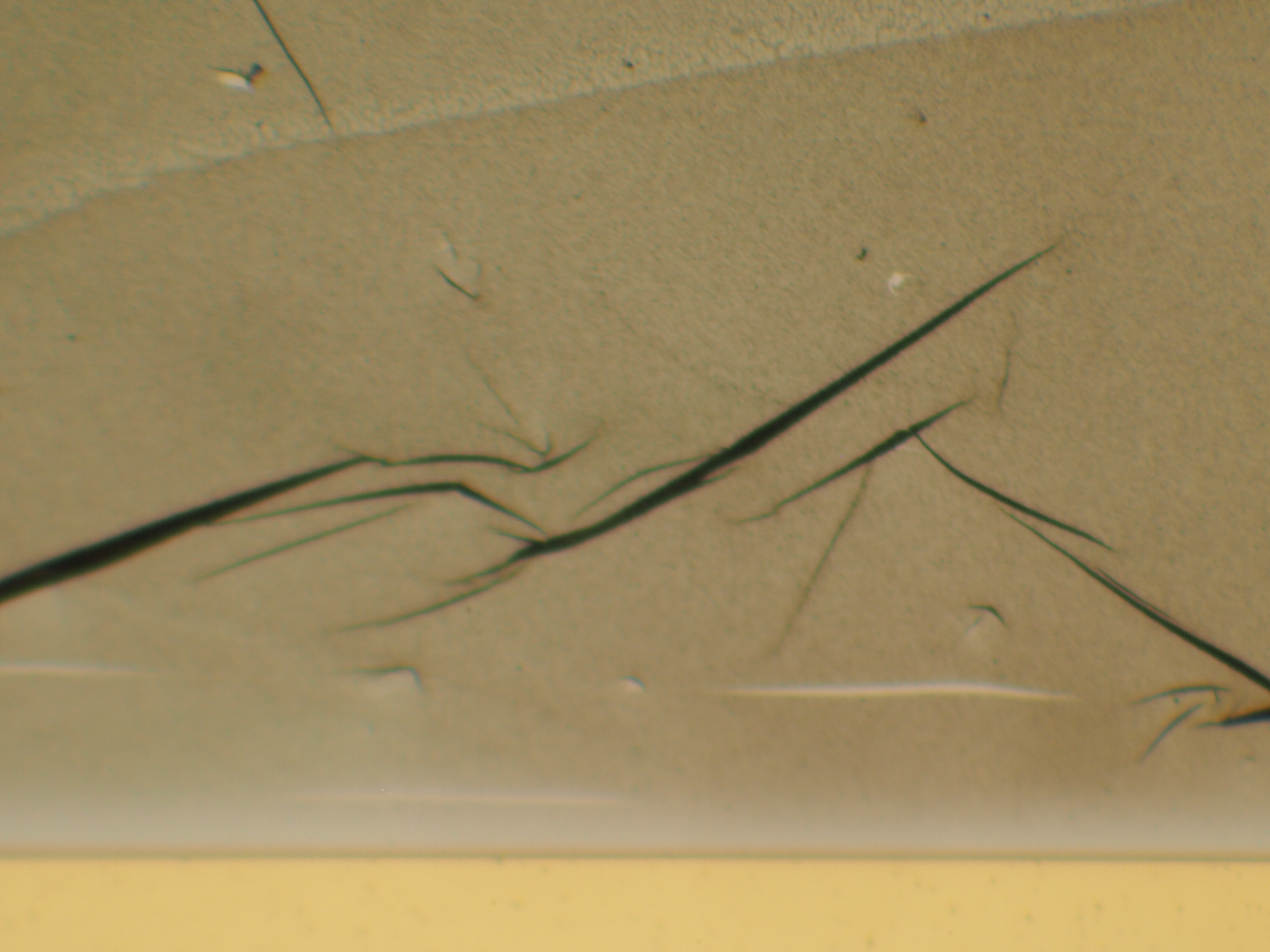

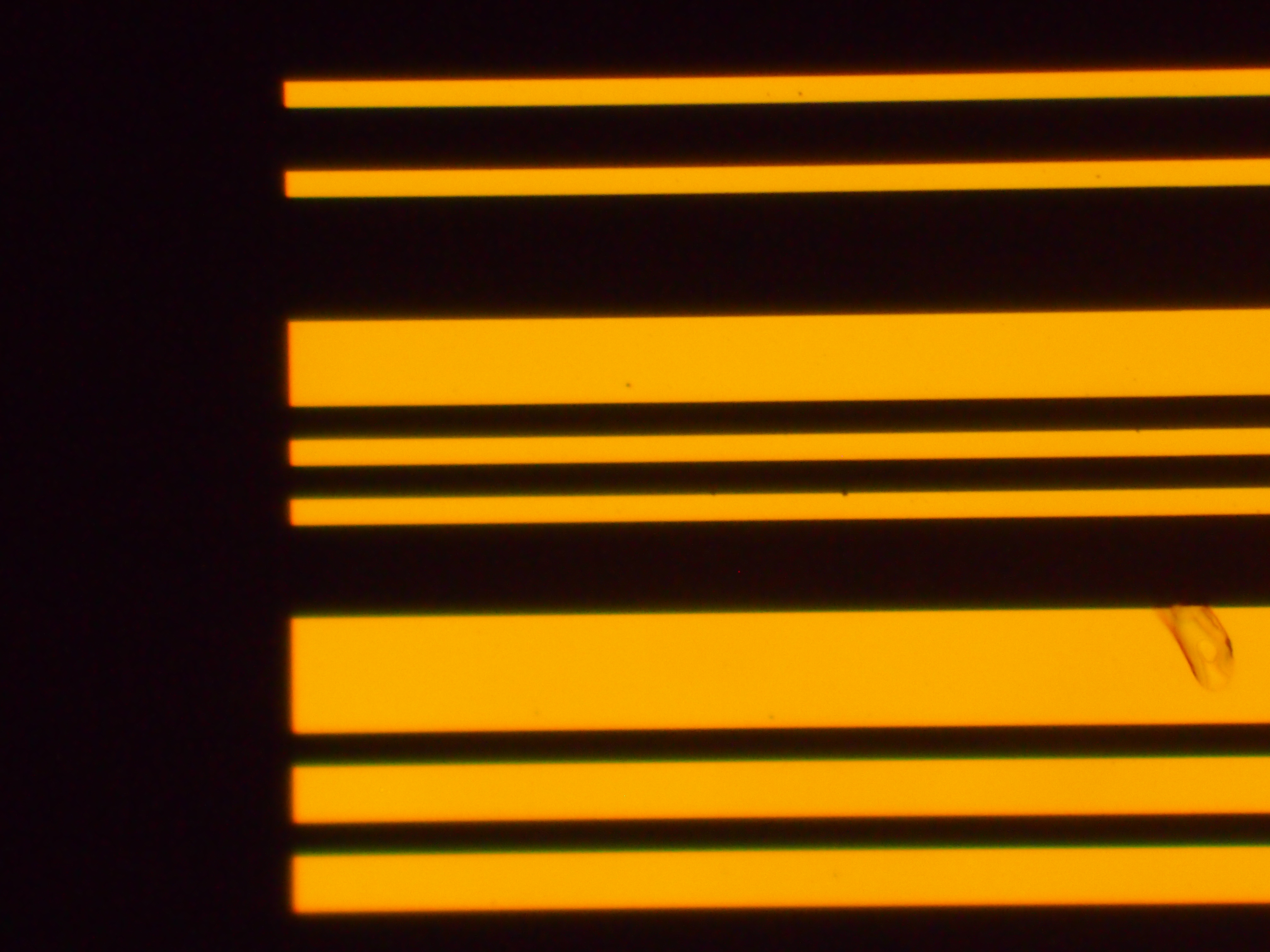

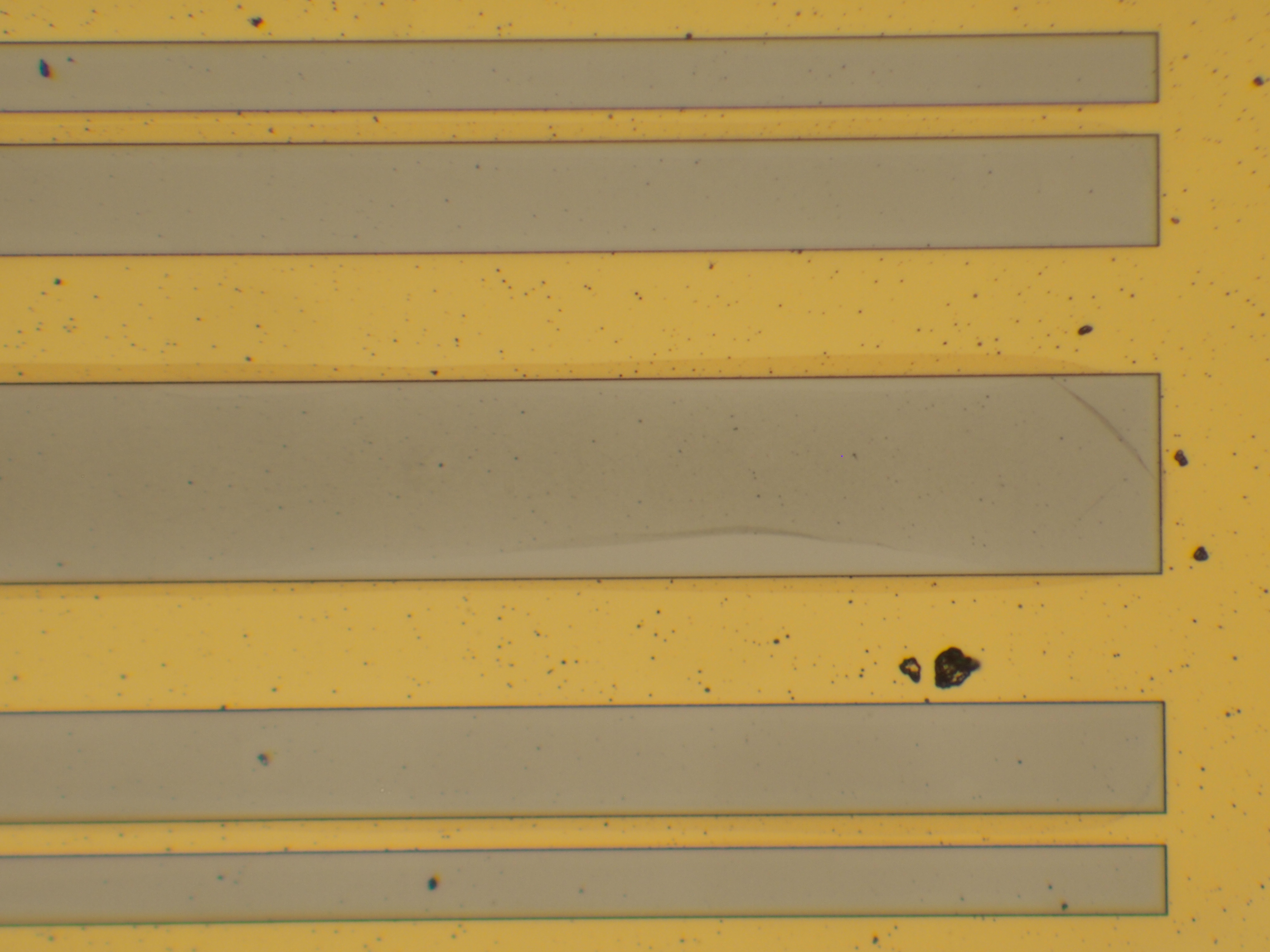

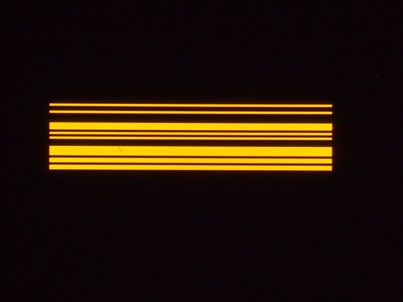

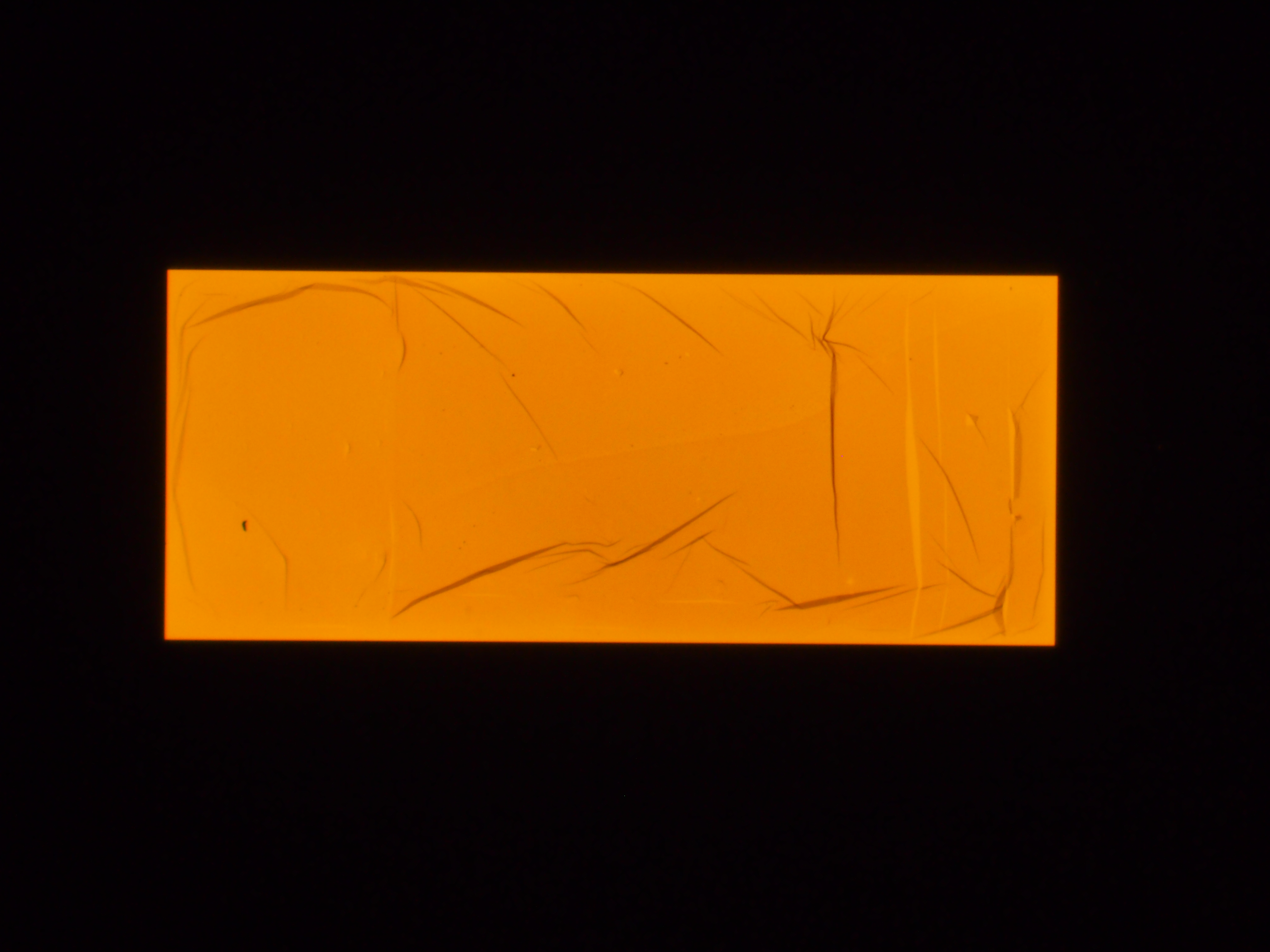

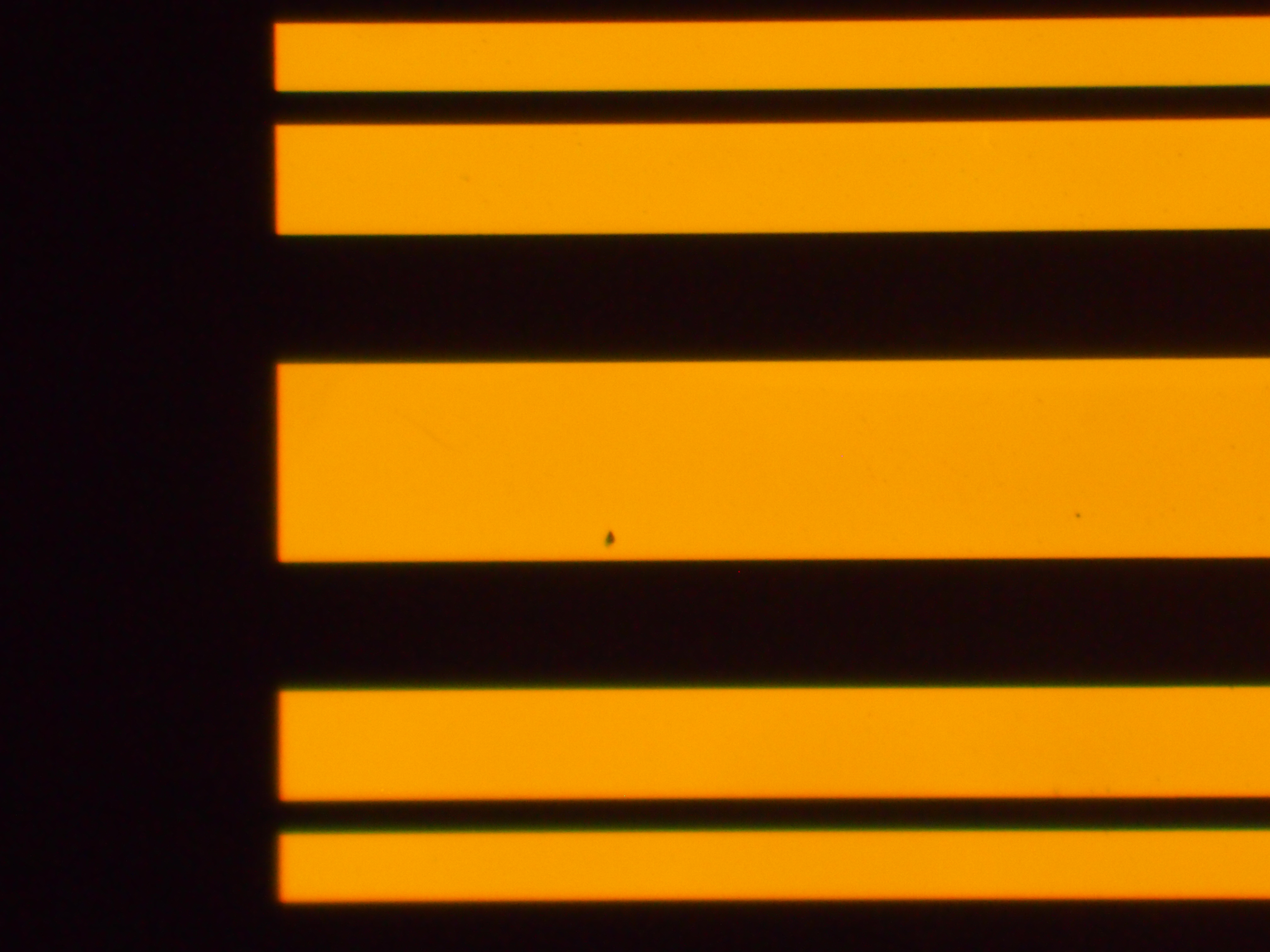

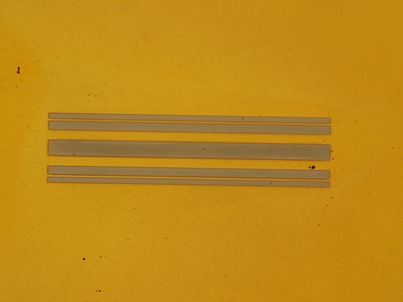

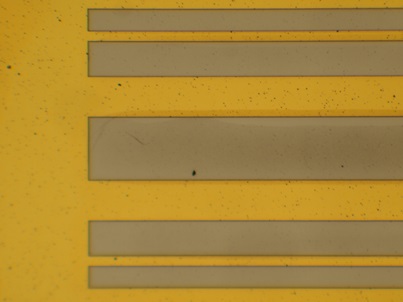

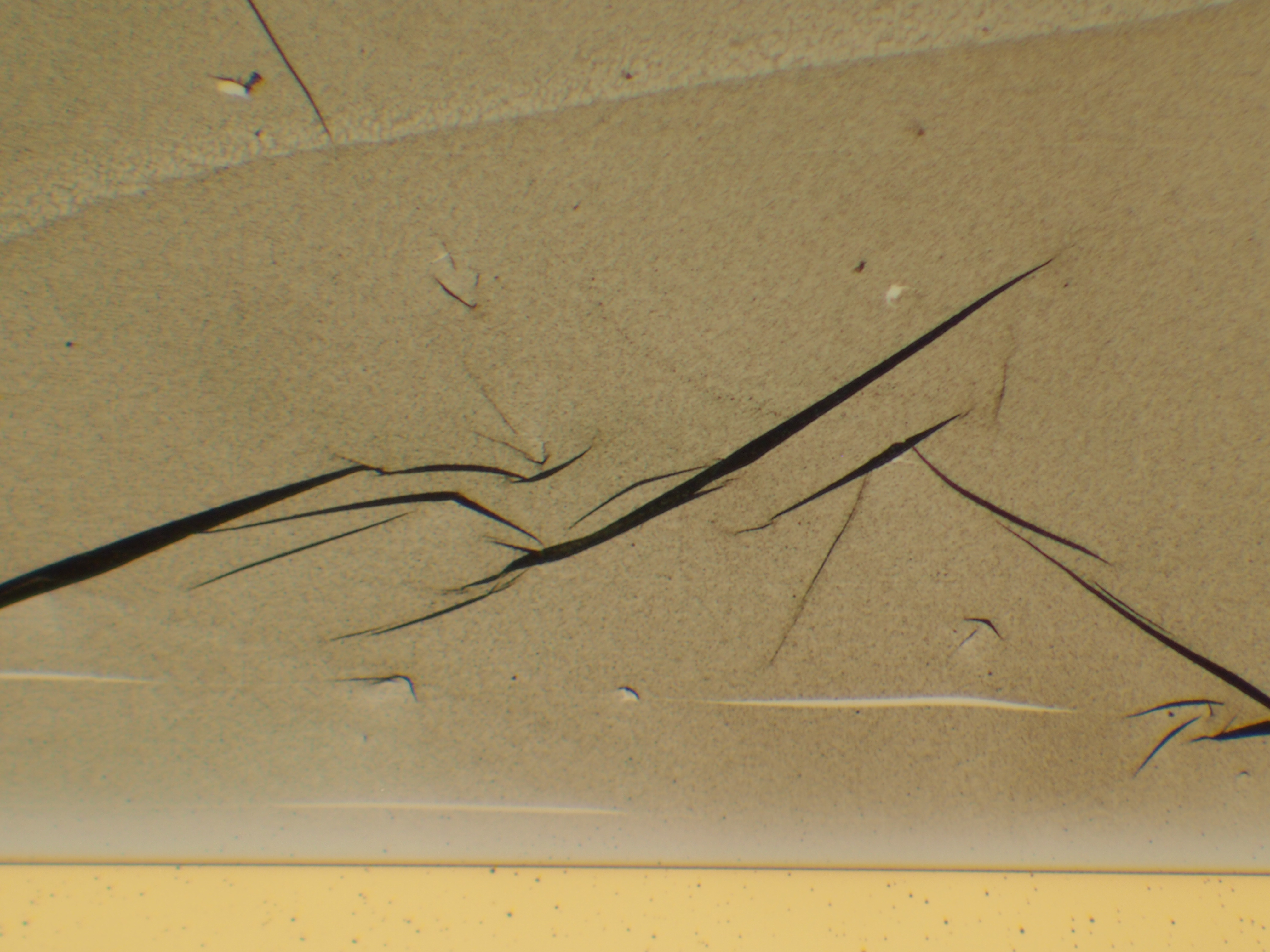

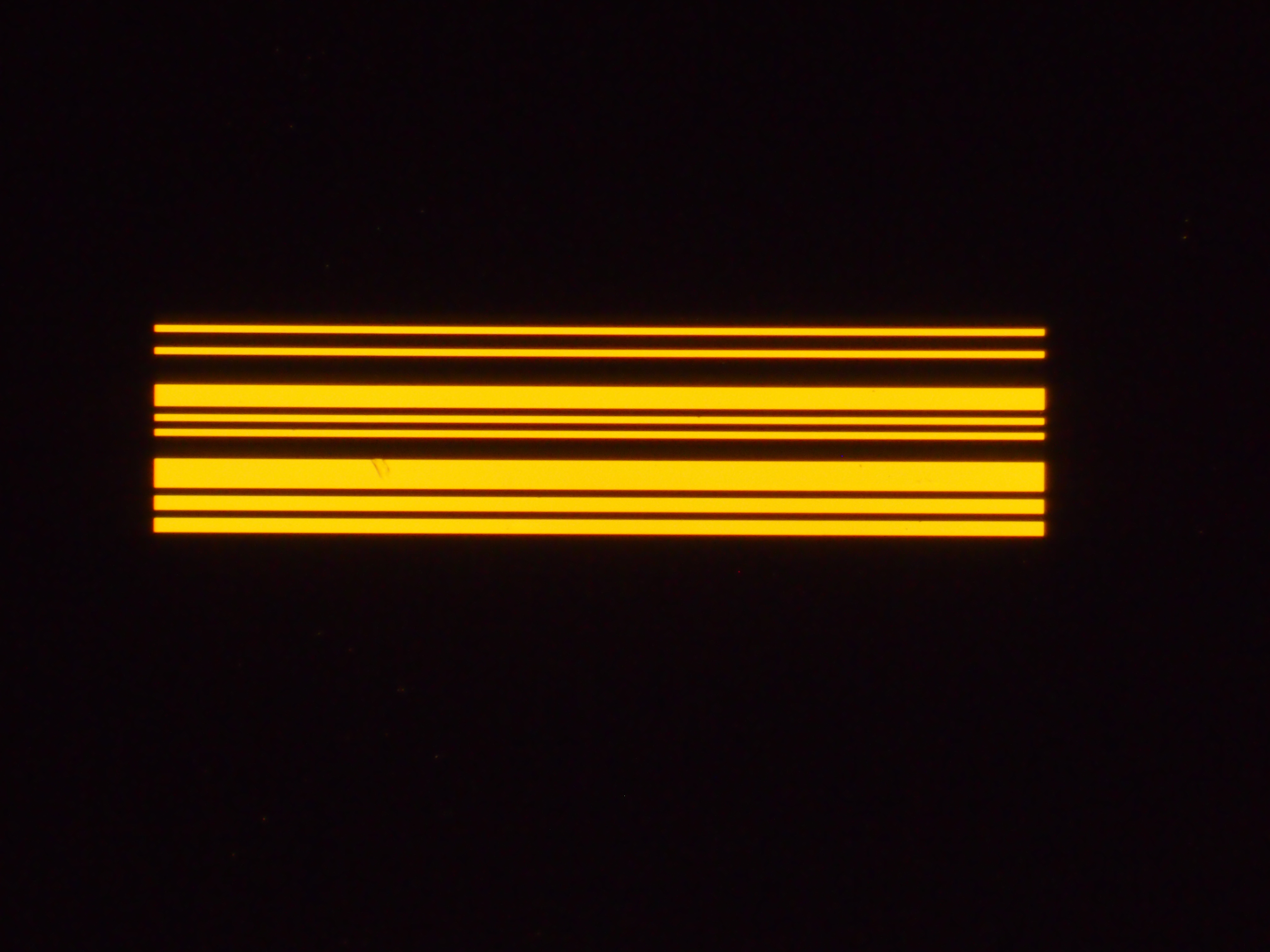

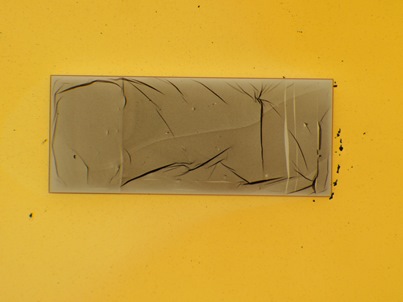

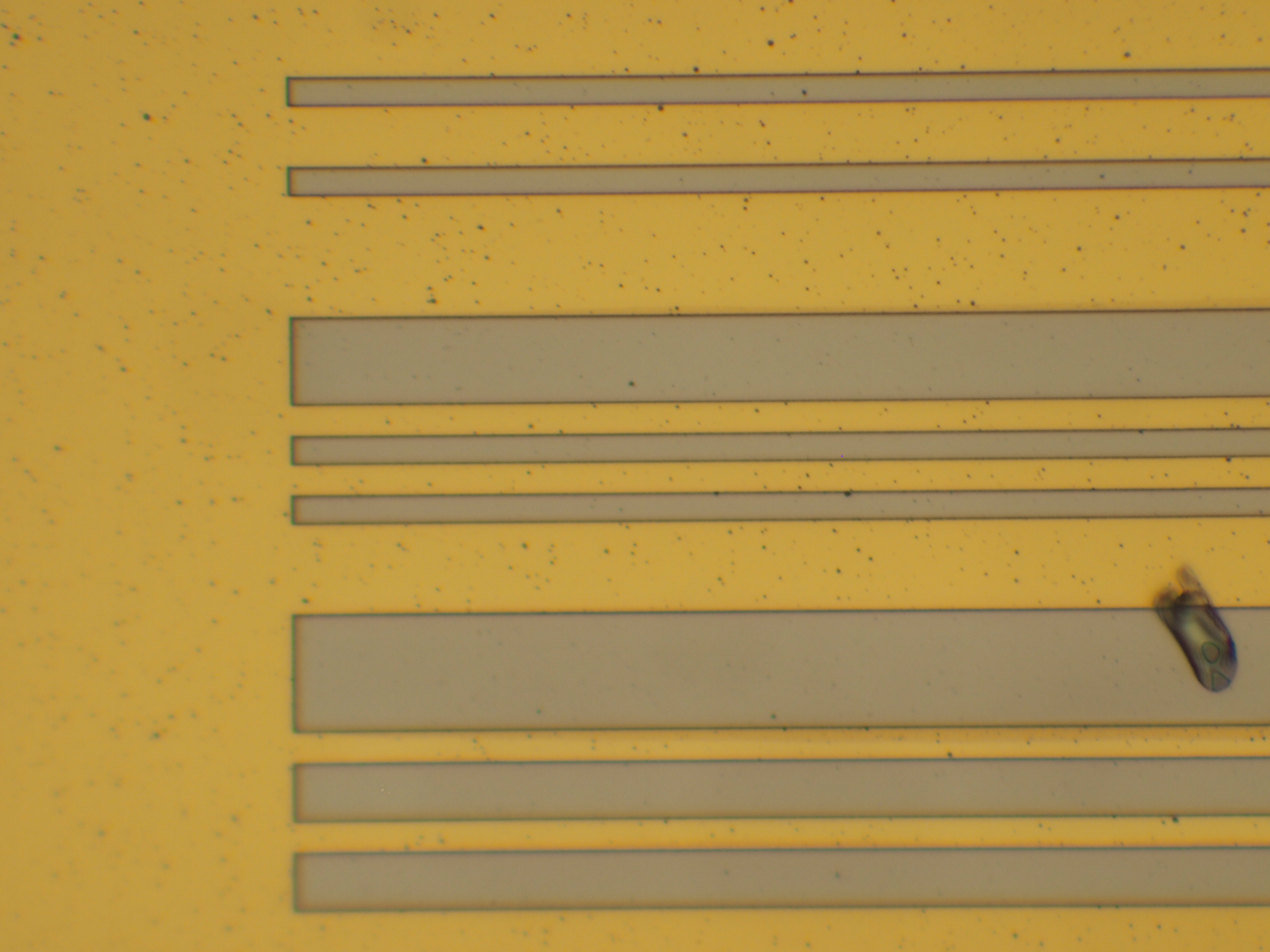

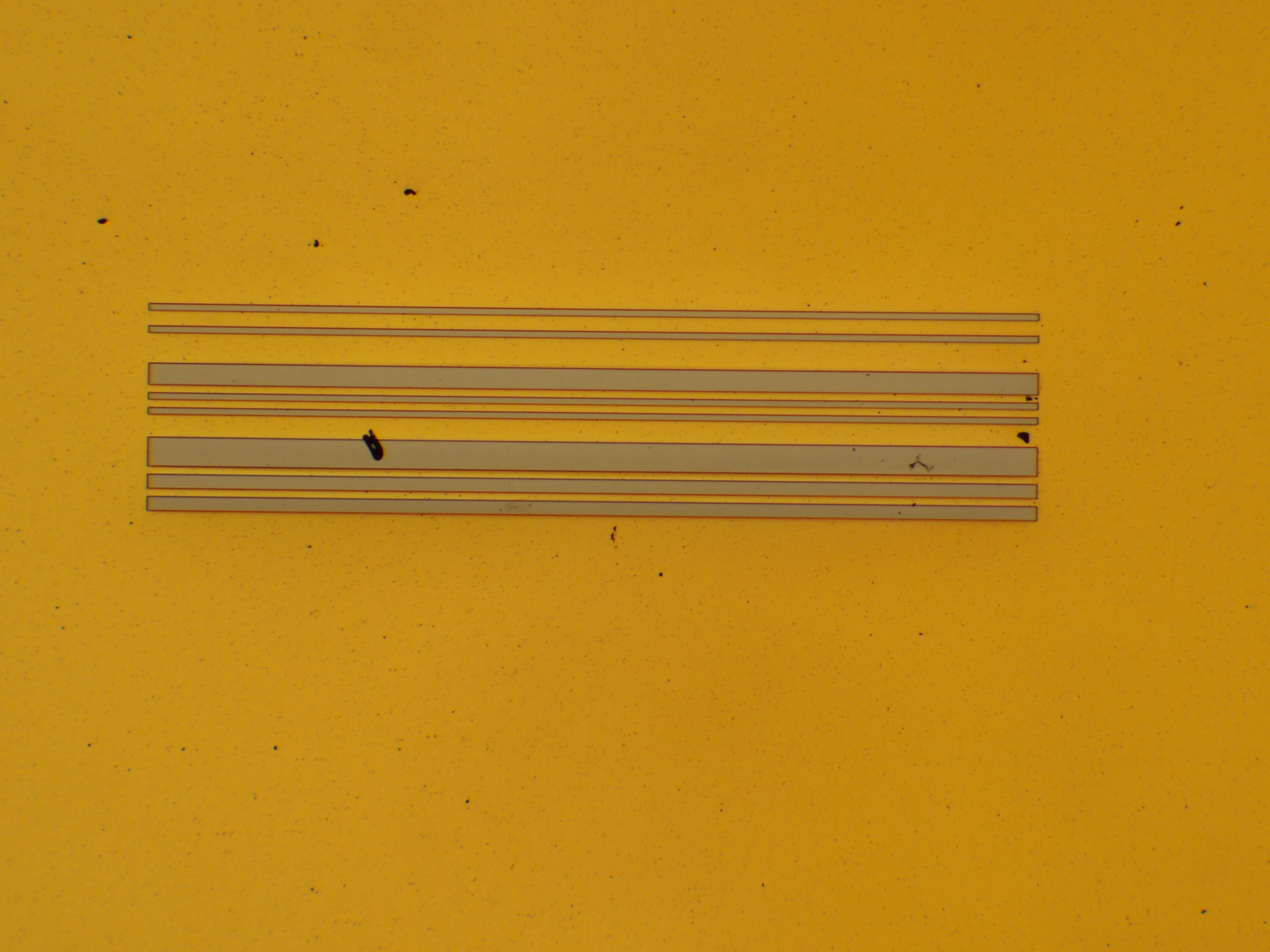

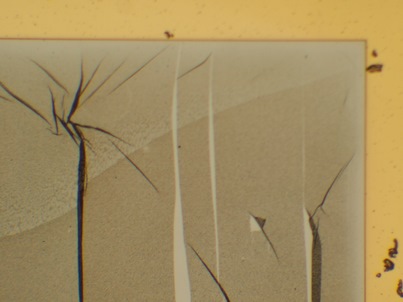

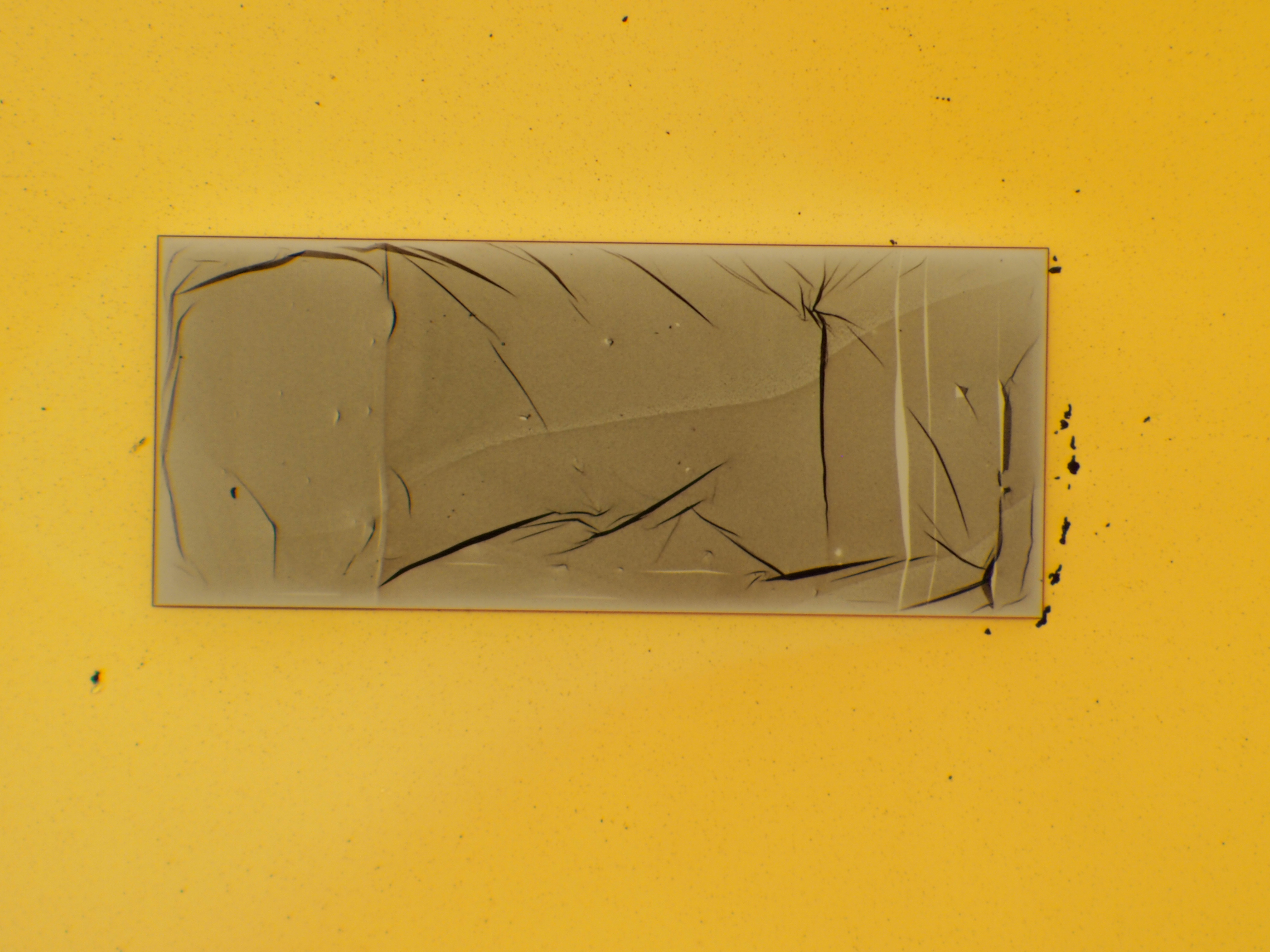

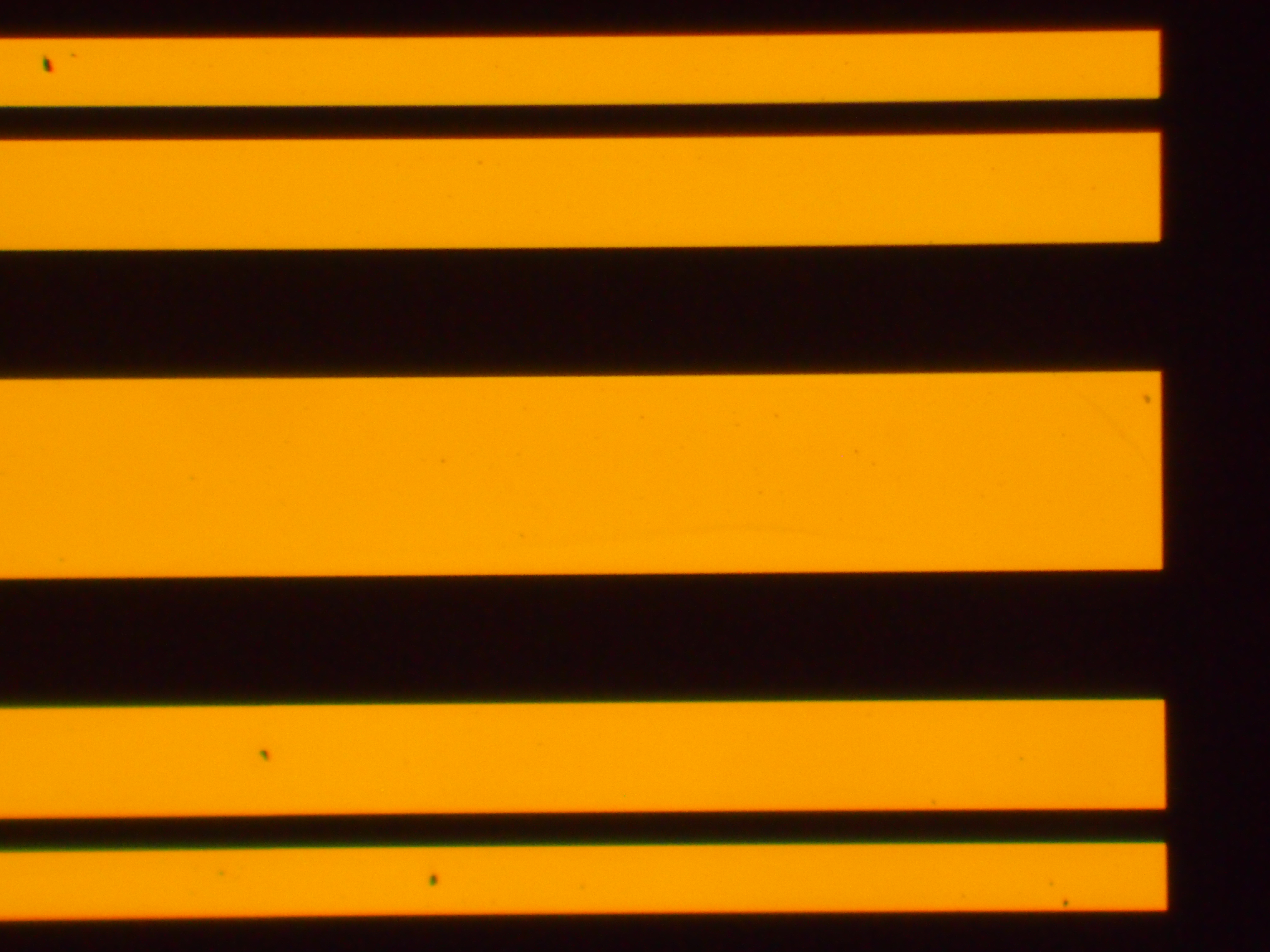

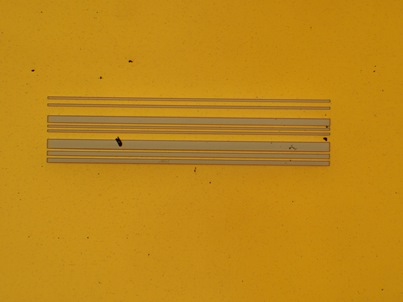

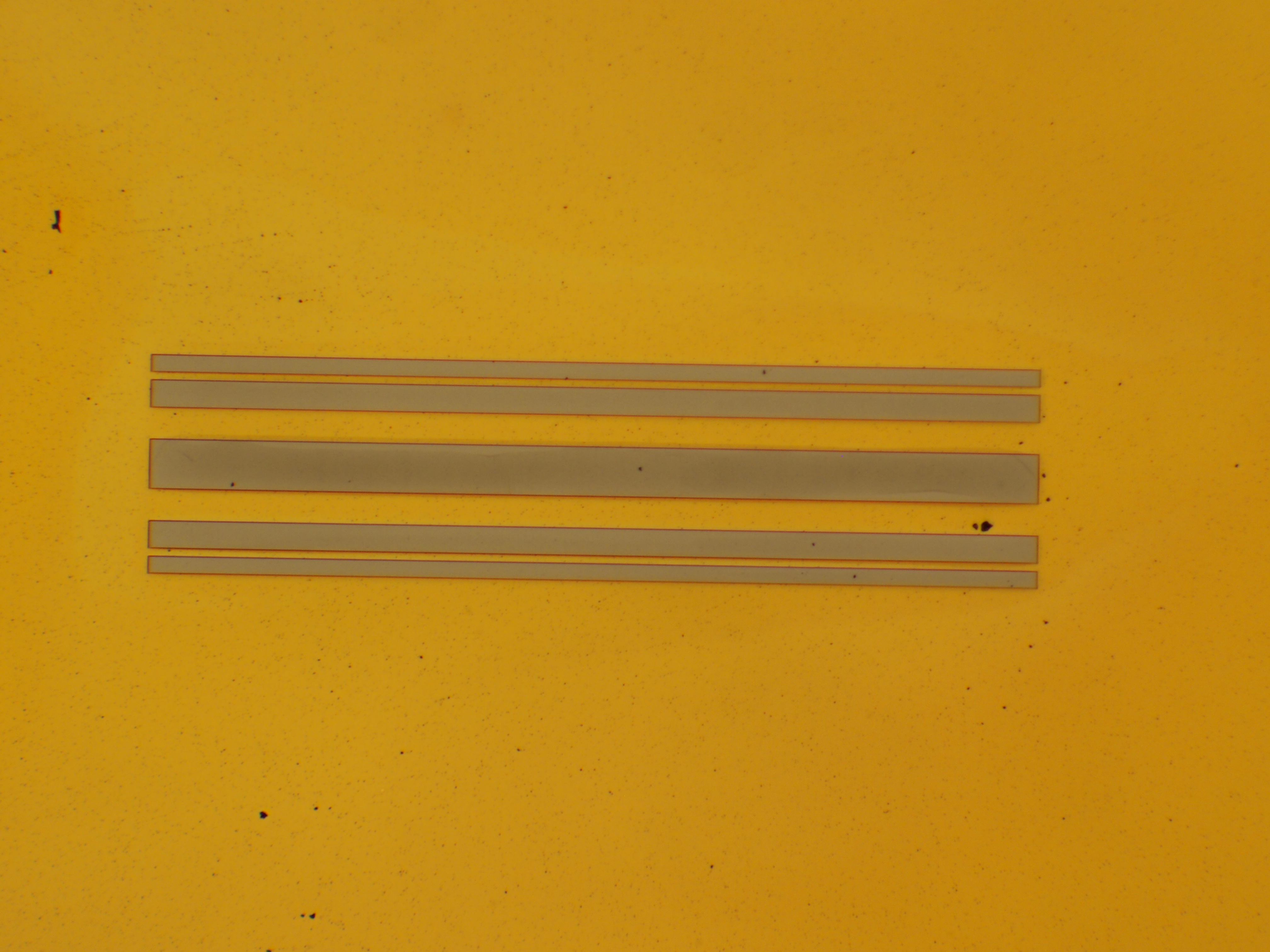

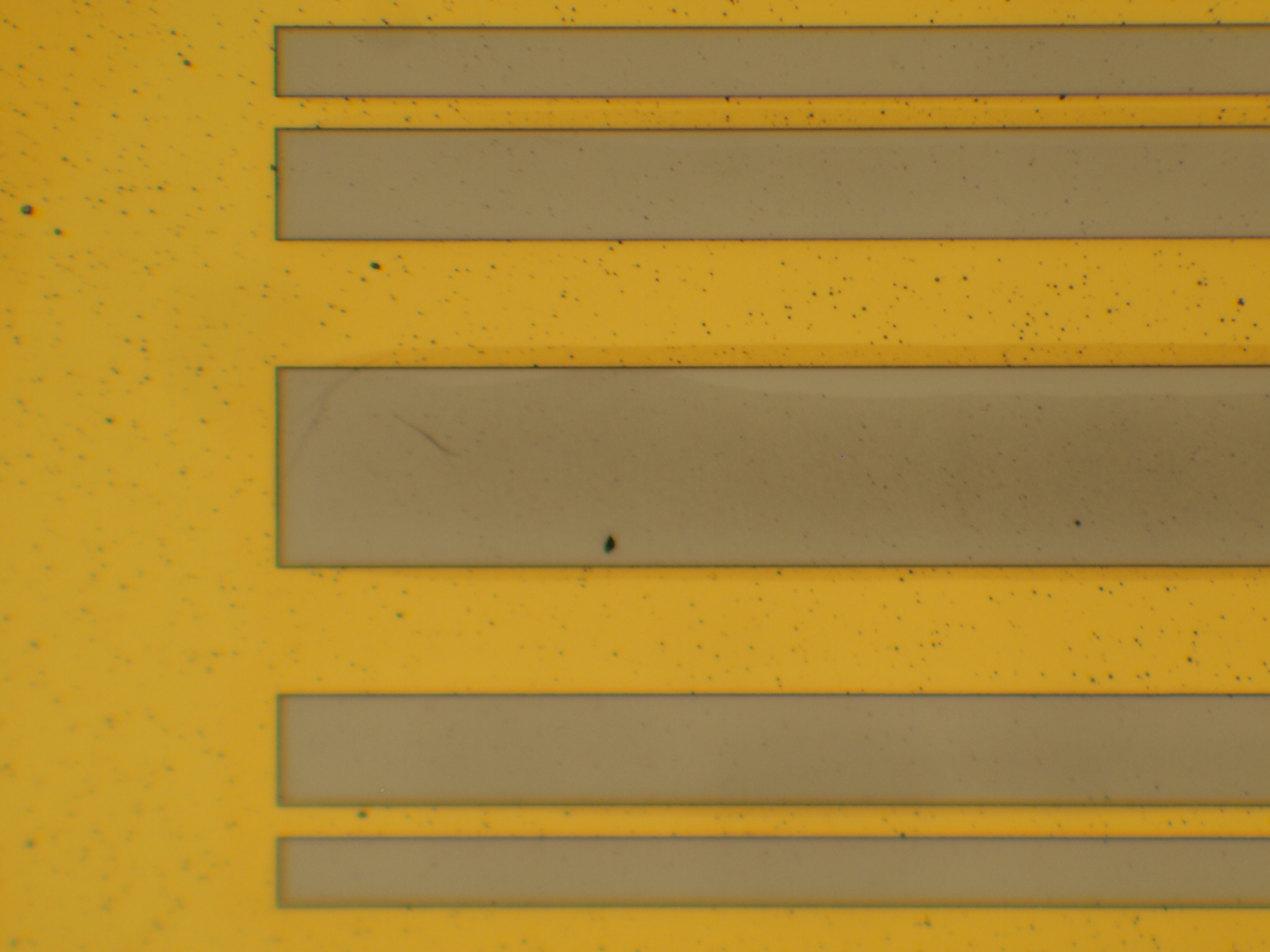

photos taken 2013-08-07
box, height 500 microns, width 1200 microns

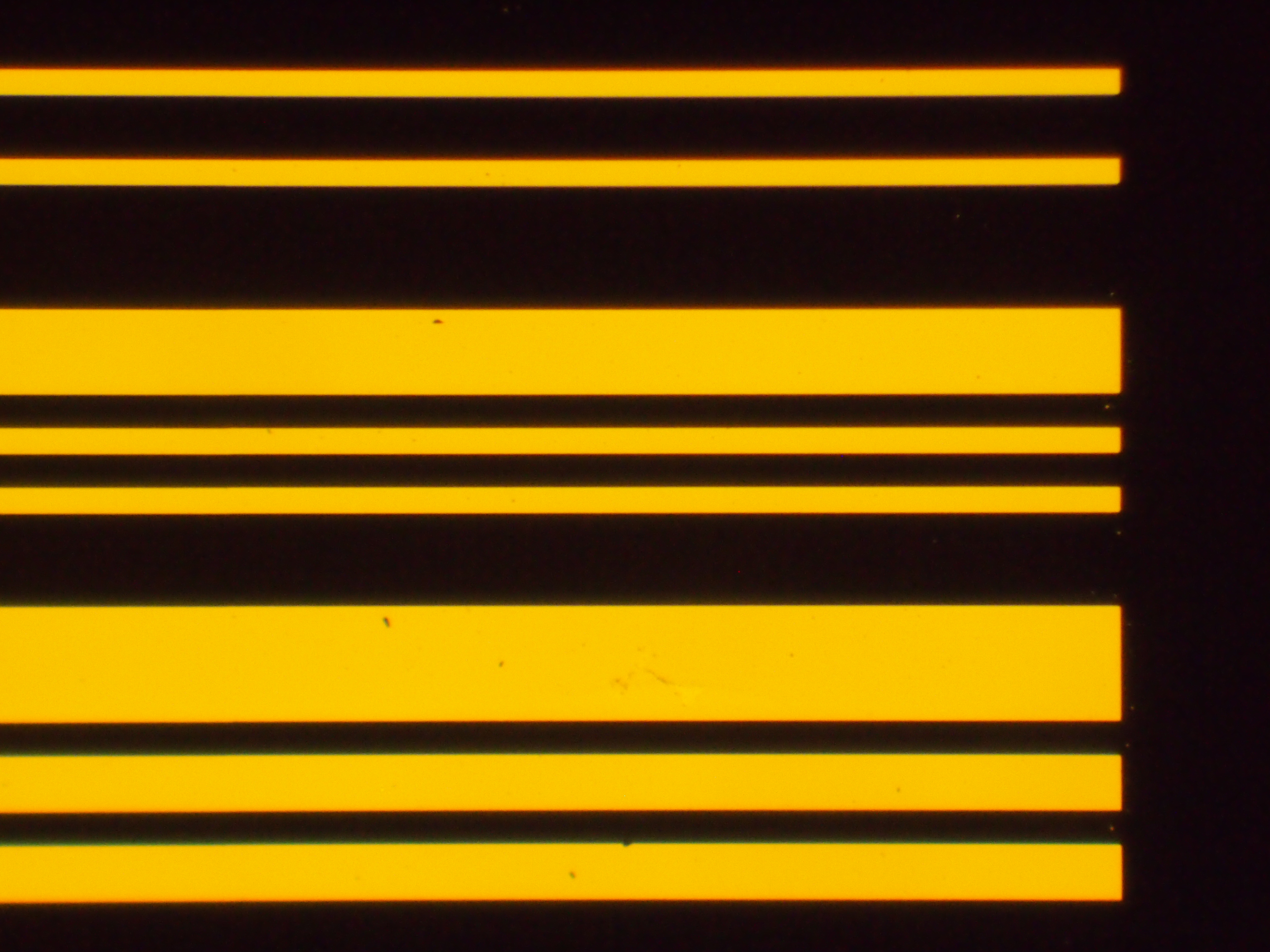

old 8 slit CA, total span of openings: 280 microns, width 1200 microns

new 5 slit CA, total span of openings: 296 microns, width 1200 microns

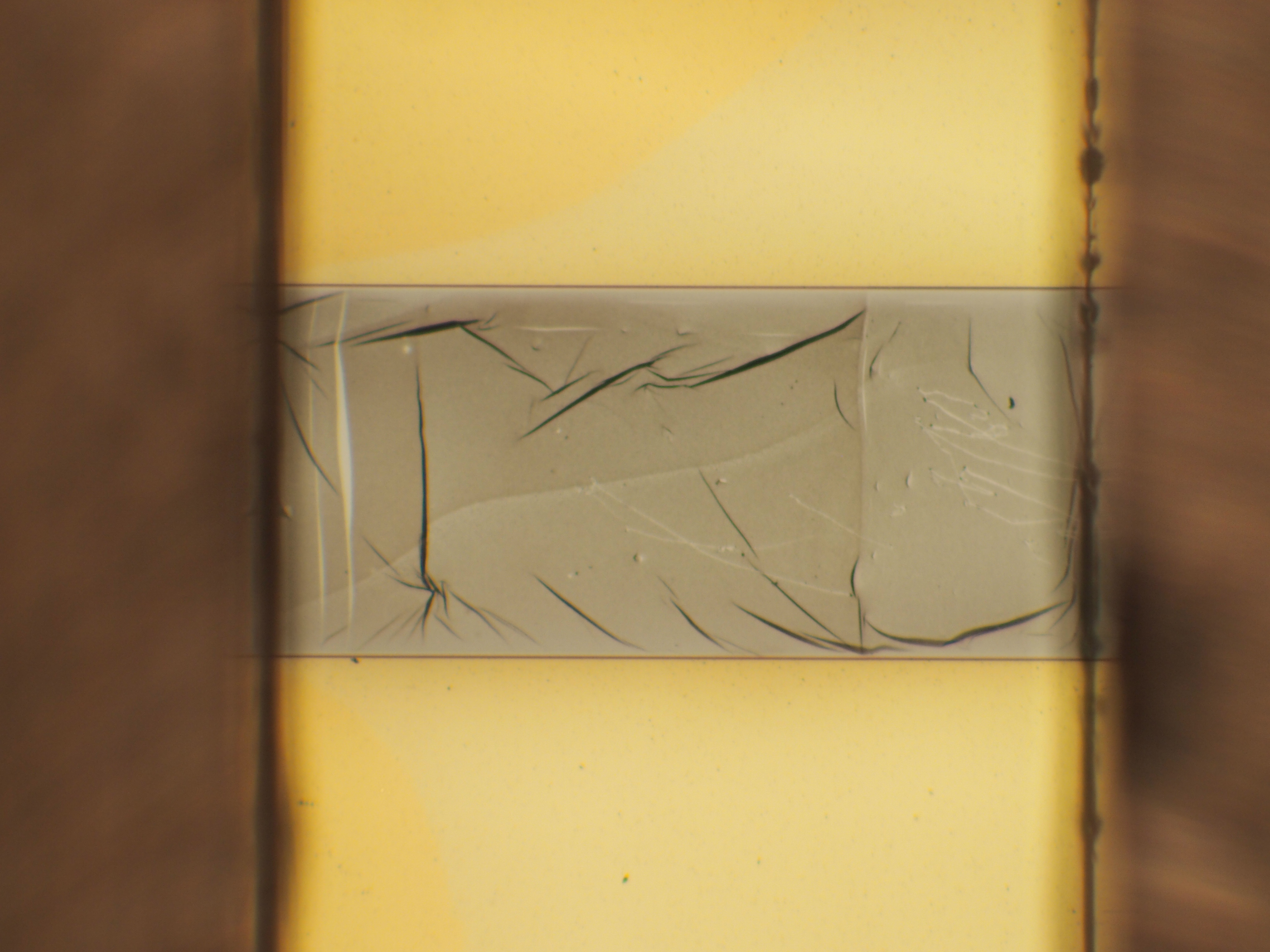

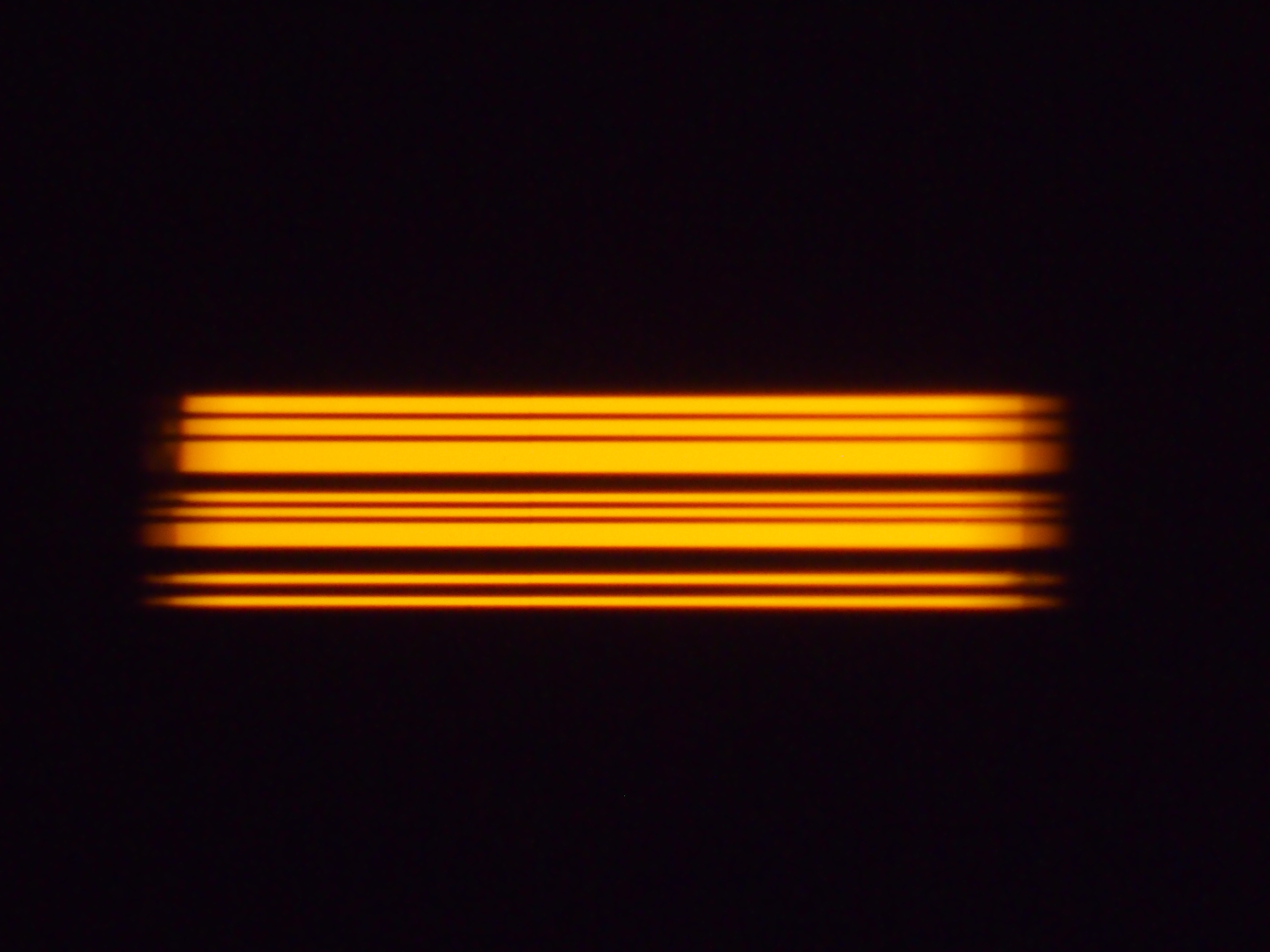

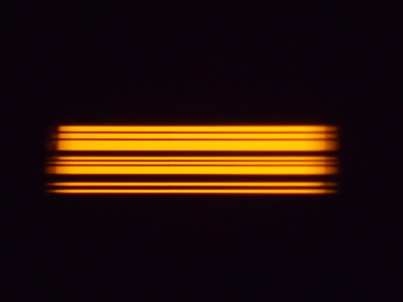

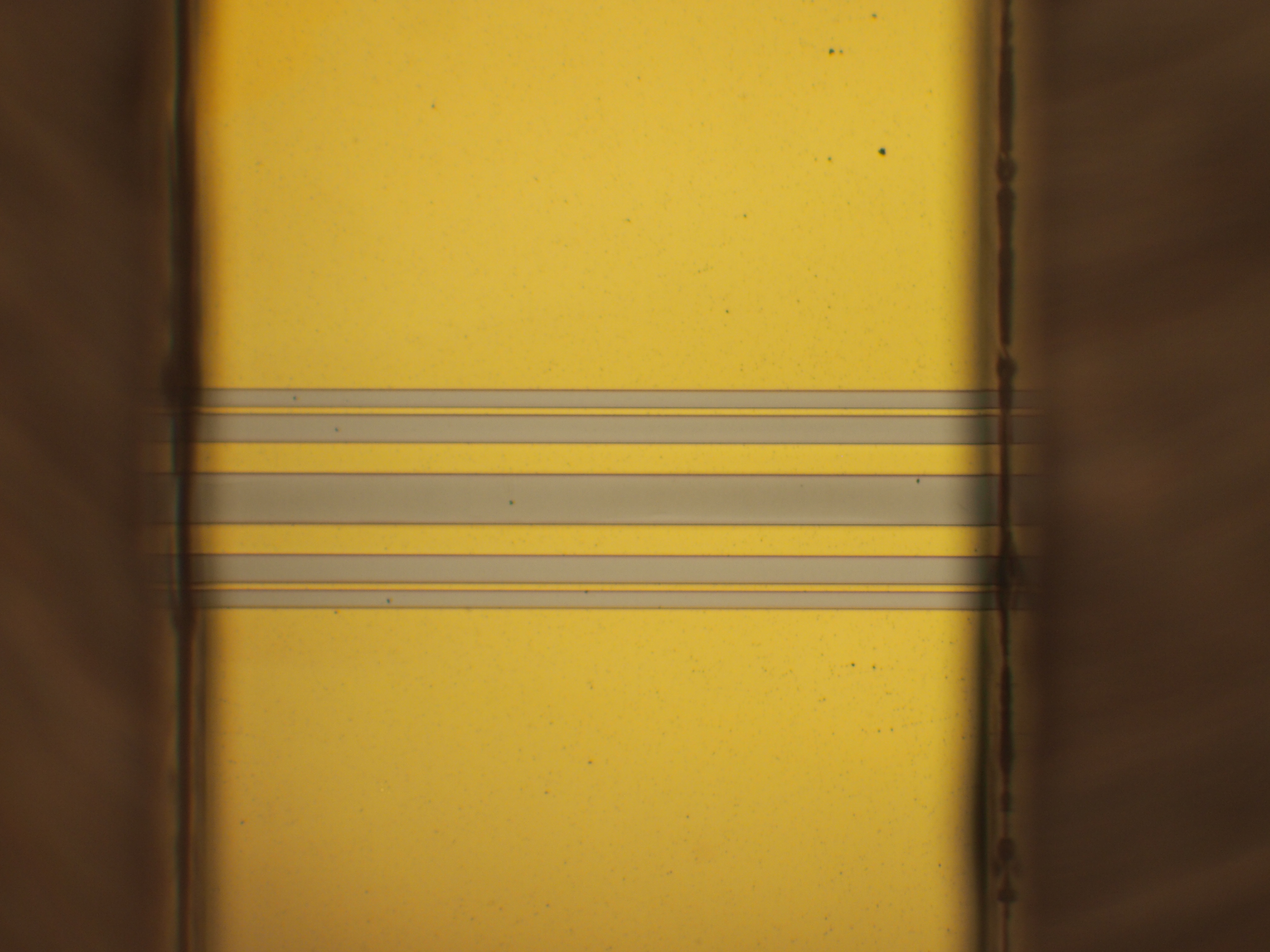

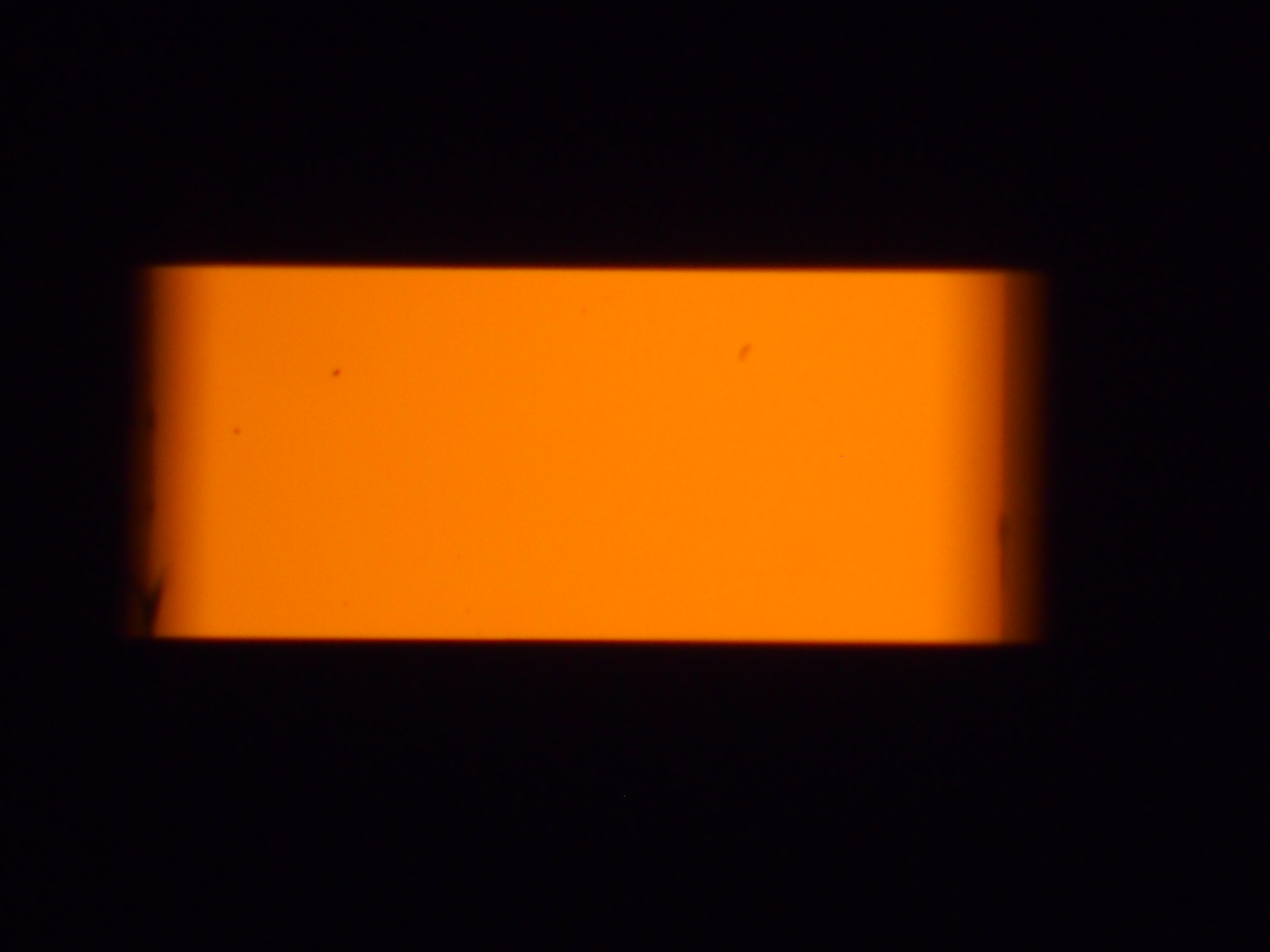

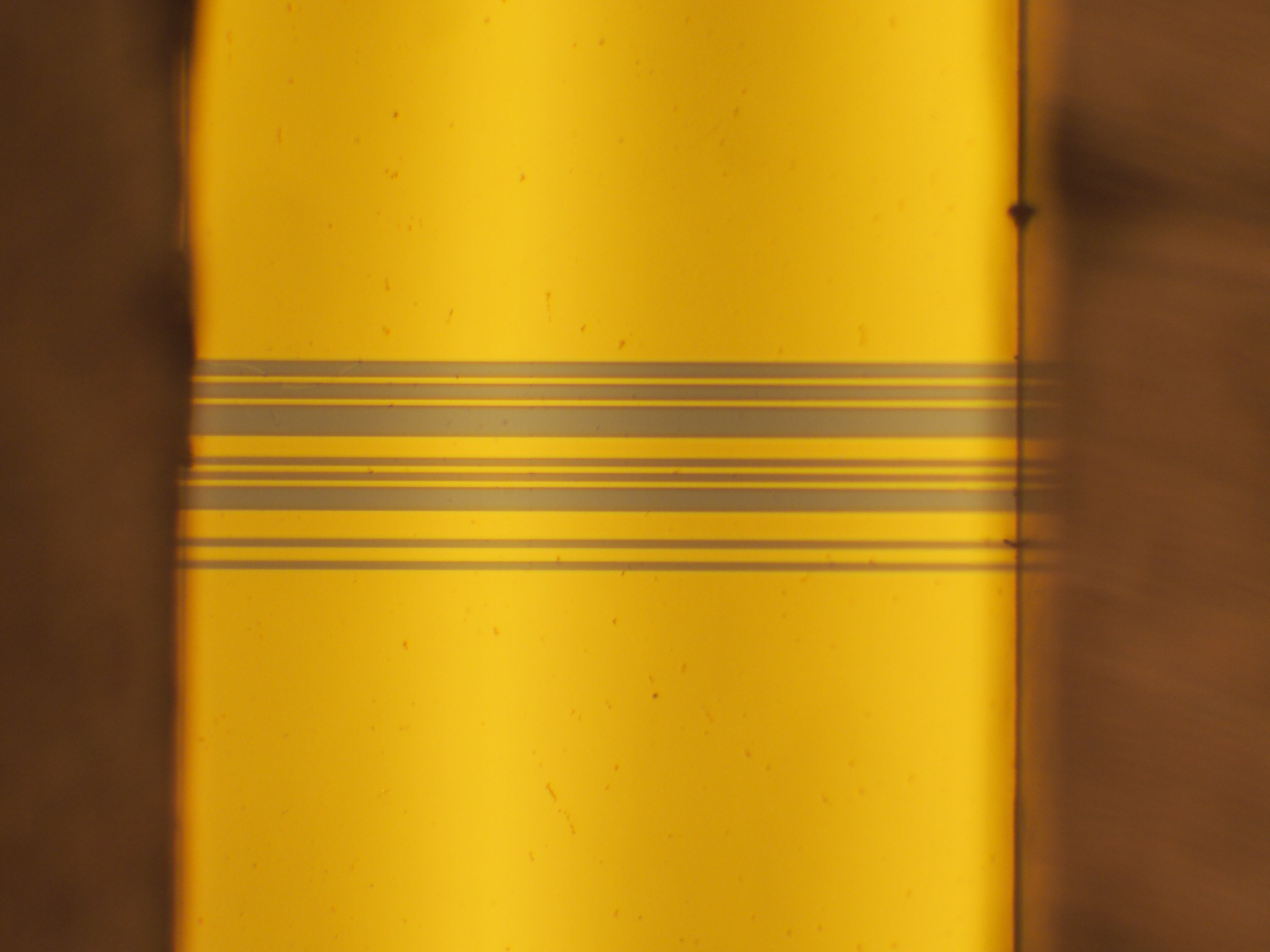

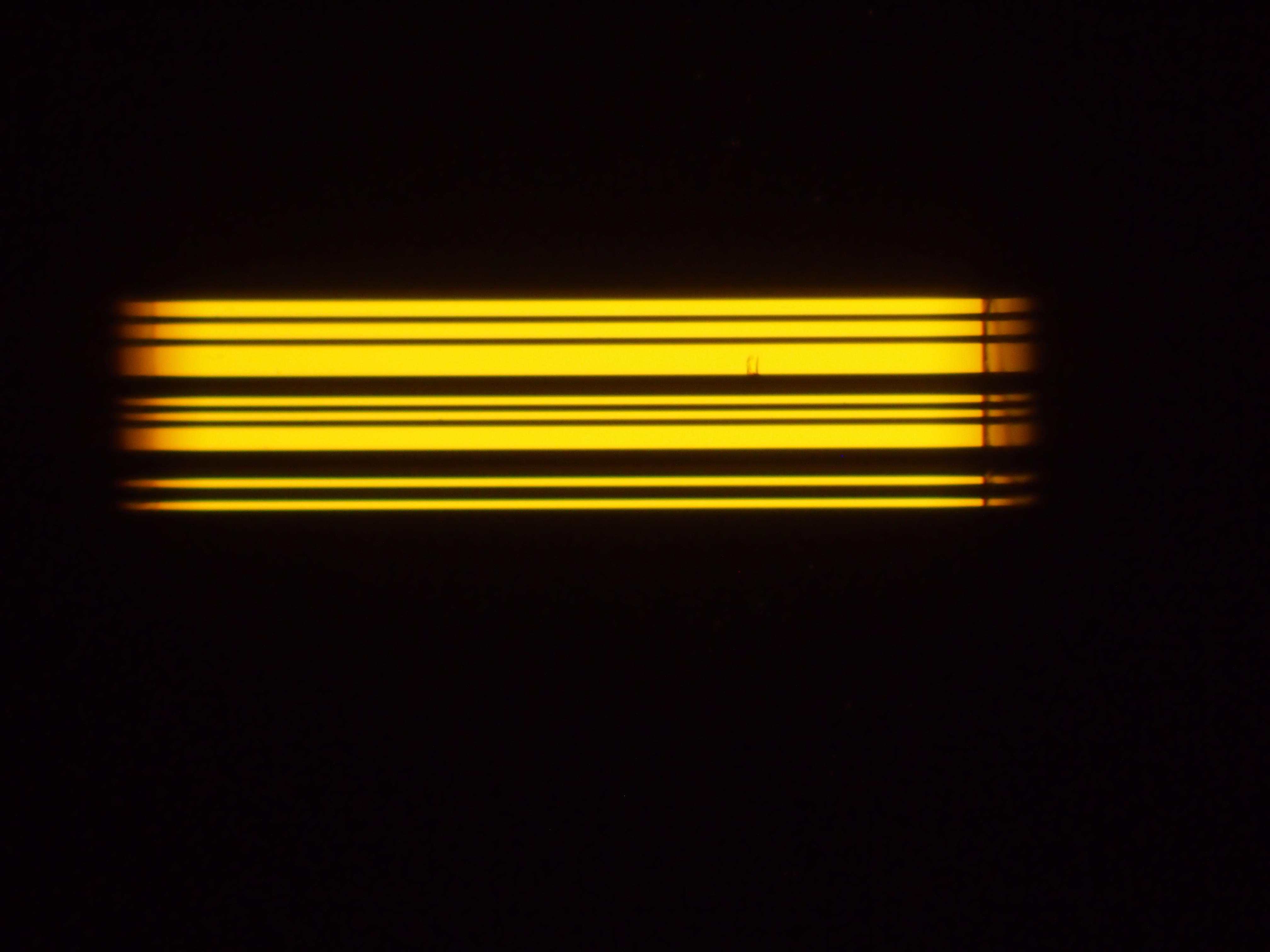

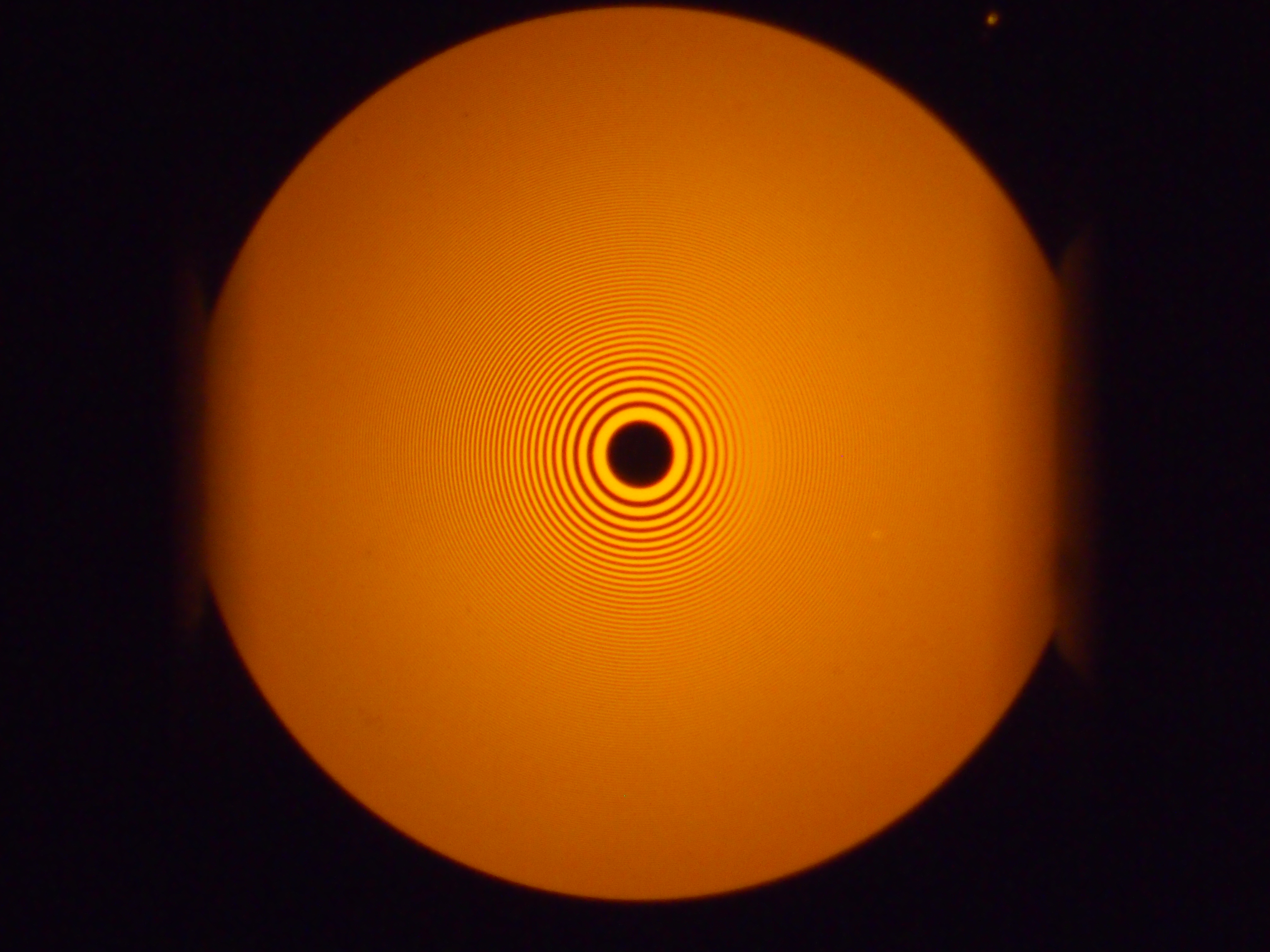

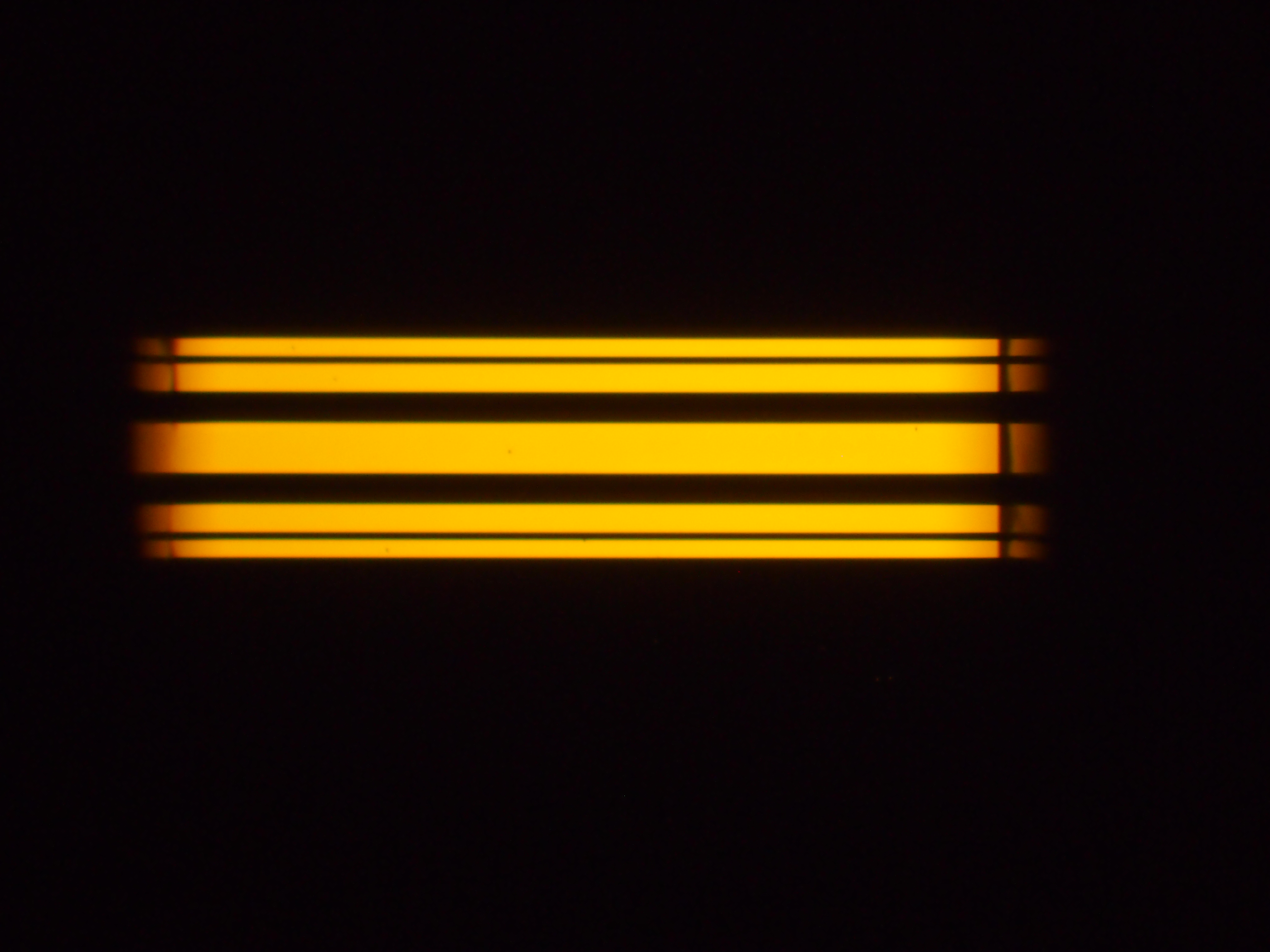

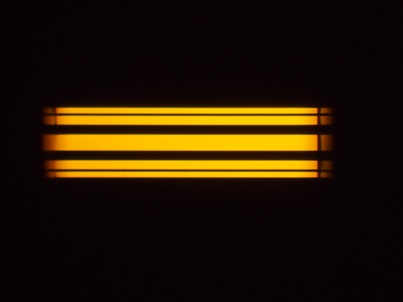

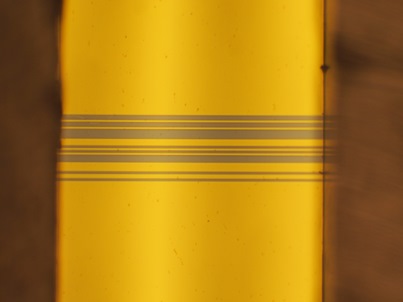

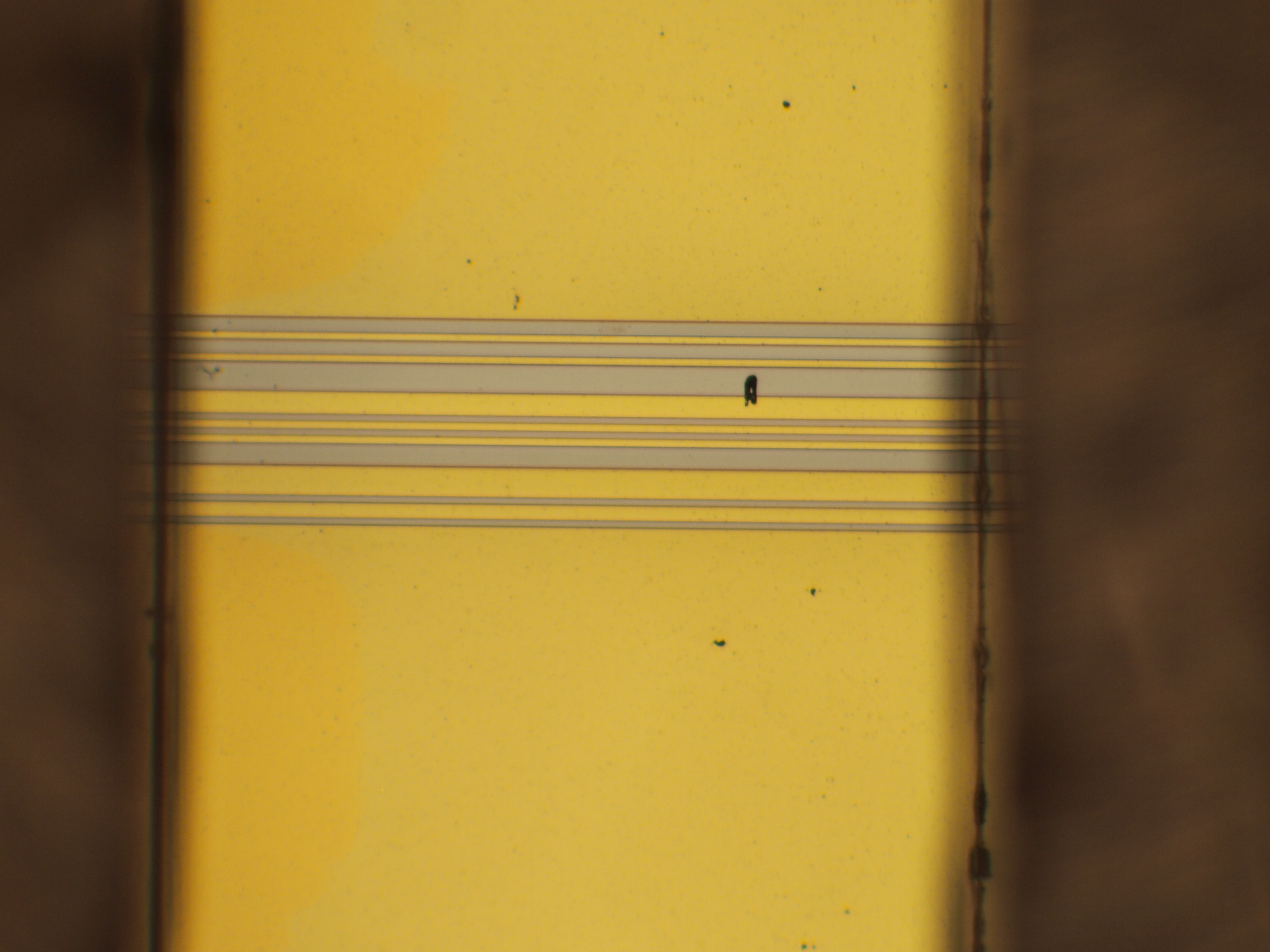

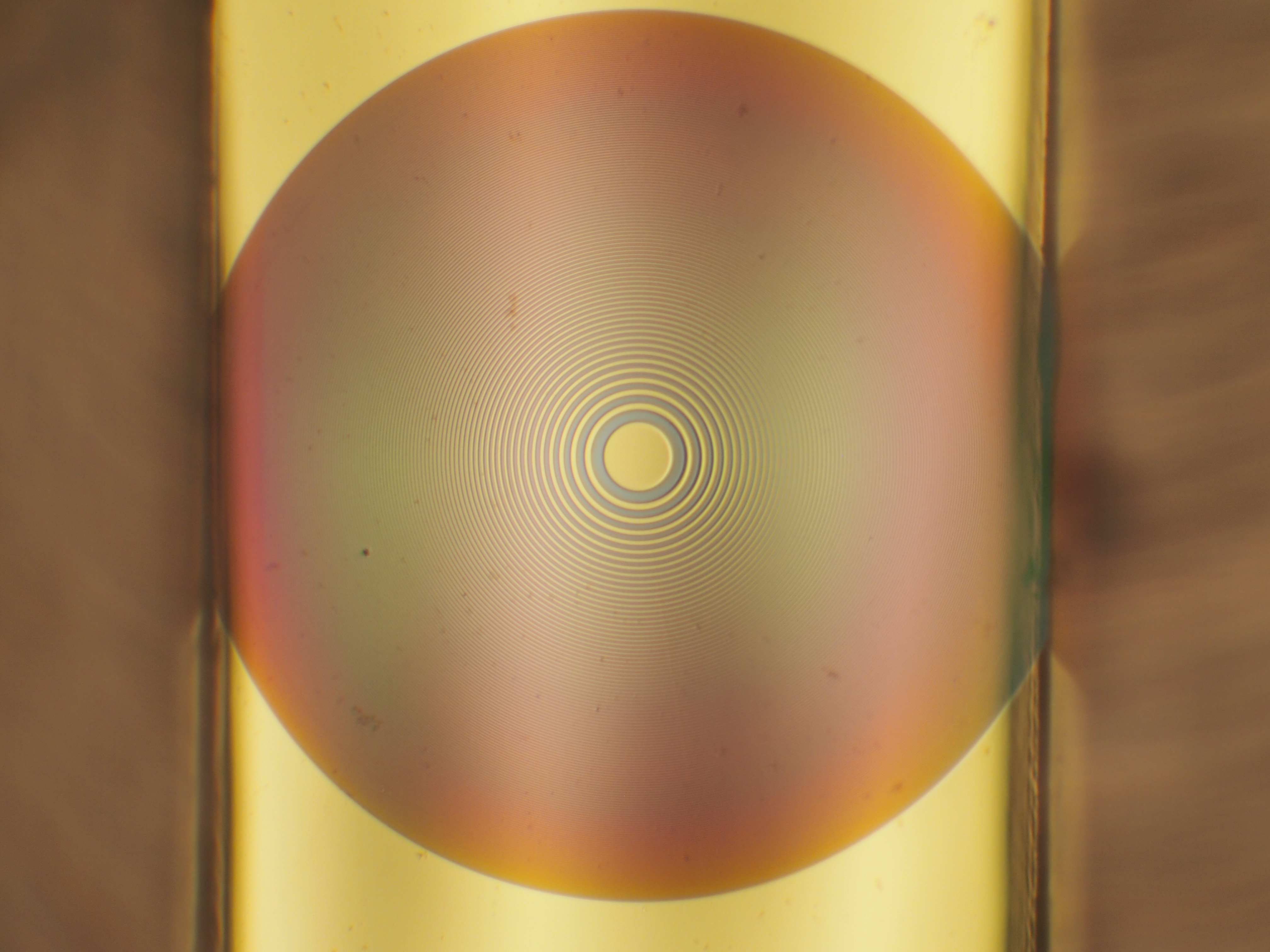

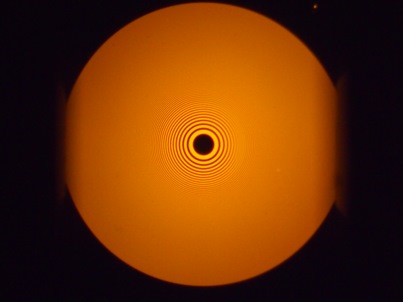

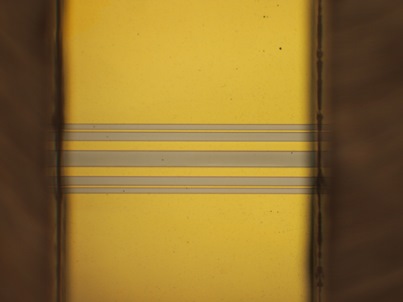

photos taken 2013-09-18, at time of installation in C-line high energy location, with 1.1mm mask

new 5 slit CA, total span of openings: 296 microns, width 1200 microns

NTTATN 5 micron #1
Received: 2010-04-02
pattern: 8 slit CA(5 micron), FZP(normal)
tantalum, ruthenium, SiC, SiN: ? micron
current location: in stock, in 9 cell box

history:
2011-01-28 installed in C-line
2011-04-07 removed from C-line

photos

NTTATN 5 micron #2
Received: 2010-04-02
pattern: 8 slit CA(5 micron), FZP(normal)
tantalum, ruthenium, SiC, SiN: ? micron
current location: in stock, in 9 cell box

history:

photos
