Summary: Typo in tune_scan corrected (not all quads were being used). Re-run jobs from 2010.03.03 and 2010.03.04. Start with XR20m lattice and add errors at the following levels:
Note: these values come from the most recent survey data. Generate errors in ring_ma and simulate correction using a 2-stage technique:
Horizontal steerings aren't necessary, because the horizontal orbit is not perturbed significantly using these misalignment parameters. Apply these errors at 1/10, 1/2, and full values.

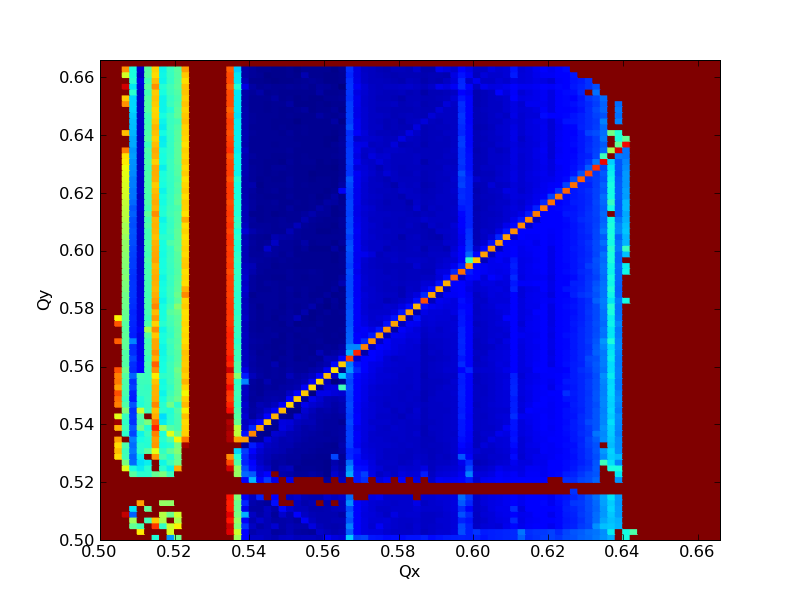

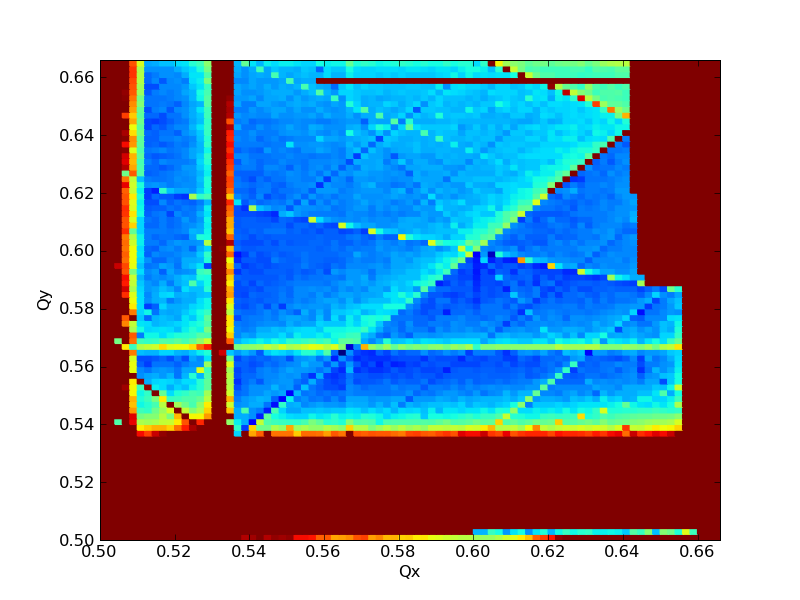

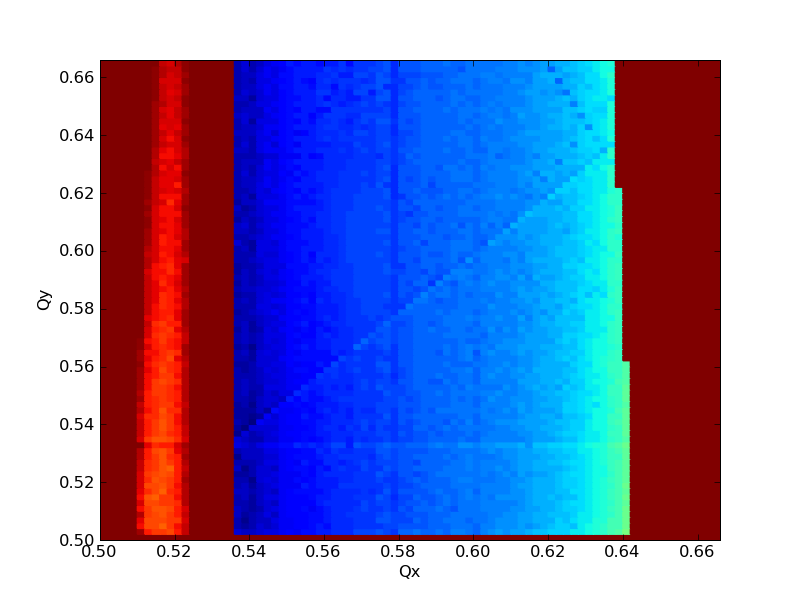

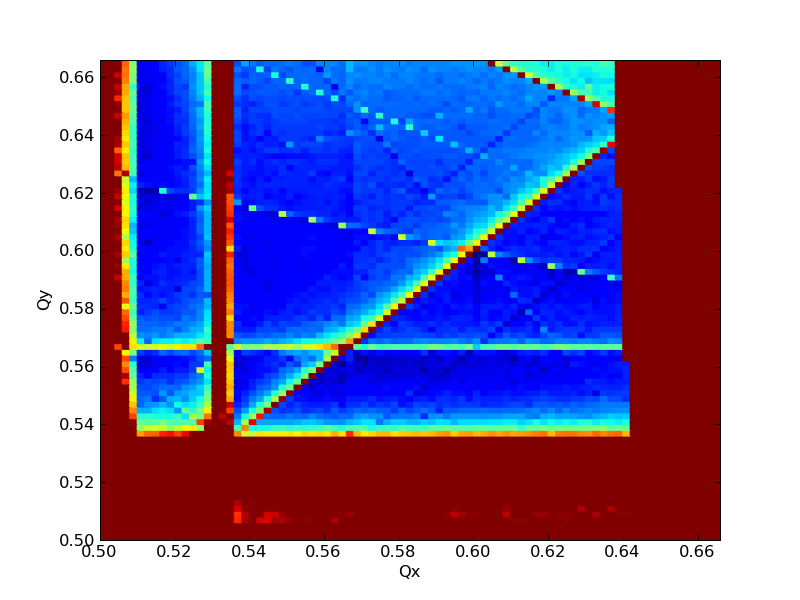

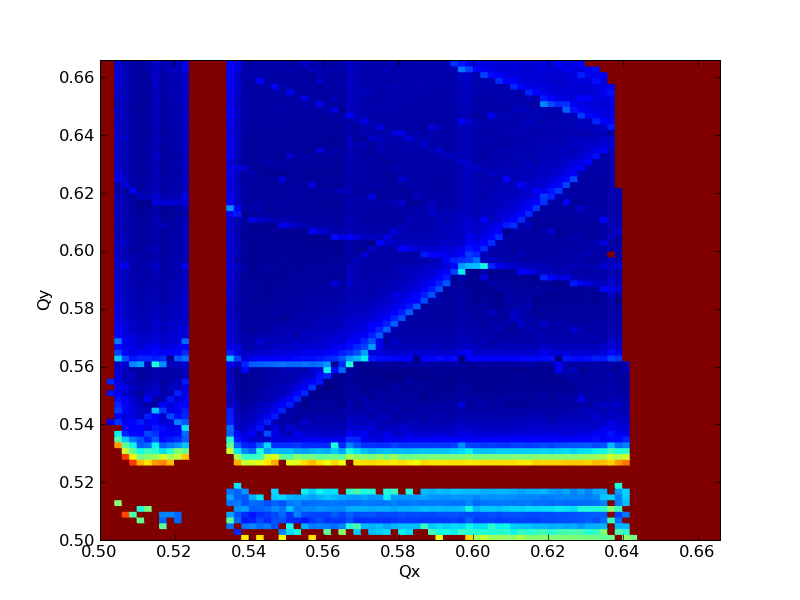

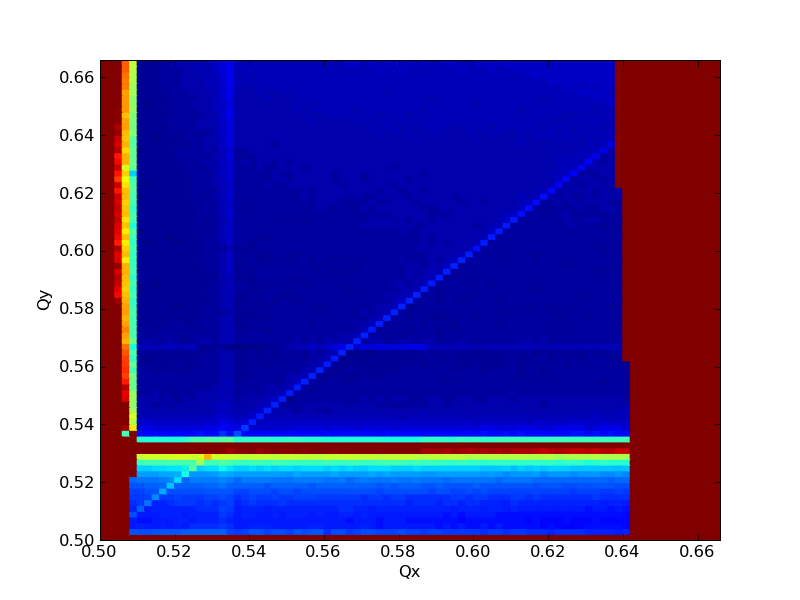

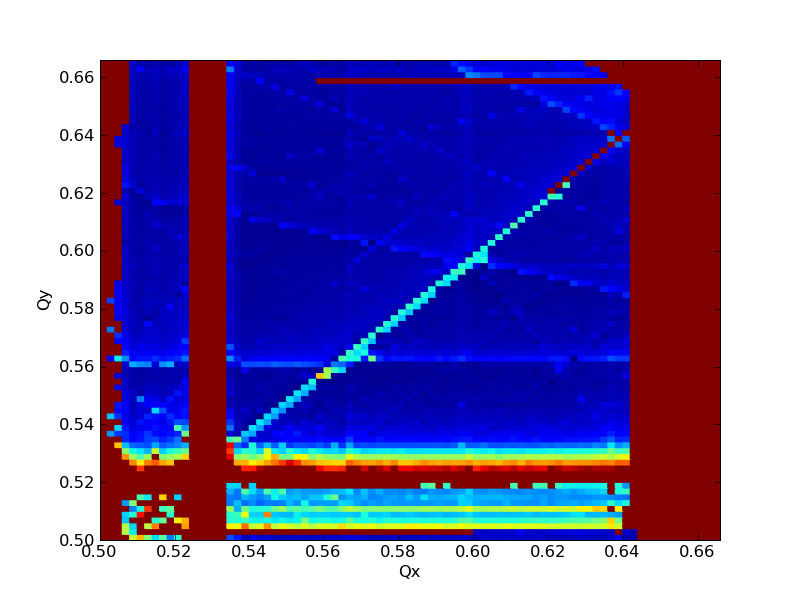

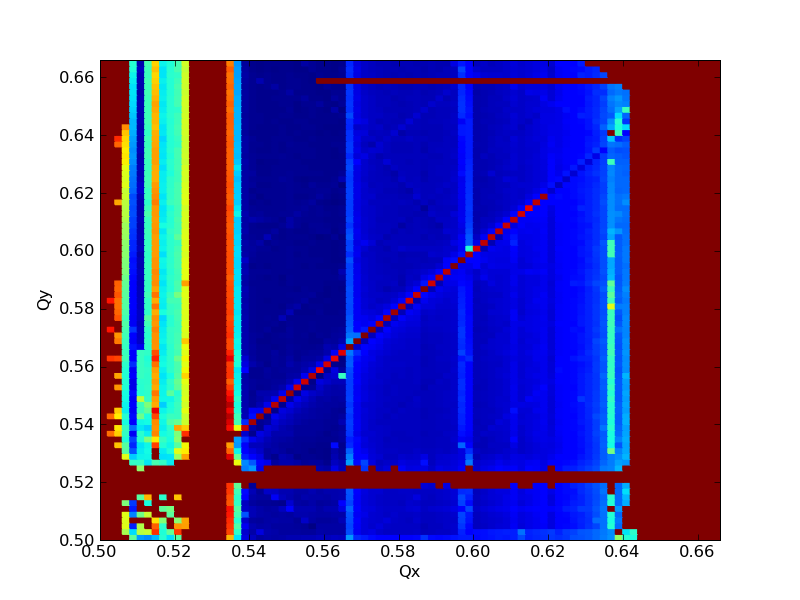

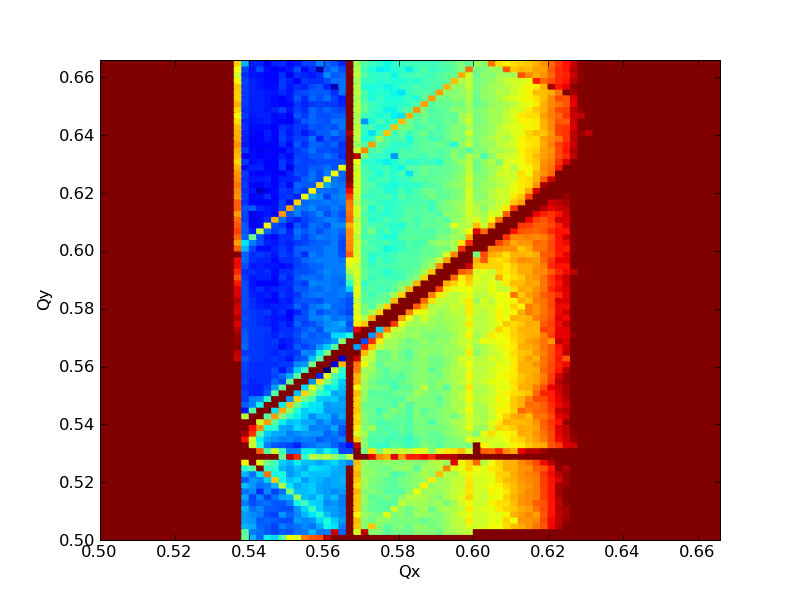

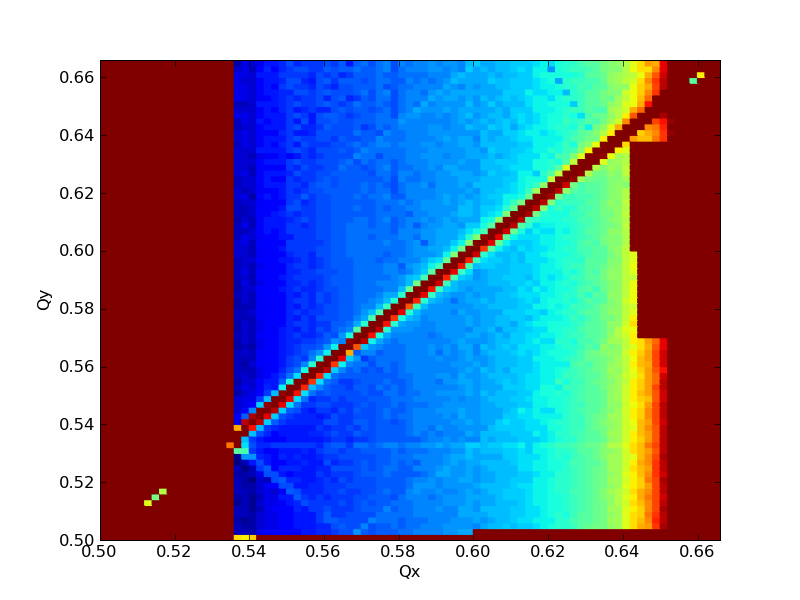

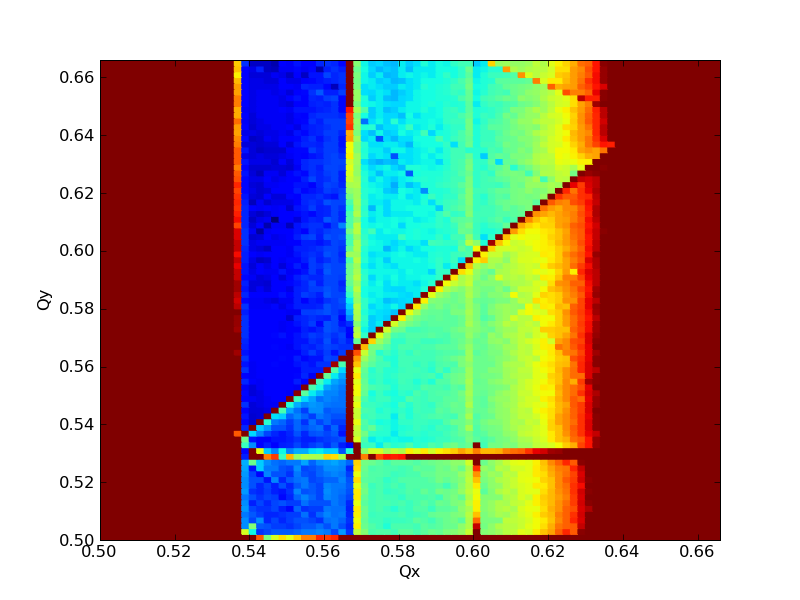

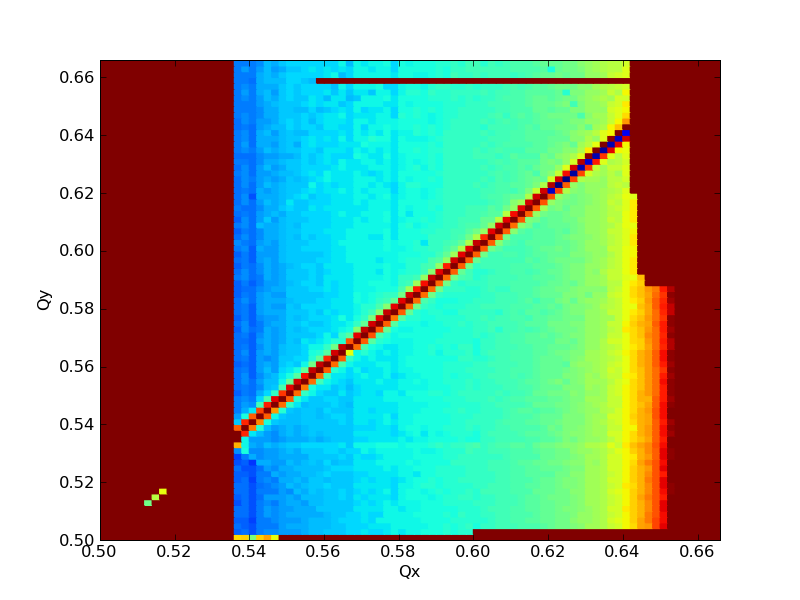

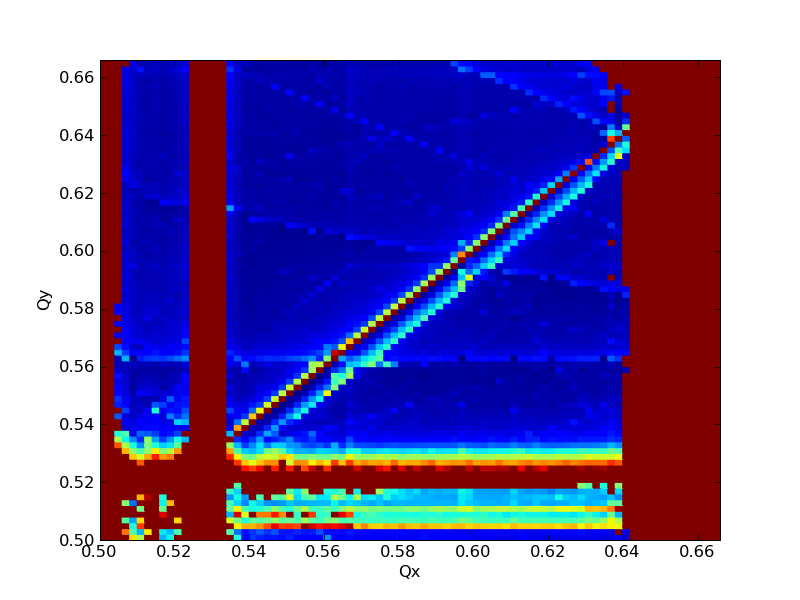

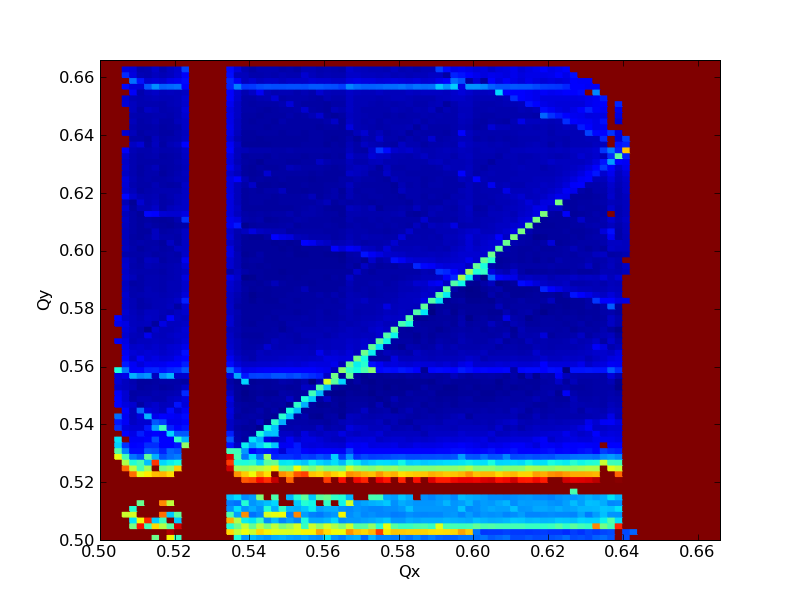

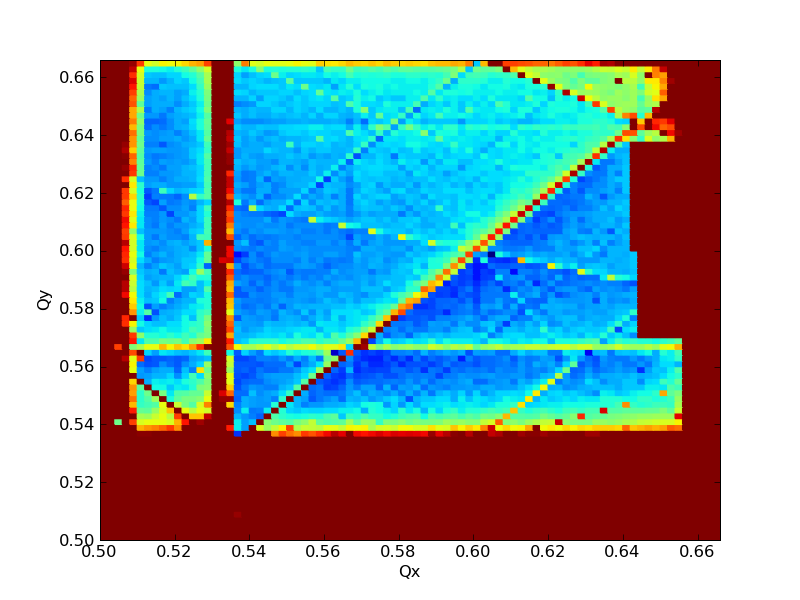

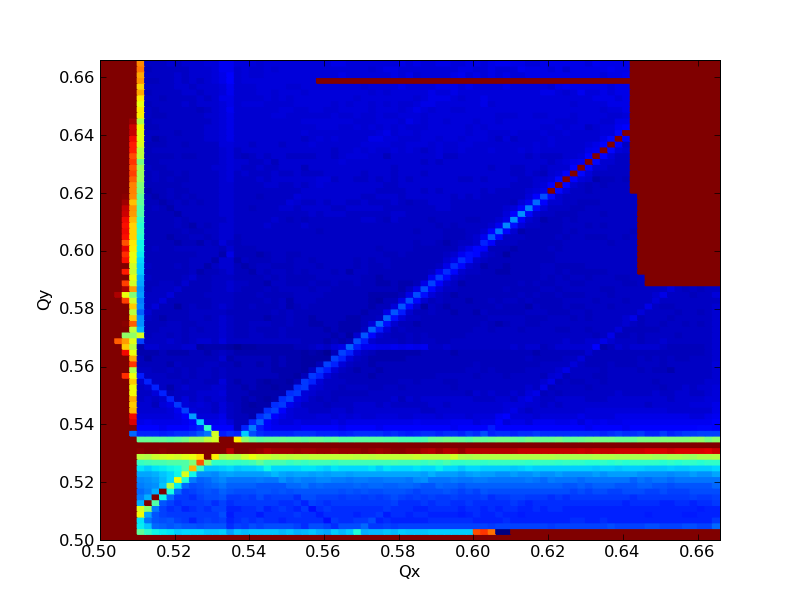

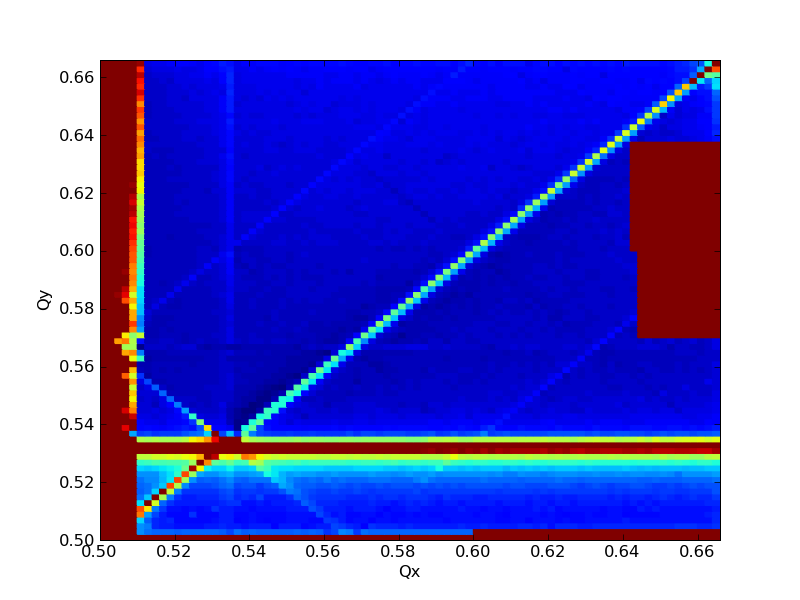

Run a tune scan on each resulting lattice from 0.5-0.666 in 0.002 steps. Plot the resulting data using a Python plotting script to ensure all scales are equivalent.

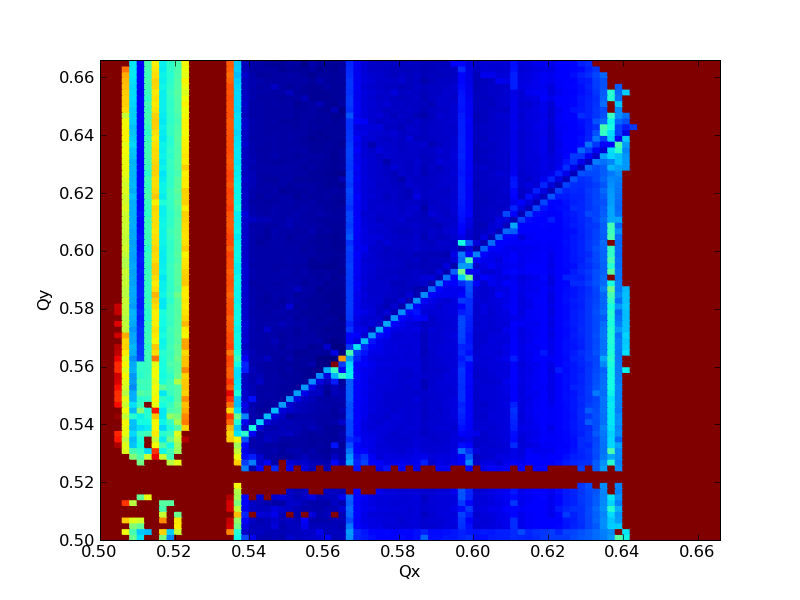

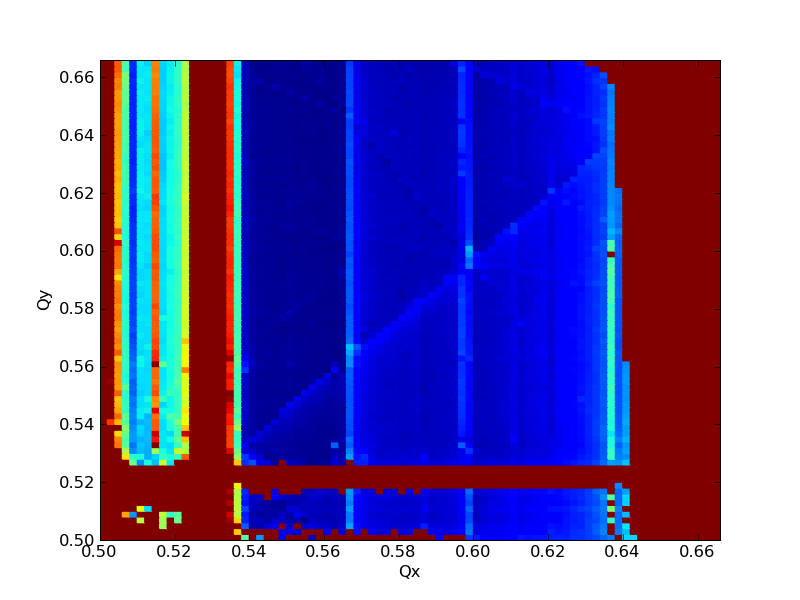

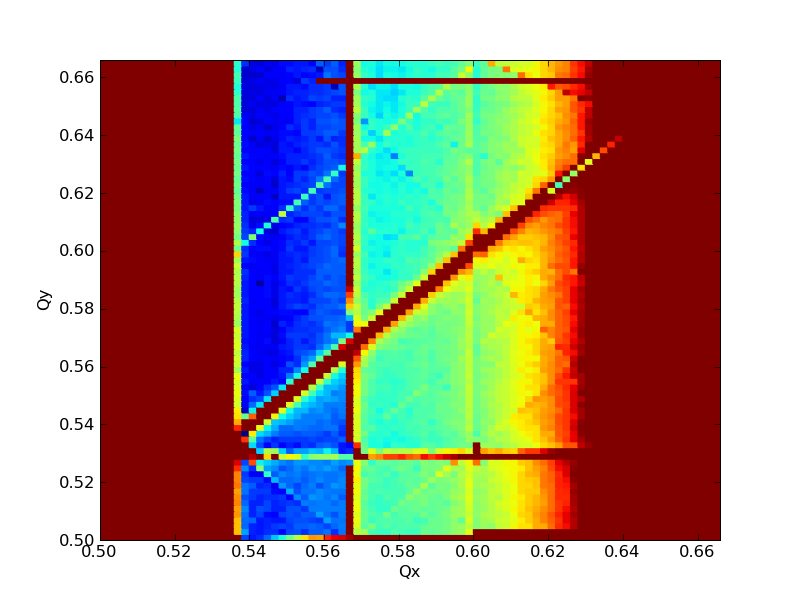

Using the same set of misalignments in the post from 2010.03.03, try reducing amplitudes to 10% and 50% of original values. Do this for ideal lattice, 10% misalignments, and 100% misalignments.
For all plots in this section, color scale goes from 0-1.1 (normally 0-2.5)
