2010.06.23 - Effects of D-line xBSM Orbit Bump

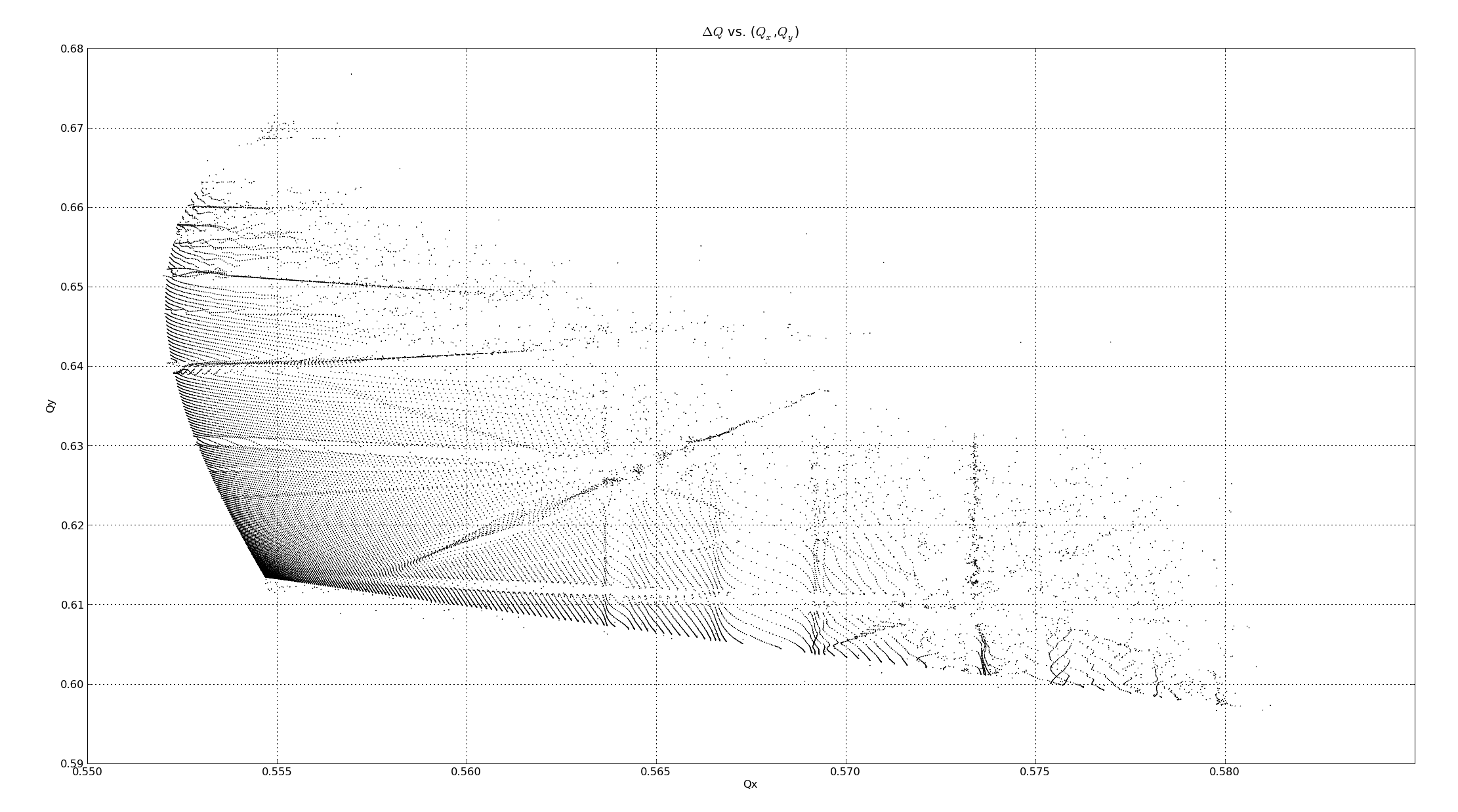

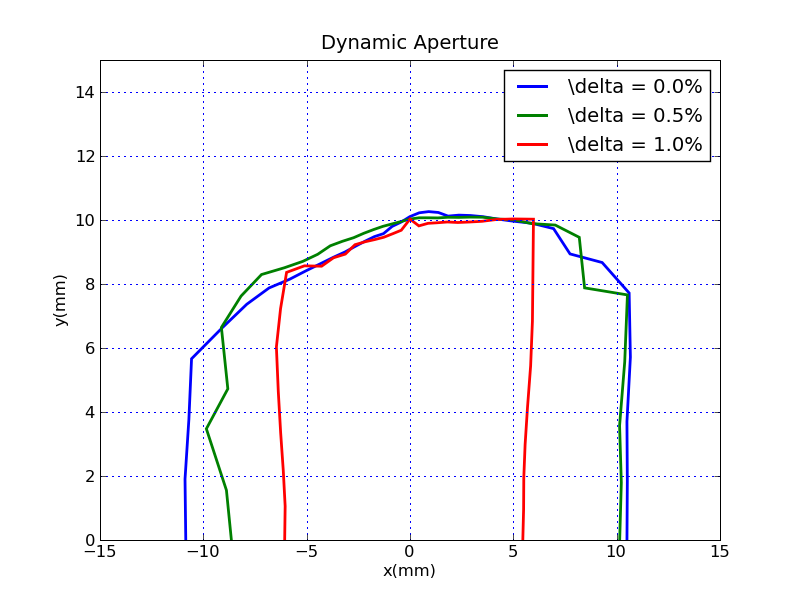

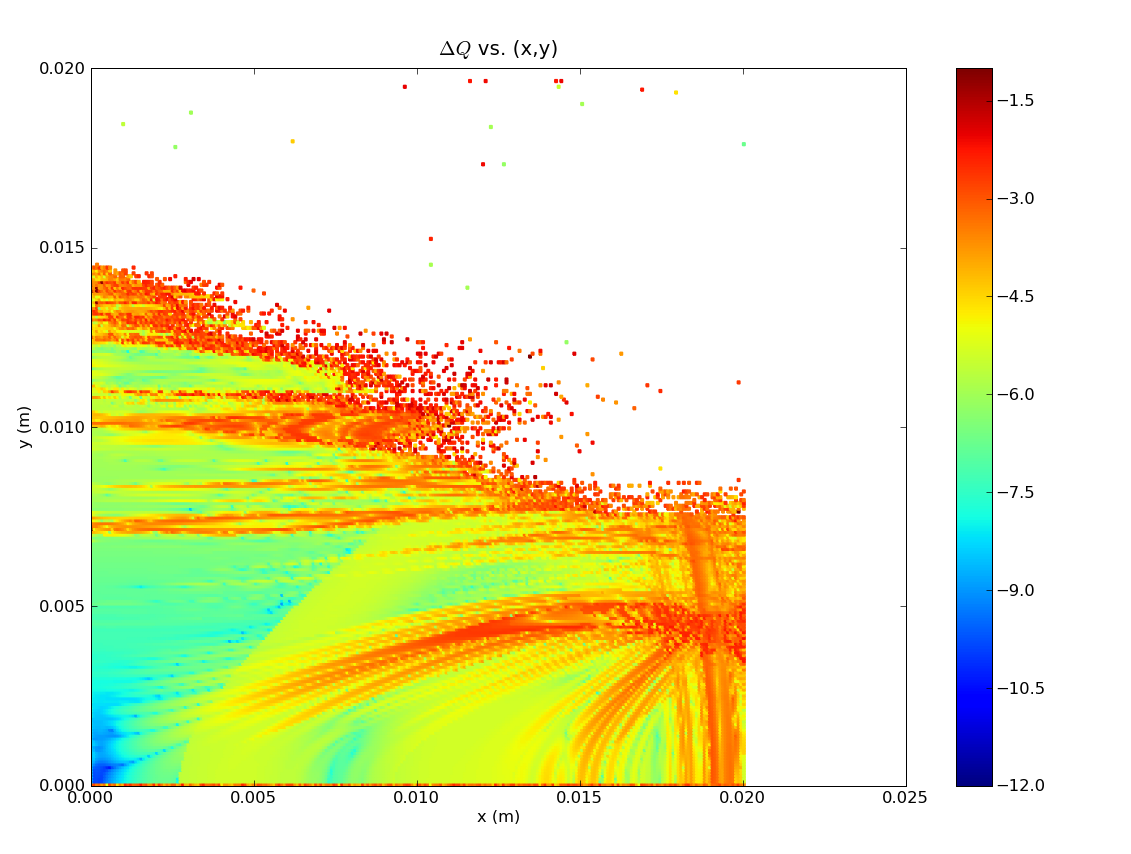

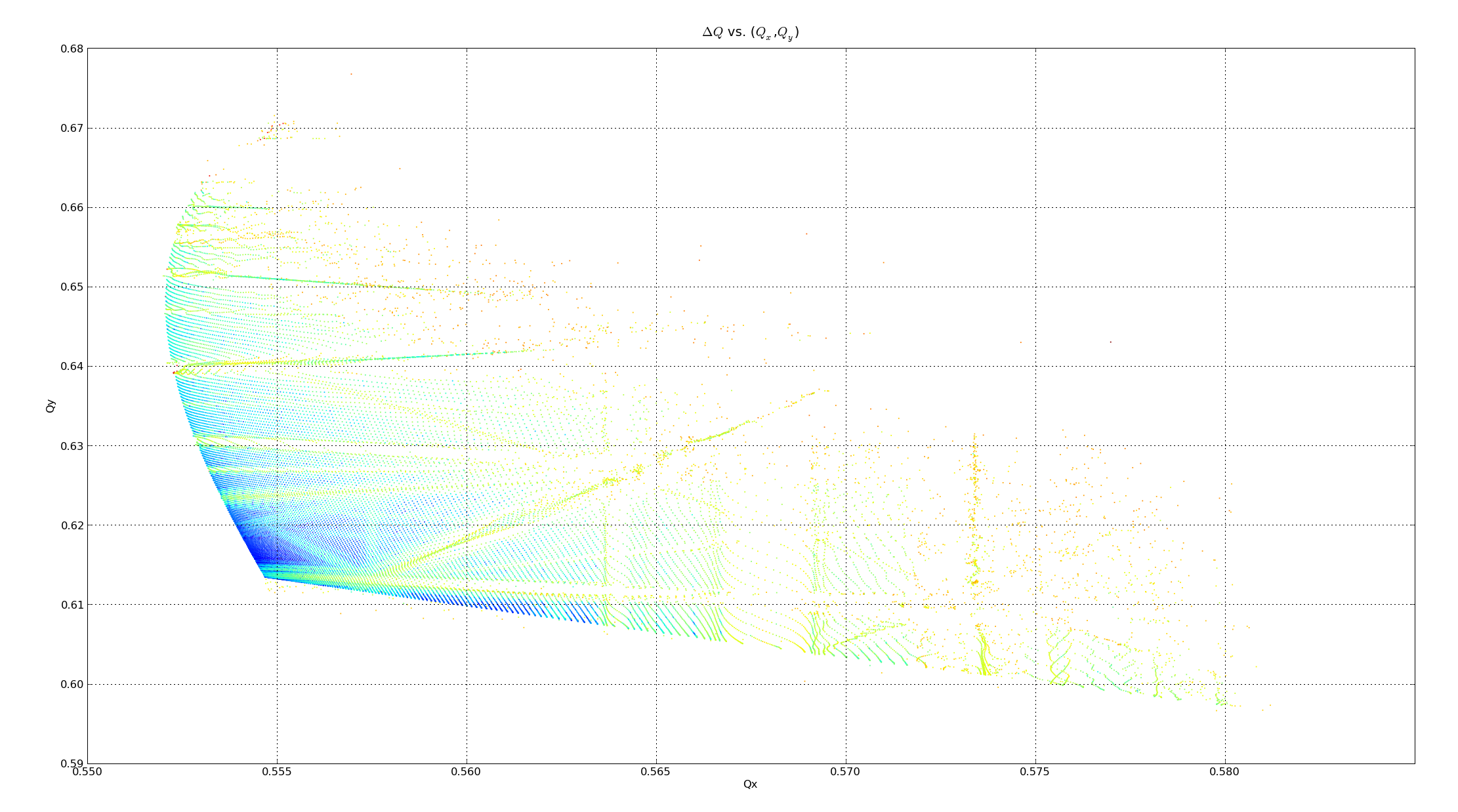

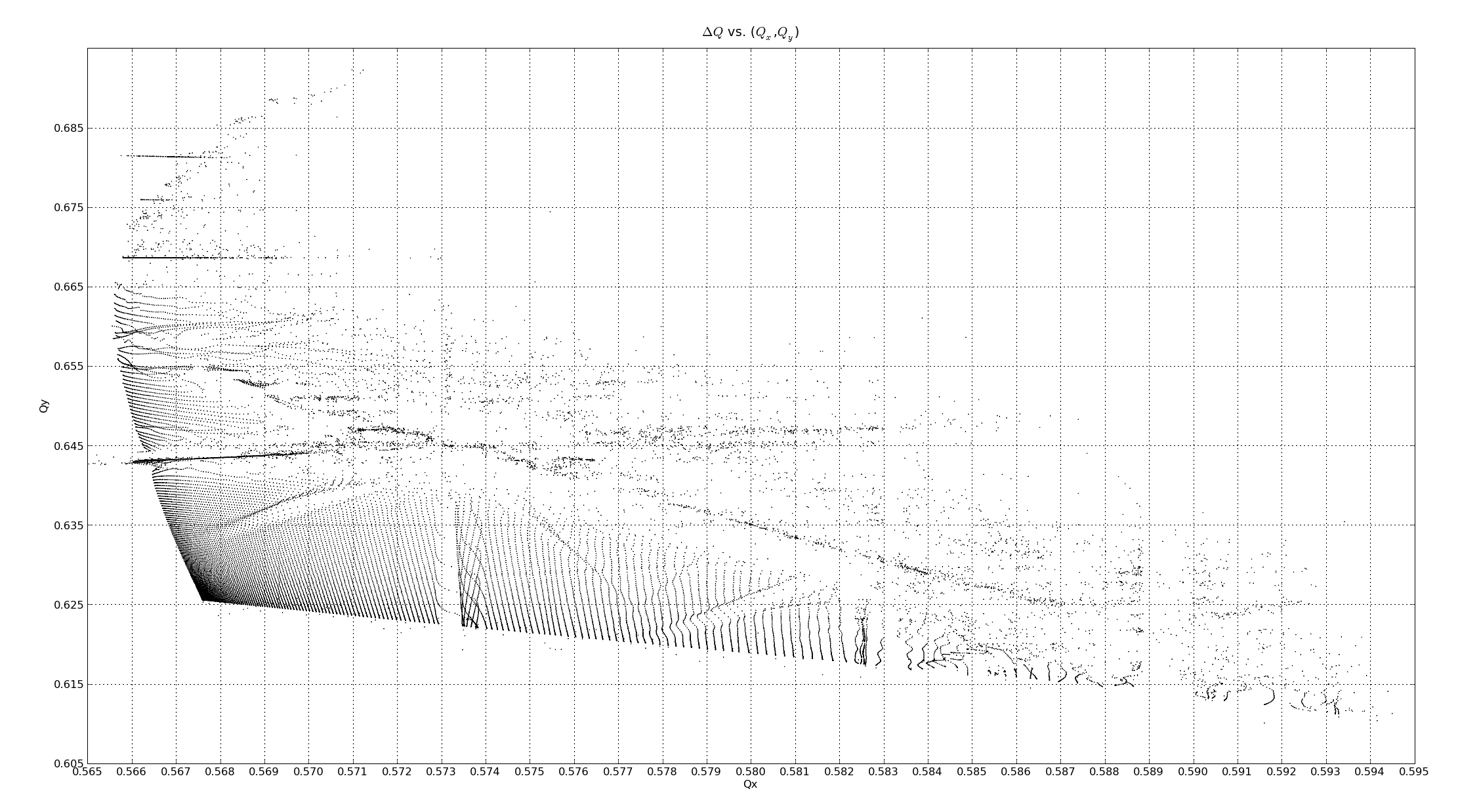

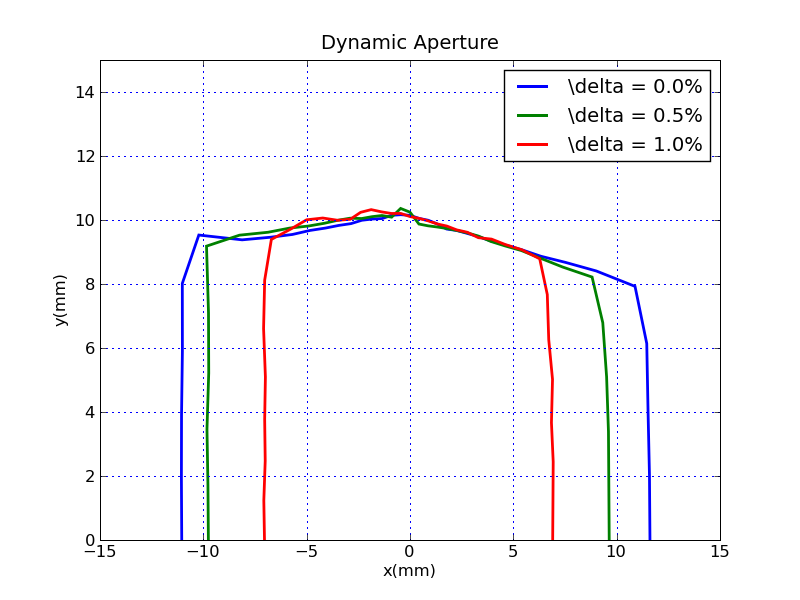

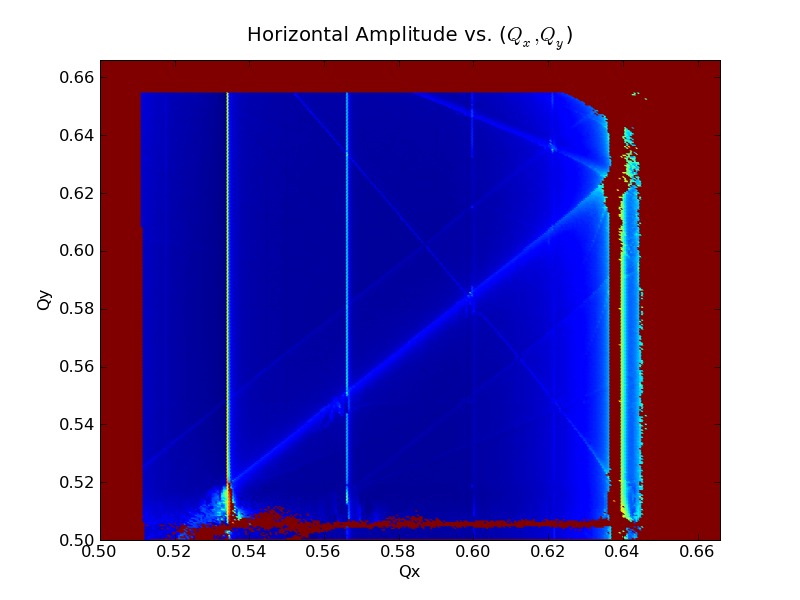

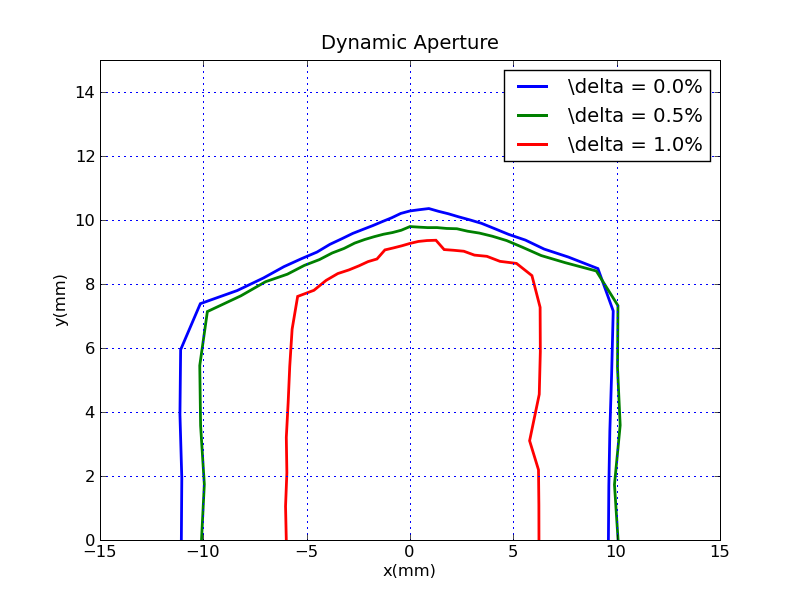

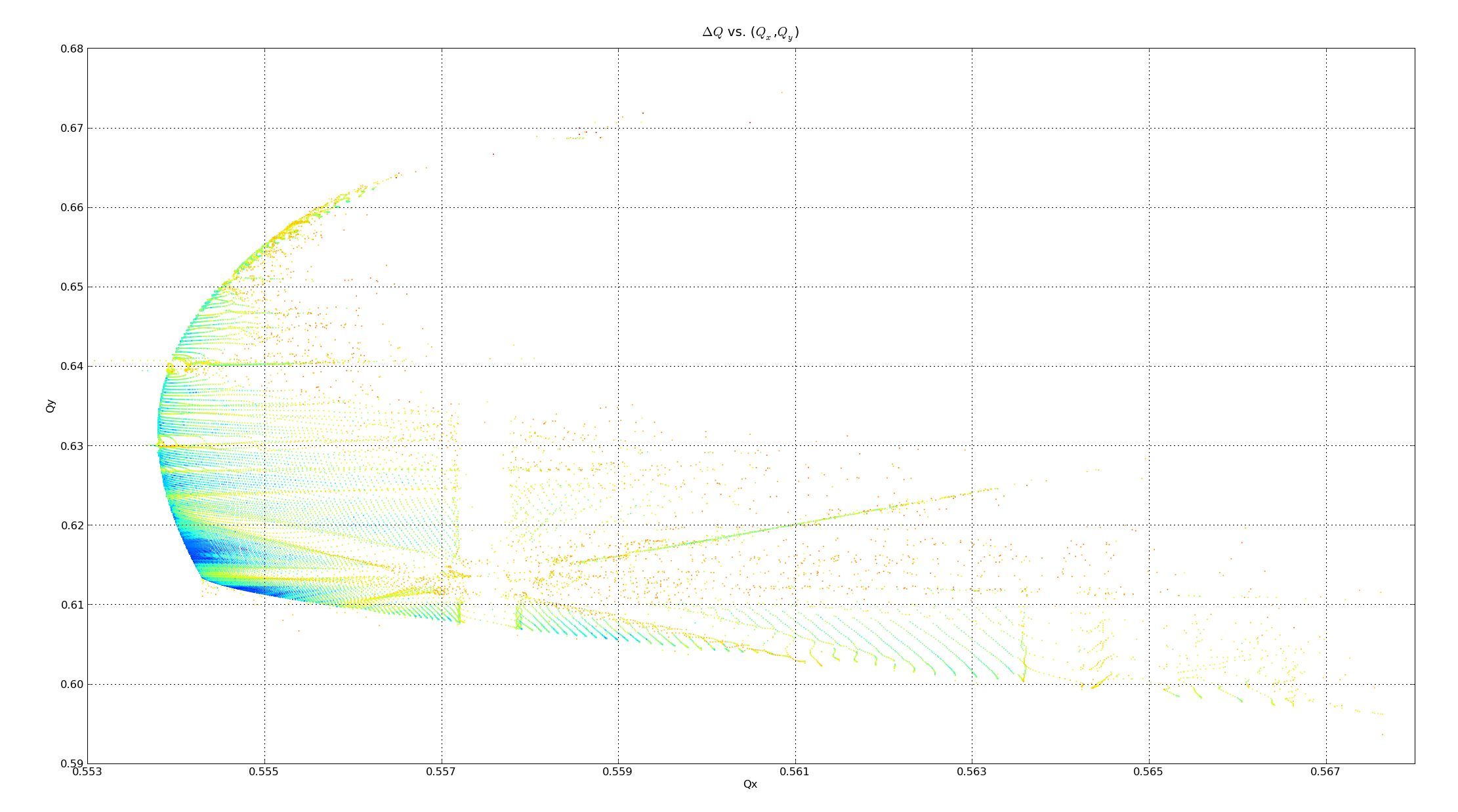

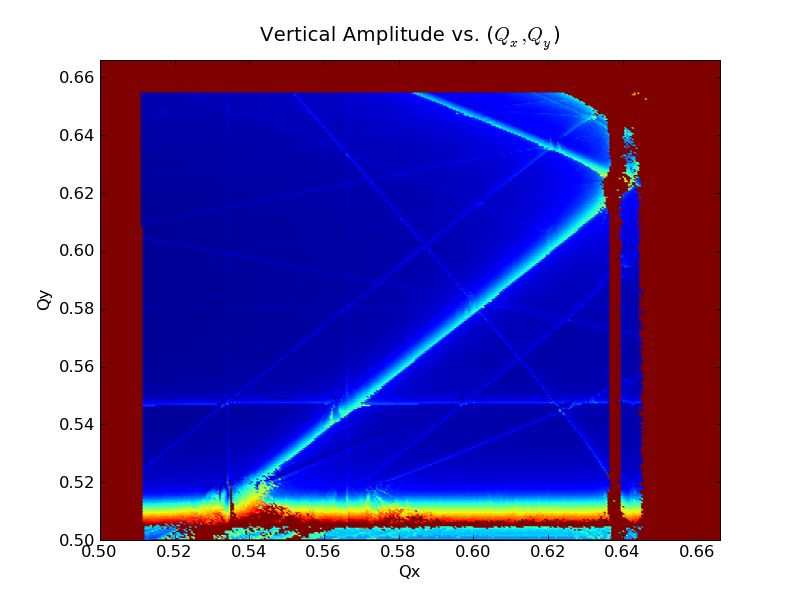

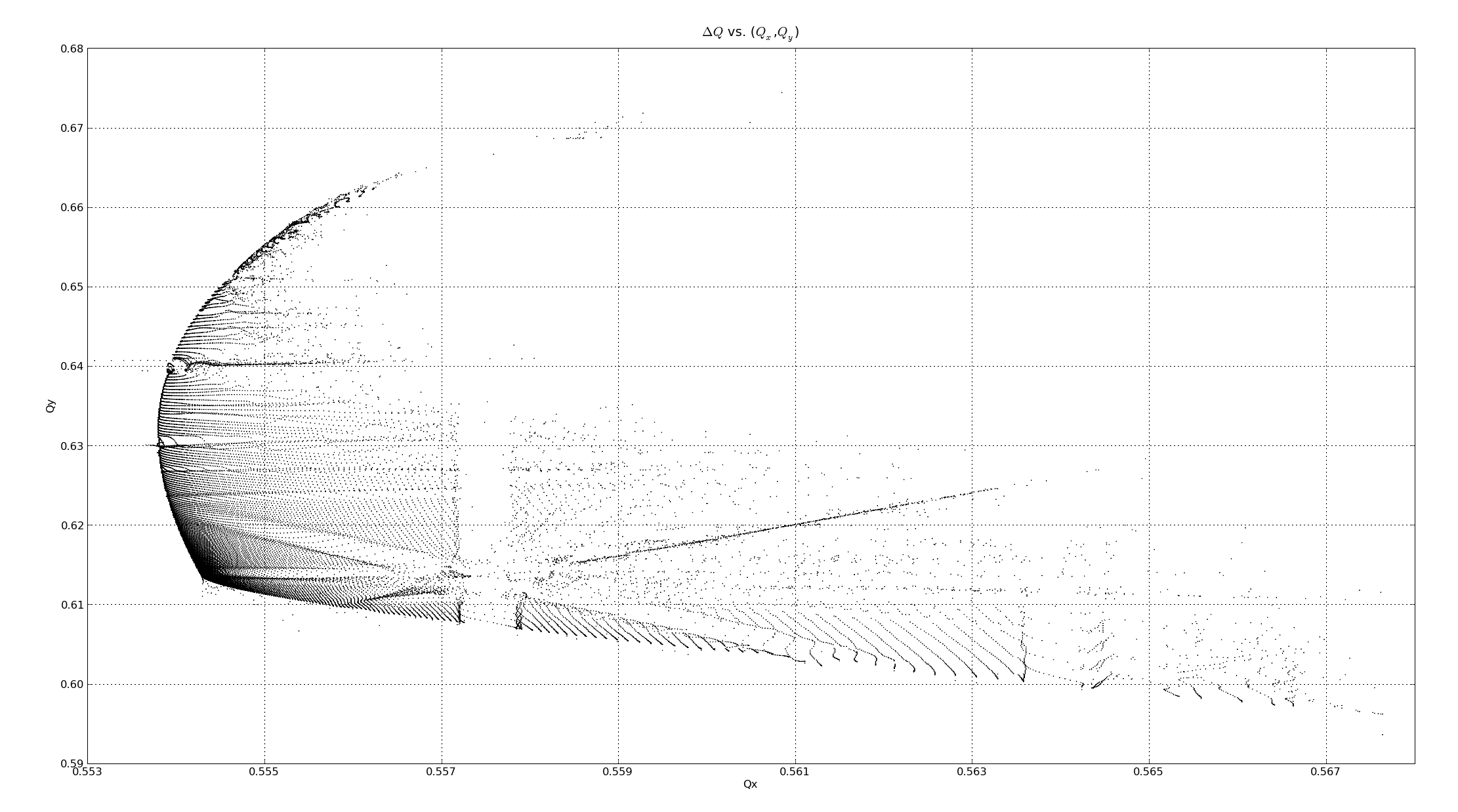

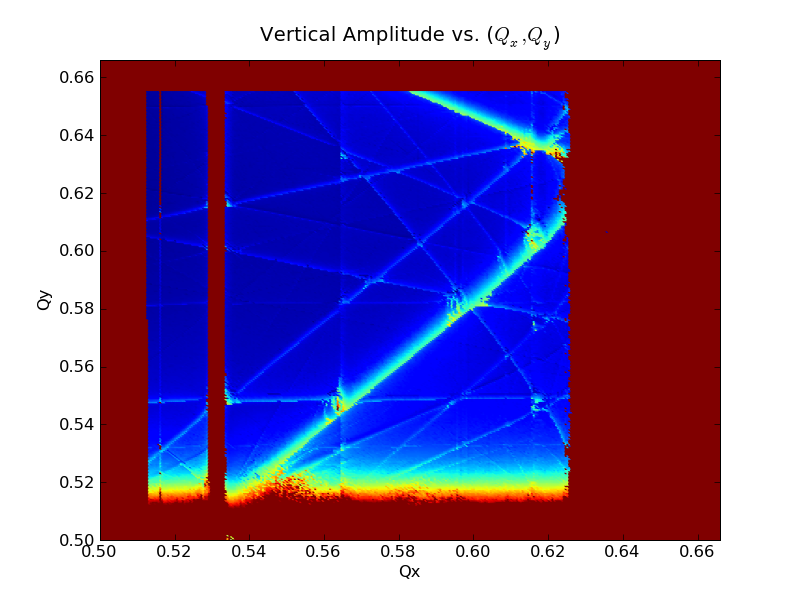

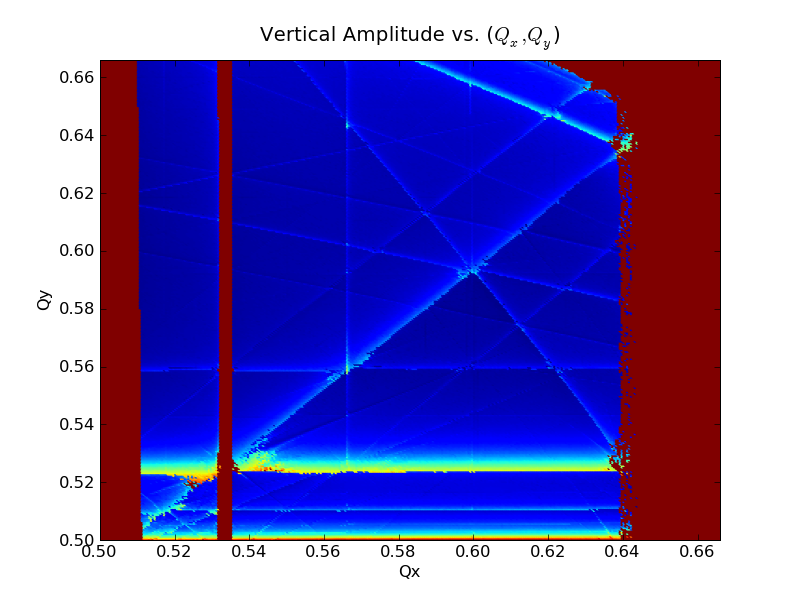

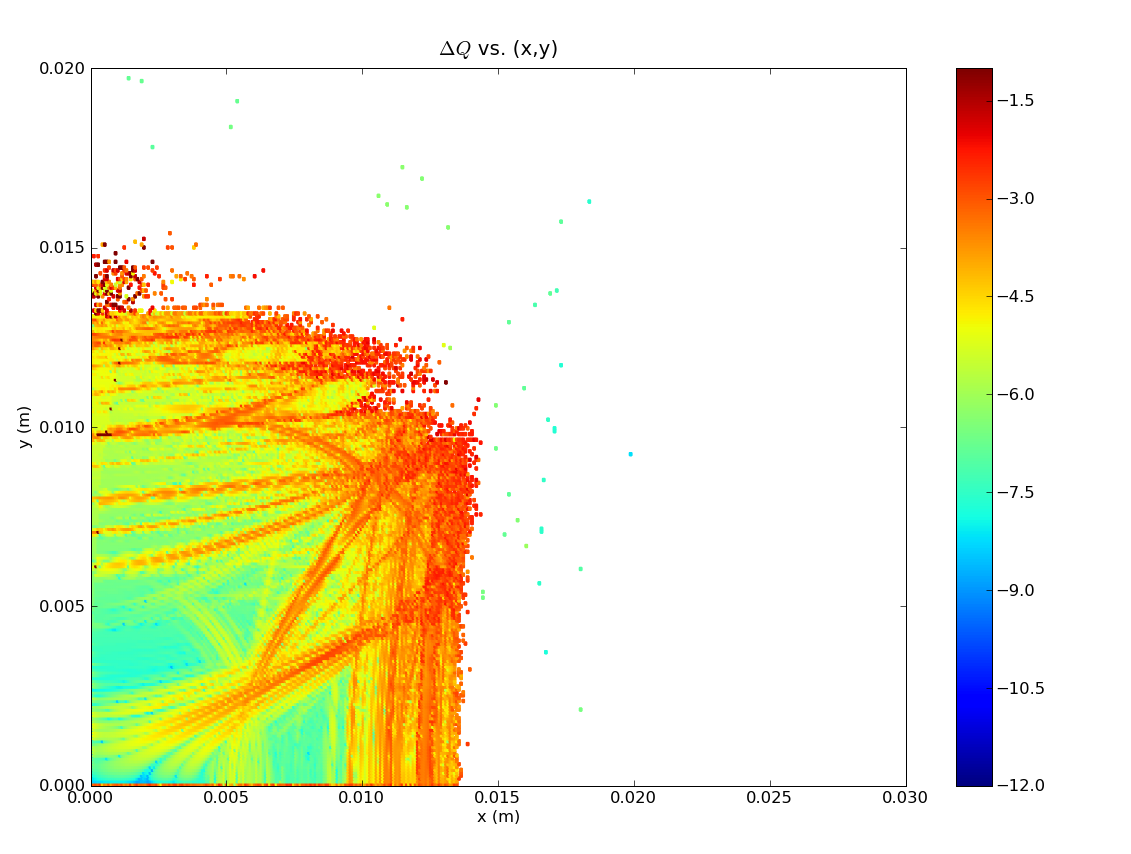

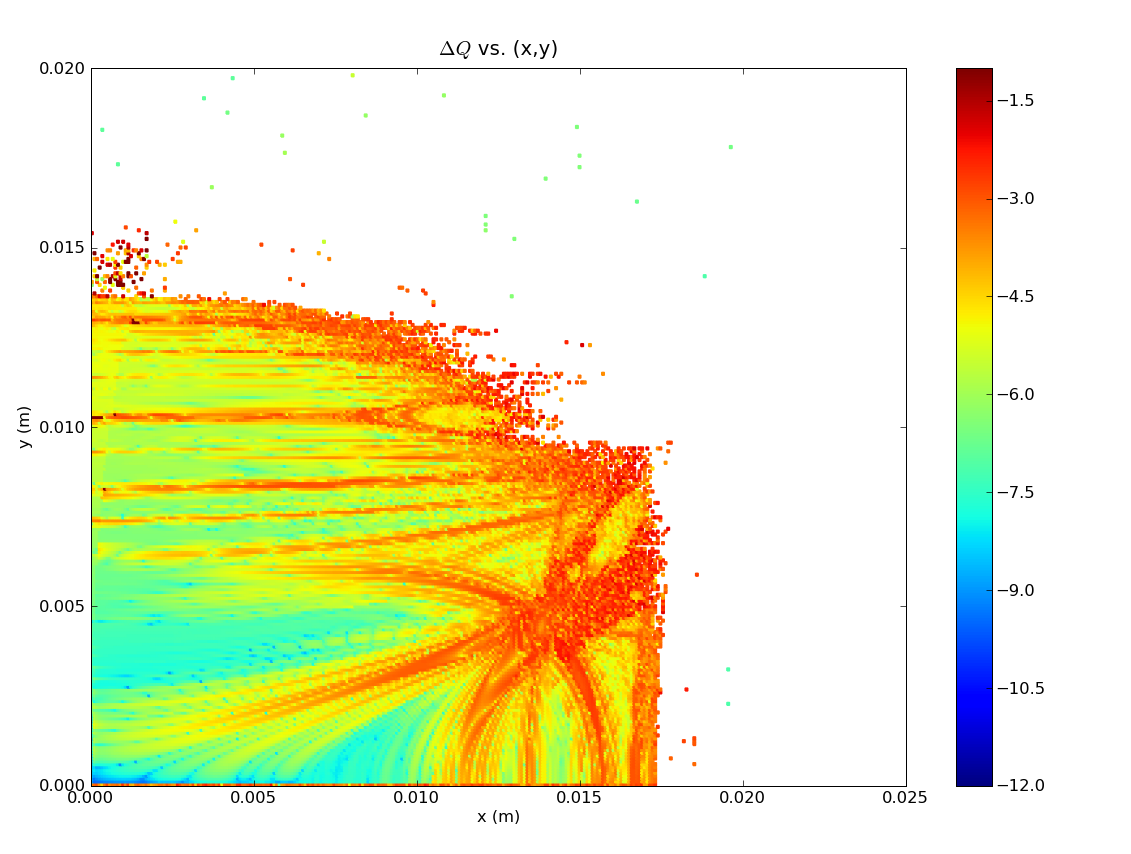

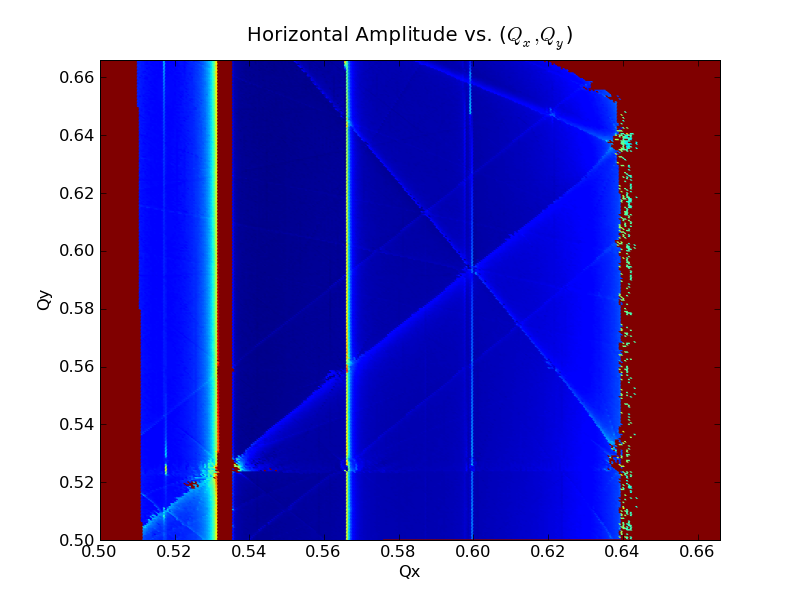

From real orbit data, reproduce the D-line xBSM horizontal orbit displacement. Perform dynamic aperture, tune scan, and frequency map analyses on each of the following scenarios:

cta_2085mev_20090516.lat with 2fam sextupoles

 Links to analyses for flat orbit:
DA input

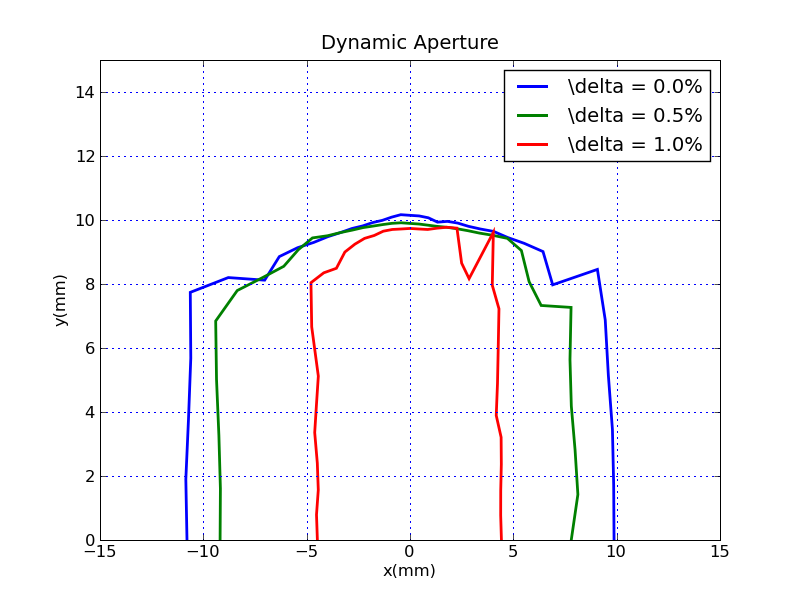

DA output
Tune scan input

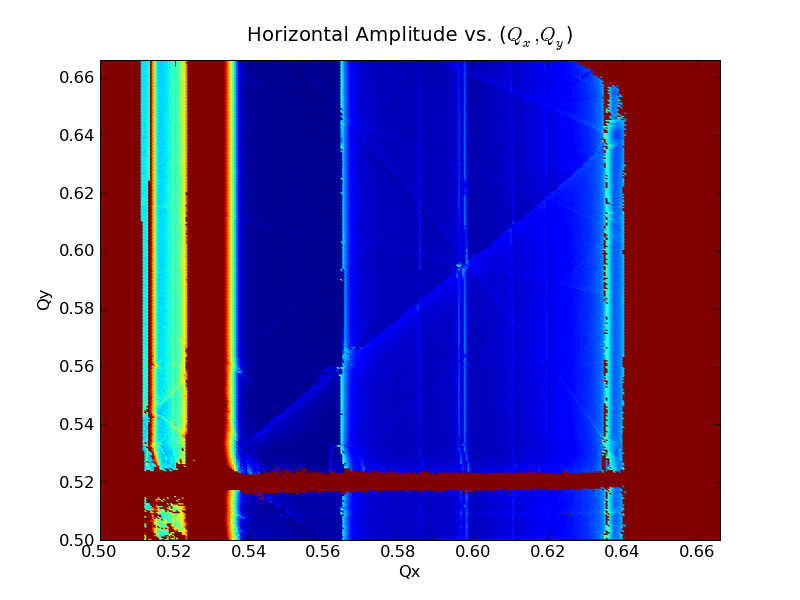

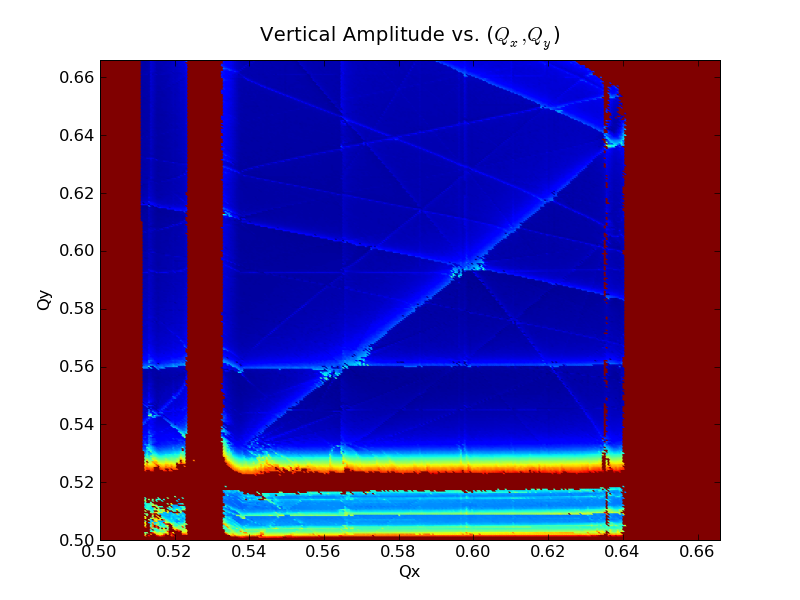

Tune scan output
Frequency map input

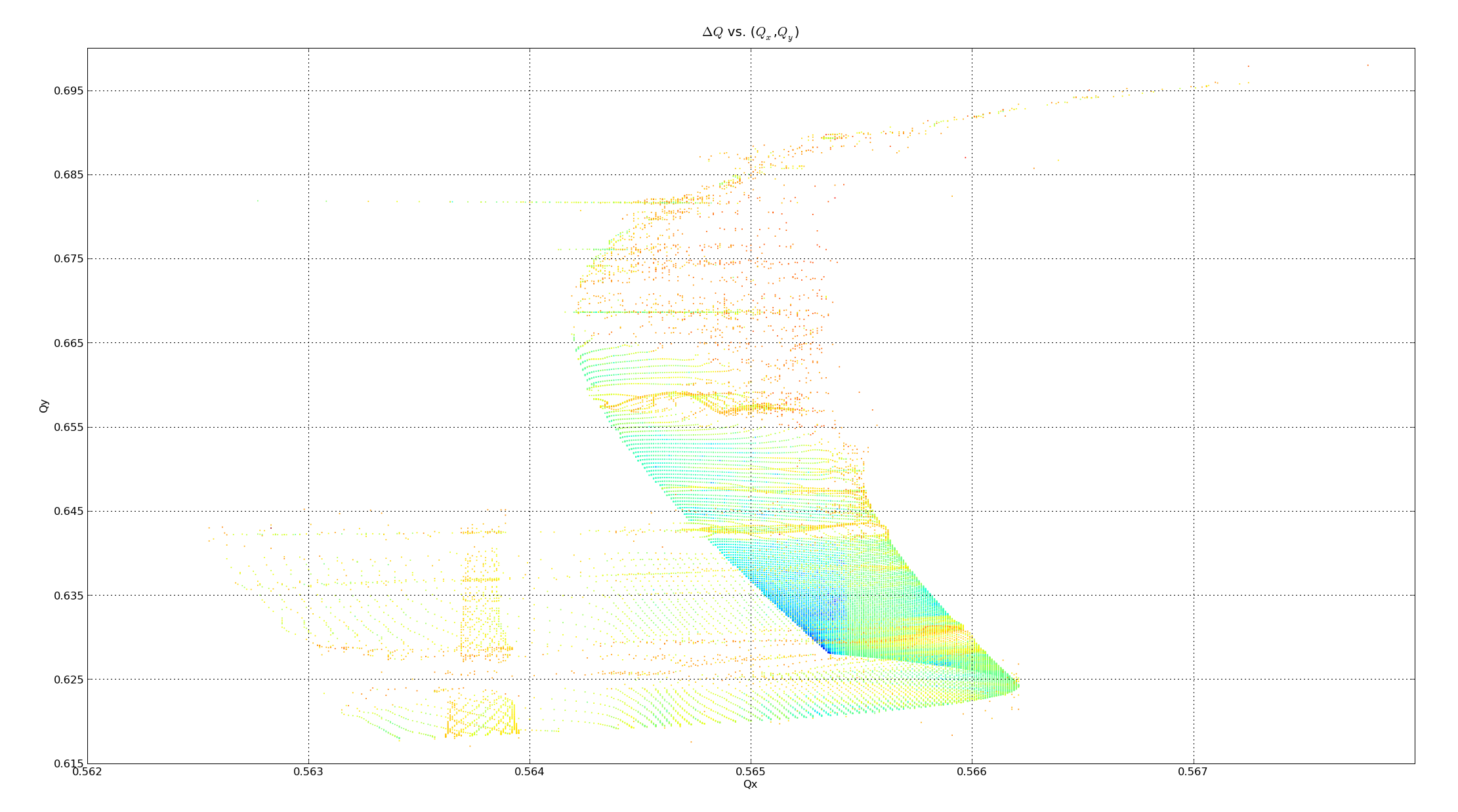

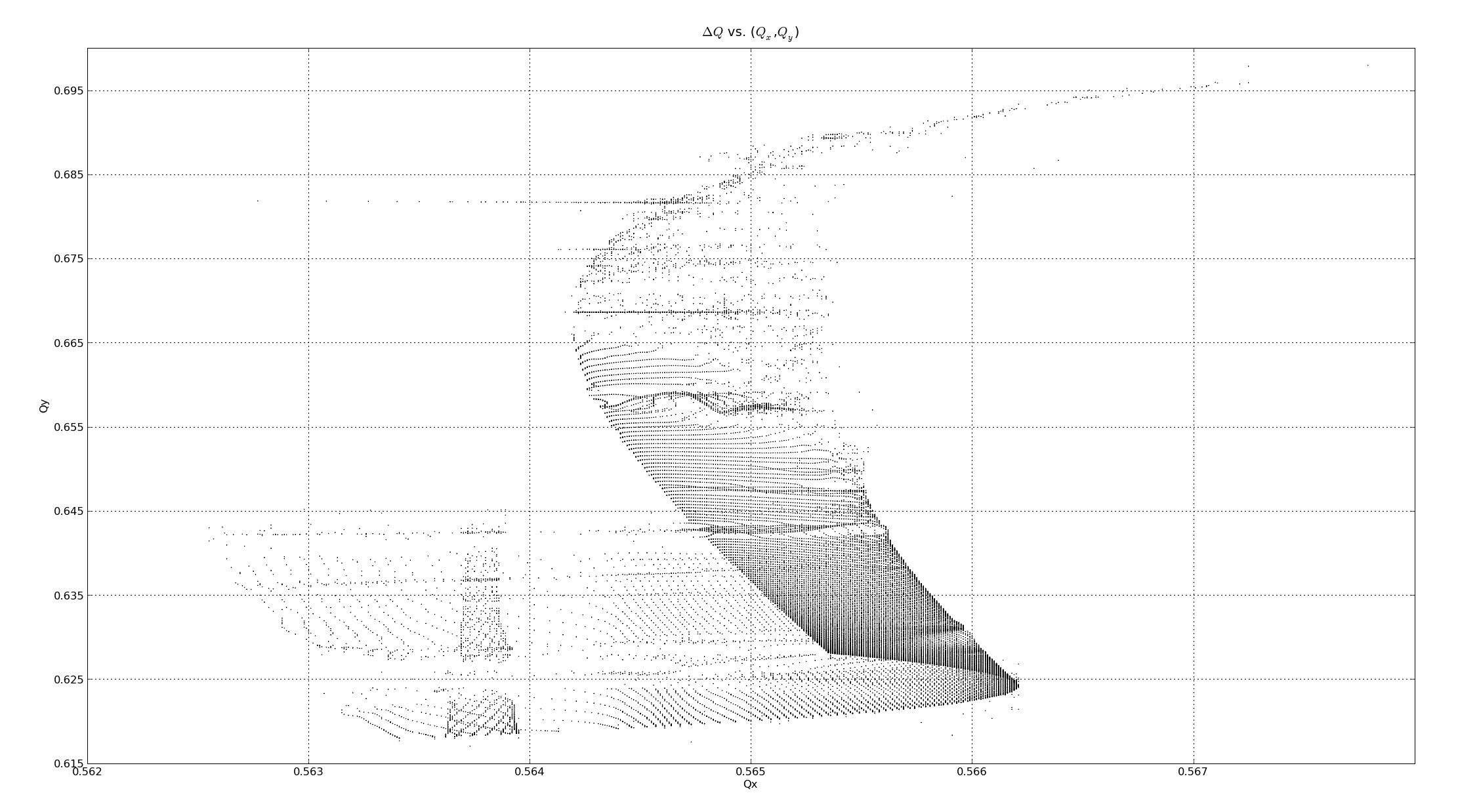

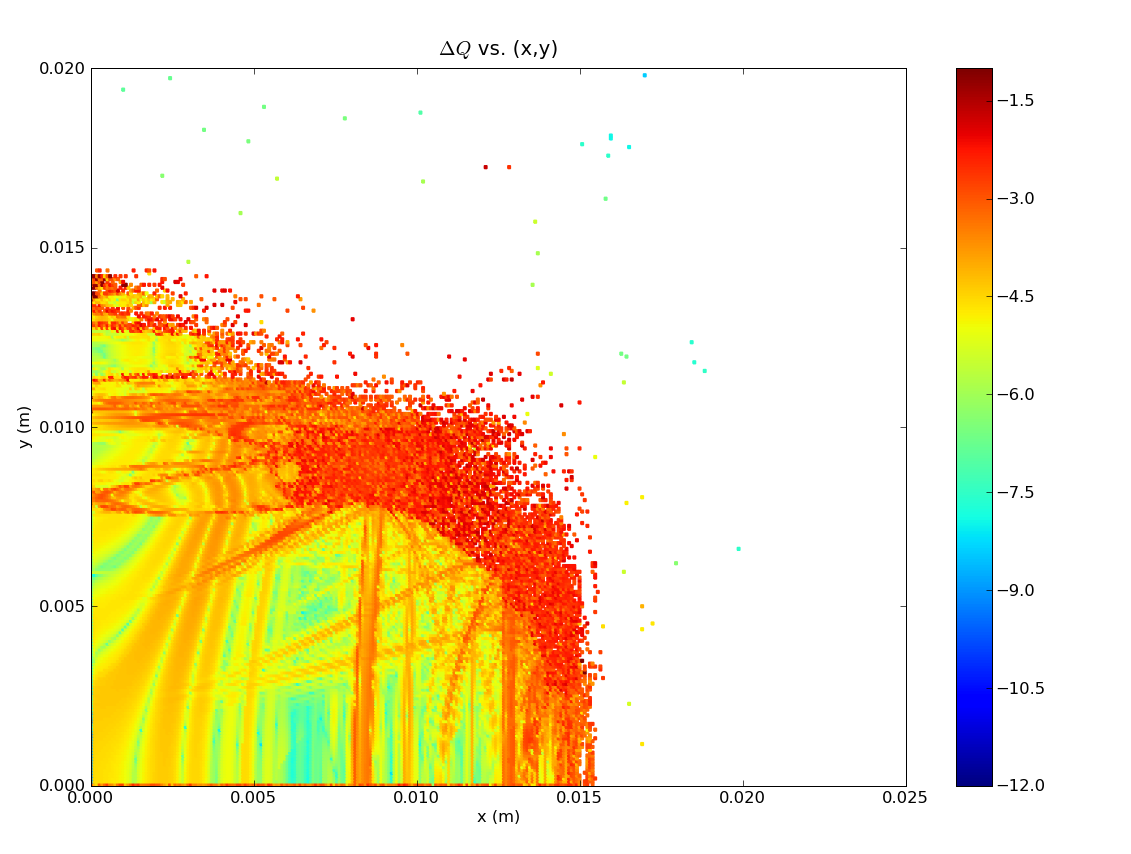

Frequency map output

cta_2085mev_20090516.lat with JSh-optimized sextupoles (from 2010.05.04)

 Links to analyses for flat orbit:
DA input
DA output
Tune scan input

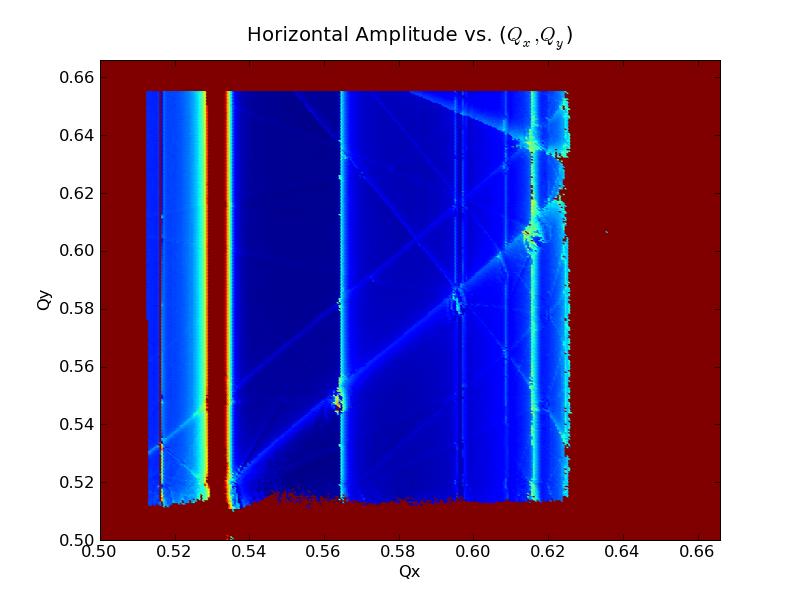

Tune scan output
Frequency map input

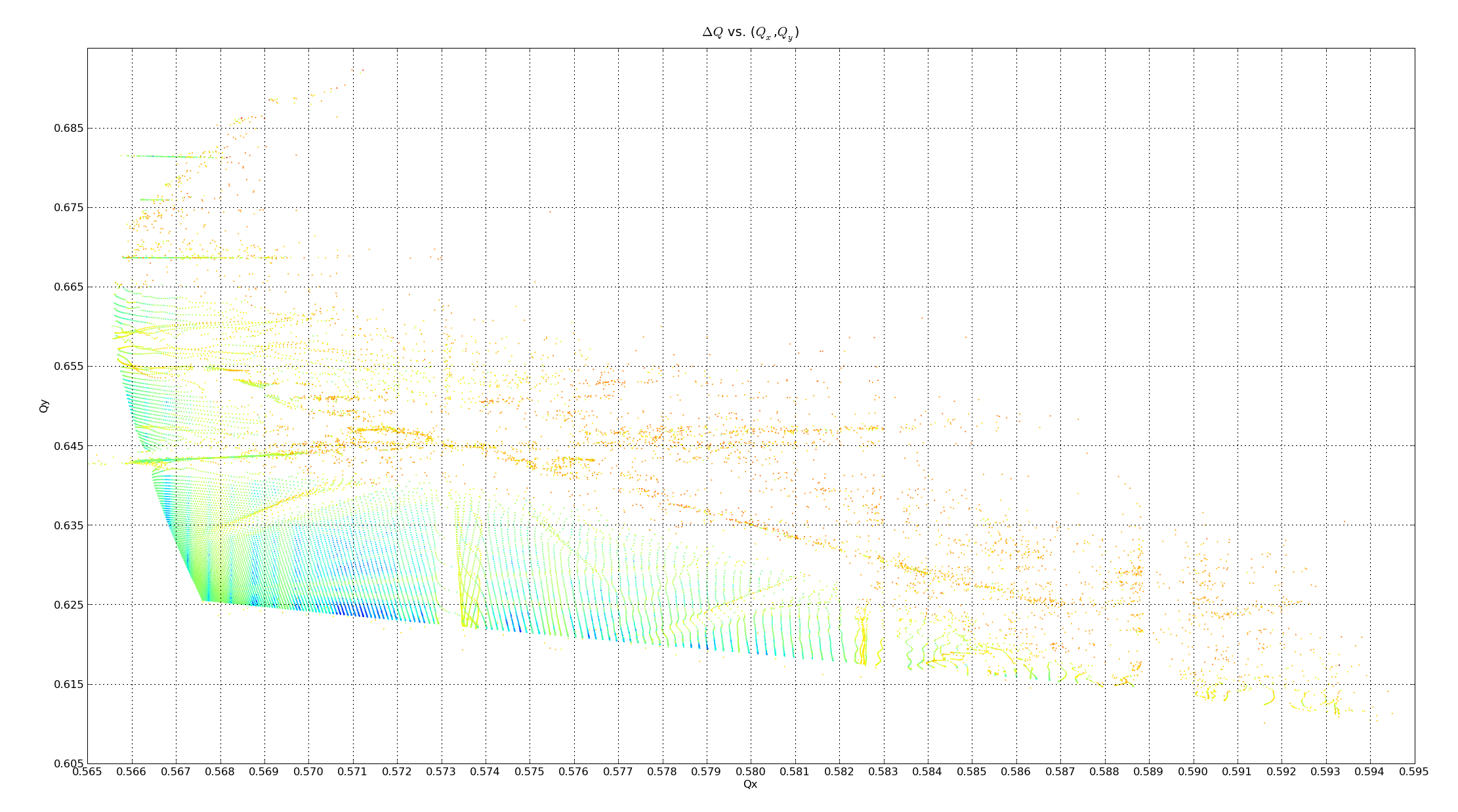

Frequency map output

cta_2085mev_xr20m_20091205.lat with 2fam sextupoles

 DA input
DA output
Tune scan input
Tune scan output
Frequency map input
Frequency map output

cta_2085mev_xr20m_20091205.lat with JSh-optimized sextupoles (from 2010.05.08)

 DA input
DA output
Tune scan input
Tune scan output
Frequency map input
Frequency map output
