D Had Plots - Double Tag - Data - Wide delta E

—- Mode 0 —-

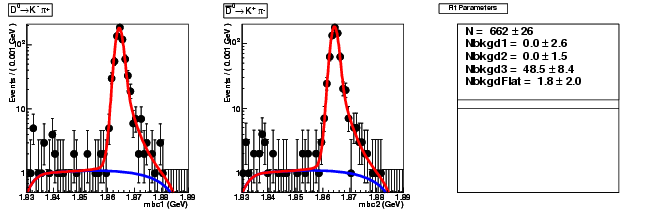

0,0: Kpi,Kpi

Name	Value	Error
N	661.8001675363	26.1948103811
Nbkgd1	0.0000006350	2.5533151124
Nbkgd2	0.0000043501	1.5181105452
Nbkgd3	48.5235108837	8.3900741930
NbkgdFlat	1.7639115998	1.9997287269

0,1 :Kpi,Kpipi0

Name	Value	Error
N	1411.9257063958	39.1994089055
Nbkgd1	9.2427031494	4.5343207626
Nbkgd2	51.7757258805	11.1900484687
Nbkgd3	81.6833745029	11.8493402311
NbkgdFlat	11.4850911658	5.7586424775

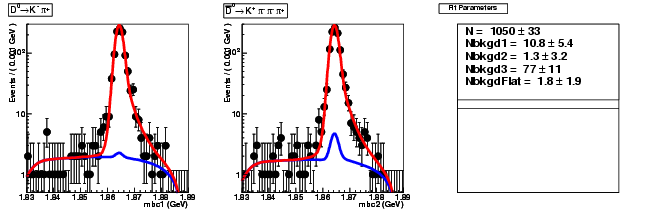

0,3 :Kpi,Kpipipi

Name	Value	Error
N	1050.1845850369	33.2924521148
Nbkgd1	10.7640254321	5.4109169863
Nbkgd2	1.3161629651	3.2028376802
Nbkgd3	77.0246651256	10.7929566017
NbkgdFlat	1.8186152356	1.9461923517

—- Mode 1 —-

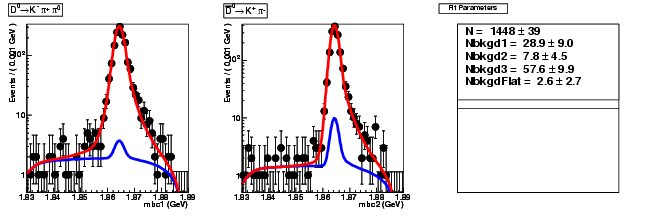

1,0 : Kpipi0, Kpi

Name	Value	Error
N	1448.1754350615	39.3191330889
Nbkgd1	28.9261813095	8.9763279692
Nbkgd2	7.8201783657	4.5218651497
Nbkgd3	57.5785582060	9.8940633684
NbkgdFlat	2.5513438352	2.6836471052

1,1: Kpipi0,Kpipi0

Name	Value	Error
N	2787.7829556511	56.4021751241
Nbkgd1	64.5833506431	15.3276415869
Nbkgd2	60.1824468114	14.6158758477
Nbkgd3	241.2761559764	21.4426369691
NbkgdFlat	154.1536049825	18.7709070853

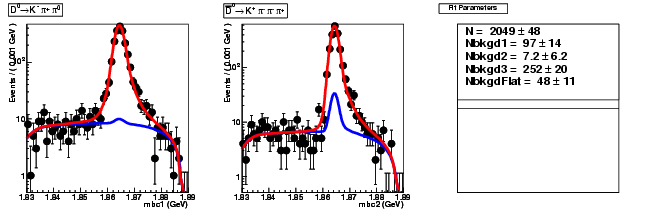

1,3 : Kpipi0, Kpipipi

Name	Value	Error
N	2049.1572838789	47.6305711918
Nbkgd1	96.8197410955	14.4815827256
Nbkgd2	7.2130028126	6.1918417258
Nbkgd3	251.7212528108	19.7559474962
NbkgdFlat	48.1300828262	10.7906886182

—- Mode 3 —-

3,0 : Kpipipi, Kpi

Name	Value	Error
N	994.1336647245	32.1818271103
Nbkgd1	1.8208995427	1.9706010960
Nbkgd2	0.0000009673	5.5171209321
Nbkgd3	63.1720661126	10.2614704507
NbkgdFlat	0.8551775993	1.8361071696

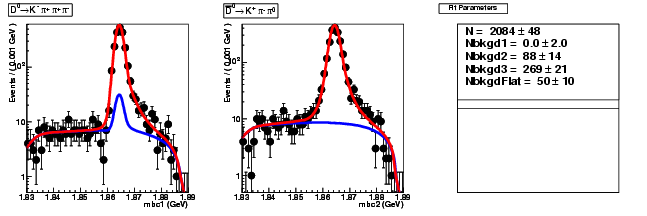

3,1 : Kpipipi, Kpipi0

Name	Value	Error
N	2084.1607010480	48.0671935681
Nbkgd1	0.0001036741	1.9649633434
Nbkgd2	88.3519833871	14.2205018589
Nbkgd3	268.8204284684	20.7163884814
NbkgdFlat	49.9237046538	10.2941622463

3,3: Kpipipi, Kpipipi

Name	Value	Error
N	1671.2238954246	42.5160540169
Nbkgd1	3.3346903057	3.6135637601
Nbkgd2	0.0008720196	1.7809569167
Nbkgd3	342.1870782973	21.7369053373
NbkgdFlat	18.2931713415	5.7452695189

—- Mode 200 —-

200,200: Kpipi, Kpipi

Name	Value	Error
N	2086.4646756842	46.2822512443
Nbkgd1	0.0000001040	0.8317858868
Nbkgd2	0.0000421162	1.3390710100
Nbkgd3	146.6367283743	14.2183014753
NbkgdFlat	0.0000002552	0.6911491666

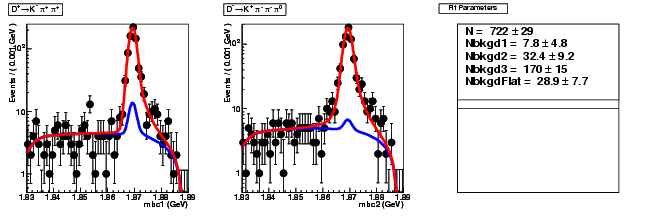

200,201: Kpipi, Kpipipi0

Name	Value	Error
N	722.4211754445	28.7749726840
Nbkgd1	7.8073293919	4.8311093398
Nbkgd2	32.3709711425	9.2086449845
Nbkgd3	170.4431317792	15.4725856283
NbkgdFlat	28.9276544328	7.7088906090

200,202: Kpipi, Kspi

Name	Value	Error
N	283.8792119112	17.2494813151
Nbkgd1	2.3515126599	3.1260492213
Nbkgd2	2.0734515761	1.9910319040
Nbkgd3	21.6265241855	5.5176526932
NbkgdFlat	0.0563207520	2.4066103260

200,203: Kpipi, Kspipi0

Name	Value	Error
N	782.0003835281	28.8855198289
Nbkgd1	0.0000000530	5.7271682753
Nbkgd2	42.1717952437	8.7211603408
Nbkgd3	56.7920660700	9.1929741414
NbkgdFlat	14.0349168885	5.1539917527

200,204: Kpipi, Kspipipi

Name	Value	Error
N	423.9352394440	21.2195487554
Nbkgd1	0.0000000714	1.0470123534
Nbkgd2	9.0122261550	4.4403312973
Nbkgd3	52.3118966631	8.5090705525
NbkgdFlat	5.7449262730	2.8928038983

200,205: Kpipi, KKpi

Name	Value	Error
N	168.6494187196	13.3067817672
Nbkgd1	1.0195051732	1.4377968040
Nbkgd2	23.7987198461	5.5576679304
Nbkgd3	6.6177515326	3.1300718087
NbkgdFlat	0.0000004247	1.8785049354

—- Mode 201 —-

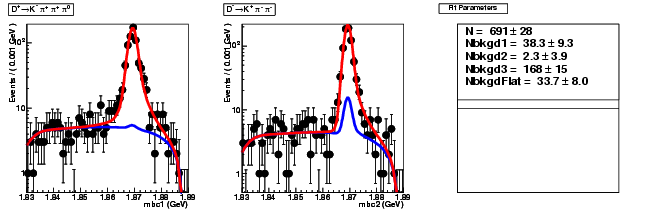

201,200: Kpipipi0, Kpipi

Name	Value	Error
N	691.3326222729	28.1020310649
Nbkgd1	38.2680475290	9.3315659014
Nbkgd2	2.2982628603	3.8946372065
Nbkgd3	168.4818836516	15.2721271807
NbkgdFlat	33.6507401249	8.0234170568

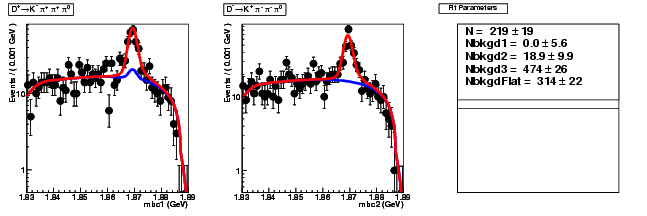

201,201: Kpipipi0,Kpipipi0

Name	Value	Error
N	219.4039991691	18.7704686115
Nbkgd1	0.0000404349	5.6377056118
Nbkgd2	18.9478445984	9.8947695287
Nbkgd3	474.4008177005	25.8220612275
NbkgdFlat	314.3936577875	21.8341370171

201,202: Kpipipi0, Kspi

Name	Value	Error
N	107.1768854810	10.9093935933
Nbkgd1	9.9745291193	4.0010722206
Nbkgd2	0.0000143507	1.1838334714
Nbkgd3	12.8635801861	4.3342381093
NbkgdFlat	0.0000014099	2.3642284334

201,203: Kpipipi0, Kspipi0

Name	Value	Error
N	221.8507117849	16.7731421060
Nbkgd1	8.2487799767	5.5096955343
Nbkgd2	7.7776554369	5.4653813941
Nbkgd3	140.4625220015	14.0814472800
NbkgdFlat	65.5982119287	10.7667581990

201,204: Kpipipi0, Kspipipi

Name	Value	Error
N	139.2759624822	13.6892241448
Nbkgd1	3.2123887819	5.0865467338
Nbkgd2	14.1031300293	5.6300385866
Nbkgd3	161.0516175551	14.5973889574
NbkgdFlat	59.4297928651	10.3003964562

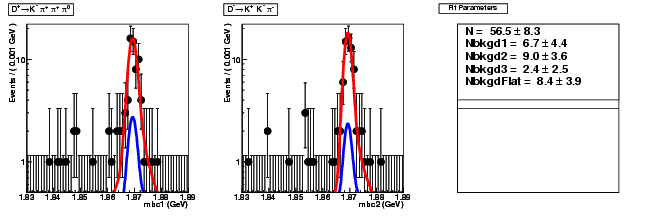

201,205: Kpipipi0, KKpi

Name	Value	Error
N	56.5202810324	8.3355321091
Nbkgd1	6.7039028534	4.3634986527
Nbkgd2	8.9672165162	3.6124784137
Nbkgd3	2.4474407841	2.4578301301
NbkgdFlat	8.3581652201	3.8902536053

—- Mode 202 —-

202,200: Kspi, Kpipi

Name	Value	Error
N	287.1830718707	17.2485322271
Nbkgd1	0.4830877599	1.6276237115
Nbkgd2	0.0000000014	1.7007168067
Nbkgd3	16.3273080883	5.0236231484
NbkgdFlat	0.0000090765	1.0717348693

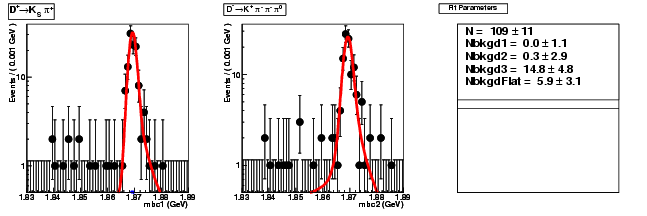

202,201: Kspi, Kpipipi0

Name	Value	Error
N	109.0136811869	10.8343839361
Nbkgd1	0.0000000012	1.0941885749
Nbkgd2	0.3316998773	2.8743355728
Nbkgd3	14.8048506885	4.7624803356
NbkgdFlat	5.8630566464	3.0696870752

202,202: Kspi, Kspi

Name	Value	Error
N	39.2191100644	6.4730691192
Nbkgd1	4.0282210803	2.4441598138
Nbkgd2	0.0026977901	4.4477359139
Nbkgd3	1.7101214377	1.6668864195
NbkgdFlat	0.0000000856	0.6605951386

202,203: Kspi, Kspipi0

Name	Value	Error
N	103.9274516257	10.5413428591
Nbkgd1	0.0000010411	0.6082803781
Nbkgd2	4.7511051011	2.7104252056
Nbkgd3	10.3192909214	4.0193302643
NbkgdFlat	1.9845115999	1.7991051590

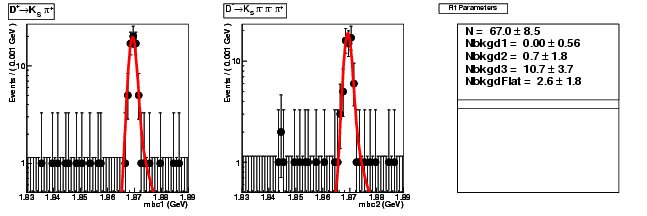

202,204: Kspi, Kspipipi

Name	Value	Error
N	66.9772358825	8.4694656553
Nbkgd1	0.0000005065	0.5618914701
Nbkgd2	0.7148460089	1.8074129222
Nbkgd3	10.7387905872	3.7398281839
NbkgdFlat	2.5657918271	1.8136146049

202,205: Kspi, KKpi

Name	Value	Error
N	23.1143432963	5.1322091067
Nbkgd1	0.0000000016	1.4512452674
Nbkgd2	3.4514380151	2.0174072715
Nbkgd3	7.4240944756	3.1847389327
NbkgdFlat	0.0000000373	0.6914578334

—- Mode 203 —-

203,200: Kspipi0, Kpipi

Name	Value	Error
N	698.6105283658	27.3931098869
Nbkgd1	41.2573007951	8.6550893935
Nbkgd2	0.0000004672	2.0305943319
Nbkgd3	65.5692460133	9.8637850391
NbkgdFlat	19.5904051901	5.8121776603

203,201: Kspipi0, Kpipipi0

Name	Value	Error
N	255.6270330409	17.6379362995
Nbkgd1	11.1369901351	5.8961397416
Nbkgd2	0.0000024340	2.3900185323
Nbkgd3	118.3767584907	13.1164940552
NbkgdFlat	47.9195854687	9.0028336554

203,202: Kspipi0, Kspi

Name	Value	Error
N	98.1057254401	10.3330689648
Nbkgd1	6.7654901100	3.3345499521
Nbkgd2	3.5626492409	2.3242912286
Nbkgd3	10.7543765227	4.1378640979
NbkgdFlat	1.7904031839	2.4744864273

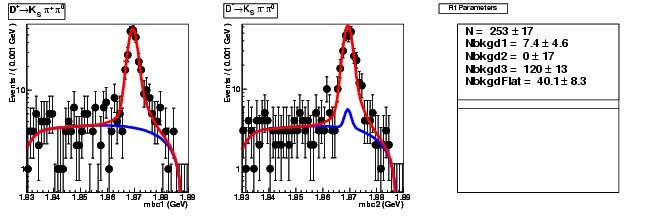

203,203: Kspipi0,Kspipi0

Name	Value	Error
N	252.7774472706	17.4179470233
Nbkgd1	7.4195074544	4.6288127536
Nbkgd2	0.0000204999	17.2846552790
Nbkgd3	119.7780368506	13.1784814063
NbkgdFlat	40.1015714655	8.2743427496

203,204: Kspipi0, Kspipipi

Name	Value	Error
N	148.4608714249	13.5740394697
Nbkgd1	6.0715450031	4.4301645947
Nbkgd2	0.0000021085	1.1732489635
Nbkgd3	120.5210283078	13.0197657869
NbkgdFlat	56.9380770569	9.2862851212

203,205: Kspipi0, KKpi

Name	Value	Error
N	51.8667259677	7.8880328892
Nbkgd1	5.0089180706	3.2665589631
Nbkgd2	8.9226677003	3.5222731847
Nbkgd3	28.4596652362	6.0368947720
NbkgdFlat	5.7411543902	3.6322606002

—- Mode 204 —-

204,200: Kspipipi, Kpipi

Name	Value	Error
N	429.9600463963	21.4413746563
Nbkgd1	15.0003530334	5.2631292020
Nbkgd2	0.0000006890	0.8792425991
Nbkgd3	57.7474795336	8.9308259900
NbkgdFlat	5.2670741292	2.8193142863

204,201: Kspipipi, Kpipipi0

Name	Value	Error
N	139.8763525573	13.9900717582
Nbkgd1	0.0000951029	9.4750636070
Nbkgd2	2.7137422930	5.1501953024
Nbkgd3	210.5097863275	16.8773388187
NbkgdFlat	95.9226669550	11.9255924445

204,202: Kspipipi, Kspi

Name	Value	Error
N	65.3096442863	8.3600606008
Nbkgd1	4.1440558534	2.4922997685
Nbkgd2	1.5075492084	1.7093718168
Nbkgd3	17.1584564348	4.6803745863
NbkgdFlat	2.8631122221	2.5411537988

204,203: Kspipipi, Kspipi0

Name	Value	Error
N	144.9397076085	13.4126889720
Nbkgd1	1.1421250606	3.1199901660
Nbkgd2	8.1060727774	4.8126490793
Nbkgd3	113.0225970054	12.5328900151
NbkgdFlat	43.7891741415	8.9614484494

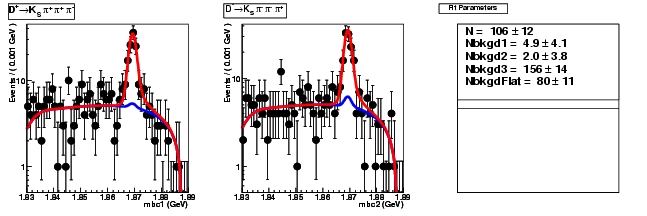

204,204: Kspipipi, Kspipipi

Name	Value	Error
N	106.0621734722	11.6507833264
Nbkgd1	4.9357521099	4.0959572746
Nbkgd2	1.9814193920	3.8098599602
Nbkgd3	156.2762859597	14.4866479395
NbkgdFlat	79.7305806038	11.3881671309

204,205: Kspipipi, KKpi

Name	Value	Error
N	36.7607038990	7.1412299464
Nbkgd1	0.3707425821	1.3878330379
Nbkgd2	4.1832266661	2.7586320285
Nbkgd3	94.8396660199	10.5511604749
NbkgdFlat	6.8430116303	3.7580238409

—- Mode 205 —-

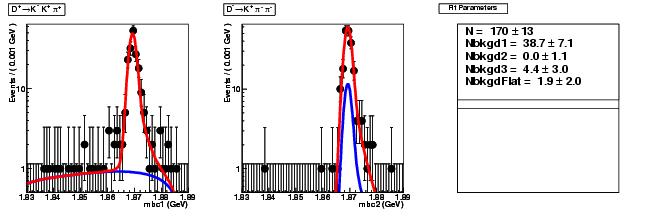

205,200: KKpi,Kpipi

Name	Value	Error
N	169.9543278482	13.4779855203
Nbkgd1	38.6919452293	7.1158814286
Nbkgd2	0.0000030646	1.0859887829
Nbkgd3	4.4321140549	2.9758894507
NbkgdFlat	1.9407488315	1.9684117762

205,201: KKpi,Kpipipi0

Name	Value	Error
N	70.3882205436	8.9631980138
Nbkgd1	5.8293940324	2.9754067652
Nbkgd2	3.8470714151	3.4980425439
Nbkgd3	11.6224448393	4.2764288722
NbkgdFlat	10.3778888683	4.2999121239

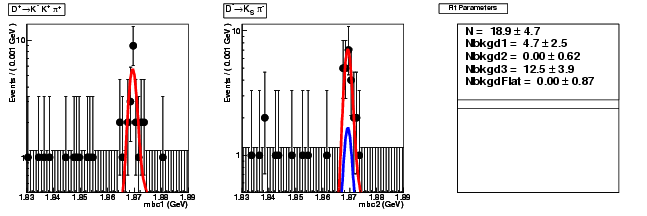

205,202: KKpi,Kspi

Name	Value	Error
N	18.8512187662	4.6955584974
Nbkgd1	4.6790297793	2.4506833785
Nbkgd2	0.0000000017	0.6189798110
Nbkgd3	12.4540923445	3.8750721573
NbkgdFlat	0.0000093005	0.8691554007

205,203: KKpi,Kspipi0

Name	Value	Error
N	86.4721071326	10.0608302401
Nbkgd1	7.3122542658	3.8014999488
Nbkgd2	0.0000026200	3.0499752160
Nbkgd3	29.8204876868	6.7974000504
NbkgdFlat	17.3943552199	5.3156037672

205,204: KKpi,Kspipipi

Name	Value	Error
N	42.1300329085	7.5542536033
Nbkgd1	6.0263780886	3.0568168988
Nbkgd2	1.3987486602	1.7751009543
Nbkgd3	95.0561713384	10.5827375914
NbkgdFlat	5.3897287411	3.2764018656

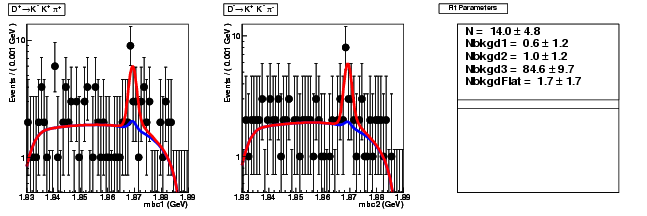

205,205: KKpi, KKpi

Name	Value	Error
N	14.0342659329	4.7512334575
Nbkgd1	0.6435134743	1.1620778723
Nbkgd2	1.0444037057	1.2202276065
Nbkgd3	84.6071024263	9.6723024958
NbkgdFlat	1.6734986607	1.6696510563

dhad fit widede -t d --tag d --qsub

Log

dhad yield widede -t d  --tag d --qsub

Log
