D-Hadronic Analysis - 9.03

Table of Contents

Overview

Objective
Reproduce the 281/pb signal MC in new release.
Environment
The CLEOG simulation was done in release 20080624_MCGEN. The PASS2 reconstruction was done in 20041104_MCP2_A_1 ( see CodeReleases description ). The NTuple was created with the HadronicDNTupleProc module compiled in release 20080228_FULL.
Summary
We traced several places in order to find the source of the MC difference. The whole process of this procedure can be viewed as a diagram below. There are three places which account for the change, (indicated yellow in the diagram). A grand comparison table was made to summarize (see table ).

We figured that to fit the new signal MC, one has to use new lineshape function along with a few new parameters and tweaking a factor in the fitting code. A detailed description and a summary table can be seen at table. From there, we knew that the biggest resource of this difference comes from the updated DECAY.DEC file.

Comparing the DECAY.DEC file between 'Original' (2005) and the 'Defult' (2008), we can see that for D^+, there were 59 modes unchanged (common modes), but all of their decay ratios have been changed (see table ). 14 modes were removed (see table ), and 30 new modes were added (see table). For D0, there were 72 modes unchanged (see table ), 7 modes added (see table), and 56 new modes added (see table).

A similar comparison table for the evt.pdl files between 'Original' and 'Default' can be seen at table . Certain particles related with the DHad decay are selected in this table (see table).

Diagram

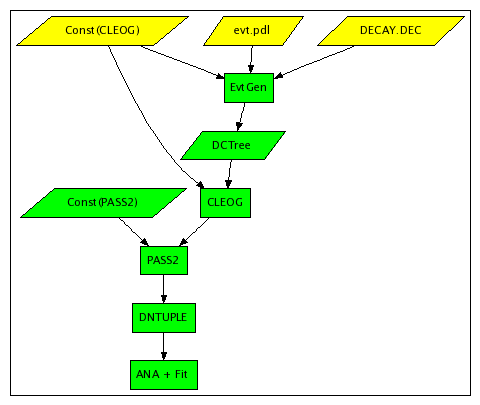

The process of tracing the MC difference. The "Yellow" process in the diagram means the sources contribute to the yield difference in MC.

./9.03/fig/trace.png

Figures

  1. Virtual photon Energy distribution
    1. Original (7.06) => figure
    2. New Release (Regular) => figure
    3. Old CLEOG constants (Regular3) => figure
    4. Four-vector Decay Tree (Regular4) => figure
  2. Center of Mass Energy
    1. Default => figure
    2. Original (7.06) => figure
    3. 4Vector => figure
    4. CLEOG constants => figure
    5. CLEOG&PDL&DEC => figure
  3. Ψ(3770) Energy distribution
    1. Original (7.06) => figure
    2. New Release (Regular) => figure
  4. Radiate photon Energy
    1. Original (7.06) => figure
    2. Default (Regular) => figure
    3. Overlay => figure
  5. Difference of the yields between original and various new tests
    1. Default => figure
    2. Pass2 => figure
    3. 4Vec => figure
    4. DEC => figure
    5. EBeam => figure
    6. PDL&DEC => figure
    7. EvtGen => figure
    8. LineShape => figure
    9. Factor => figure
    10. EvtFac => figure
    11. PDL&DEC with new fitting code => figure
    12. EBeam with new fitting code => figure
    13. DEC with new fitting code => figure
  6. Fitting mBC
    1. Original (7.06) => figure
    2. Default => figure
    3. Pass2 => figure
    4. 4Vec => figure
    5. DEC => figure
    6. EBeam => figure
    7. PDL&DEC figure
    8. EvtGen => figure
    9. LineShape => figure
    10. Factor (New Default) => figure
    11. EvtFac => figure
    12. PDL&DEC with new fitting code => figure
    13. EBeam with new fitting code => figure
    14. DEC with new fitting code => figure

Tables

  1. Grand Comparison Table => table
  2. Grand comparison table with new fitting code => table
  3. New CLEOG and New DNtuple
    1. Compare yields signal 7.06 => table
    2. Single Signal Efficiency => table
    3. Compare signal efficiency with 7.06 => table
  4. Only New DNtuple - regular1
    1. Compare yields signal 7.06 regular1 => table
    2. Compare yields regular and regular1 => table
    3. Compare yields data 7.06 regular => table
  5. Old DEC file, new release - regular2
    1. Compare yields signal 7.06 regular2 => table
    2. Compare yields signal regular regular2 => table
  6. Energy Shift Between Releases
    1. Ecm Energy for MC-20050214, MC-20080624, and Data 31-37 => table
    2. Ecm Energy with constants => table
    3. Ecm for Data 31-37 with different Dtuple releases => table
  7. Old CLEOG constants - regular3
    1. Compare yields signal 7.06 regular3 => table
    2. Old table => table
  8. Old DecayTree - regular4
    1. Compare yields Single_Dm_to_Kspipi0 7.06 regular4 => table
    2. Compare yields signal 7.06 regular4 => table
  9. Use old particle table listing - regular5 => table
  10. Virtual photon Energy => table
  11. Use old constants and old evt.pdl - regular8 => table
  12. More events in trouble mode - regular9 => table
  13. More event in trouble mode with old constants and old evt.pdl - regular10 => table
  14. New lineshapes - regular11 => table
  15. Remove the factor in the lineshape - regular12 => table
  16. Compare chisquare between "Factor" and original - regular12 => table
  17. List yields for original and default in signal and background => table
  18. Compare yields between EvtFac and Orginal - regular13 => table
  19. 'PDL&DEC' with new fitting code - regular14 => table
  20. 'EBeam' with new fitting code - regular15 => table
  21. 'DEC' with new fitting code - regular16 => table
  22. Common modes of the DECAY.DEC files between 'Original' (2005) and 'Default' (2008) for D+ => table
  23. Unique modes of the DECAY.DEC in 'Original' (2005) for D+ => table
  24. Unique modes of the DECAY.DEC in 'Default' (2008) for D+ => table
  25. Common modes of the DECAY.DEC files between 'Original' (2005) and 'Default' (2008) for D0 => table
  26. Unique modes of the DECAY.DEC in 'Original' (2005) for D0 => table
  27. Unique modes of the DECAY.DEC in 'Default' (2008) for D0 => table
  28. Common particles of the EVT.PDL files between 'Original' and 'Default' => table
  29. Common particles of the EVT.PDL files between 'Original' and 'Default' - selected to DHad => table

Details

Date: 2010-01-22 15:18:31 EST
